Vermeer’s latest vacuum excavator, the XR2, features the newest advancement in hydro-excavation: a shaker deck that separates liquids and solids. This new system reduces hydro-excavator transport weights and allows operators to carry 1500 gallons of water to the job. The innovative technology of the XR2 demonstrates Vermeer’s dedication to driving the utility industry forward, as it decreases disposal expenses and allows for workers to stay on the jobsite longer due to increased efficiency.
Material excavated with the XR2 is fed through an onboard deceleration tank that exits through an airlock onto a shaker deck where solids and liquids are then separated. The solid material is moved by conveyor toward the rear of the machine where it is discharged and can be carried away or left on the jobsite, depending on the material. Used slurry water is pumped into one of the four XR2 holding tanks for disposal.
According to Adam Bates, product manager at Vermeer, the XR2 can help utility contractors mitigate utility strikes, improve operational efficiencies and create new opportunities. “Soft excavation methods are effective at reducing utility strikes, which have spurred the growth of the vacuum excavator market,” he explained. “However, DOT truck and trailer weight restrictions can impact the amount of material that crews can transport over the road, and the design of the XR2 helps teams get more hours of production.”
Digging performance

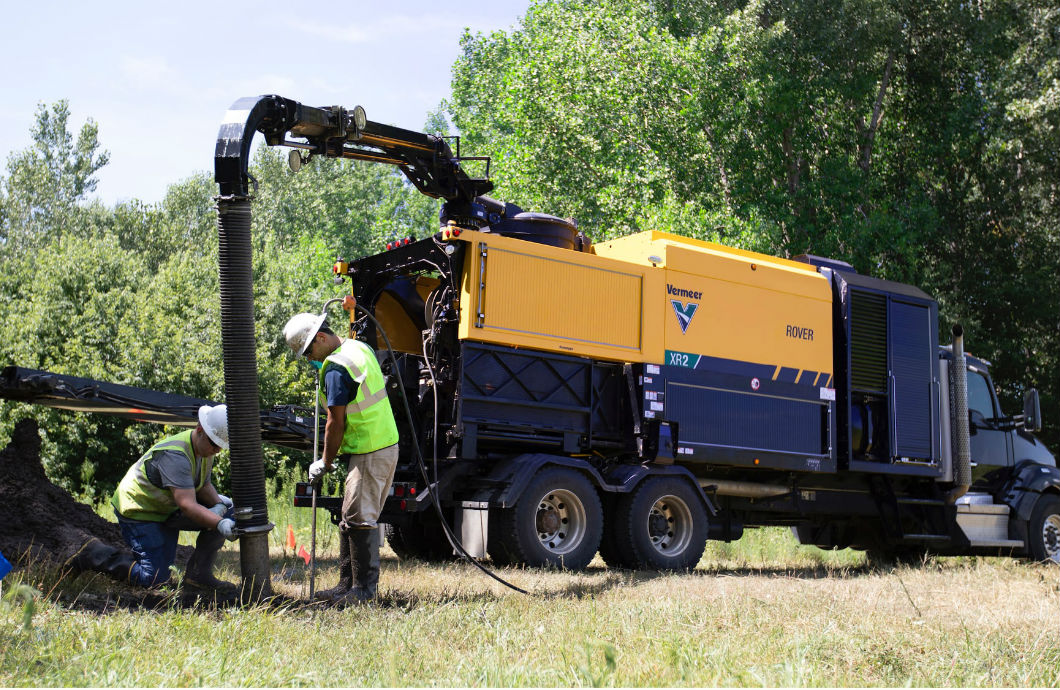

The Vermeer XR2 vacuum excavator has 1,500 gallons (5,678.1 L) of freshwater storage capacity capable of delivering up to 150 minutes of wand time at a rate of 10 gallons per minute (37.8 L/min). The adjustable pressure wand has a maximum output of 3,000 psi (206.8 bar) for challenging conditions but can be dialed back when working in sensitive areas.
The XR2 6-inch (15.2 cm) diameter hose produces up to 3,400 cfm (5,776.6 cmh) of suction for maximized digging performance. The excavator’s 21 foot (6.4 m) boom gives crews 260 degrees of swing, and the unit has a reverse flow feature to dislodge large chunks of material from the hose. All of these functions can be controlled through the unit’s fully functional remote.
For efficient truck repositioning, the design team integrated a unique power takeoff (PTO) feature that automatically transitions power from the vacuum system to the truck drive system and back. Crews no longer need to manually disengage and reengage the system every time the vacuum excavator is moved.
Separation design
Unlike traditional vacuum systems with spoil tanks, solids and liquids are separated using a shaker deck with auto-leveling capabilities up to a 10% grade. The deceleration tank includes six cyclones to aid with the separation process. The onboard, foldable 14 foot (4.3 m) solid material conveyor is controlled through the remote control, has a 180° rotating radius and a discharge height of 80 inches (203.2 cm) for efficient truck loading.
Capable of storing up to 1,500 gallons (5,678.1 L) of freshwater, the XR2 has four 500 gallon (1,892.7 L) liquid storage tanks. Processed liquids are first pumped into the unit’s reserved empty tank and then automatically switched to another tank as the freshwater supply is depleted and the reserve tanks fill up. The tanks are designed with sloped bottoms, so slurry can be efficiently pumped out before freshwater is replenished. Fresh and dirty water tank levels can be viewed anytime from the control station located on the side of the hydro-excavator.
Truck body

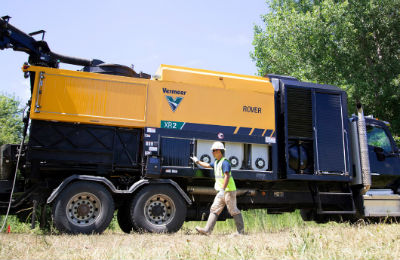

The Vermeer XR2 vacuum excavator is built on the back of a Kenworth T8800 truck with an Allison automatic transmission and Chelsea PTO. The unit has a curb weight of 39,000 pounds (17,690.1 kg), a freshwater transport weight of approximately 51,000 pounds (23,133.2 kg), at recommended capacity, and a return weight of an estimated 53,000 pounds (24,040.4 kg) when at the recommended full capacity of 10.5 ppg (1.26 SG) of slurry. With the conveyor in transport position, the truck measures 36 feet (11 m) long, has a width of 102 inches (259.1 cm) and a height of 138 inches (350.5 cm).
Expanding applications
“The XR2 was developed after listening to contractors talk about the limitations associated with traditional hydro-excavators. Contractors understand the soft excavation advantages of hydro-excavators but also felt limited by the production of many units because of weight concerns and water storage capacities. The design of the XR2 can help expand the use of vacuum excavation for everything from utility potholing and stitch boring to slot trenching and general construction.”
- Adam Bates
The Vermeer XR2 vacuum excavator was unveiled at the International Construction and Utility Equipment Exposition (ICUEE) and will be available in early 2020 in select regions. You can watch the unveiling on the Vermeer YouTube Channel.
