2017 Updates to Power Take-off Series by Muncie Power Products

If you're in the market for a new power take-off (PTO), you should know about some recent updates to the Muncie Power Products 82 Series, CS40/41 Series and CS10/11 Series power take-offs.

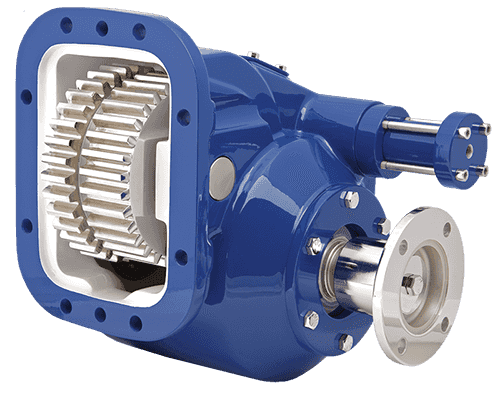

Updates were made to Muncie Power’s heavy duty 82 Series in early 2017. A new housing was created, allowing for a five-assembly to be offered in addition to its one- and three-assembly options. In addition, the five-assembly has allowed for clearance for direct mounting a piston pump. Muncie Power’s 82 Series’ dual, air-shift cylinder was also changed to fit the Eaton UltraShift PLUS transmission.

Key Features of the 82 Series:

• Max Torque - 500 lbs.ft.
• Max HP (@1000 RPM) - 95 HP
• Weight - 85 lbs.
• Up to 500 lbs.ft. torque capacity and 95 H.P. @1000 RPM: Power to drive high volume pumps, high CFM blowers
• Double acting air shift: Positive engagement and disengagement
• Two companion flange output types: Versatility for remote pump and mechanical drives
• Seven direct mount pump options: S.A.E. "B", "BB", "C", "D"; and DIN 5462 mounts
• Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
• Weight: 85 lbs.
• Housing Construction: Cast Iron
• Speed Ratios: 8
• Output Shaft Options: 9
• Rotatable Pump Flange: Standard
• Assembly Arrangements: 2

As of July 2016, the extra heavy duty CS40/41 Series and heavy duty CS10/11 Series, which are clutch shift PTOs designed for Allison World and Caterpillar automatic transmissions, became rated up to 4000 RPM due to improved bearings and as a result, can be used with water pumps for fire and rescue applications.

Key Features of the CS40/41 Series:

• Max Torque - 600 lbs.ft.
• Max HP (@1000 RPM) - 114 HP
• Weight - 69 lbs.
• Precision ground gears: High torque capacity with quiet operation
• Extra large bearings & components: High torque and durability
• 1410 series remote mount output shaft: For remote pump drives
• S.A.E. "C" and DIN 5462 direct mount options: Fits most popular pumps requiring high power input
• Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
• Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
• Standard pressure lubrication: No extra cost

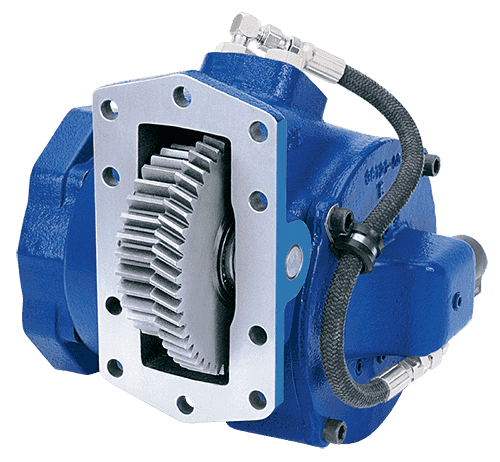

Key Features of the CS10/11 Series:

• Max Torque - 500 lbs.ft.
• Max HP (@1000 RPM) - 95 HP
• Weight - 68 lbs.
• Three remote mount output shafts in both keyed and flange types: Versatility for remote pump drives
• S.A.E. "B", "BB", and "C"; DIN 5462 direct mount pump options: Fits most popular pumps
• Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
• Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode
• Standard pressure lubrication: No extra cost
• Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
