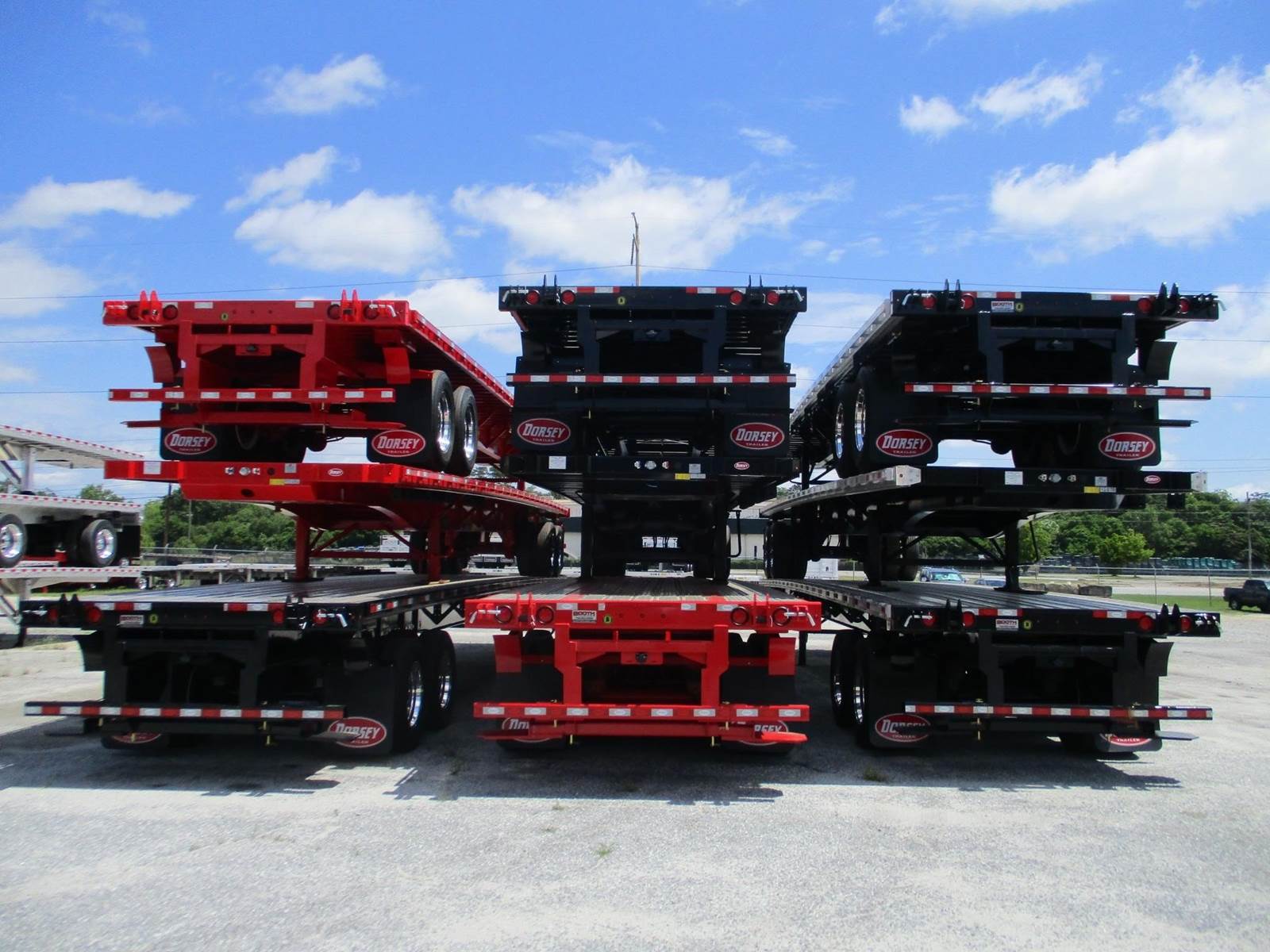

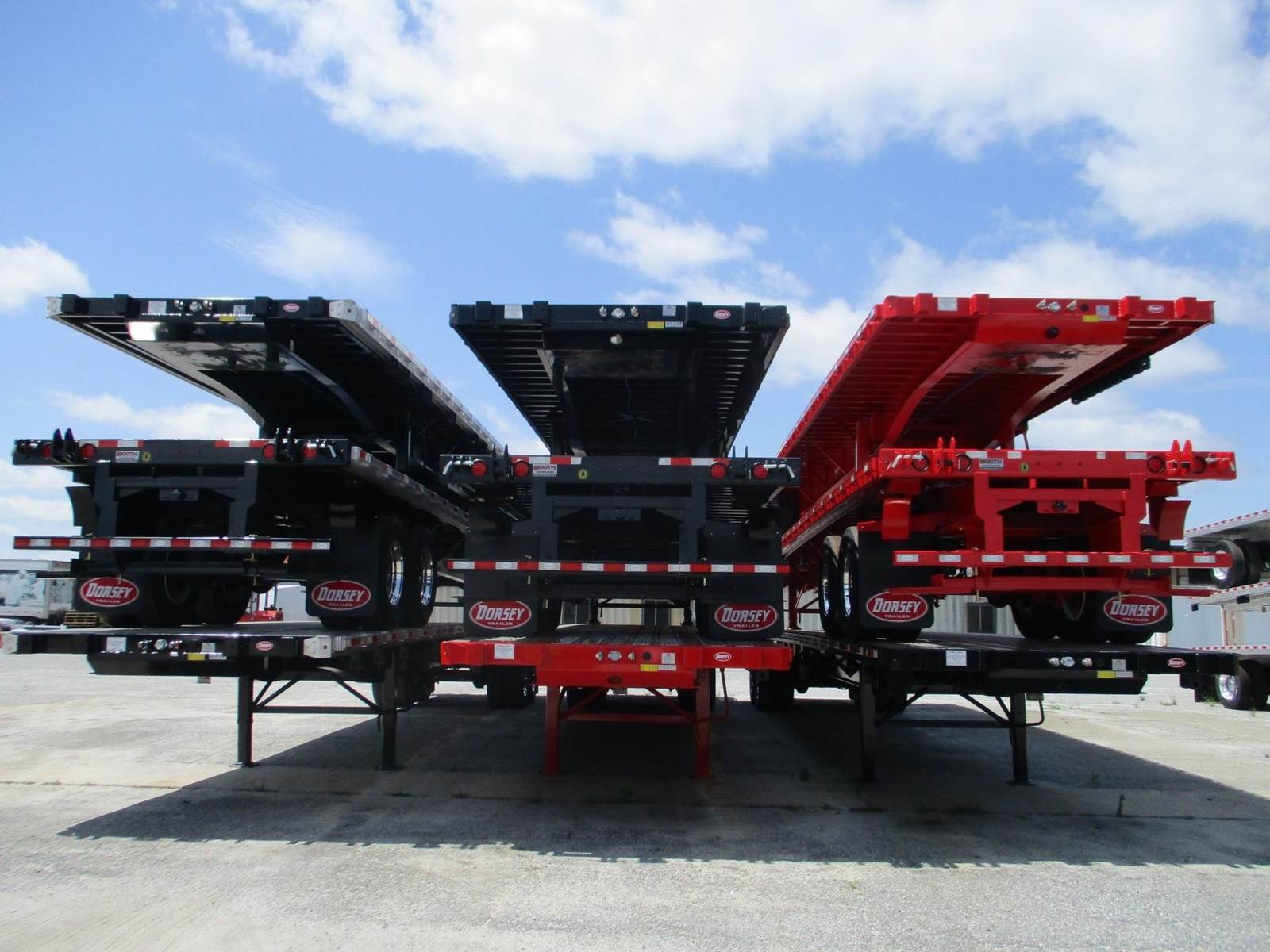

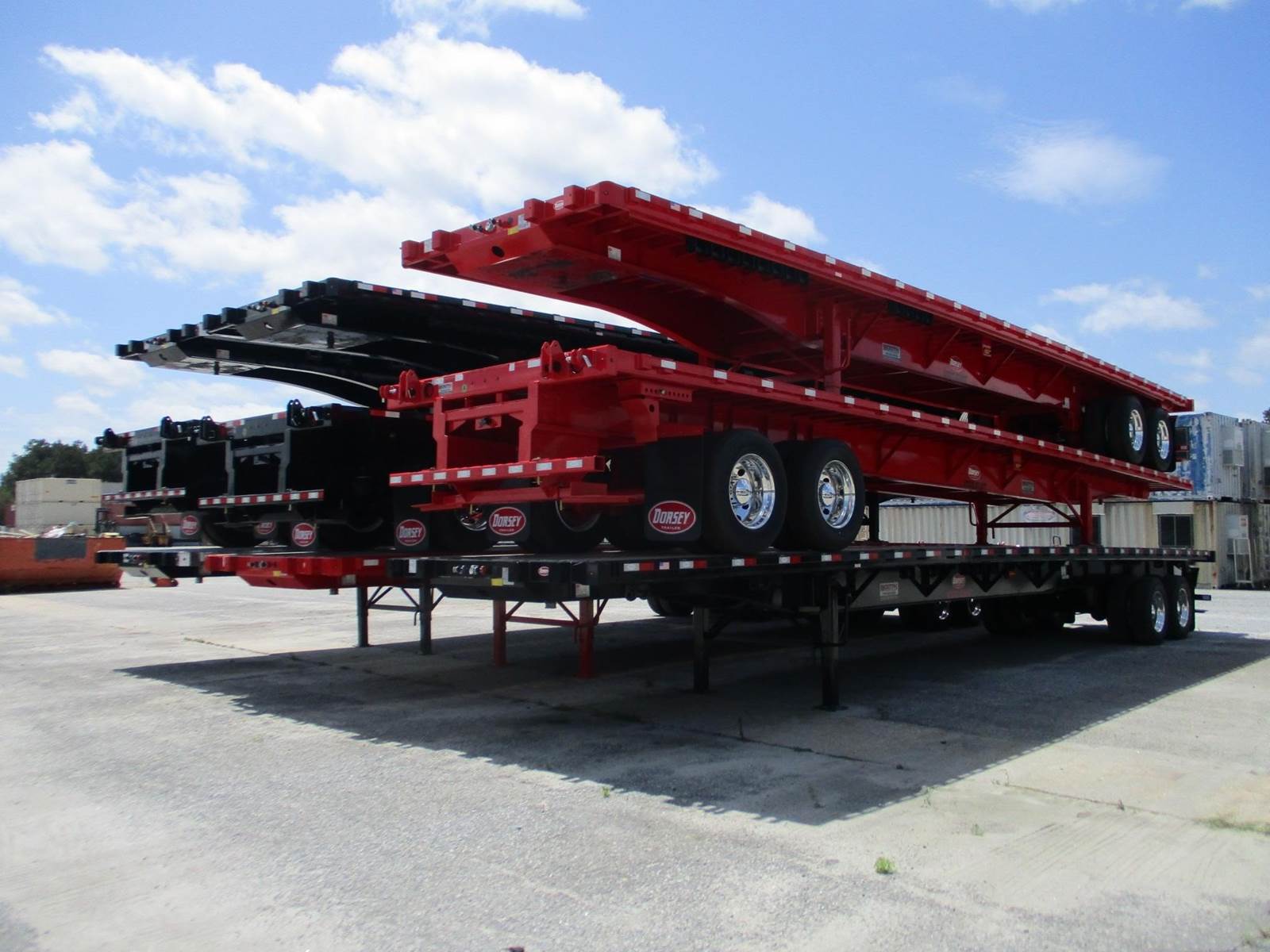

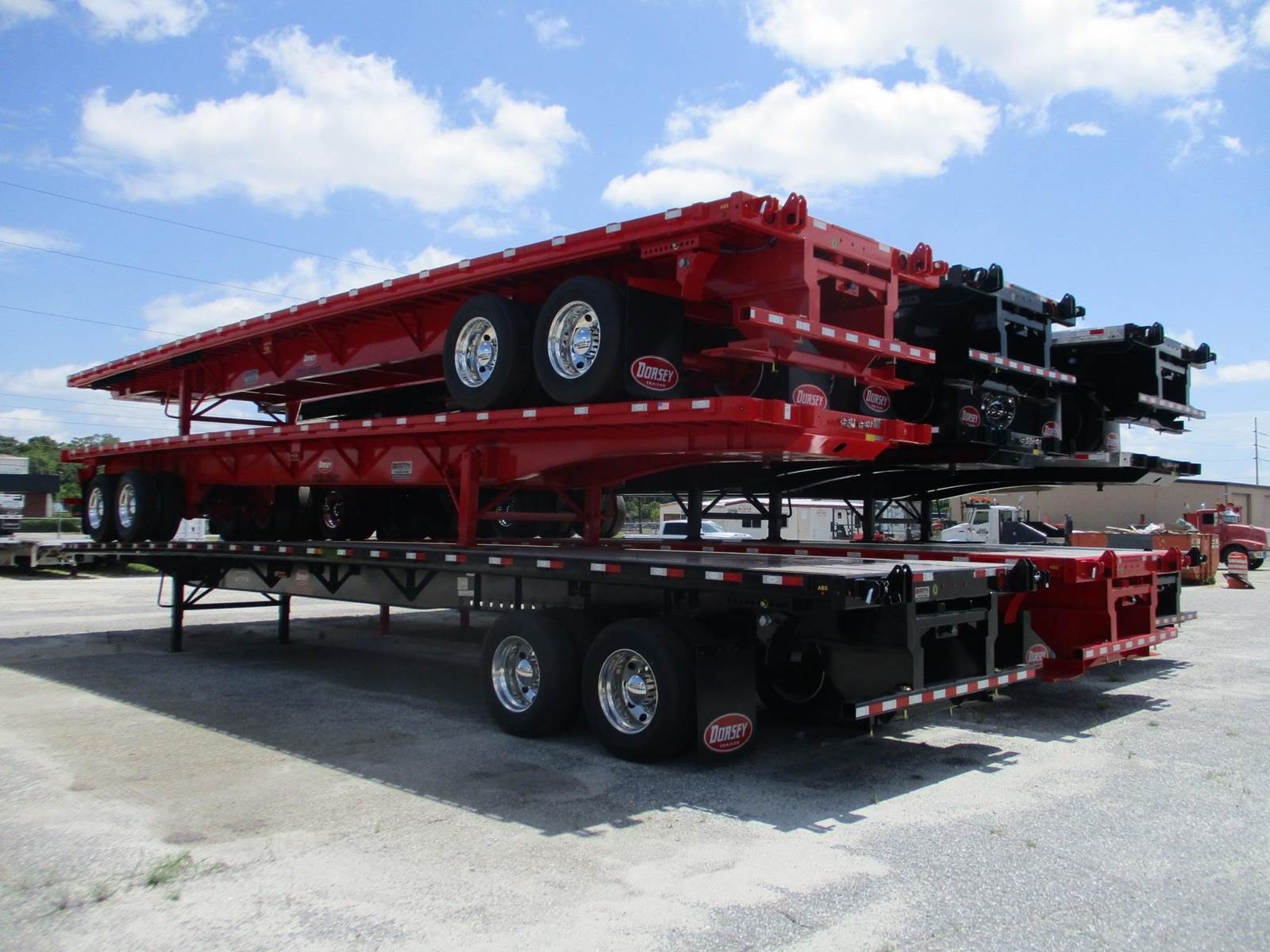

2026 Dorsey 45x102 Steel Flatbed Trailer - Air Ride, Fixed Axle

CAPACITY - Standard Beam Pkg - 80,000 GVWR (60,000 in 10' Span)
OVERALL LENGTH - 45'
OVERALL WIDTH - 8' 6"
KING PIN SETTING - 30" - Tapered Front
UPPER COUPLER PLATE - 1/4" * * * Powder Coated 5th Wheel Assembly * * *
UPPER COUPLER HEIGHT - 48"
MAIN FRAME - 26" PreCamb Beam-130K Tru-Strength Flanges * * * Limited Lifetime Mainbeam Warranty * * *
SIDE RAILS - 6" - 6.5# Per Foot
FLOOR SILLS - 4" Steel I-Beam 12" O.C. HD Pkg.
FLOOR DECKING - 1-1/8" HD Aluminum w/ 2 Nailers
WINCH TRACK - Steel Slide Entire Length of Drivers Side
WINCHES - 12 Sliding
LANDING GEAR - Two Speed - Jost A500
SUSPENSIONS - Air Ride - Hendrickson Intraax 23K - Fixed * * * HXL5 Wheel Ends * * *
SUSPENSION LOCATION - Set 66" to CL of Rear Axle to Rear of Trailer
AXLES - (2) 22.5K Capacity- Type 30 Chambers- Auto Slacks
AXLE SPACING - 49"
ABS SYSTEM - Wabco ABS System 2S/1M
PARKING BRAKES - All Axles
TIRES - 295/75R 22.5- Firestone
WHEELS - Disc - Hub Piloted - 22.5 - Polished Alum on 4 Outside(4 Steel Inside) Wheels
ANTI-SAIL MUD FLAPS - Behind Rear Axle
STAKE POCKETS - 24" O.C. Sides & 4 Across Front
RUB BAND STEEL   - 3/8" X 2-1/2" Recessed for DOT Tape
PIPE SPOOLS - Double
LIGHTS - Grote Ultra Blue Sealed Wiring Harness- 2 Micros Per Side & Mid Turn-2/3/2 Rear
FORK LIFT KIT MODELS - Univ. MT Lift Hauler- Moffet M55 & Princeton PB50 w/Folding Bumper(AK643)
FORK GUIDES - 4ft Forks Non-Tubular Guides
COUNTER BALANCE - 45' = 1250#
COUNTER BALANCE CLAUSE - MFG. Only Responsible For Issuses With Listed Forklift Models
PAINT - Black - PPG Epoxy Primer and Acrylic Polyurethane - Shot Blasted
