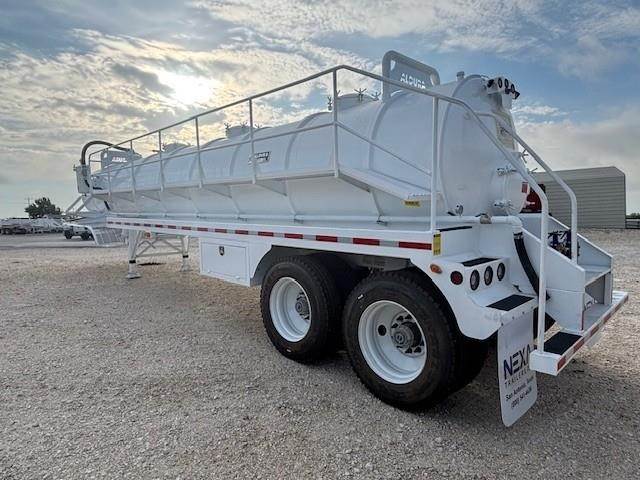

2025 ALDURA 130BBL Vacuum Tank Trailer

Aldura 130BBL Vacuum Steel Trailer Non-code

Capacity: 5,460 gal. + 2% Expansion
Commodity: Transportation of oilfield fluids such as water, mud, oil field waste.
Design Pressure: 17 PSI, tested at 23 PSI
Overall Length: 42 ft.
Height: 10' 5"
Weight: 17,350 lbs
Width: 102 in
Material: A-36 Carbon Steel
Suspension: Air suspension 60,000 lbs. capacity
Baffles: Two (2) of 1/4 in.
Bulkheads: 1/4 in. Non-Code ASME Shape
Compartments: Single
Overturn Protection: One (1), at back of tank
Shell: 1/4 in. A-36 Steel
Stiffeners: Eight (8) rolled of 3 in. C-channel profile
Welding: Inside and out, minimal tie-ins with mig welding
Outlet: Two (2) 4 in. butterfly valves at rear
Shut Off: Ball type primary in front manway and ball type secondary 12 Gal. on driver's side front with drain
Venting/Reliefs: 1-1/2" vacuum relief (370 CFM), 2" pressure relief (Adjustable, set at 10psi), both located at the top front of barrel; 2" blow down line at rear
Axles: Two (2) 30,000 lbs. each, wide, 77.5 in. track TP type with automatic slack adjuster
Brakes: Air brakes with two boosters FMVSS-121, ABS 4S/2M Bendix anti-lock brake system
Bumper: 6 in. X 4 in. tube per DOT
Frame: Full Length 3/16 in. Formed
Landing Gear: One (1) AMPRO28-JT
Tires: Eight (8) 11 X 22.5 R tires
Upper Coupler: Adjustable plate with king pin
Access Ladder: Two (2) stairway in the rear with thru-tread steps and in the middle of the tank
Manways: Two (2) on top of the tank , one (1) on the rear bulkhead and one (1) on top front. All of 20 in. domed style with plates swing bolts and wing nuts
Walkway: Driver's side tank length through-treaded walkway with toe-kicks and handrails
External Coating: Hempel two coats of polyurethane on an epoxy primer
Internal Liner: Hempel epoxy liner
Paint Prep: All steel surfaces shotblasted inside and out
Conspicuity tape: 3M Per DOT
Hose tray: Formed hose tray (10 GA) with 10 gauge brackets on both sides. throughout the tank
Lights: Sealed harness and LED lights per DOT. Two rear work lights with integrated switches
Mud Flaps: Four (4) anti-sail
Vacuum Manometer: One (1) located in the rear of the blow down line
Optional Fluid level: Level-sight rear or front located
Paint Color: Available in a variety of different colors
