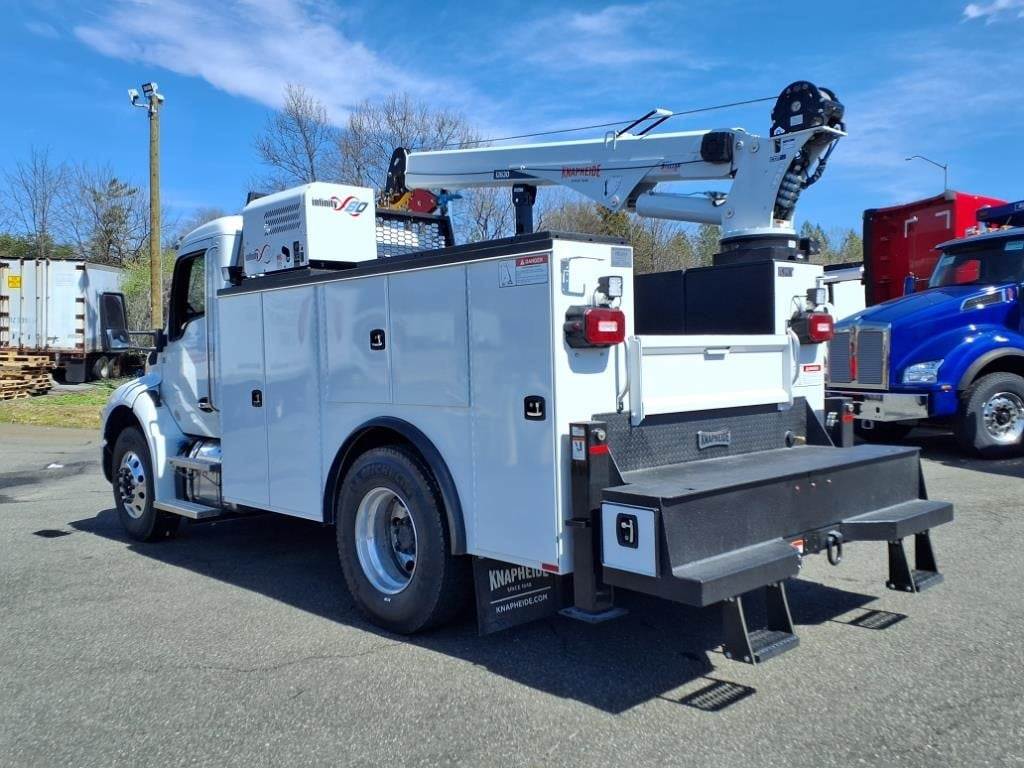

Product Description
Model Year: 2025
Model: T280
Engine: PACCAR PX-7 300 HP, 660 lb-ft Torque, Engine Brake
Transmission: Allison 2500RDS 5-speed
Front Axle: Dana Spicer E-1002IL, 10,000 lbs
Rear Axle: Dana Spicer S17-140, 16,000 lbs
Rear Suspension: Hendrickson HAS210L
Gross Vehicle Weight Rating (GVWR): 26,000 lbs
Wheelbase: 156 inches
Cab-to-Axle: 88.5 inches
Rear Axle Ratio: 5.29
Wheels: Front and Rear: Alcoa ULA18 aluminum
Tires: Front: Michelin X Line Energy Z 11R22.5 14PR, Rear: Michelin XDA5+ 11R22.5 14PR
Fuel Tank: 50-gallon aluminum
Exterior Color: White
Interior: Gray Foam Backing Cloth
Radio: Kenworth DEA710 AM/FM/WB/USB, Bluetooth
Seats: Cloth, Driver and Passenger
Kenworth Smart Wheel, power windows, power door locks, tilt/telescoping steering wheel, remote keyless entry, heated power mirrors.
Service/Utility Body:
Knapheide 6132DLHH-66K: 11 ft crane body with torq-isolator crane support system.
A-40 galvanneal compartments and doors.
3/16" treadplate floor and 10 gauge compartment tops and backs.
Full-seam continuously welded.
12 gauge bottom and end panels of compartments and double panel doors.
Exclusive 12-stage K-coat protection.
(6) recessed cargo tie-downs in floor - 6,000# capacity.
(2) heavy-duty aluminum grab handles.
LED stop/tail/turn lights, clearance lights, & backup lights.
24" work surface bumper with thru compartment, vise plate, pintle mount plate (pintle not included).
(2) Grip-Strut flex steps, (1) each side of rear tailshelf.
16" high double panel slam tailgate with center latch and flat space for tailgate graphics.
KnapLiner: Commercial grade spray-on bed liner applied to cargo floor, sides, compartment tops, bulkhead, tailgate, rear bumper, and entire front of body.
60" high side packs with automotive quality 3-pt T-handles.
1st Vertical Side Compartment: 7 drawer unit with 3-3" high drawers, 3-5" high drawers, and 1-7" high drawer (street side) / Gas bottle retainer (2 bottles), vented top & bottom; Full height vertical partition with 3 adjustable divider shelves (curbside).
2nd Vertical Side Compartment: 2 adjustable divider shelves with 4 dividers each (street & curb side).
1st Horizontal Side Compartment: Bolt bin storage unit (street side) / bolt-in divider shelf with 8 dividers (curbside).
3rd Vertical Side Compartment: 2 adjustable divider shelves with 4 dividers each (street side) / Fixed shelf (curb side).
Master Locking System: Secures one entire side of compartments with a padlock.
Cab Protector: with punched window.
Auxiliary Lighting: (4) LED work lights installed.
LED Compartment Lights installed in each compartment except bottle gas compartment.
Strobe system: S/T/T backup lights with integrated strobes & built-in reflectivity; (2) amber LED strobe lights installed on front grille.
Hydraulic out / hydraulic down outriggers at curbside and hydraulic down at street side.
Backup Alarm: 97 db audible alarm.
Finish Paint: Body interior / exterior painted single stage to match chassis color.

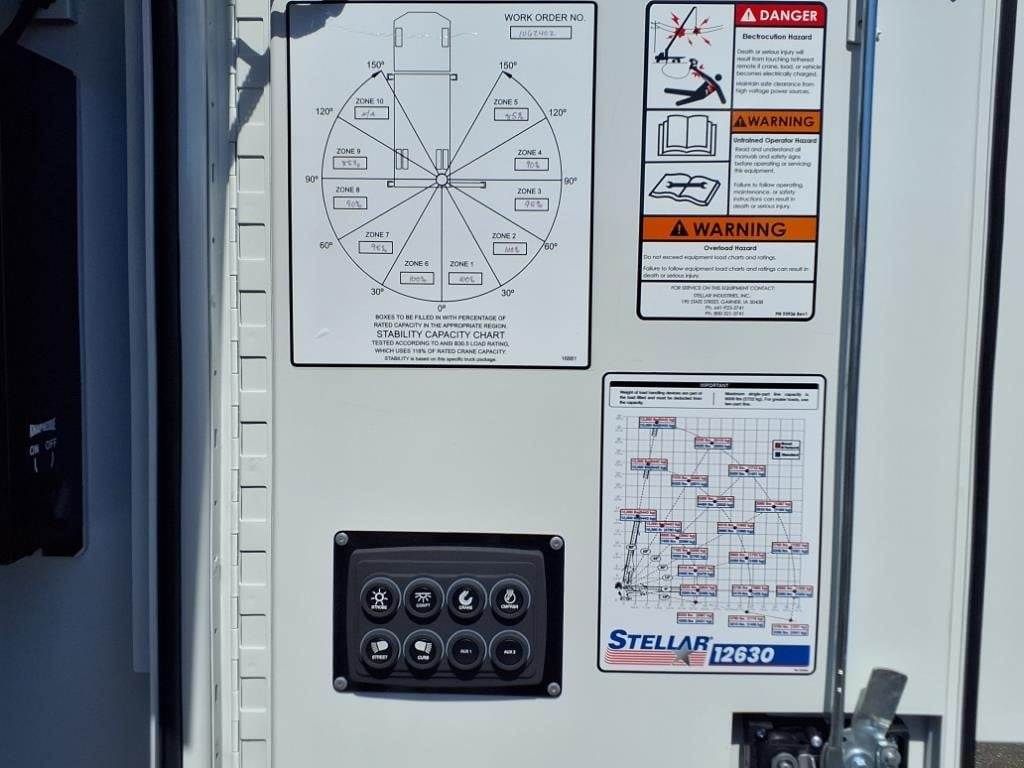

Crane Specifications:
Stellar 12630 Pro Service Crane: 12,000 lbs max lifting capacity (66,000 ft-lbs).
30' hydraulic reach.
Planetary winch.
Double-acting cylinders with integral holding valves.
Filters, crane hook, snatch block, anti-two block device & hydraulic shutdown.
7/16" cable.
Boom support.
Wireless remote control with backup pendant control.
PTO, hydraulic pump for crane, hydraulic reservoir with guard.
Remote docking/charge station for crane remote, mounted on seat toolbox.
Control Panel: Power Cell, controller, and (8) button switch panel in the rear crane compartment.
CAN-bus system with continuous working load of 115 amps, with built-in overload current protection.
LCD display installed in cab.
Dual LED boom tip light installed and wired to control panel.
Other Important Components:
Hydraulic Air Compressor: Boss 180 - 80 CFM @ 100 PSI (60 CFM @ 150 PSI) hydraulic rotary screw compressor with Reelcraft 50' x ? " hose reel and roller fairlead through the right rear compartment.
FLR system included with compressor.
Welder mounting plate installed on the street side compartment top at the rear.
OEM backup camera installed.
Safety Kit: 2.5# lb fire extinguisher & triangle reflector kit.
CSP: Install decals and mud flaps.
