John Deere AT224009 Boom

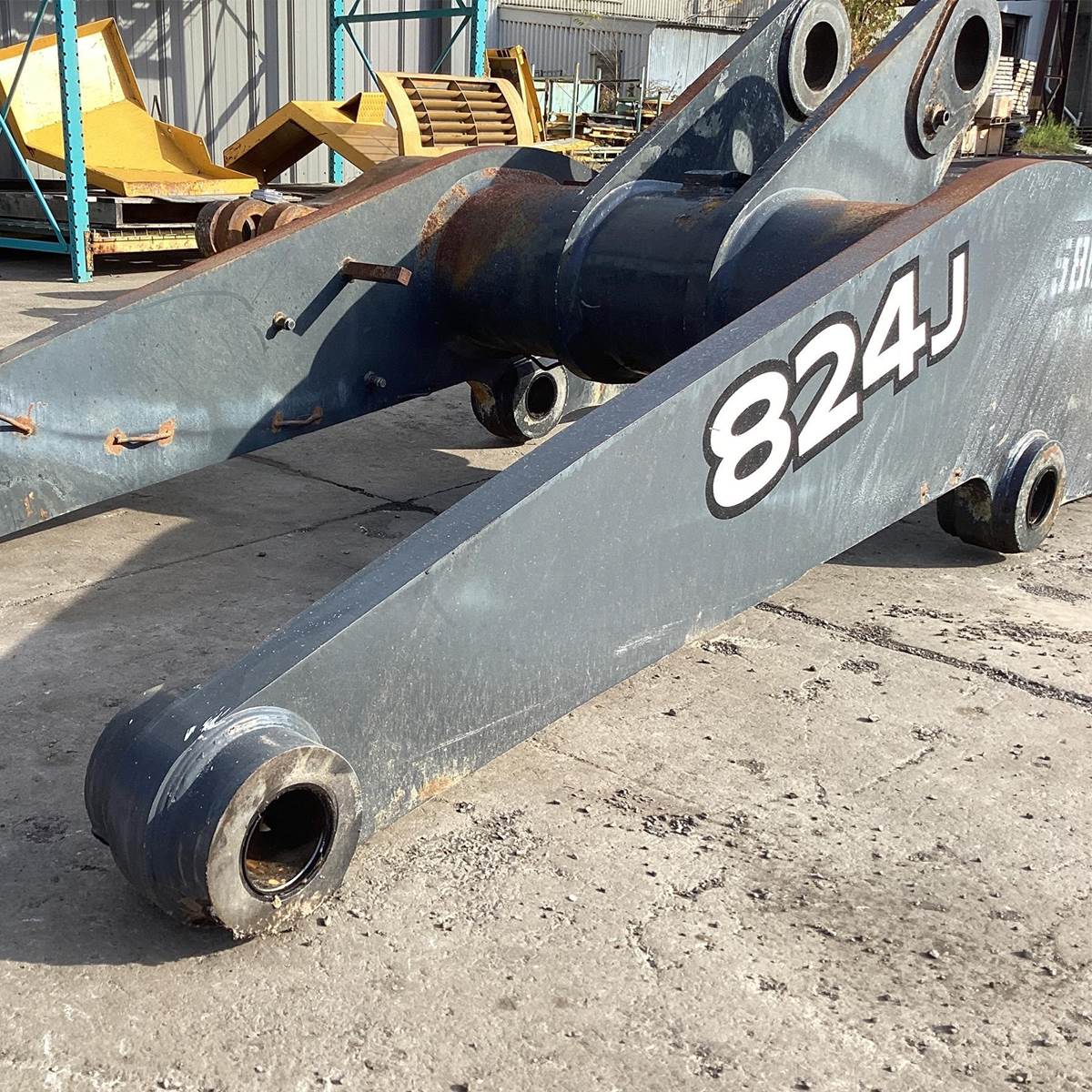

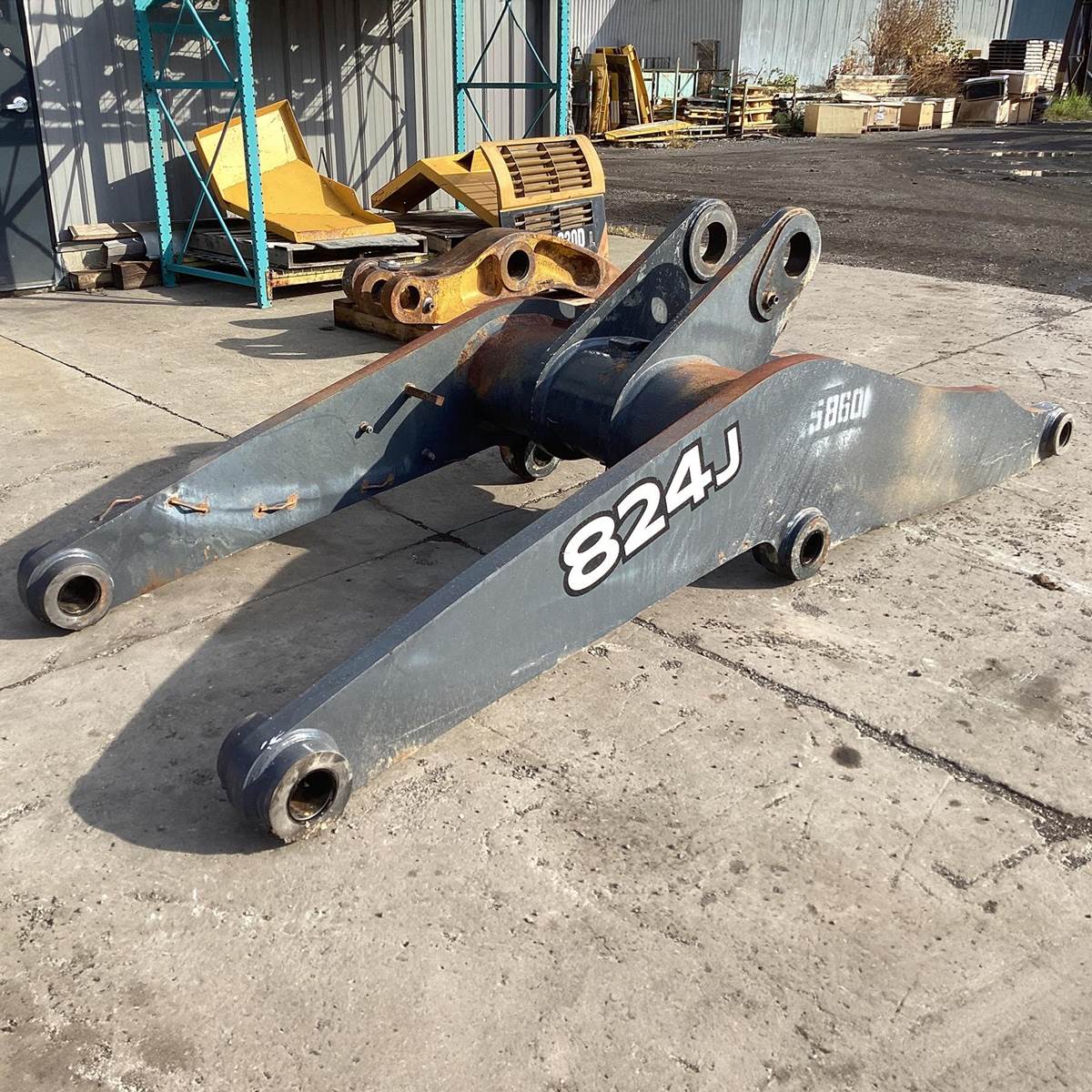

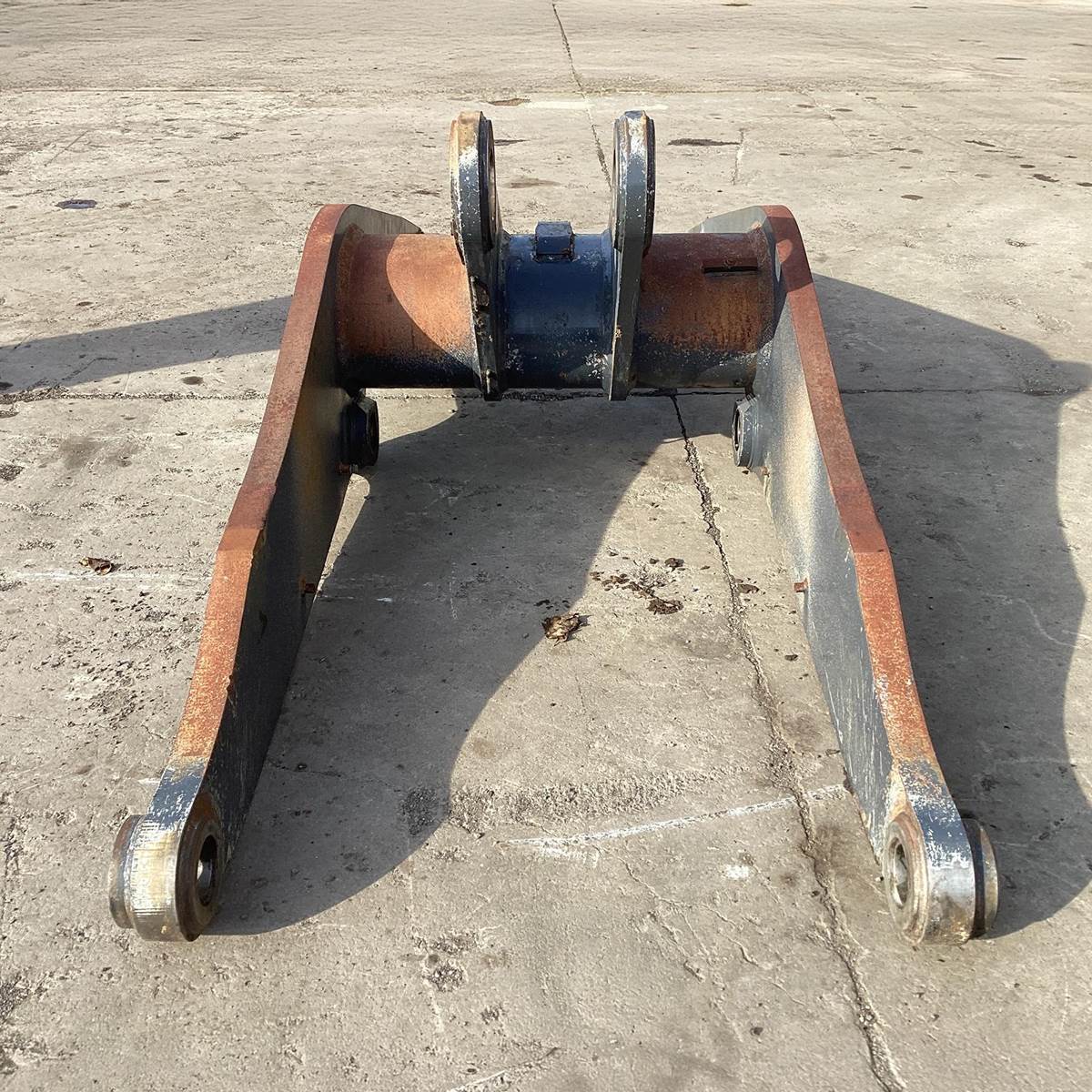

John Deere 824J Wheel Loader Boom

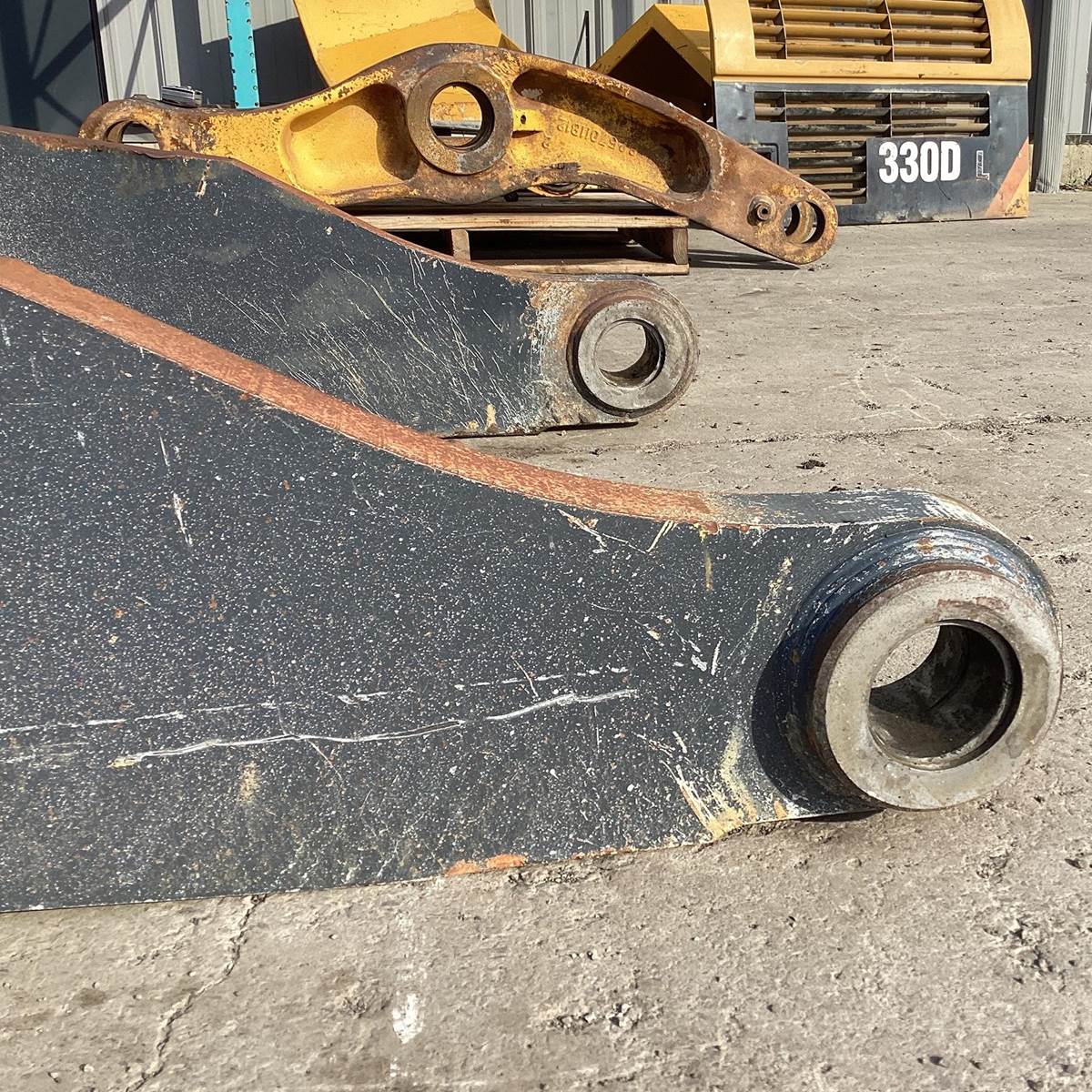

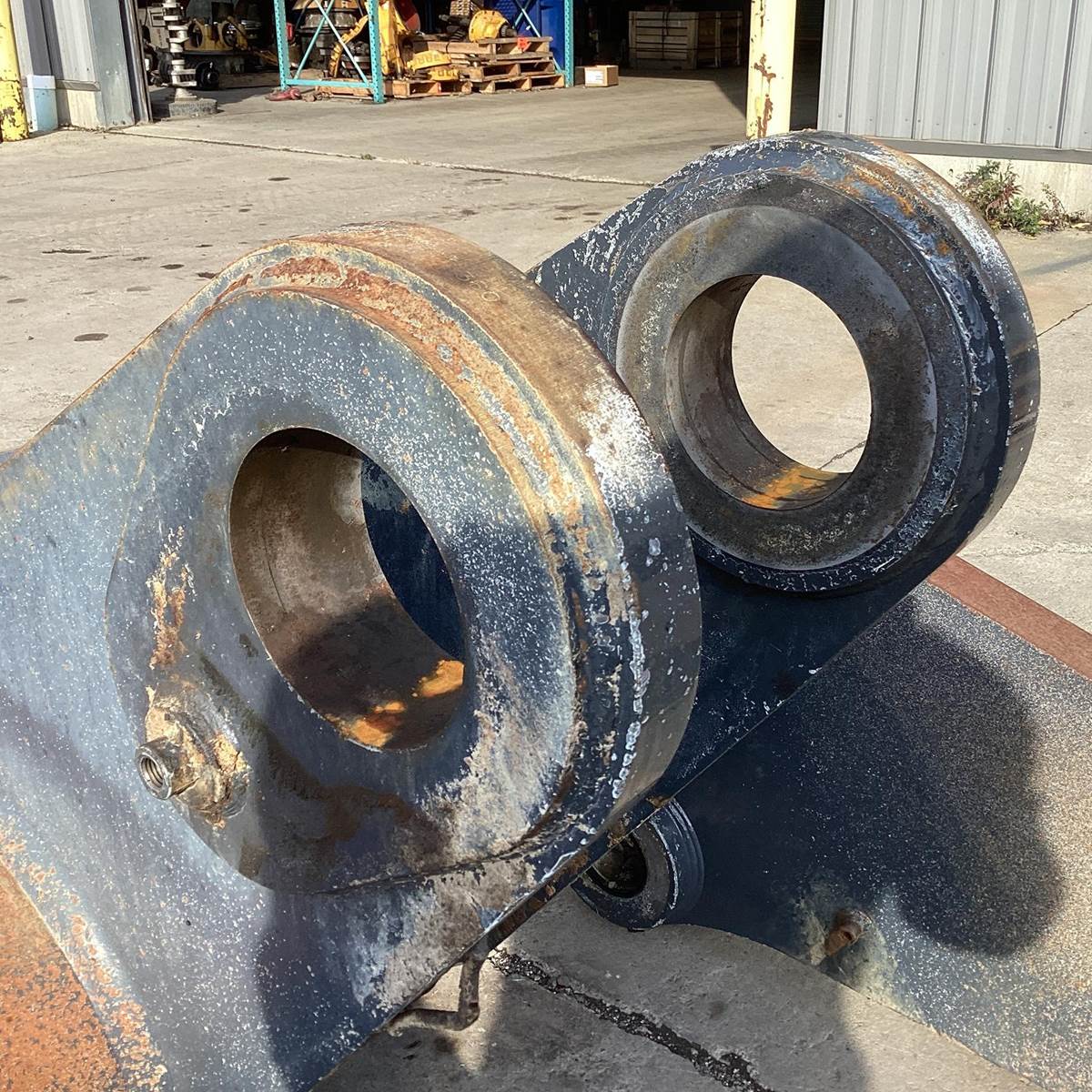

All pin holes look to be in good shape and are holding bushings.
Cracks/Damage: No
Grade: 6
Pin Hole Diameter - A (mm.):
80
Pin Hole Diameter - B (mm.):
90
Pin Hole Diameter - C (mm.):
90
Pin Hole Diameter - D (mm.):
130
Working Length (m.):
3.06
Width of Boom Base (mm.):
37.50
Width Of Boom Arms, Center To Center (in.):
41
Inside Width Of Boom Arms (in.):
33.50
Dimensions - A (in.):
50
Dimensions - B (in.):
61.50
Boom Type:
Standard
Dimensions For Shipping (In.):
132x48x38
Weight (lbs.):
3600
