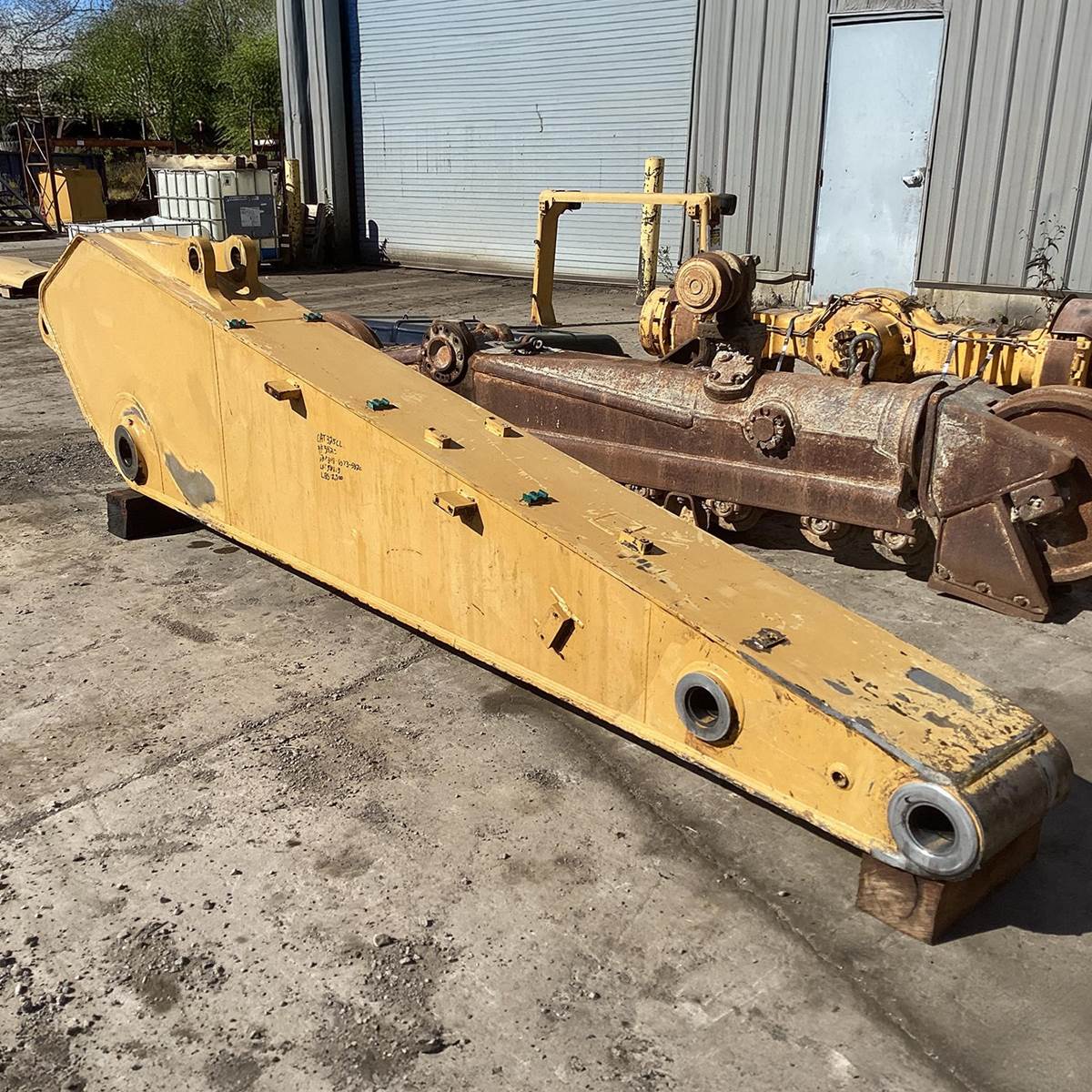

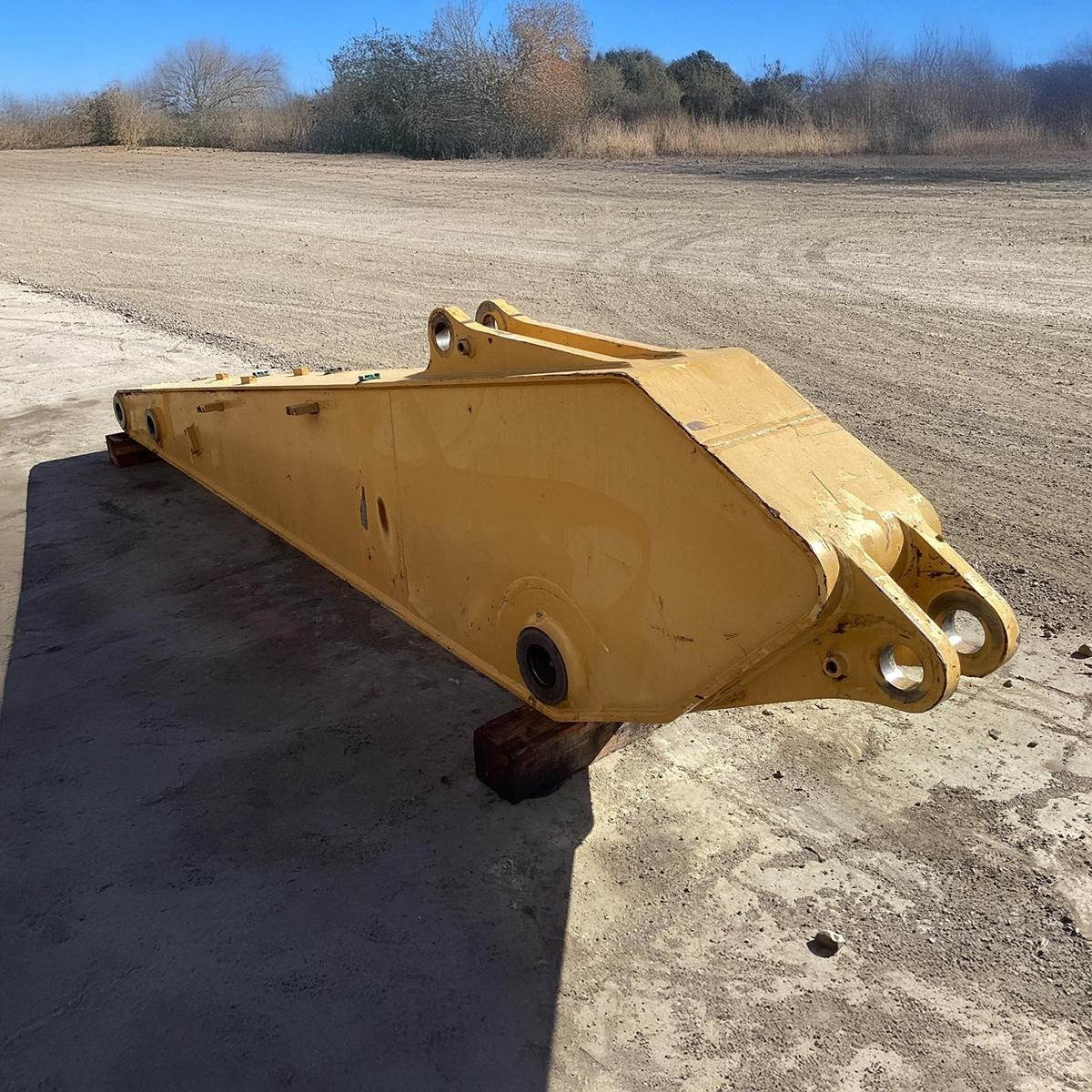

Caterpillar 242-6573-5820 Arm / Stick

Caterpillar 325C L Excavator Stick

Cracks/Damage: No
Grade: 7
Pin Hole Diameter - A (mm.):
80
Pin Hole Diameter - B (mm.):
70
Pin Hole Diameter - C (mm.):
100
Pin Hole Diameter - D (mm.):
70
Pin Hole Diameter - E (mm.):
80
Inside Width Of Pin Ears D (mm.):
105
Inside Width Of Pin Ears E (mm.):
147
Distance Between Pin Hole A & Pin Hole B (mm.):
485
Width Of The Stick Where It Pins To The Bucket (In.):
13.50
Width Of The Stick Where It Pins To The Boom (In.):
14.75
Dimensions - A (In.):
110
Dimensions - B (In.):
36.75
Working Length (m.):
3.2
Equipped With Hydraulic Tubes:
No
Family Arrangement:
C
Dimensions For Shipping (In.):
180x42x24
Weight (lbs.):
2300
