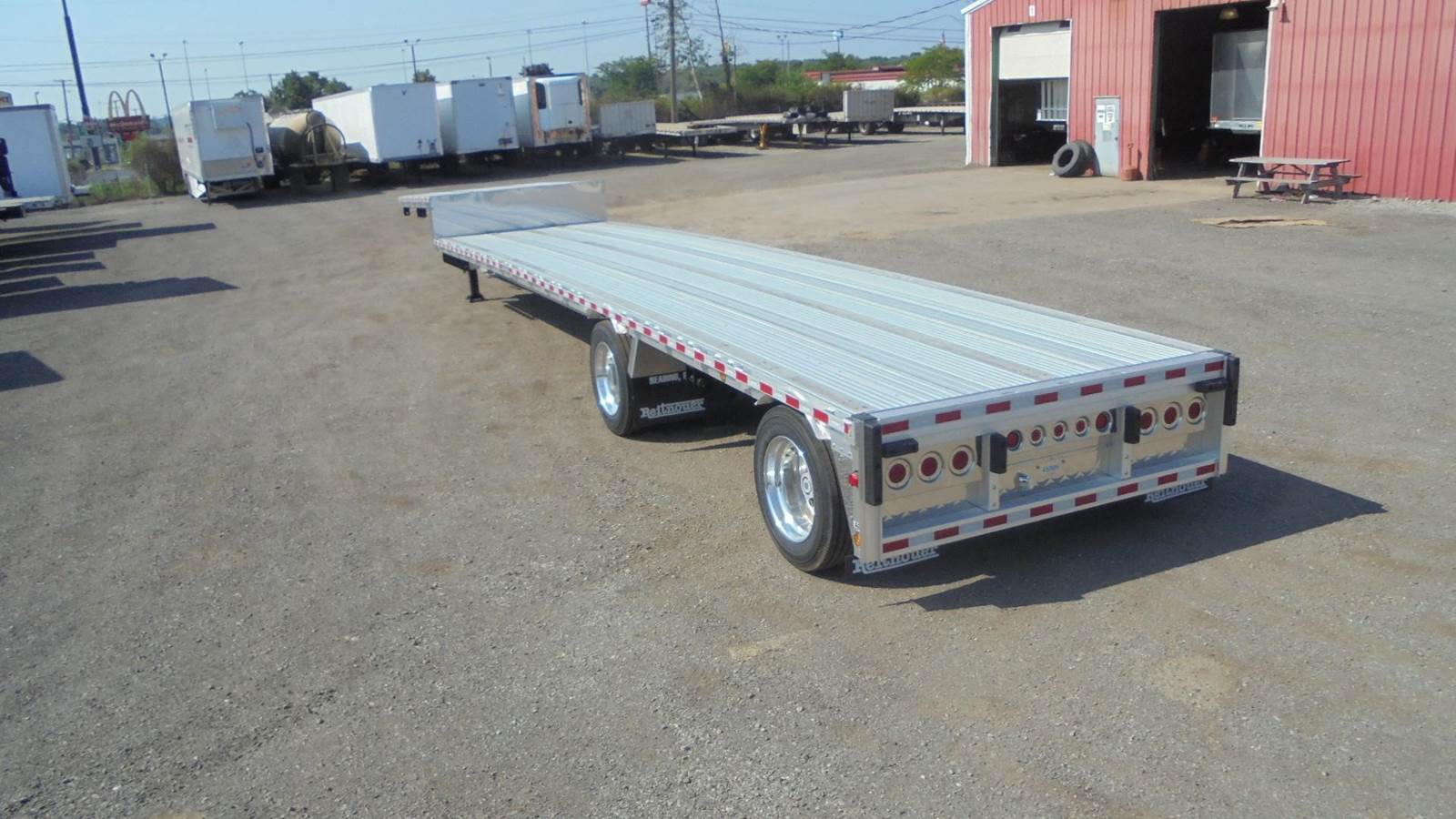

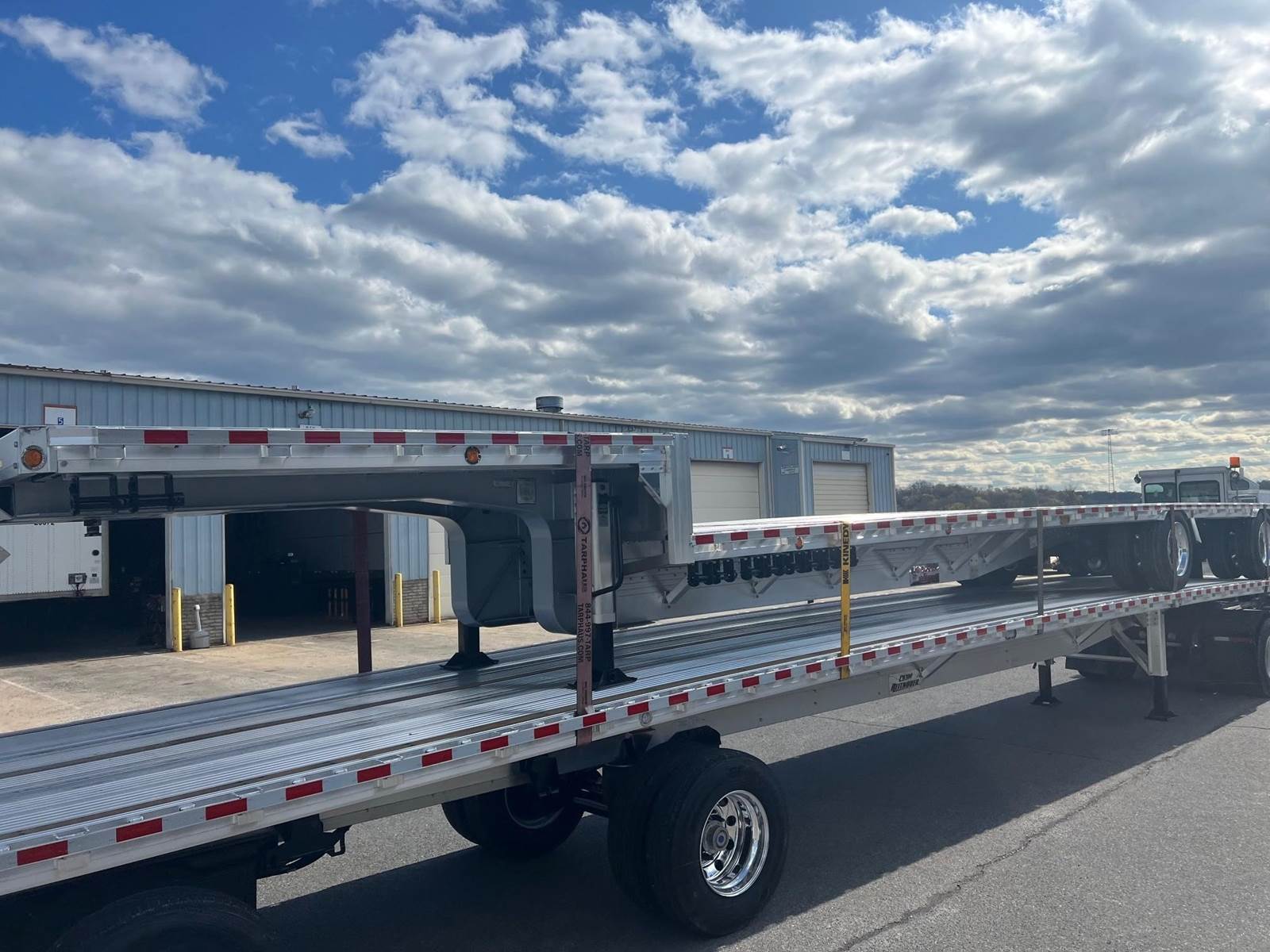

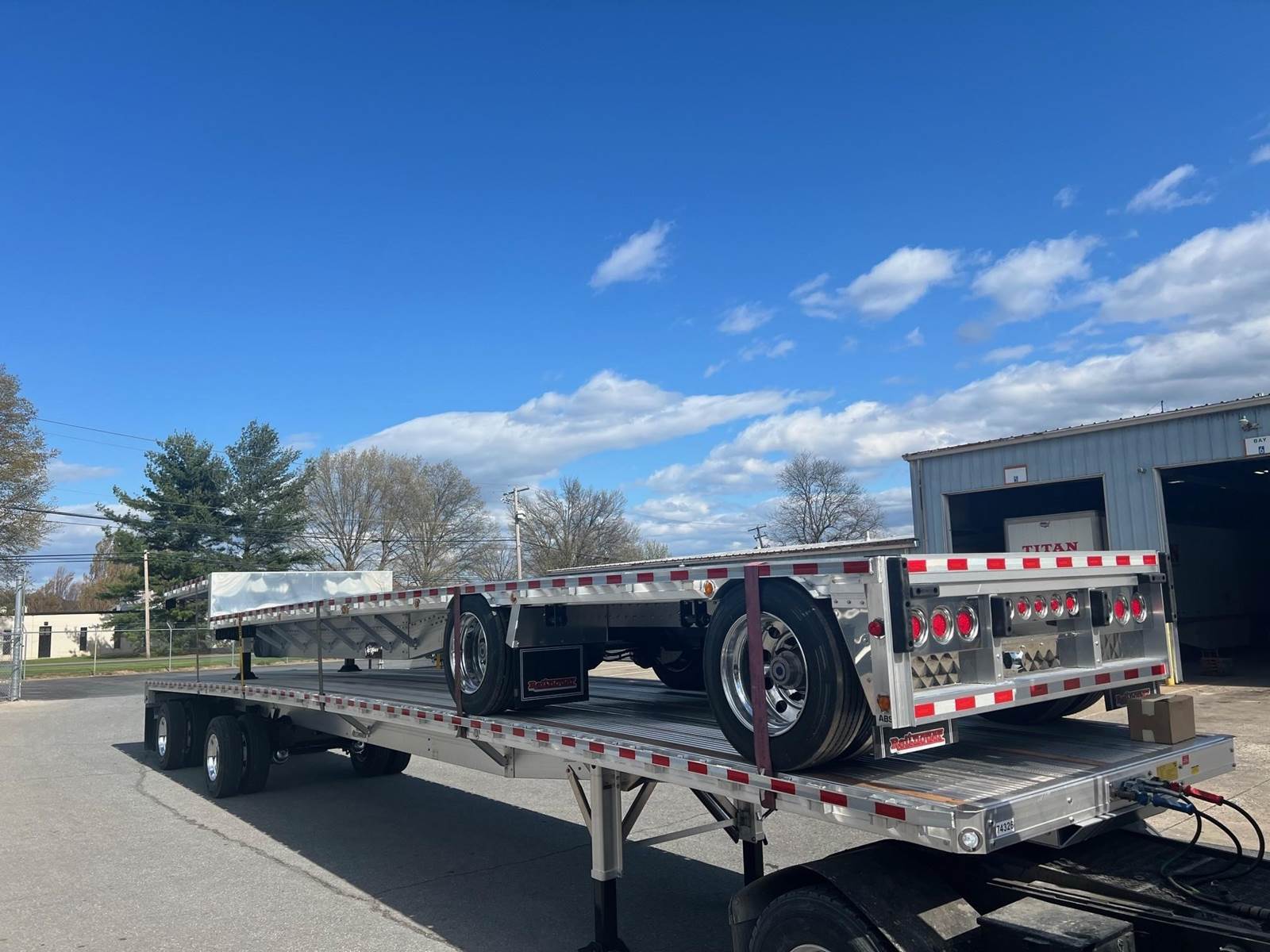

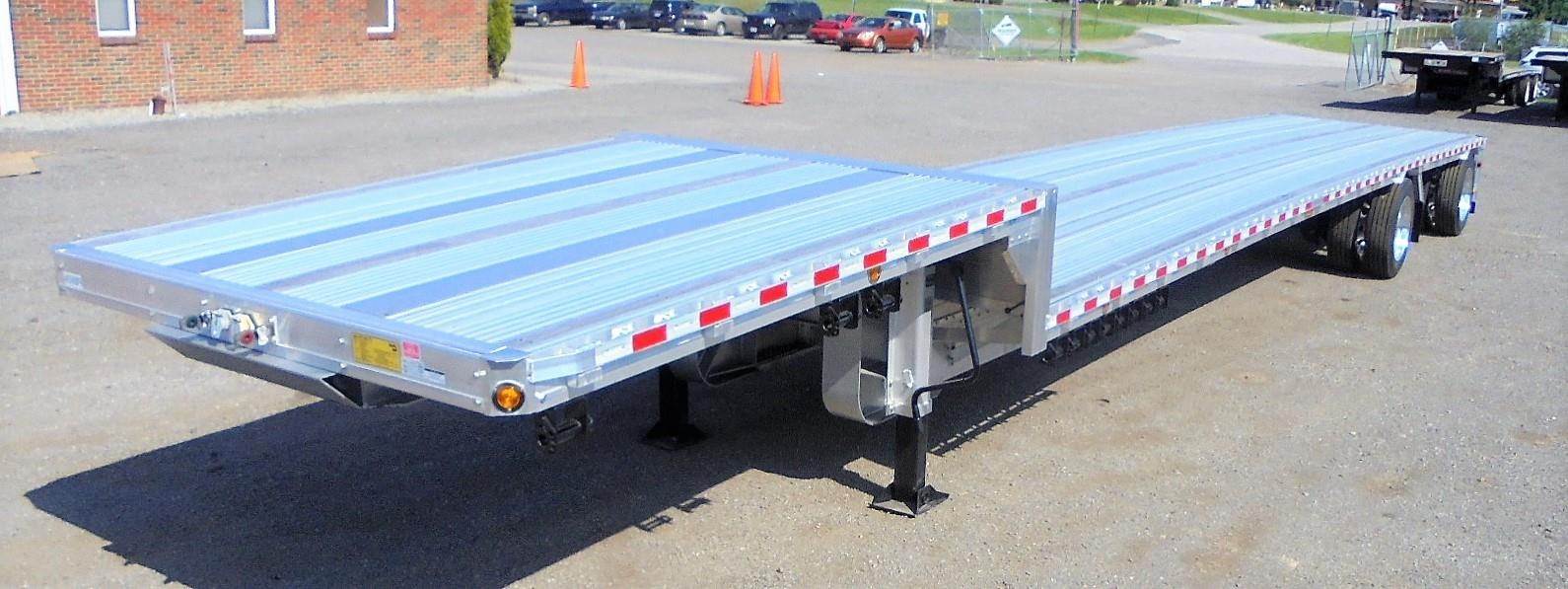

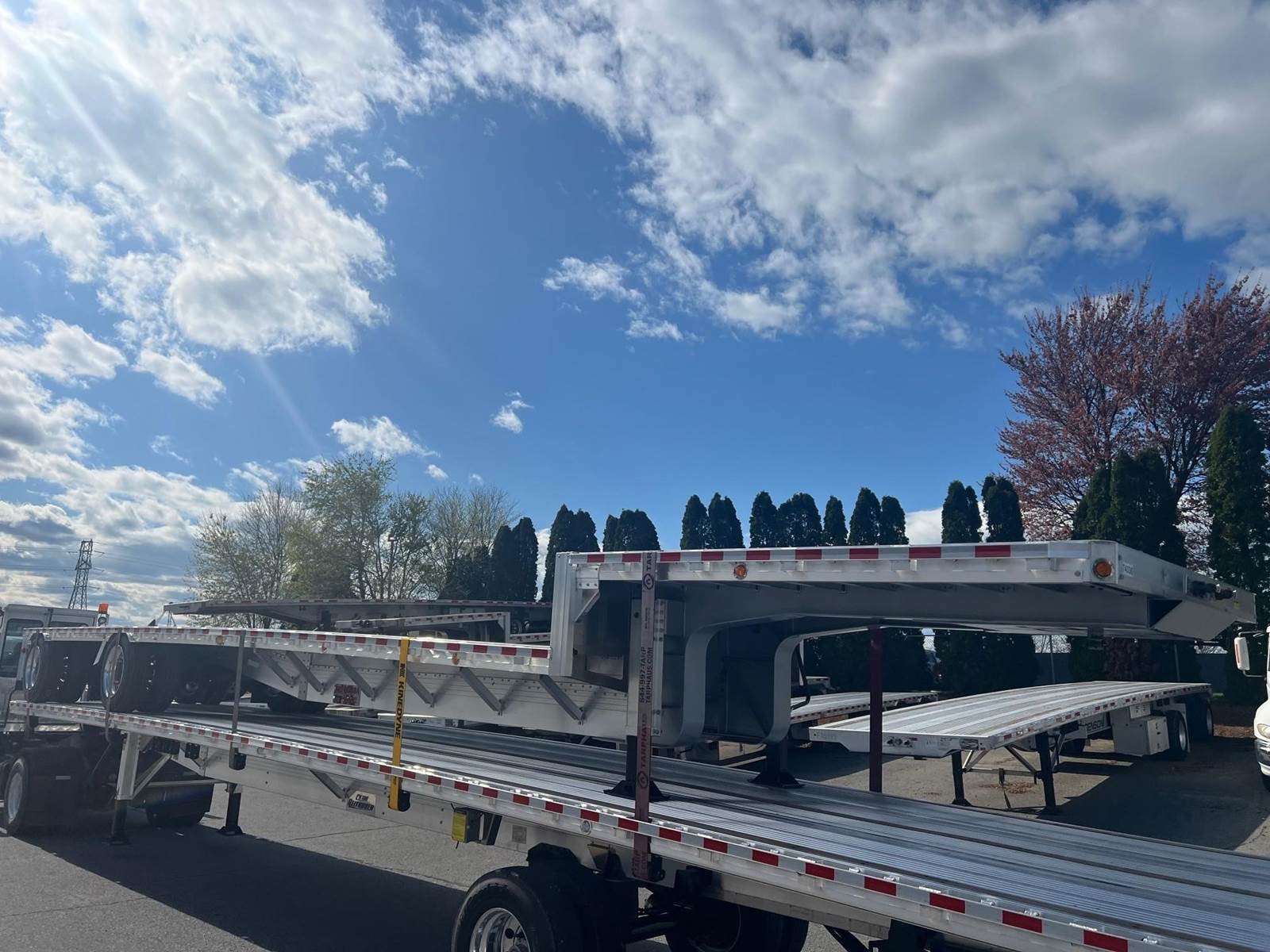

2026 Reitnouer Big Bubba 48x102 Aluminum Drop Deck Trailer - Air Ride, Fixed Axle

FET INCLUDED
Length 48'
Width 102"
Top Deck Length 10' 8"
Main Deck Length 37' 4"
Main Deck Height 40" Loaded
Weight 9,562 Lbs.
Flat Body
Floor Aluminum
Nailing Strips Three (3), Apitong
Chain Tiedowns 10 Pair, 6" Oval, Removable
Front/Rear Member Aluminum
Side Rail Aluminum
Pipe Spools Double
Winch Track Roadside
Sliding Winches 12
Toolbox No
Add. Receptacle ISO 7-Way
Side Rail Lights Nine (9) per Side, LED
Rear Lights (3) Stop/Tail, (5) Clearance & (5) Add. Markers
Mud Flap Brackets Behind Front & Rear Axle
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson IN250L
Suspension Setting 10' 2" Spread, Rear Axle set at Rearmost Position
Electric Dumpvalve Rear Axle - Wired to Center Pin of Aux 7-Way
Manual Dumpvalve Yes
Tire Brand Michelin XZE
Tire Size 255/70R22.5
Wheels Aluminum, Outside Wheels Polished
UnderFrame
King Pin Setting 18"
Cross Member Center 12"
Coil Package Full Coil Package with 12 Extra Cross Members
Landing Gear Jost, Two-Speed, Aluminum Housing
Paint Black
Weight Ratings 70,000 lbs. in 10', 60,000 lbs. in 4'
