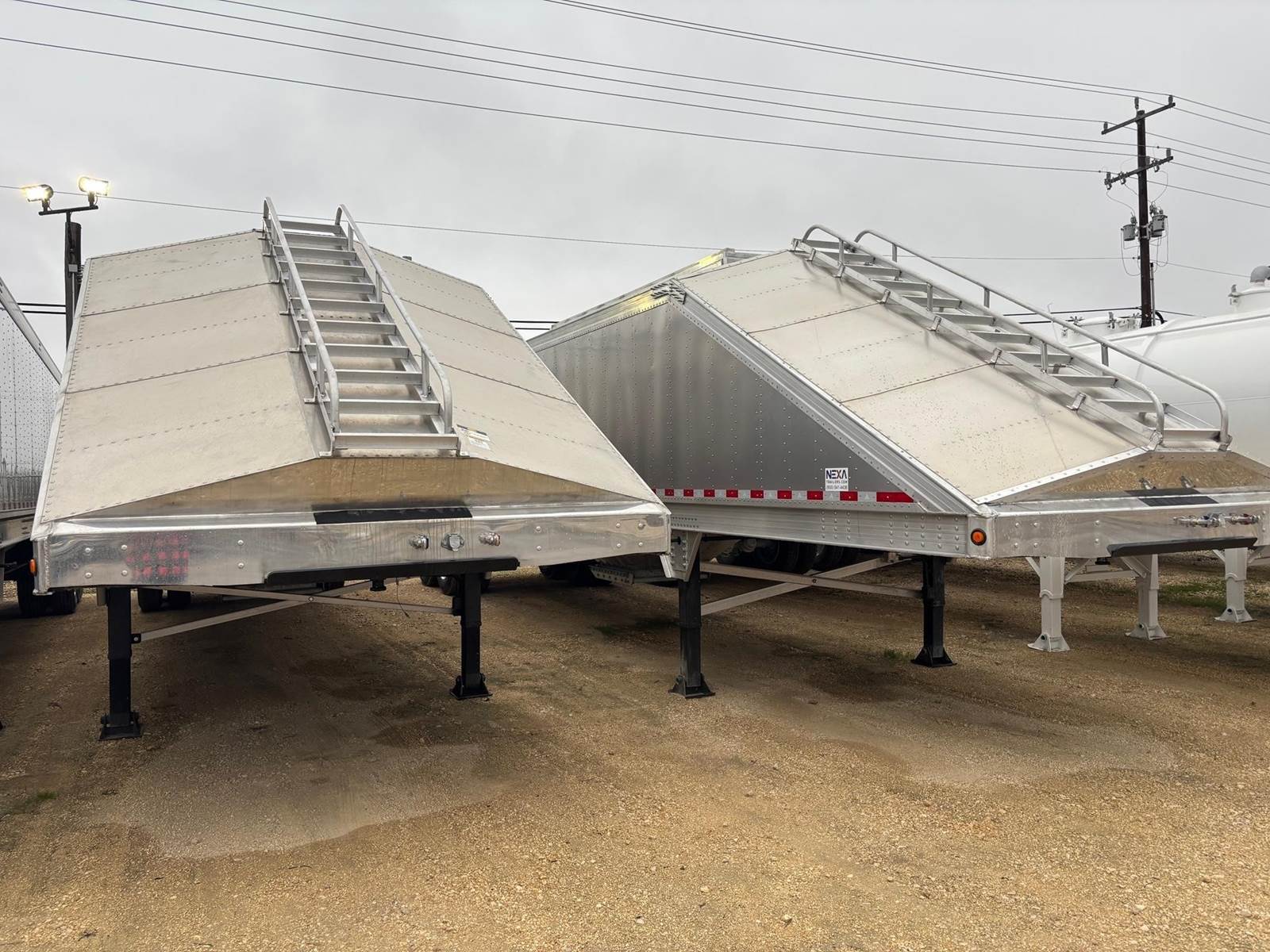

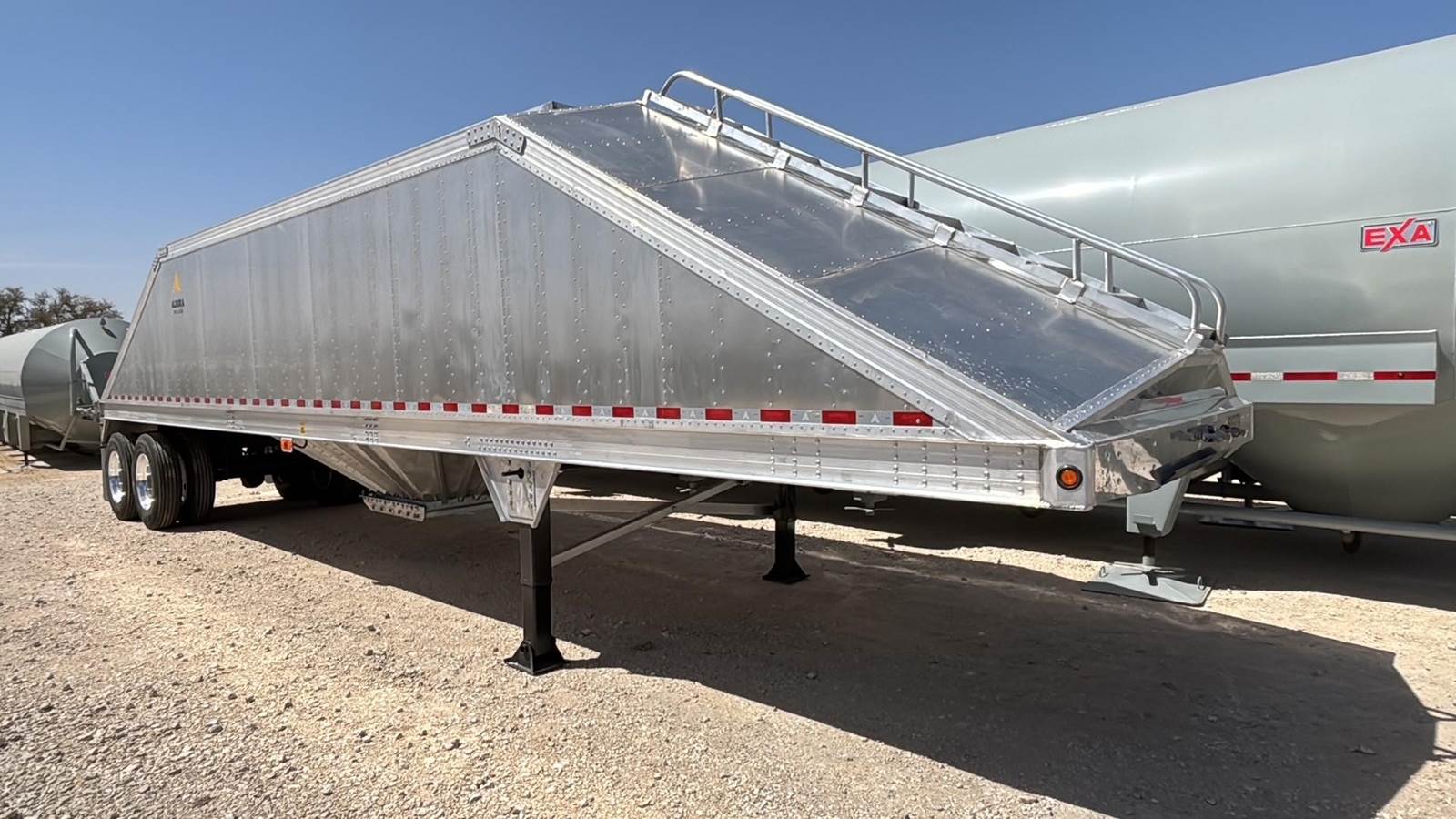

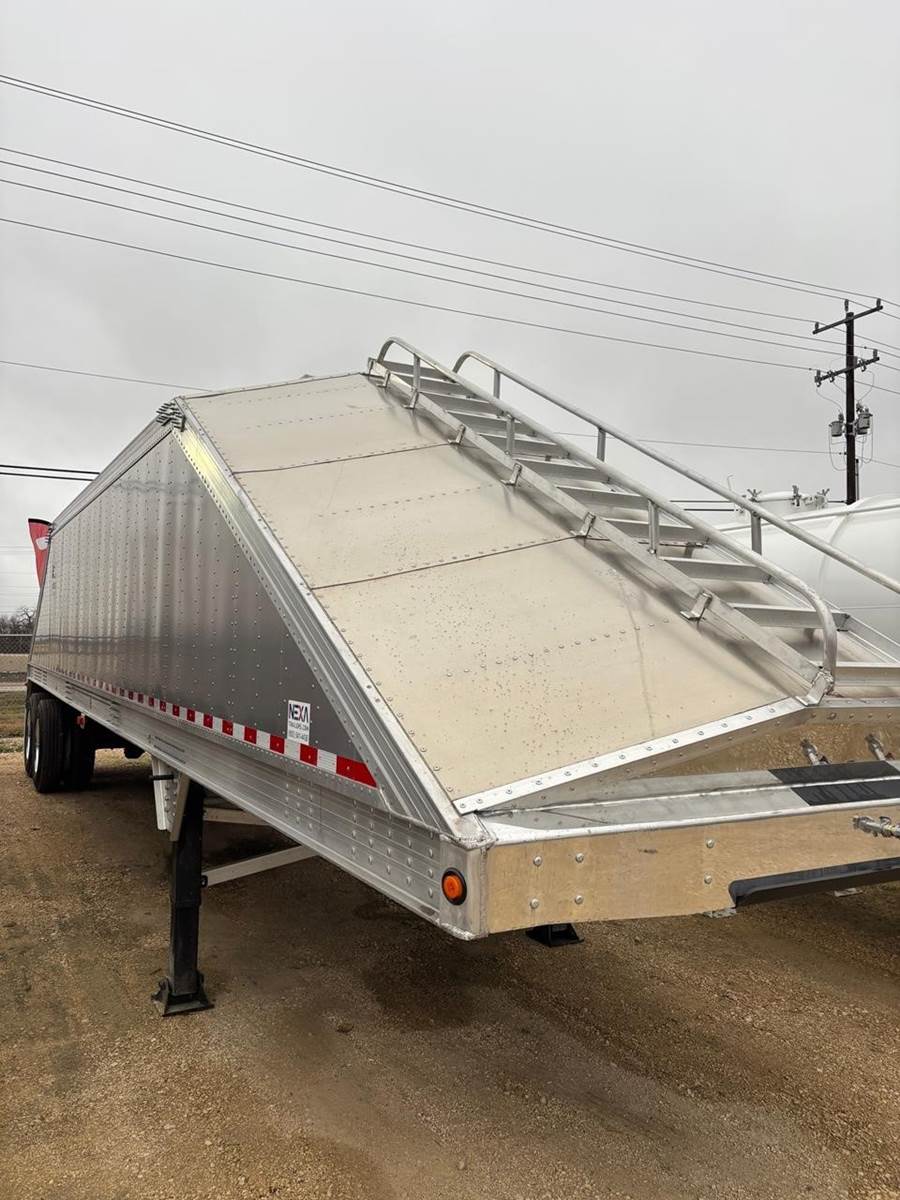

2026 ALDURA Tandem Axle Belly Dump Trailer - Air Ride

SANDSTORM Ready for all your Frac sand hauling. Electric opening system available as an option. CALL FOR PRICE!!!

Capacity:
575 cu. ft.
Design Pressure:
15 PSI - tested at 23 PSI
Overall Length:
34"
Height:
12' 10"
Width:
102 in.
Weight:
9,940 Lbs. approx.
Material:
Carbon Steel
Suspension:
Air Ride Hendrickson 60,000 lbs. capacity
Compartments:
Single
Hopper(s):
One (1) cone with 45° slope and aerators
Shell:
10 Gauge A36 High resistance steel
Product Valves:
One (1) 6" butterfly valve, steel body, cast iron disc and steel stem
Discharge Line:
4" steel pipe sch40 connected with cam style connectors. A sand discharge hose is arrached from the third tee to the bummper level,a female coupler is included at end . One (1) Steel Bottom -Drop BTI Sand 6" x " Tee
Walkway:
Toe-kicks on top
Loading Lines:
Two (2) 4" loading lines in the rear
Pressure Control:
3" butterfly valve to regulate hot airflow to product discharge line
Check valve:
First check valve in the hot air inlet line and second check valve in front of first tee.
Hose holder:
P.T.O. hose holder with mandrel located on roadside.
Load Lines:
Two (2) Steel sch 40 load lines, 1 mounted at each end of tank with adaptor and cap
Pluming:
3" inlet tubing 10 gauge steel. All valves and pluming on drive side of trailer
Blow down line:
(Top air) 3" steel line with 3" butterfly valve and mechanical relief valve. Top air line includes a 3" valve ti relief tank air with a 3" exhaust directed to the ground
Hose Tube:
One (1) Galvanized steel 8"x20' on curbside
Axles:
Two (2) 30,000 lbs. each, 120 in. wide, 77.5 in. track TP type with automatic slack adjuster. Brakes :Air brakes with booster FMVSS-121 ,ABS 4S/2M Bendix anti lock brake system
Tires:
Eight (8) 22.5 x 11R 16 ply.
Wheels:
All aluminum wheels 22.5" 10 hole budd.
Upper Coupler:
Adjustable 3/8 in. plate with Holland king pin at 49" height.
Access Ladder:
One (1) located on the driver side with handrails
External Coating:
Hempel two coats of polyurethane on an epoxy primer (4-6 mils DFT)
Landing Gear:
One (1) two speed Heavy Duty (80,000 lbs. total) with handle on driver's side.
Frame:
Full Length 3/16 in. STRENX high resistance formed steel (For lighter weight).
Fenders:
Four (4) Aluminum (front and rear)
Lights:
Sealed harness and recessed Optronics GloLights LED per DOT. Two (2) rear work lights with switch at rear Conspicuity tape : GRIOTE Per DOT
Mud Flaps
Four (4) Anti-sail
Air Storage Tank:
One (1) air tank
Bumper:
Formed steel. DOT approved.
Paint Prep:
All steel surfaces washed, degreased and shotblasted. External Coating: AXALTA two coats of polyurethane on an epoxy prime (4-6 mils DFT) Paint applied before electrical installation
Manways:
One (1) 20 in. sealed manways on top (Betts) with aluminum lid with hinge on the right
