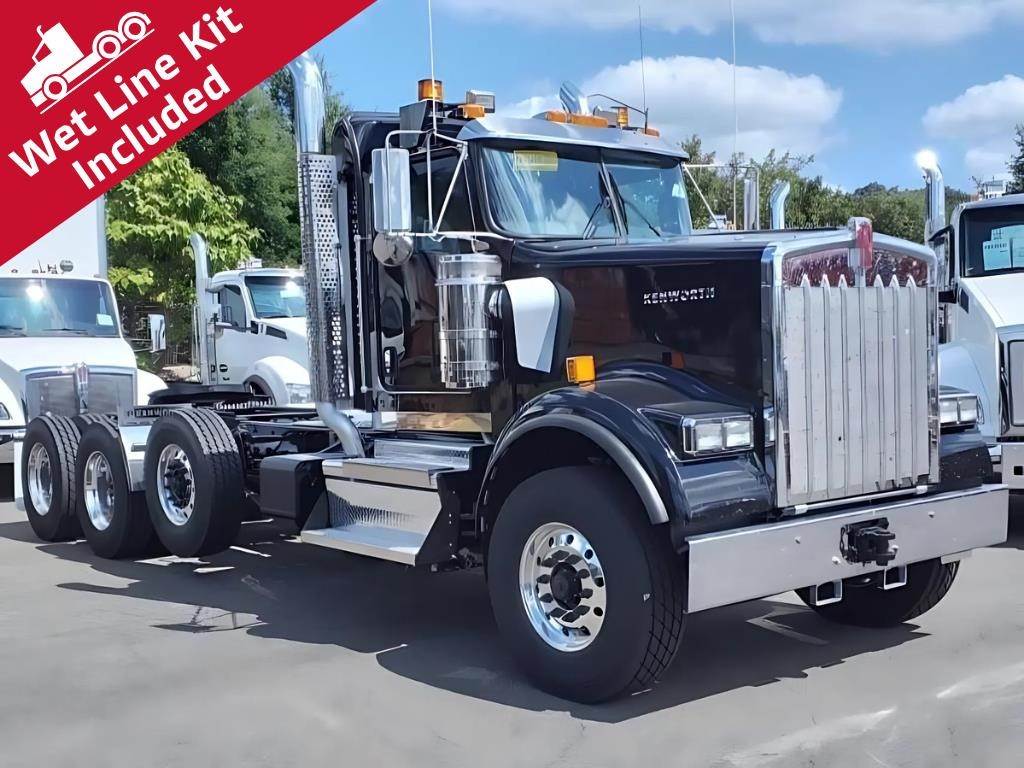

2025 Kenworth W900 Tri Axle Day Cab Truck - Cummins 400HP, 18 Speed Manual

- 2025 Kenworth W900 Conventional Truck
- Exterior Color: Black (L0001EY)
- Interior: Cab Splendor in Jet Black with Dark Slate Gray trim

Engine and Transmission:
- Cummins X15 525 V Performance Series, 525 HP @ 1900 RPM, 1850 lb-ft torque @ 1000 RPM
- Jacobs engine compression brake
- Eaton RTLO20918B 18-speed manual transmission
- Transmission oil temperature gauge
- 14" high capacity oil-to-water transmission cooler

Axles and Suspension:
- Front Axle: Dana Spicer D2000 20,000 lb capacity, standard track
- Rear Axle: Dana Spicer D46-172HP 46,000 lb capacity tandem
- Rear Axle Ratio: 3.91
- Wheel Differential Lock: D46-170/172(H), (P)(WT) RR RR
- Front Suspension: 20,000 lb capacity taperleaf with shocks
- Rear Suspension: Kenworth AG460 46,000 lb capacity tandem air suspension, 54" axle spacing
- Watson & Chalin SL2065 20,000 lb capacity steerable pusher axle

Wheelbase and Frame:
- Wheelbase: 248 inches
- Cab to Axle: 152 inches
- Frame: 10-3/4" x 3/8" steel with full steel inserts / double frame
- RBM: 2,132,000 lbs

Fuel System:
- Single 110 gallon aluminum fuel tank, 24.5" diameter, mounted under cab on left side
- 23.8 gallon DEF tank, medium round

Wheels and Tires:
- Front Wheels: Alcoa 89U63 22.5x9 Ultra One high polish aluminum
- Rear Wheels: Alcoa 98U63 24.5x8.25 Ultra One high polish aluminum
- Pusher Axle Wheels: Alcoa 89U63 22.5x9 Ultra One high polish aluminum
- Front Tires: Michelin X Works Z 315/80R22.5 20PR
- Rear Tires: Michelin X Works D 11R24.5 16PR
- Pusher Axle Tires: Michelin X Works Z 315/80R22.5 20PR

Brakes:
- Front Brakes: Bendix RSD HP-ES 16.5x7S
- Rear Brakes: Bendix RSD 16.5x7" Dual
- ABS: Bendix 6S/6M with ATC & ESP (Electronic Stability Program)
- Automatic slack adjusters on all axles

Exterior Features:
- Unitglas straight 1-piece hood with grille and shell
- Stainless steel exterior sun visor
- Dual rectangular 23" air horns mounted on roof
- Headlamps: Dual rectangular halogen, extended life, dual beam
- 5 rectangular LED marker lights
- LED stop/turn/tail lights with 2 LED backup lights
- Dual Prutsman heated, power, stainless steel mirrors with 8.5" convex mirrors
- Rubber wheelwell fender extensions (2")
- Dual amber strobe beacon with stainless steel bracket centered over door

Interior Features:
- Kenworth Air-Cushion Plus high back driver seat with vinyl trim
- Kenworth toolbox plus high back passenger seat with vinyl trim
- Tilt/telescoping steering column
- 18" 4-spoke steering wheel
- Kenworth Driver Information Center (Highline display)
- Kenworth TruckTech+ remote diagnostics system
- AM/FM/WB/USB Bluetooth radio
- Power windows and door locks
- CB radio installation provision

Additional Features:
- Full truck air kit
- Link Cabmate cab suspension
- Bendix AD-HF heated Puraguard air dryer with extended purge
- 5 lb dry chemical fire extinguisher
- Dual leveling valves for tandem air suspension
- Circuit breakers (replacing fuses)
- Holland FW70 air slide fifth wheel, 70,000 lbs capacity, 36" slide

GVWR: 84,180 lbs
