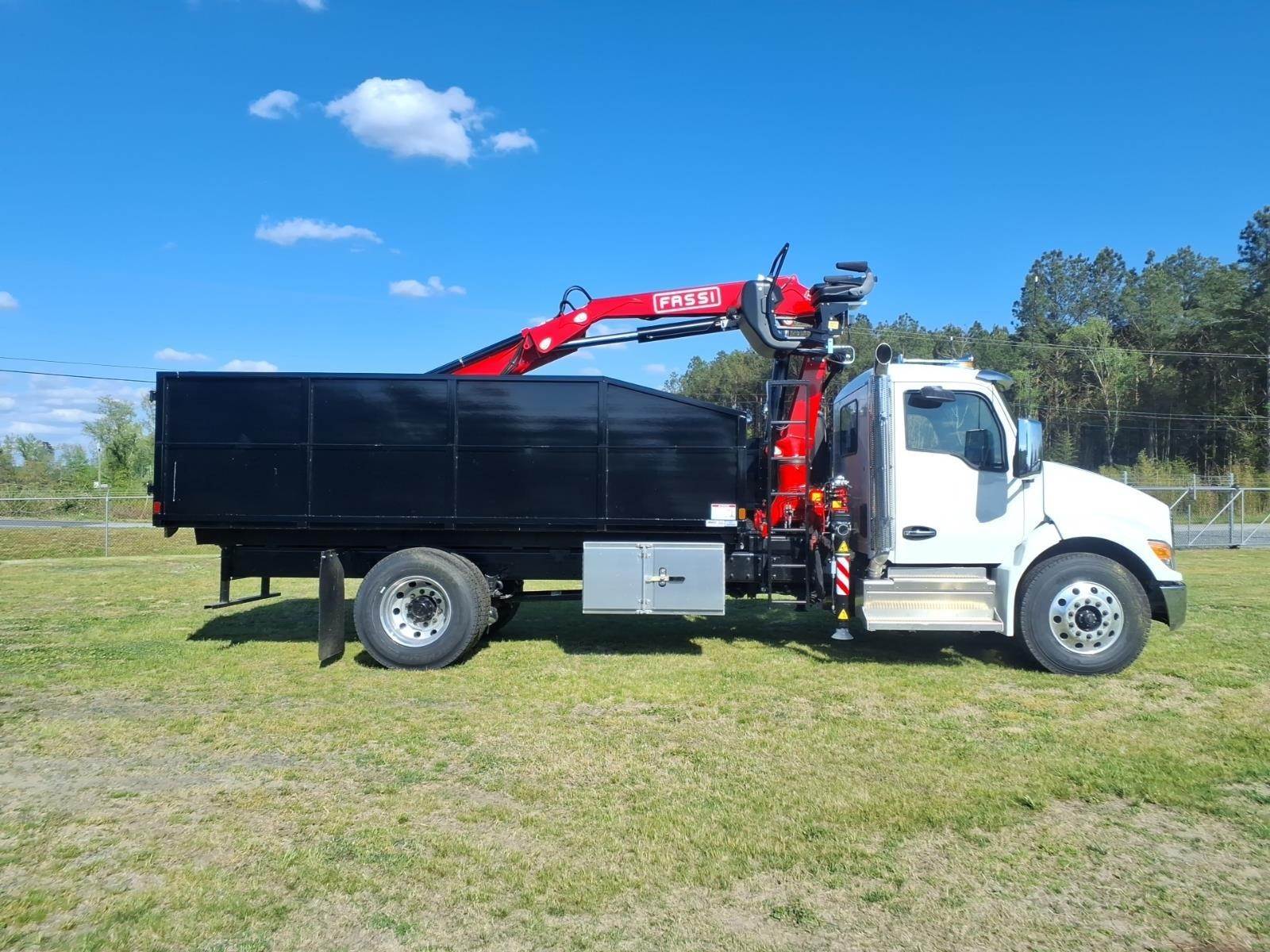

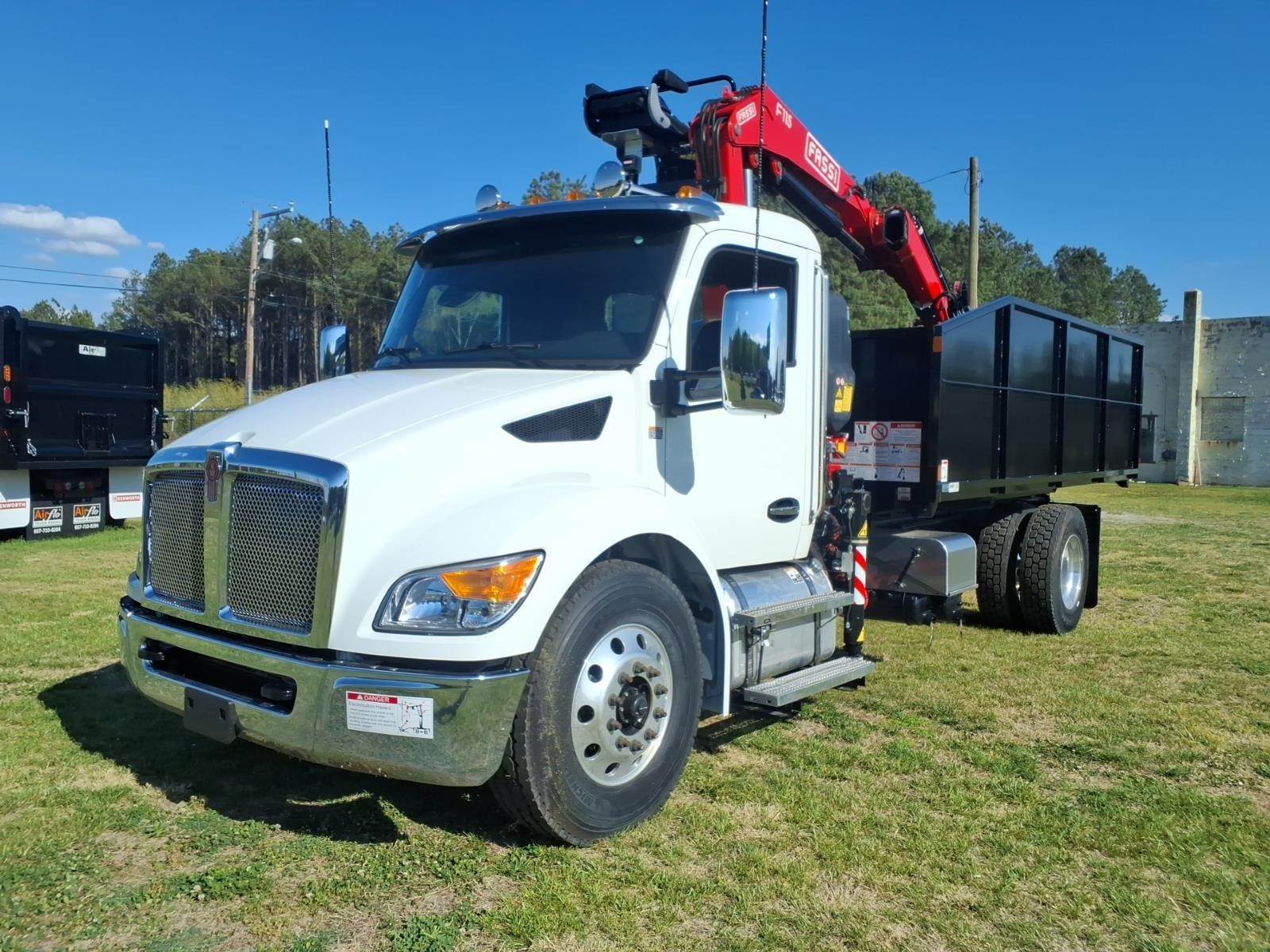

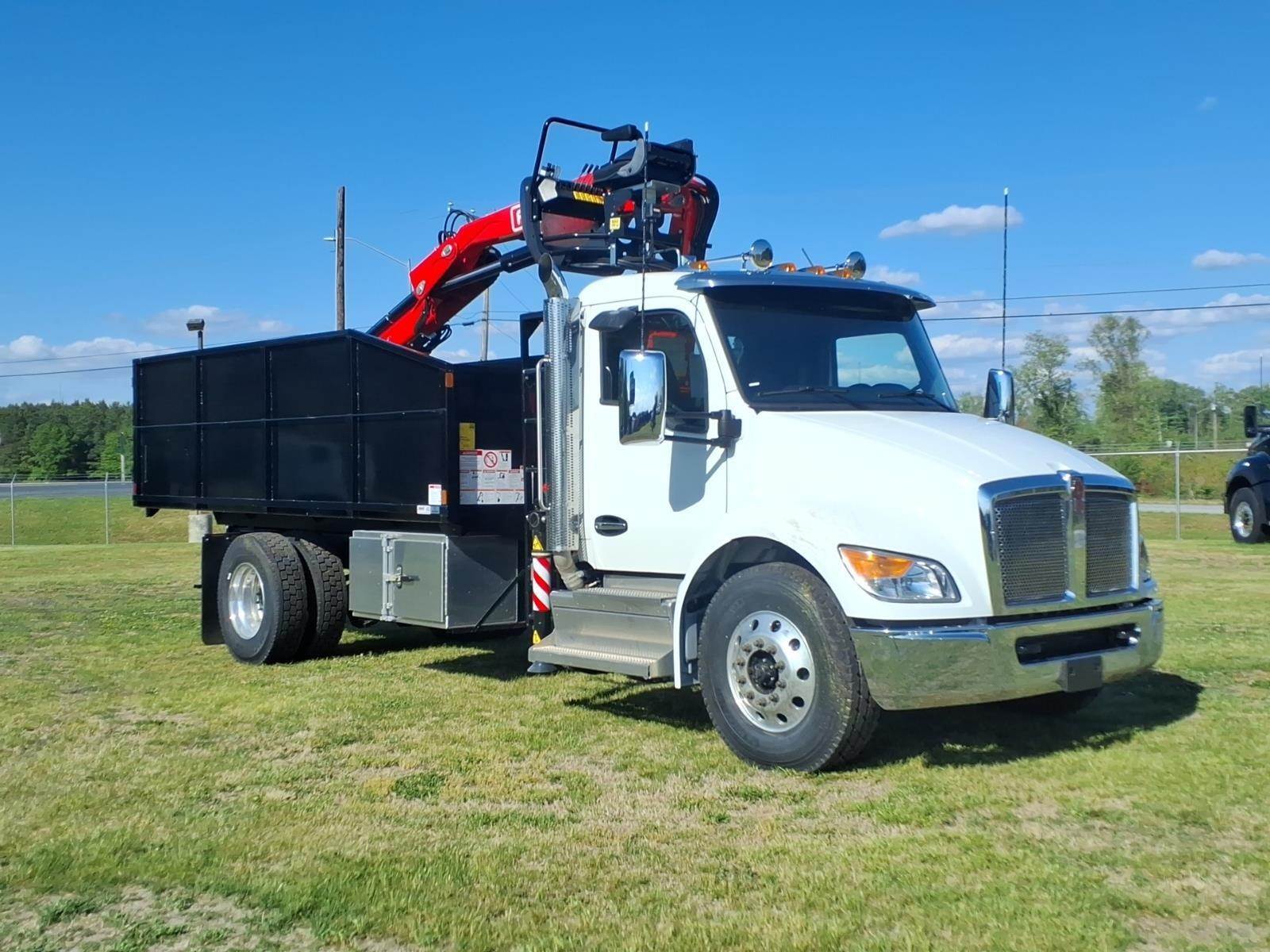

2025 Kenworth T380 Grapple Truck - Paccar, 300HP, 6 Speed Allison Rds Automatic

Transfer this unit to your nearest Maryland/Delaware location at no additional cost! Choose from:

Baltimore
Bel Air
Dover
Landover
Mardela Springs
Upper Marlboro
Westminster

Contact us for details!

Vehicle Highlights:

Year: 2025
Make: Kenworth
Model: T380
Exterior Color: White
Performance & Mechanical:

Engine: PACCAR PX-7 300 HP

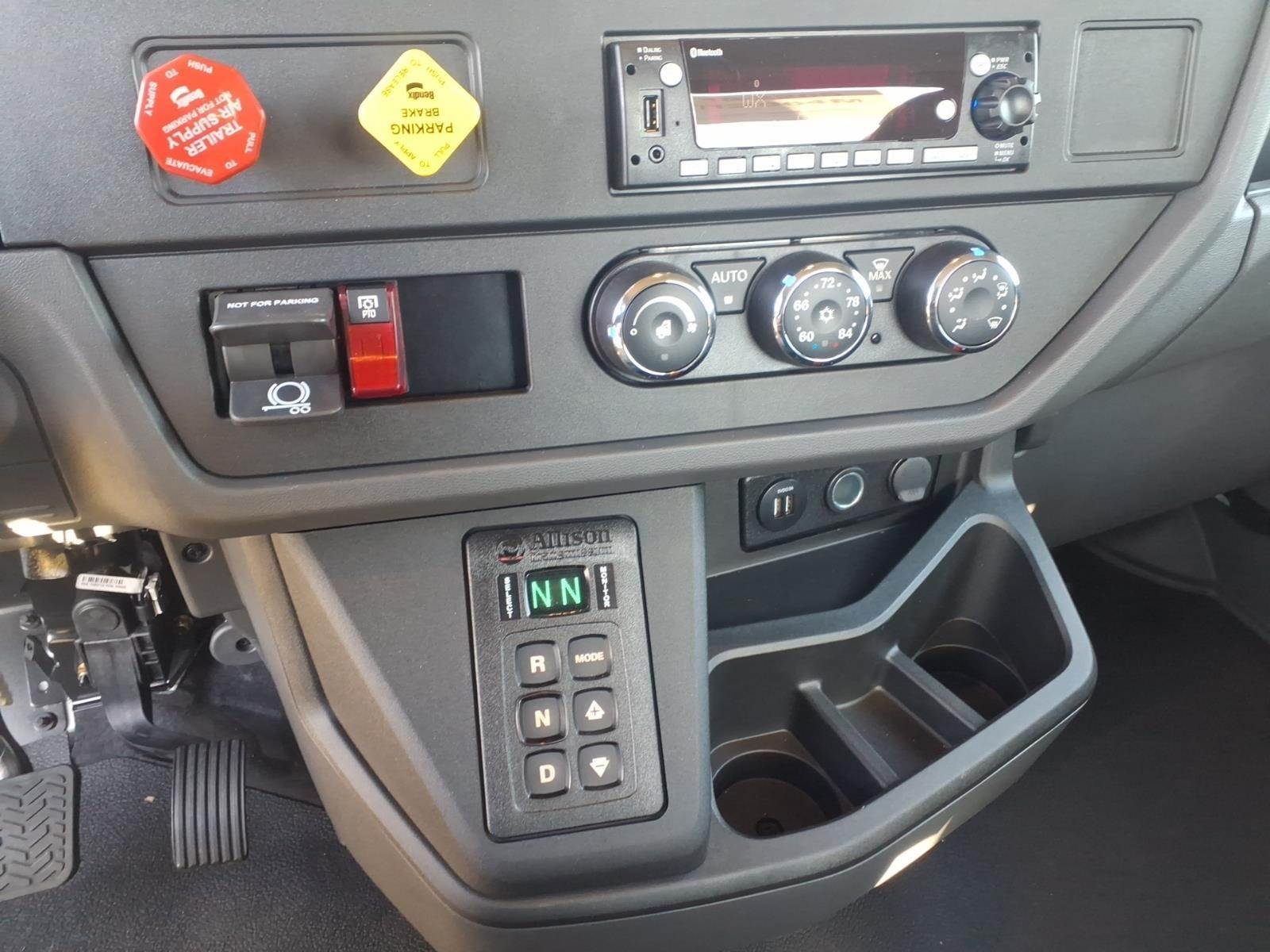

Transmission: Allison 3000RDS 6-Speed Automatic
Front Axle: Dana Spicer E-1002IL 10K
Rear Axle: Dana Spicer S23-172 23K Single
Front Suspension: Taperleaf 12K with Shocks
Rear Suspension: Hendrickson HAS230L Air Suspension
GVWR: 33,000 lbs
Rear Axle Ratio: 5.57
Brakes: Bendix Drum Brakes
Fuel Tank: 60 Gallon D-Shape Rectangular Aluminum
DEF Tank: 5.5 Gallon
PTO: Hot shift PTO for automatic transmission
Pump: High pressure hydraulic pump

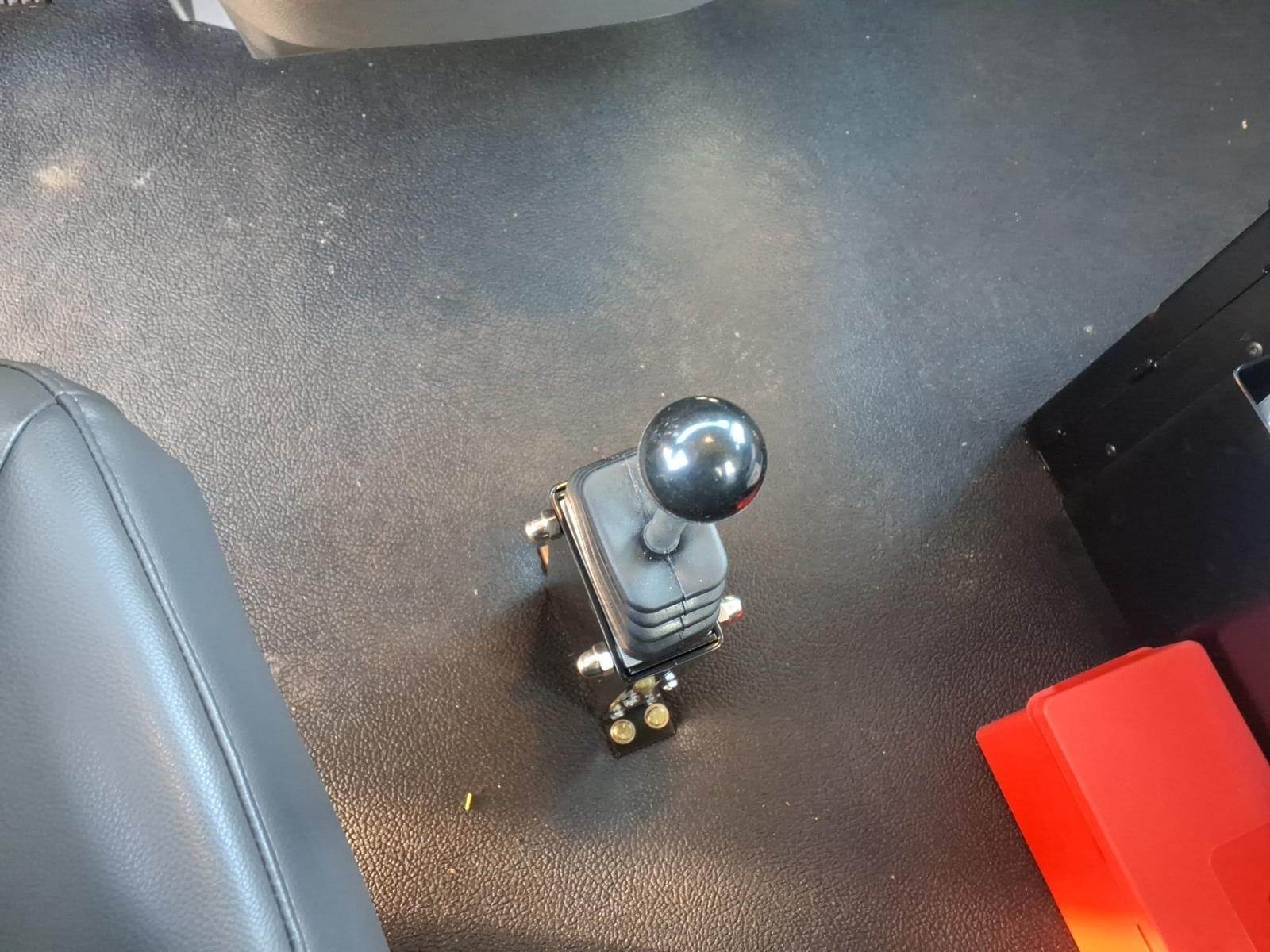

Valve: Selector valve
Dimensions:

Wheelbase: 218 inches
Cab to Axle: 150.50 inches
Custom Trash Body: 16'6" x 96"
Side Height (Trash Body): 48" Weld-On (tapered to 36" at the front)
Wheels & Tires:

Front Wheels: Alcoa ULA18 22.5x8.25 Aluminum High Polish
Rear Wheels: Alcoa ULA18 22.5x8.25 Aluminum High Polish, Air Disc Brake Compatible
Front Tires: Michelin X Works Z 11R22.5 16PR
Rear Tires: XDA5+ 11R22.5 14PR DR Tires
Exterior Features:

LED Marker Lights
Chrome Crown Aero Hood
Stainless Steel Sun Visor
Chrome Aerodynamic Bumper
Dual Aero Chrome Mirrors
Dual Round 26" Air Horns
ICC Bumper

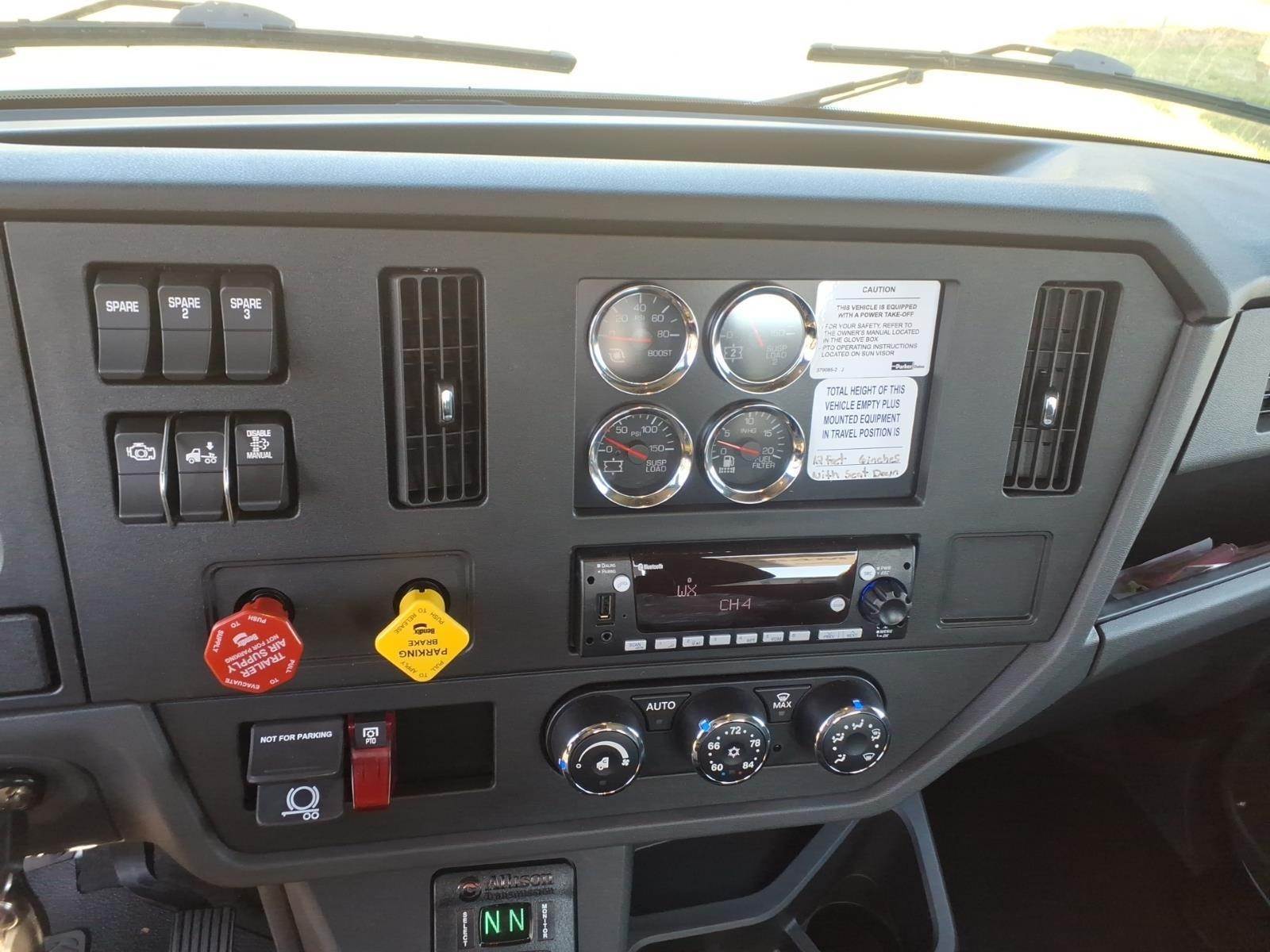

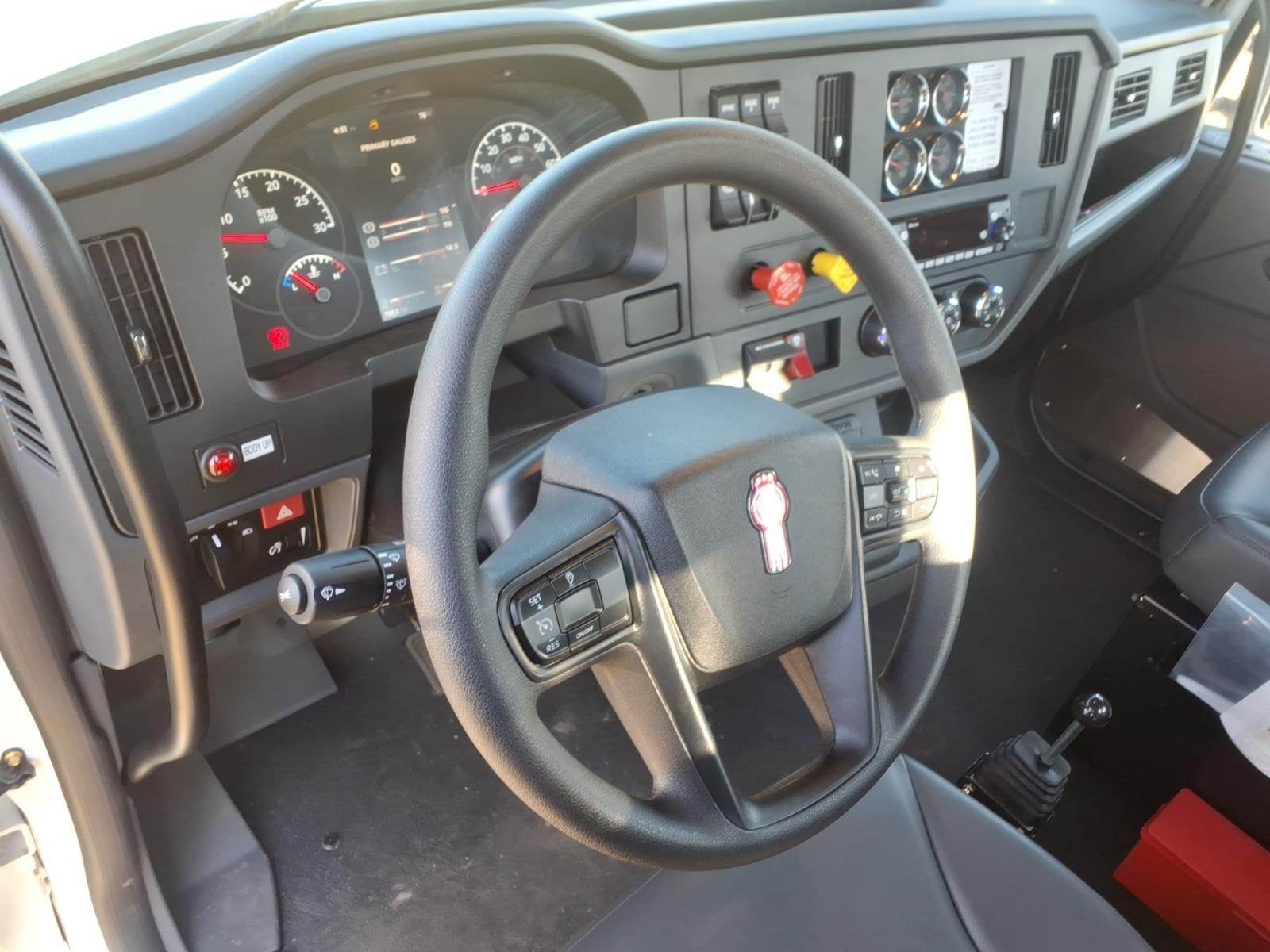

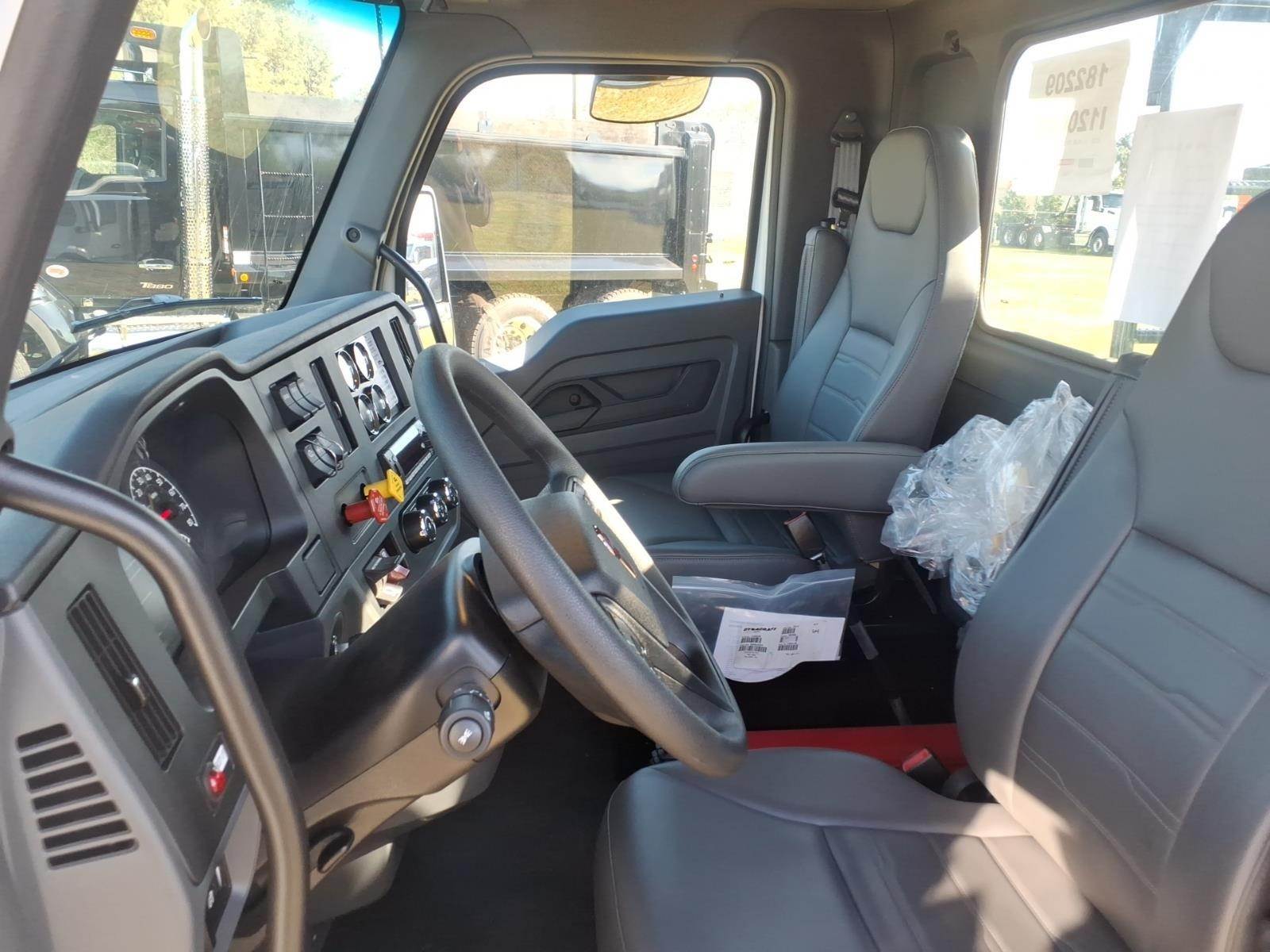

Interior Features:

Vantage Interior in Gray
Kenworth Air Ride High Back Driver Seat with Vinyl Upholstery
Kenworth Toolbox High Back Passenger Seat with Vinyl Upholstery
Power Windows and Door Locks

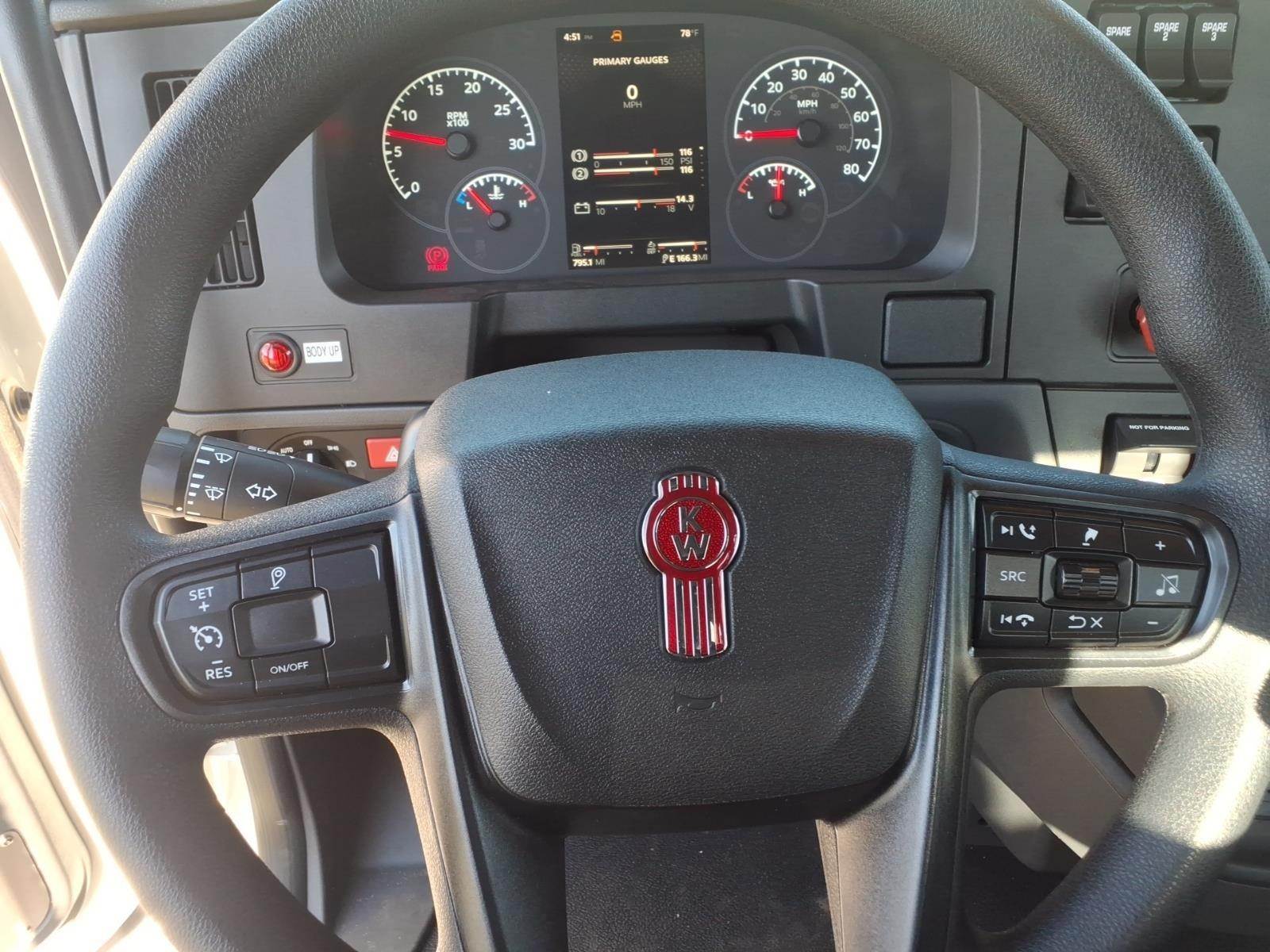

Kenworth SmartWheel
Kenworth Radio DEA710 AM/FM/WB/USB with Bluetooth

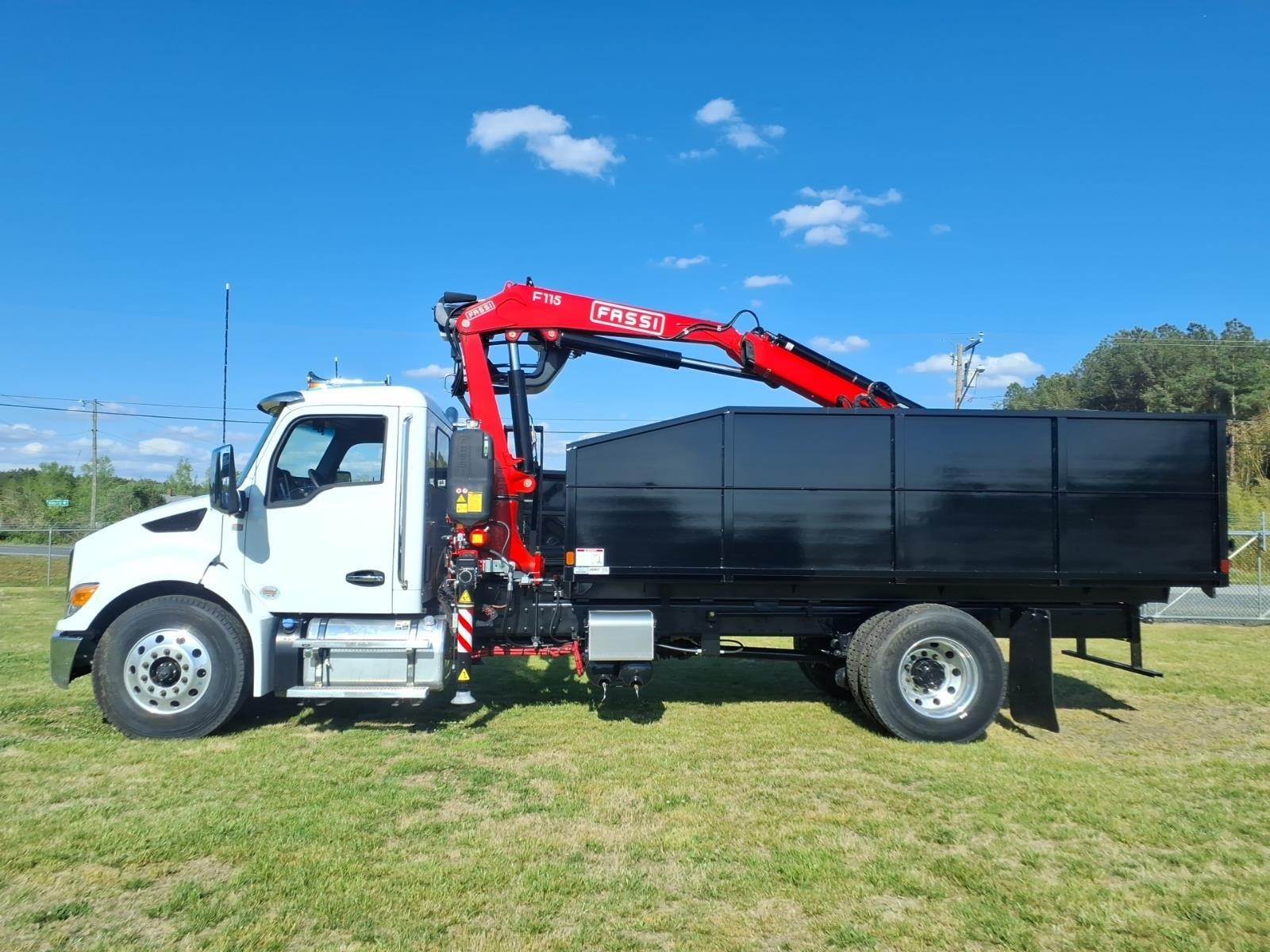

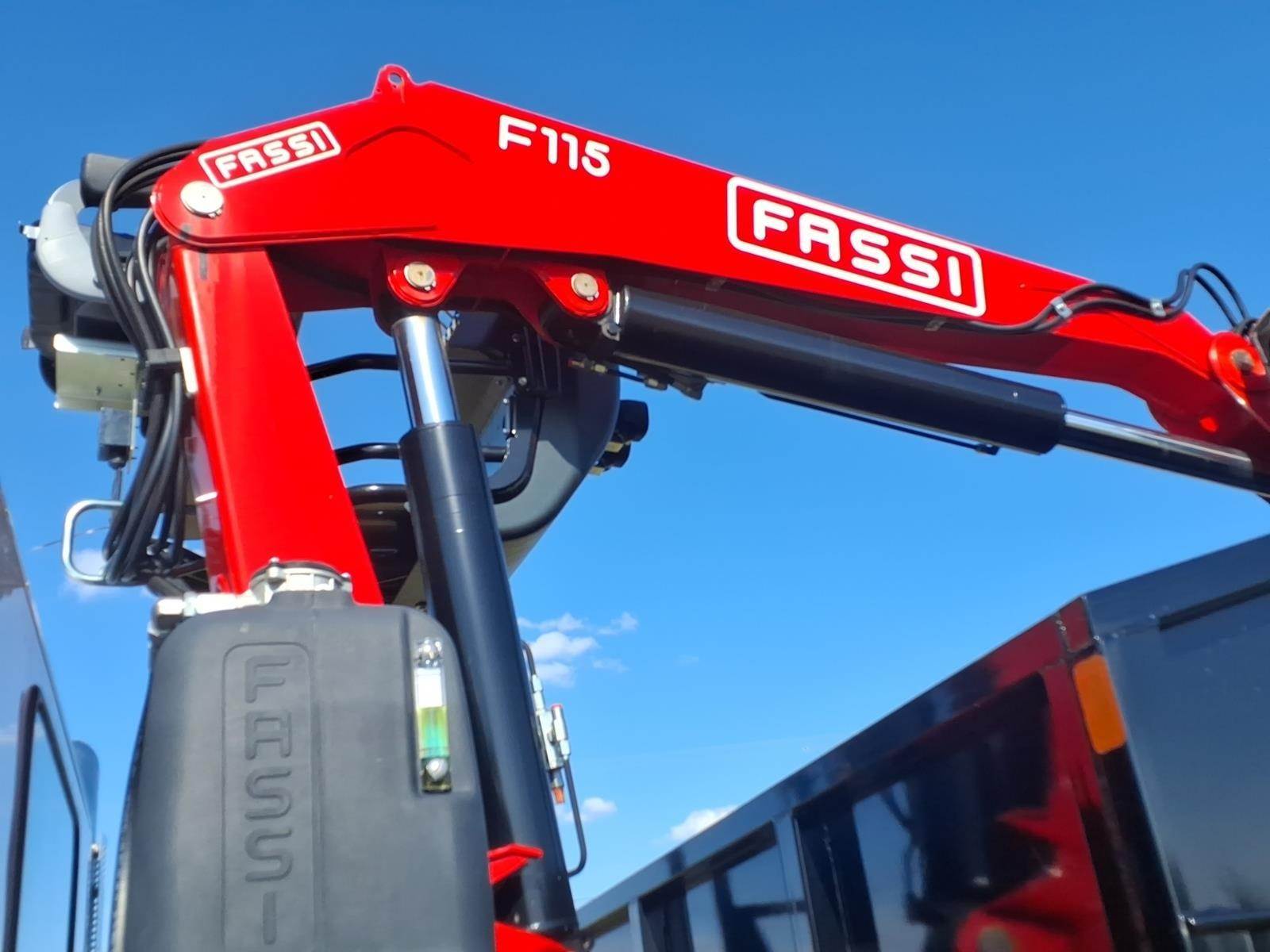

Crane Specifications:

Model: FASSI F115A.0.22
Hydraulic Reach: 25'11"
Controls: Top seat controls
Valve: Danfoss 800 valve upgrade for adding radio remote in future
Boom Tip: 2-activated functions for grapple application

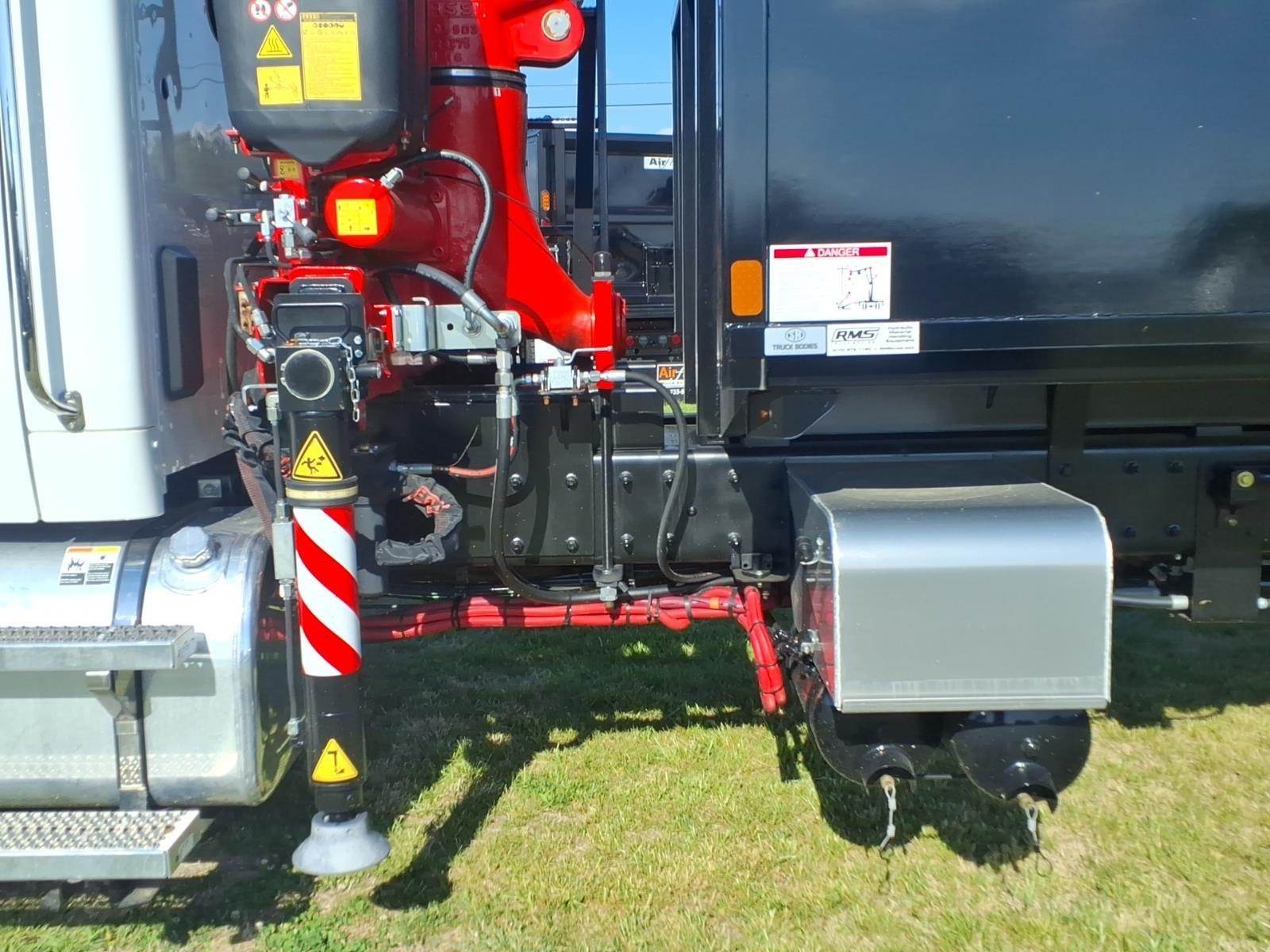

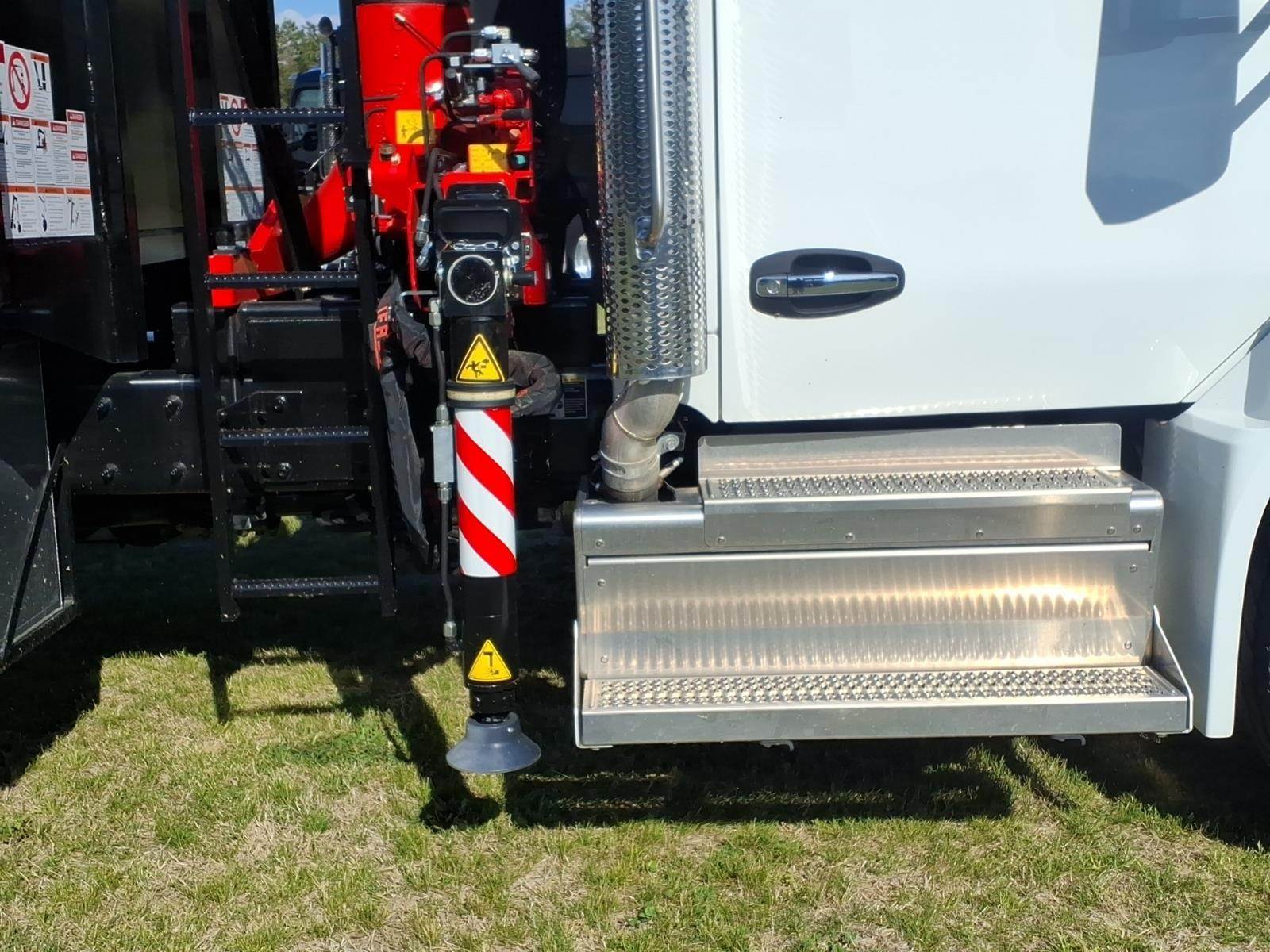

Outriggers: Hydraulically extendable - 16'1" spread
Work Lights: On outer boom
Safety Lights: LED marker lights on outrigger rams

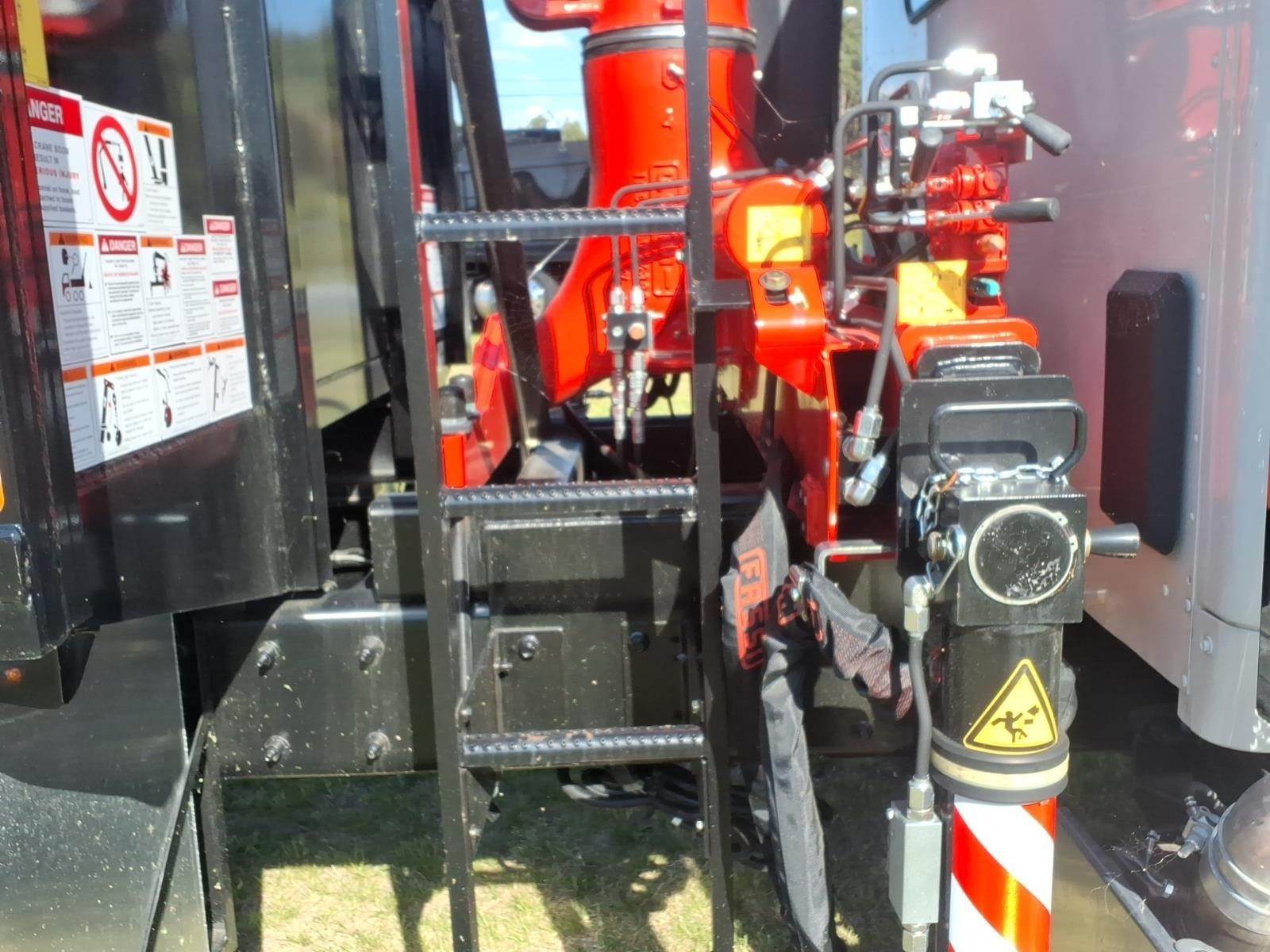

Access: Ladder to seat
Grapple Details:

Brand: Heiden 60 Series
Model: HC60-A-6
Opening Width: 48"
Closing Width: 4"
Rotator: 5T continuous
Hydraulic System:

Includes all necessary hoses, fittings, & hydraulic oil

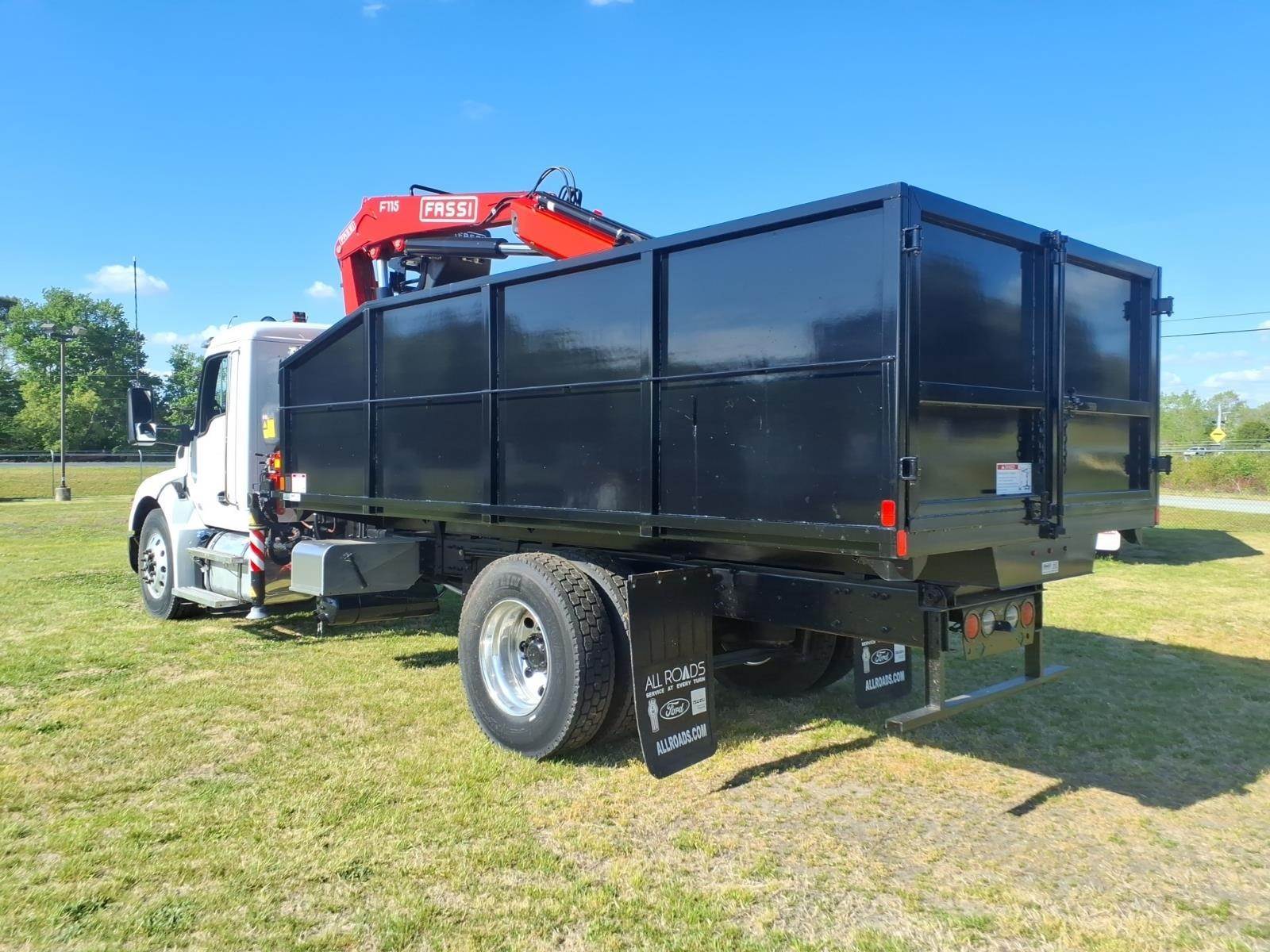

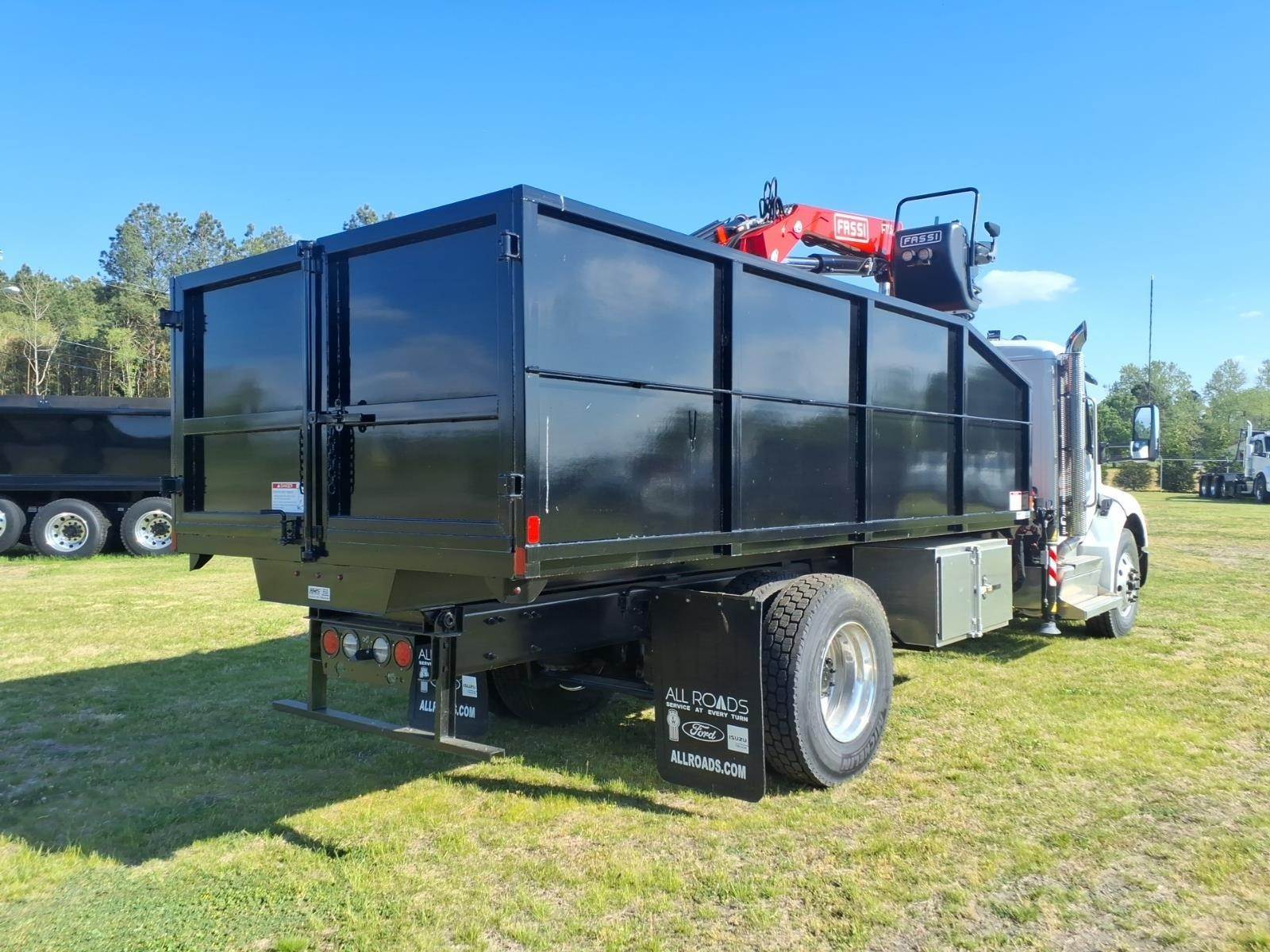

Custom Trash Body Features:

Dimensions: 16'6" x 96"

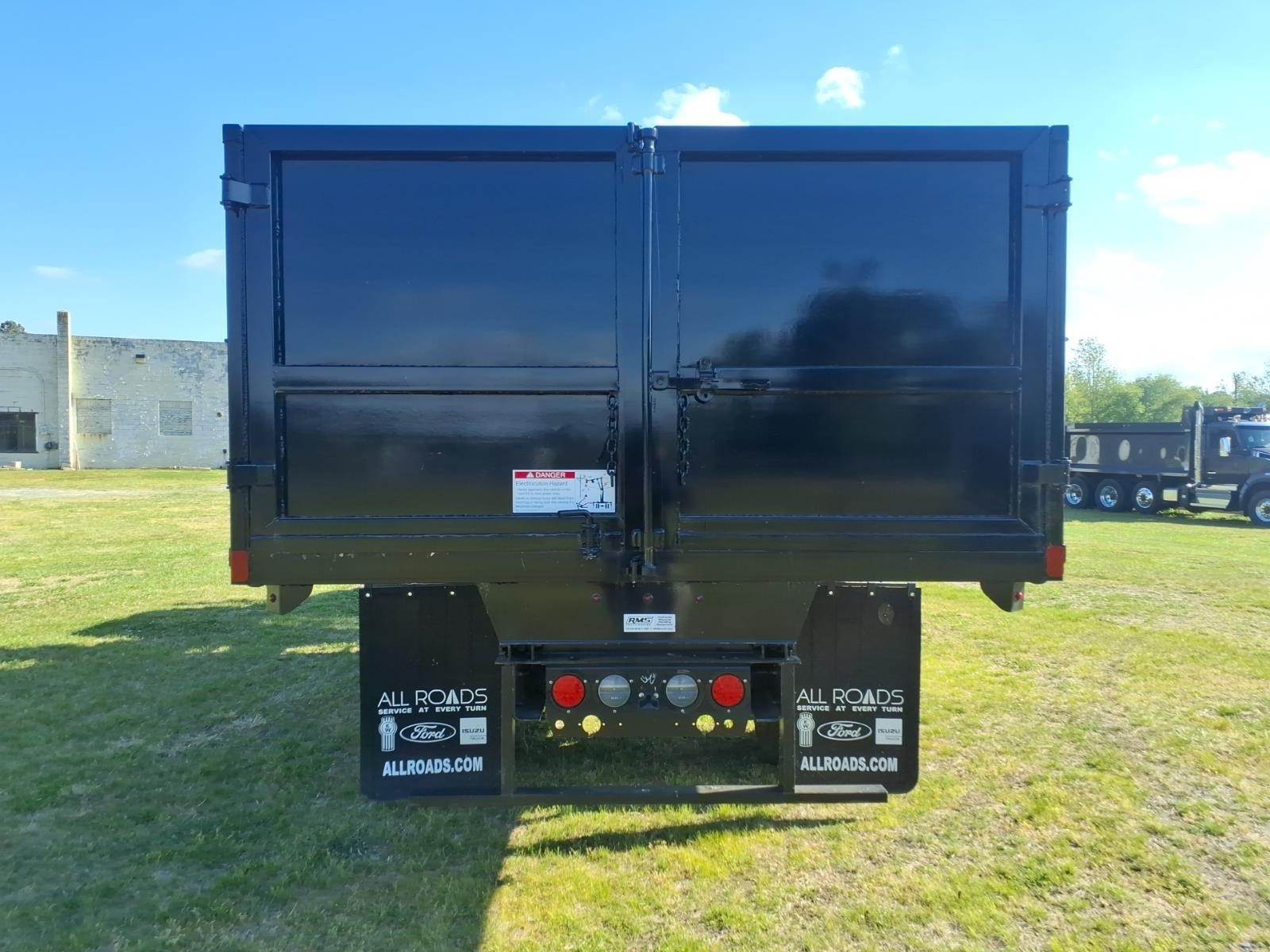

Side Height: 48" Weld-On with barn door style rear doors
Construction:
3" I-beam crossmembers on 24" centers
3/16" AR400 plate on floors, sides, front, & rear
3" x 2" x 1/8" square tube uprights on 48" centers
2" x 2" x 1/8" tubing top rail
Front 48" of sidewalls tapered down to 36"
Lighting: LED marker light kit
Hoist:

Brand: Champion
Model: CS628-FF single cylinder scissor hoist
Includes body props & rear hinge
Additional Equipment:

Toolbox: 48" x 24" x 24" Heavy Duty Aluminum Underbody Toolbox, mounted passenger side with structural channel mounting kits
Important Notes:

All vehicle photographs and images provided in our listings are for demonstration purposes only. The vehicles shown may differ in color, equipment, and options.

The advertised price does not include Federal Excise Tax (FET), if applicable, nor does it include any other taxes, fees, transportation costs (unless specified for MD/DE locations), or additional optional equipment, services, or coverages.

All pricing is subject to change and may vary based on specific vehicle customizations or market conditions.

Please verify all details with our dealership to confirm the final price, color, equipment, and any applicable charges before purchasing.
