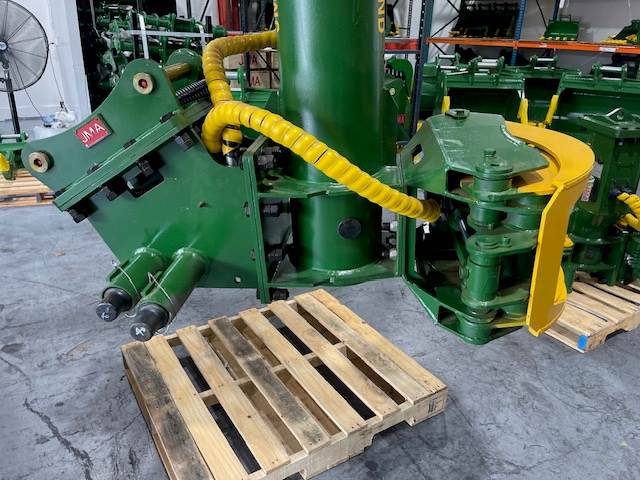

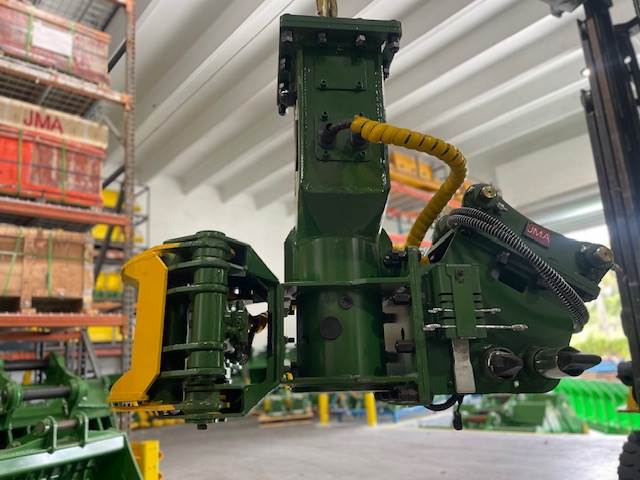

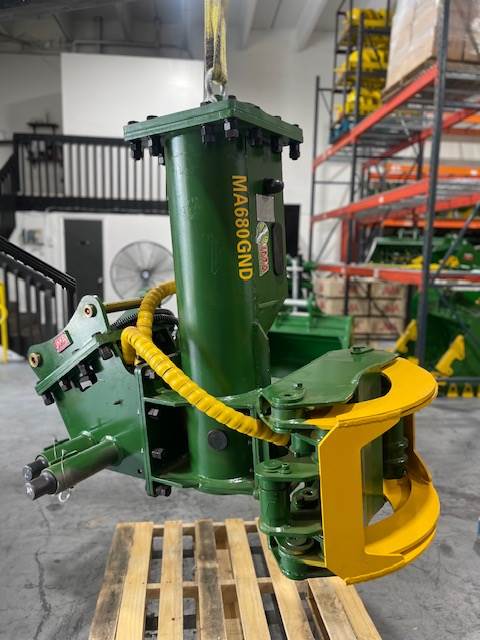

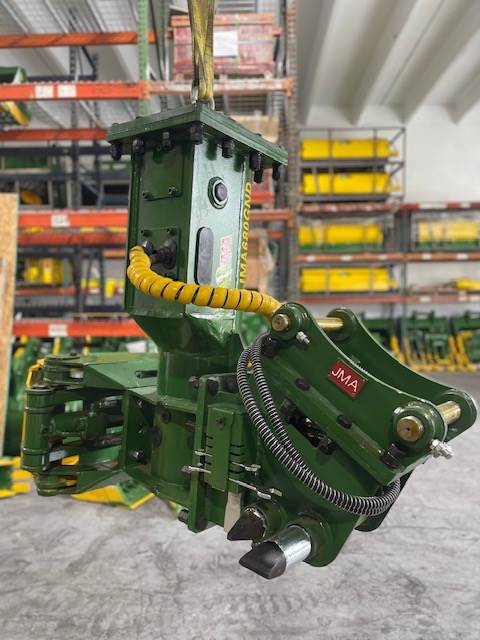

Introducing our JMA Post Driver Hammer Specifically for Bobcat E45, E50, & E55 Mini Excavators.
Unleash the power of efficient post driving with the 800 Joules Post Driver Hammer for 5 - 10 Tons Mini Excavators & Skid Steers. Precision-engineered for professionals, this post driver hammer is the ultimate tool for conquering diverse fencing and signage installation tasks.
Technical Specifications:
Quick Specs
Working Weight: 659 LB
Oil Flow: 10.5 – 18.4 GPM
BPM: 500-900
Tool Diameter: 68 MM
Anti-Blank Fire (ABF)
Enclosed silence hammer
SKU: JMACATL68HM
Excavator Range: 3 – 6.5 Tons Machine
Recommended Application: Optimized for demolition, rock, coral, sheet pile and much much more
Model
JMACATL68HM
Recommended Carrier (US TONS)
3 ~ 6.5
Impact Energy Class (JOULE)
800
Impact Frequency (BPM)
500~900
Working Weight (LBS/KG)
659 / 299
Oil Flow (GPM/LPM)
10.5 – 18.4 / 40 - 70
Operating Pressure (KG/CM2)
110 - 140
Tool Diameter (INCH/MM)
2.67/68
Chisel Bit Length (INCH/MM)
27.5/700
Hose Diameter (INCH)
1/2
Unrivaled Capabilities:
• Superior Force: 800 Joules energy class for unmatched driving power.
• Rapid Performance: 500 - 900 bpm impact frequency for swift post installation.
• Versatile Bit Design: 68 mm diameter and 700 mm length chisel bit for various applications.
• Optimized Pressure: 22.53 - 28.67 lb/ft² operating range for consistent results.
• Robust Design: Constructed from AR400 Steel for unparalleled durability and performance.
• Ready to Work: Includes Hydraulic Joystick, 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins.
Take your post driving capabilities to the next level. With the 800 Joules Post Driver Hammer for 5 - 10 Tons Mini Excavators & Skid Steers, you're investing in a tool that combines powerful performance with intelligent design to deliver unmatched results in any post installation project.
