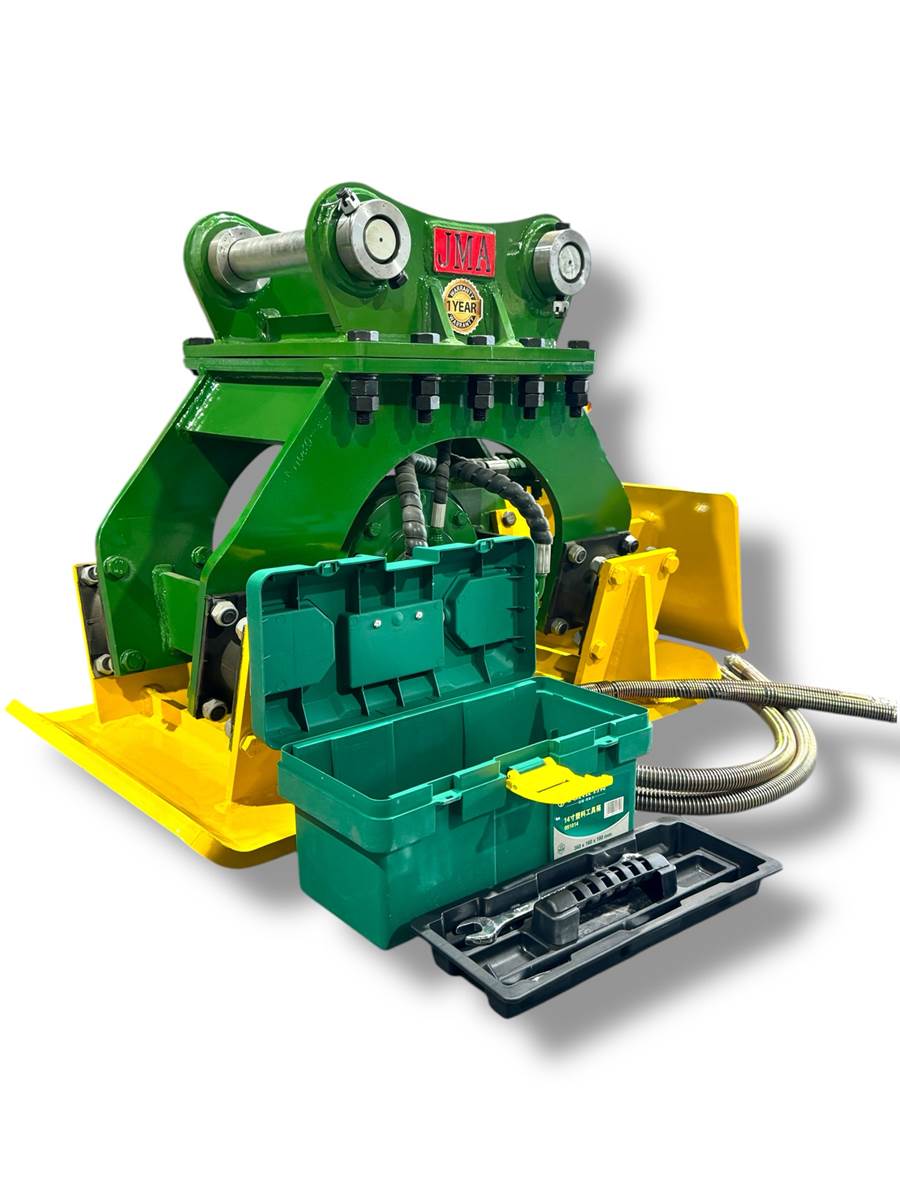

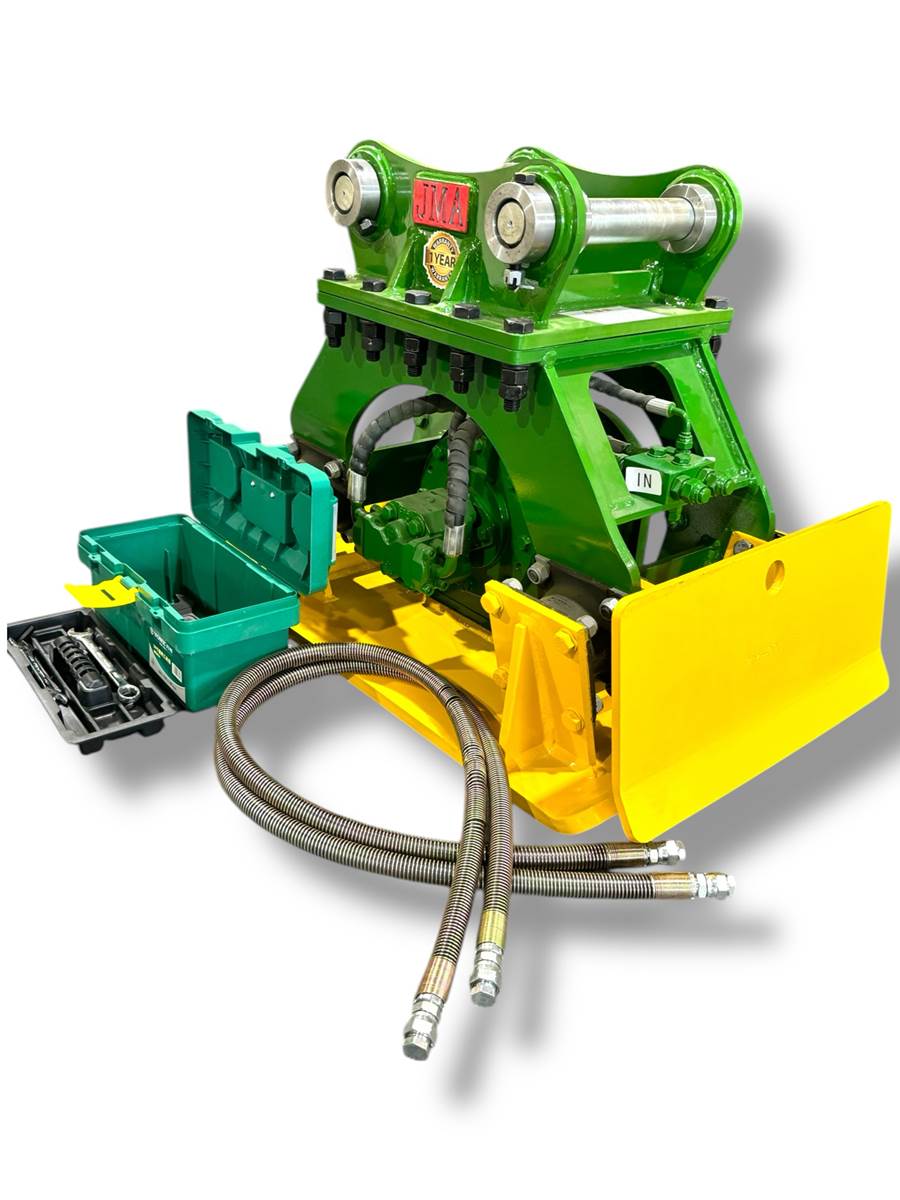

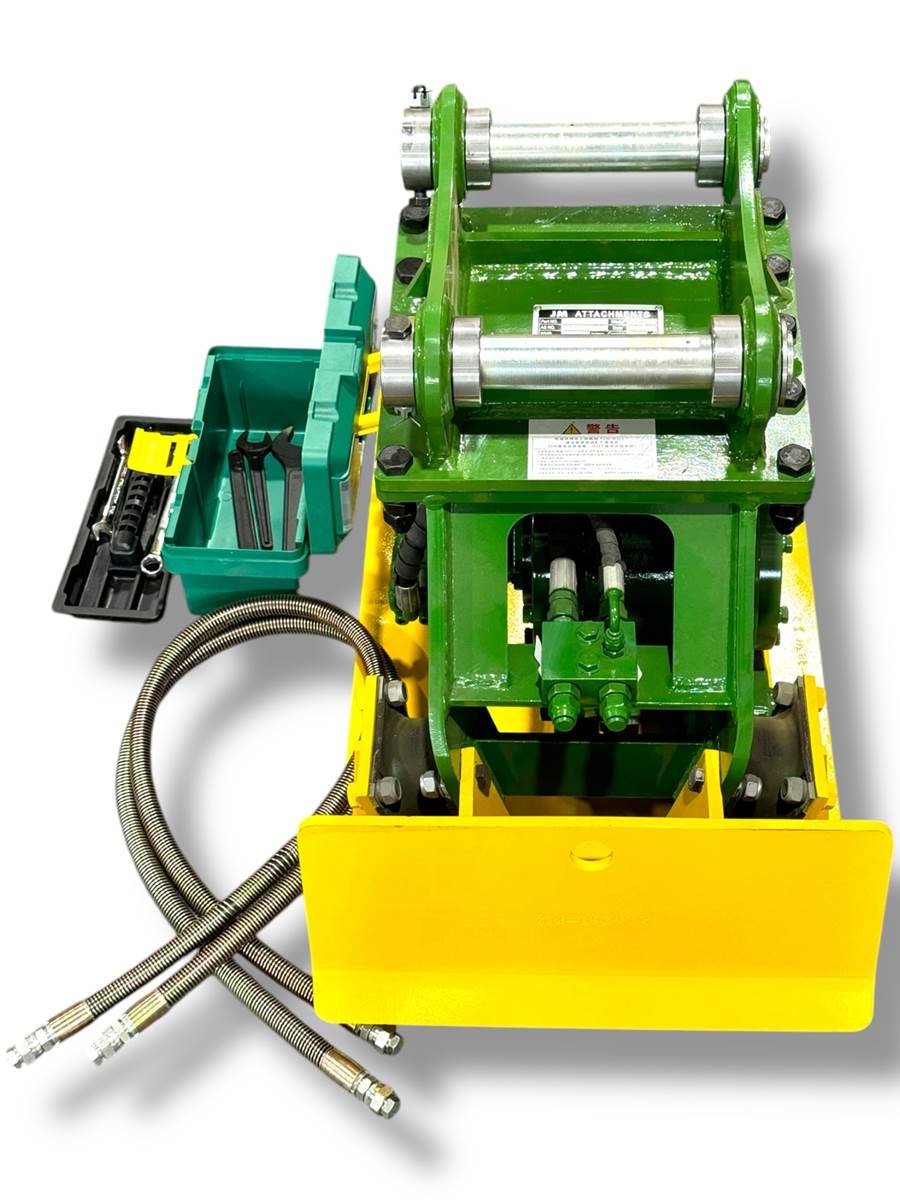

Introducing our JMA Plate Compactor Specifically for Caterpillar 311, 312,
313, 314, E110B E120B Excavators.
Unlock unprecedented compaction potential with the Plate Compactor For 7 - 10 Tons Mini Excavators. 50mm Pin. Designed for Mini Excavators, this advanced plate compactor redefines efficiency in soil and trench compaction.
Technical Specifications:
Model: JMACP12
Ramming Force: 10 Tons
Operation Pressure: 100-130
Bar
Required Flow: 22-28 GPM
Frequency: 1800 R/min
Weight: 705.48 lbs.
Fits 65 mm Diameter Pins.
Ear to Ear: 220 MM / 8.66 Inch
Center to Center: 408 MM / 16.06
Inch
Plate: 41.33""inch x 27.55” inch.
Unrivaled Advantages:
• Powerful Performance: 11,023.10 lb impulse force combined with 7,233 - 9,403 ft⋅lb tamping force for rapid, effective compaction.
• Easy Integration: 50 mm pin size ensures seamless attachment to your Mini Excavator.
• Built to Last: AR400 Steel construction guarantees durability in demanding environments.
• Fully Equipped: Comes with Leveling Pushing Blade, Two Hydraulic Hoses and Tools for Servicing for out-of-the-box productivity.
• Operator Comfort: Achieve superior compaction results from the safety of your cab.
Experience the pinnacle of compaction technology. With the Plate Compactor For 10-16 Tons Mini Excavators. 45mm Pin, you're not just compacting soil – you're elevating your entire operation to new heights of efficiency.
