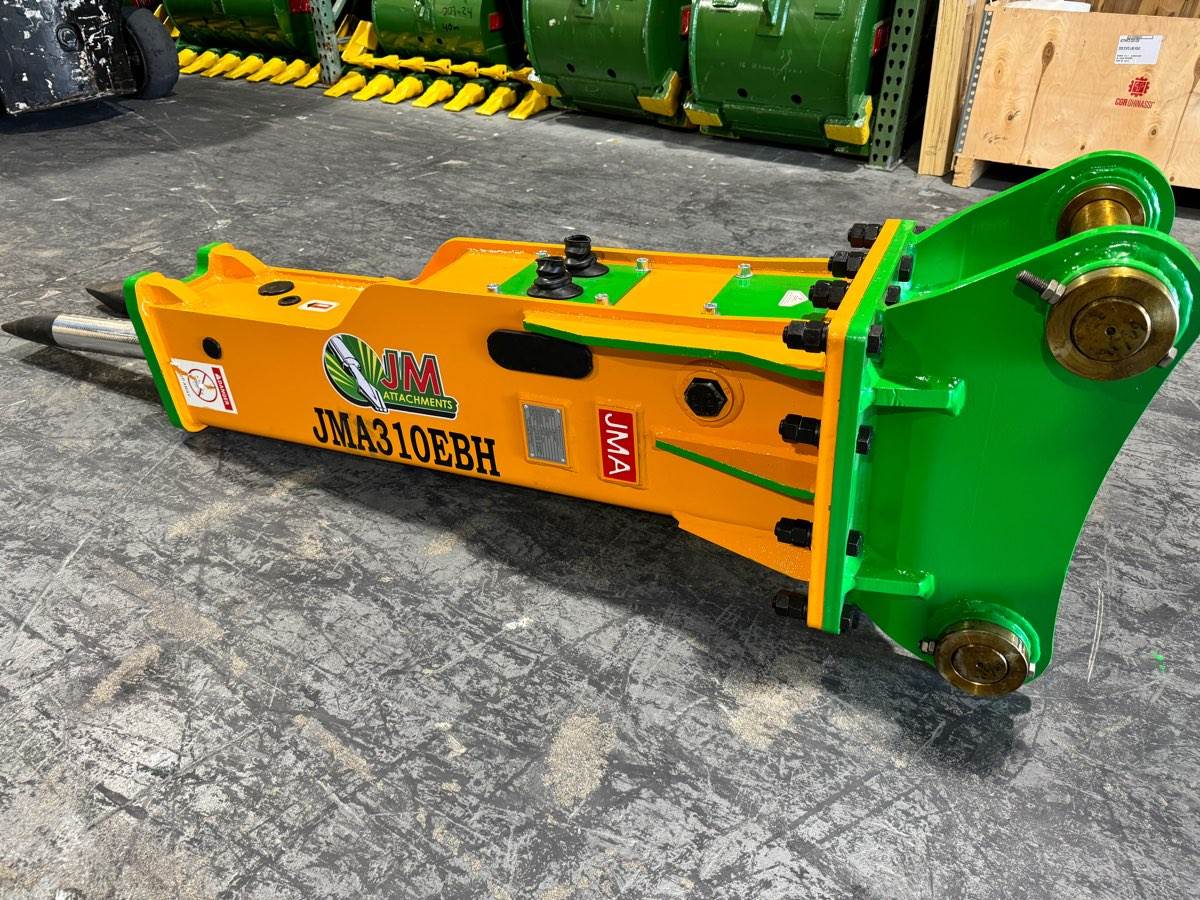

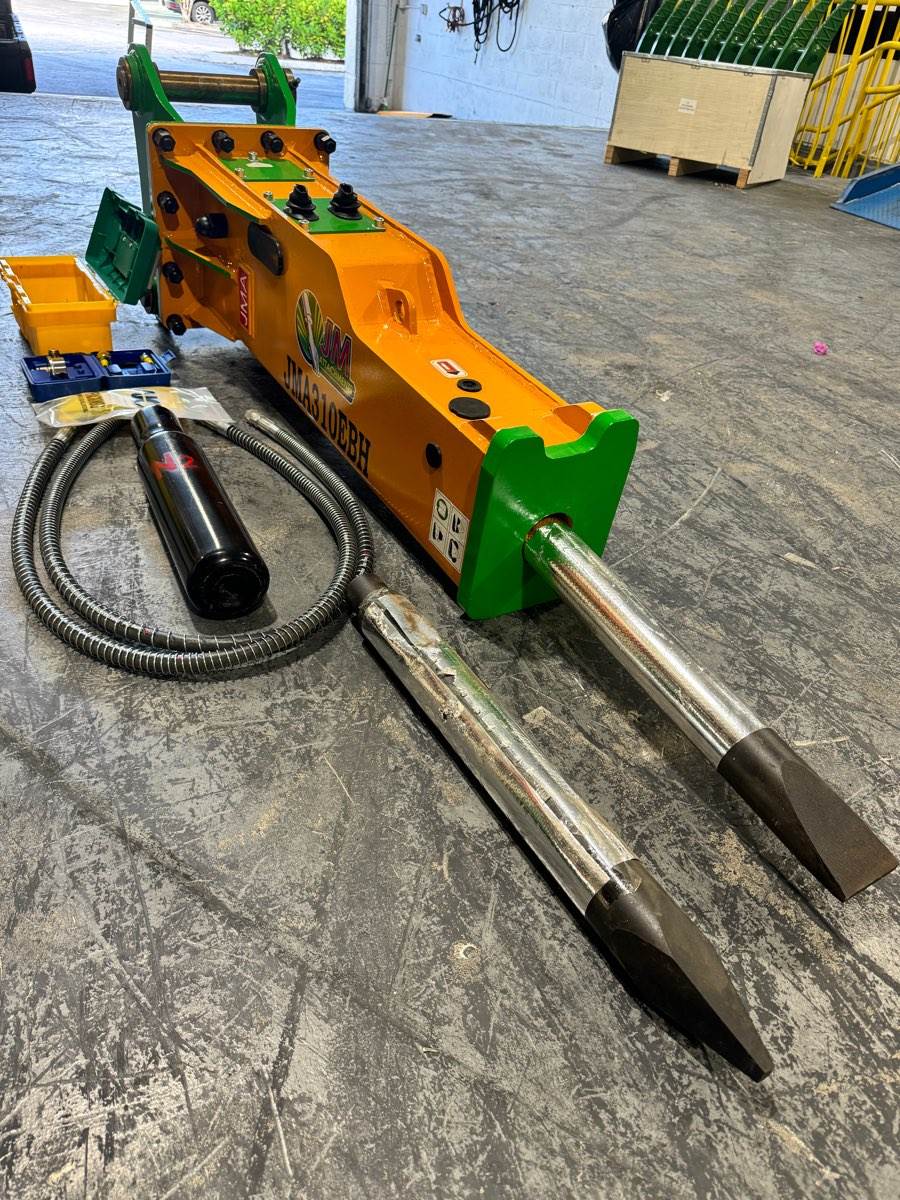

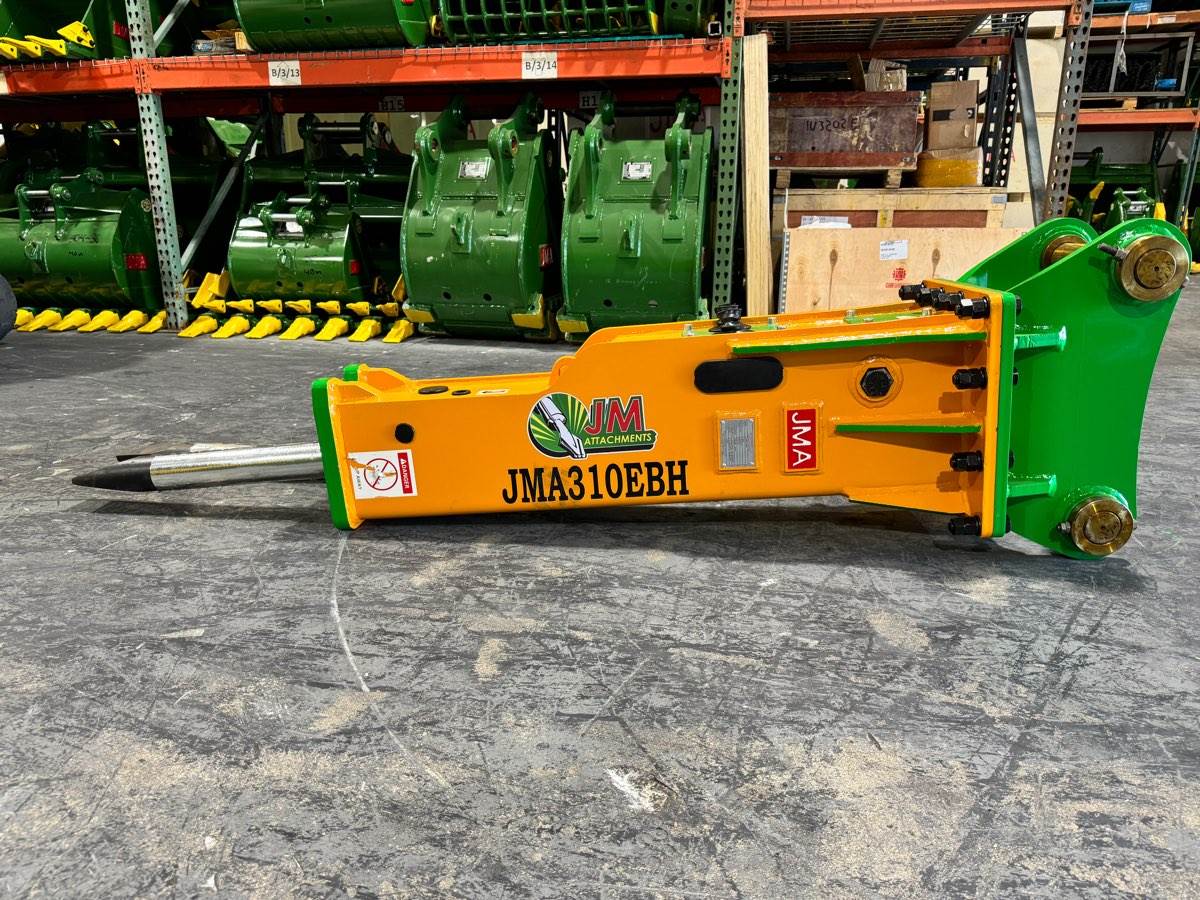

Introducing our JMA Hydraulic Hammer Breaker Attachment Specifically for Caterpillar 311, 312,
313, 314, E110B E120B Excavators.
Revolutionize your demolition capabilities with the 1,000 Joules Hydraulic Hammer for 8 - 13 Tons Excavators. 60mm Pins. Precision-crafted for Mini Excavators, this hydraulic hammer sets new standards in breaking power and operational efficiency.
Technical Specifications:
Working Weight: 827 LB
Oil Flow: 13.20 – 23.77 GPM
BPM: 400-800
Tool Diameter: 75 MM
Anti-Blank Fire (ABF)
Enclosed silence hammer
Model: JMA310EBH
Recommended Carrier (US TONS)
8 ~ 13
Impact Energy Class (JOULE): 1000
Impact Frequency
(BPM): 400~800
Working Weight (LBS/KG): 827 / 375
Oil Flow (GPM/LPM): 13.20 – 23.77 / 50 - 90
Operating Pressure (KG/CM2): 120 - 170
Tool Diameter (INCH/MM): 2.95/75
Chisel Bit Length (INCH/MM): 28.34/720
Hose Diameter (INCH): 1/2
Elite Features:
• Powerhouse Performance: 1,000 Joules energy class delivers unmatched breaking force.
• Rapid Demolition: 400 - 800 bpm impact frequency accelerates project completion.
• Extreme Durability: AR400 Steel construction ensures longevity in harsh conditions.
• Noise and Vibration Suppressed: Engineered for operator comfort and environmental compliance.

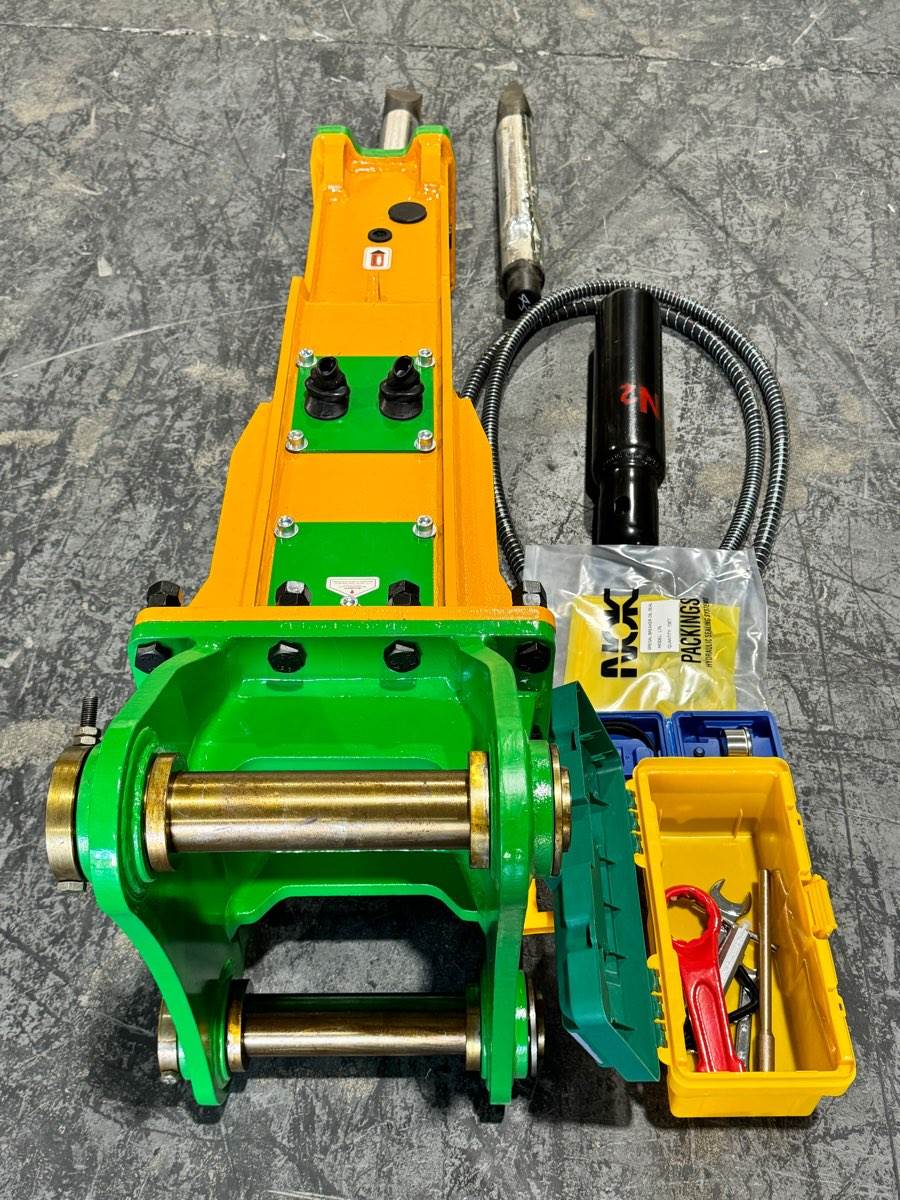

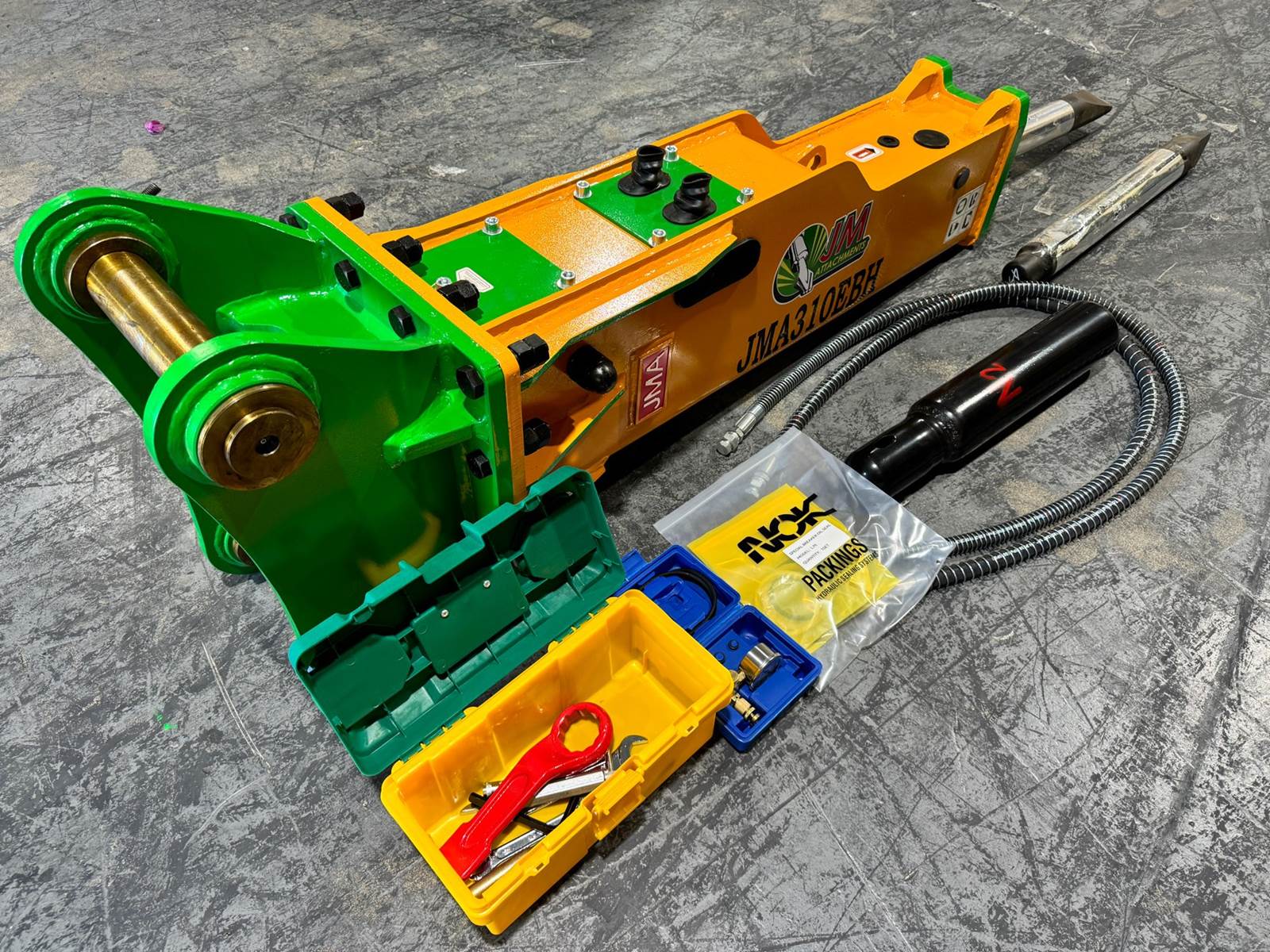

• Ready for Action: Comes with 2 Hydraulic Hoses,1 Moil Rock Chisel Bit, 1 Wedge Rock Chisel Bit, Tool Box, Nitrogen Gauge, Nitrogen Bottle, Repair Seal Kit, 2 Greasable Pins, 4 Bushings for immediate productivity.
Transform your Mini Excavator into a demolition dynamo. With the 1,000 Joules Hydraulic Hammer for 8 - 13 Tons Excavators. 60mm Pins, you're investing in a game-changing tool that delivers results in the most challenging environments.
