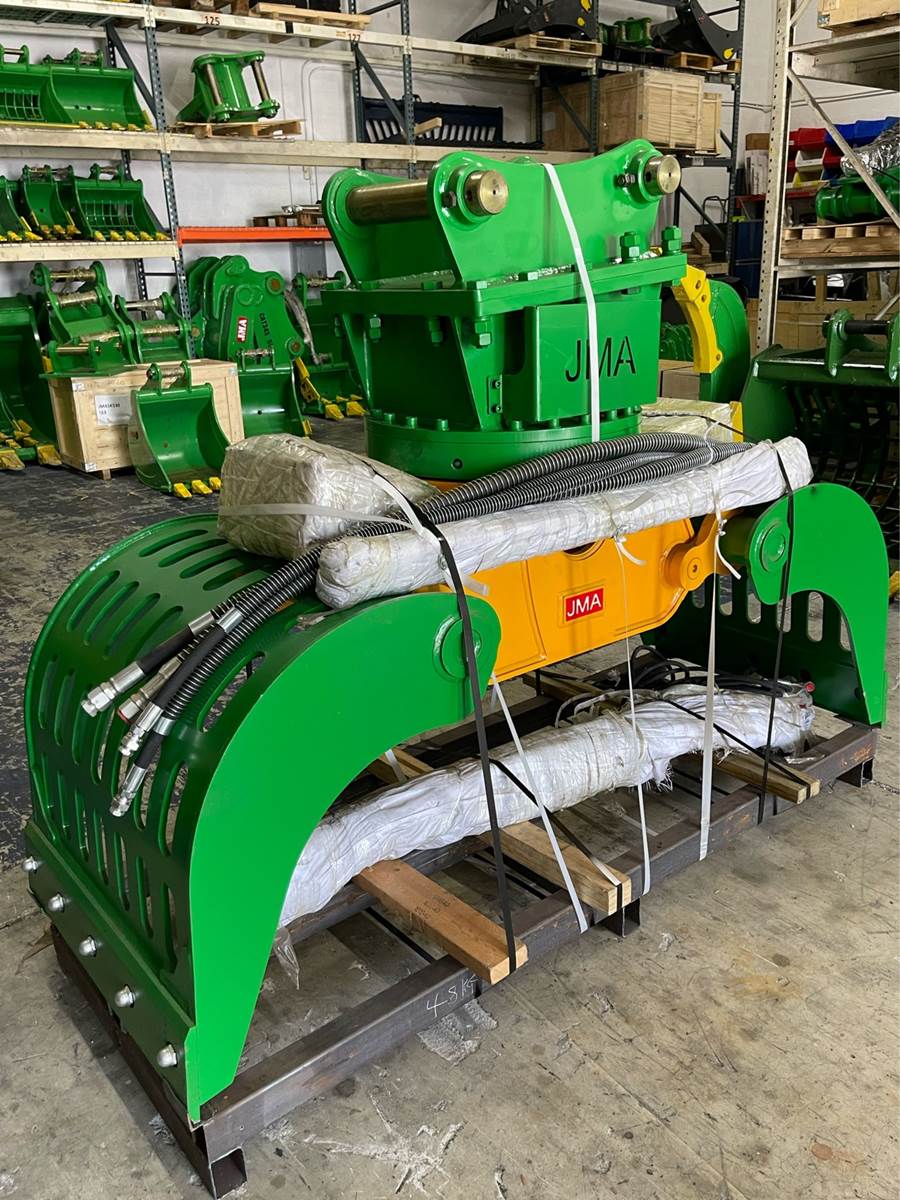

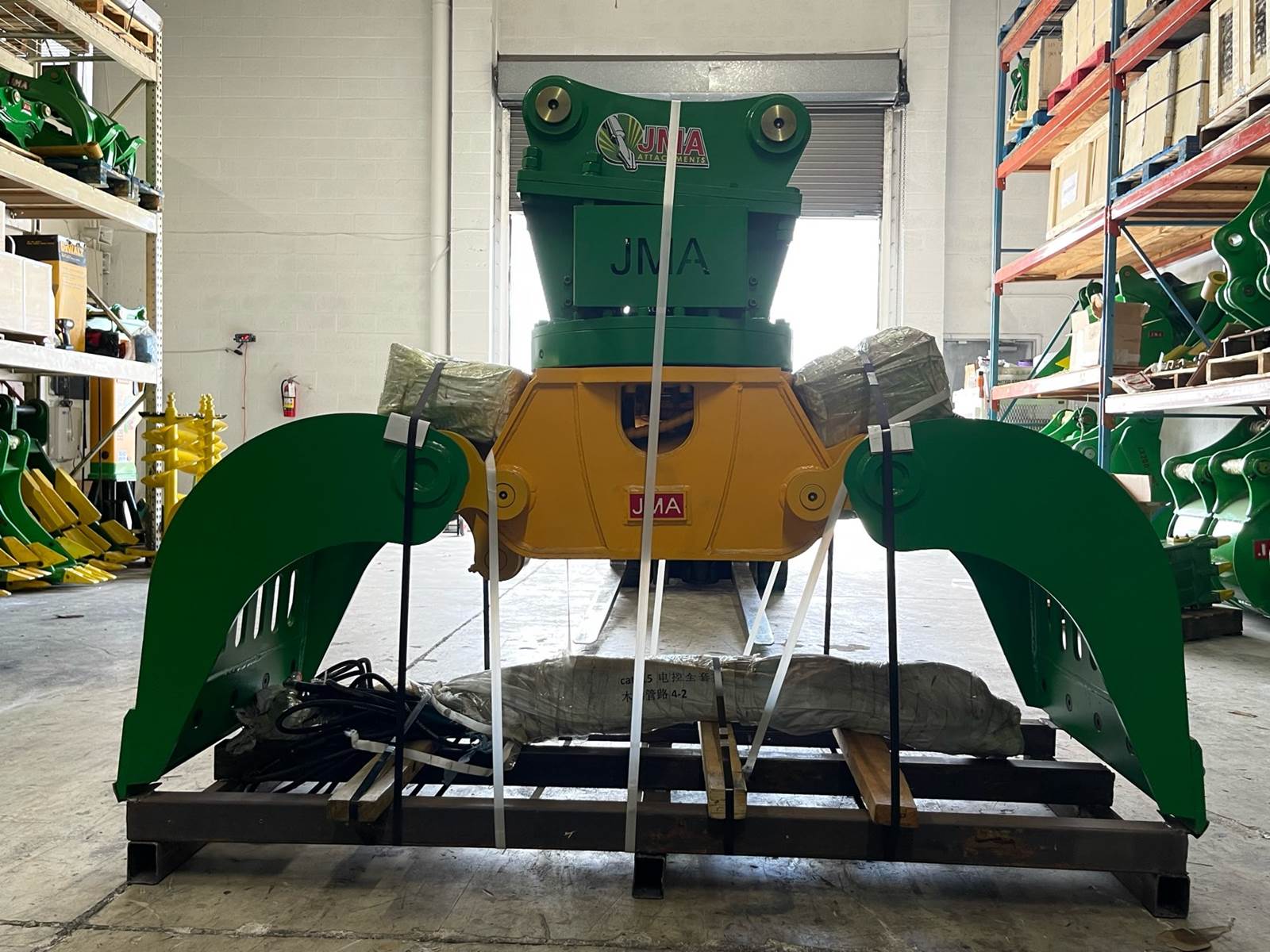

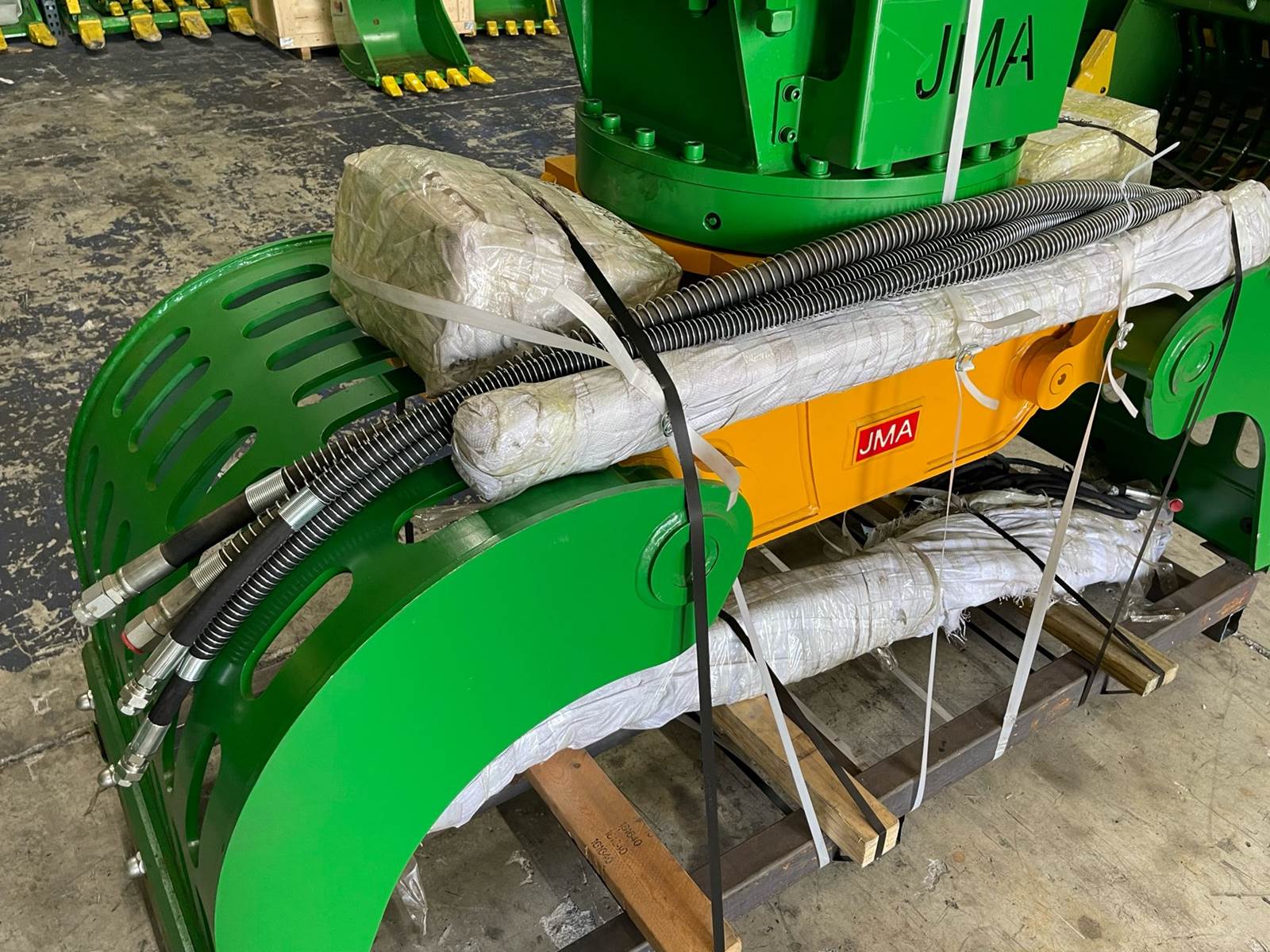

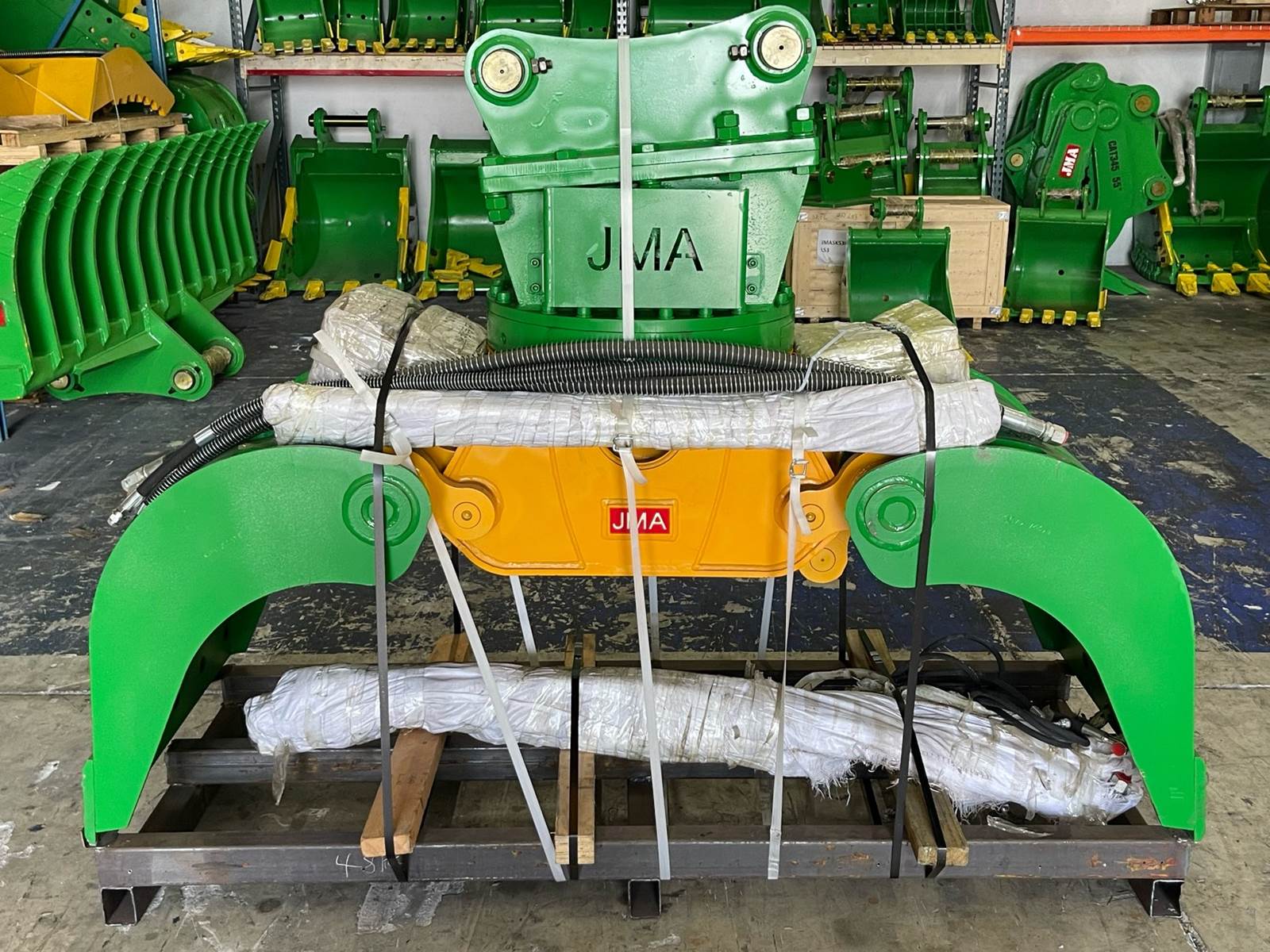

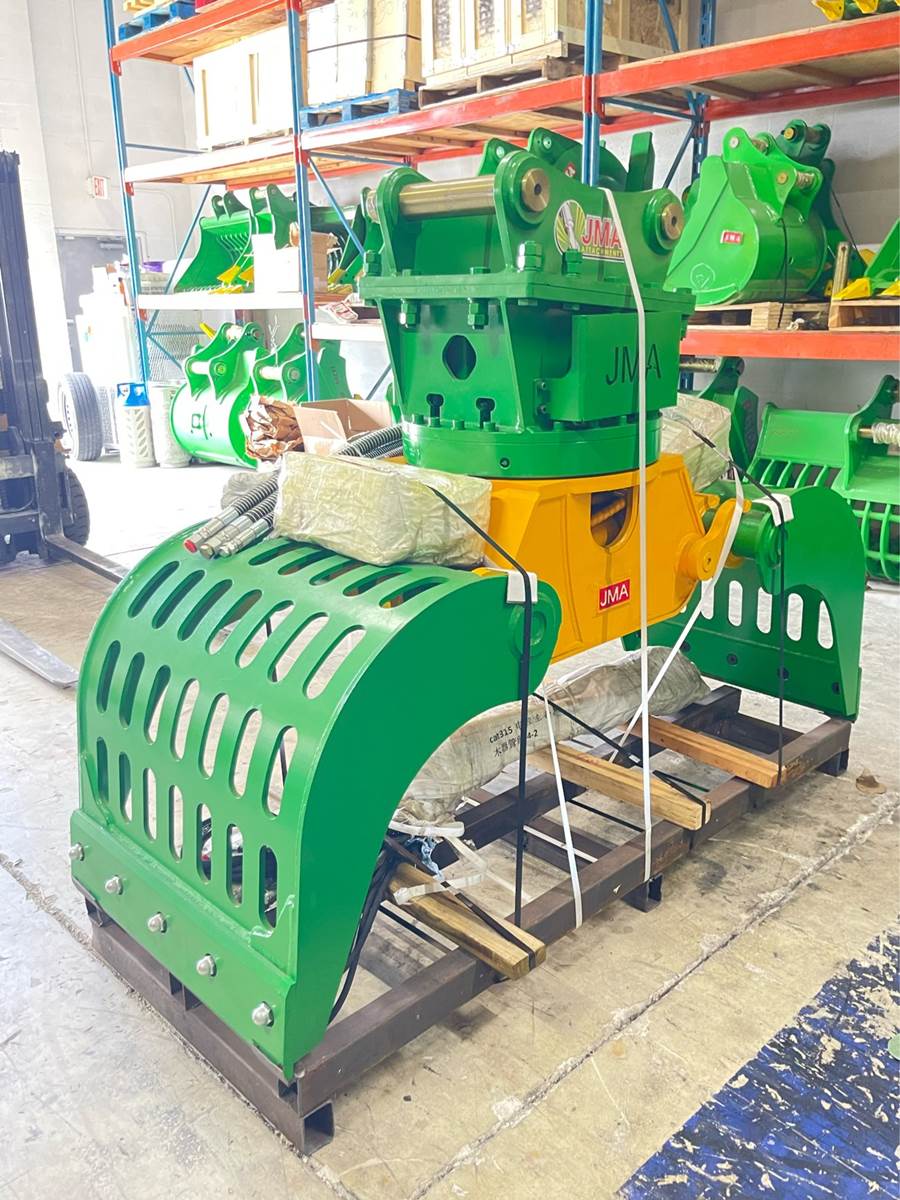

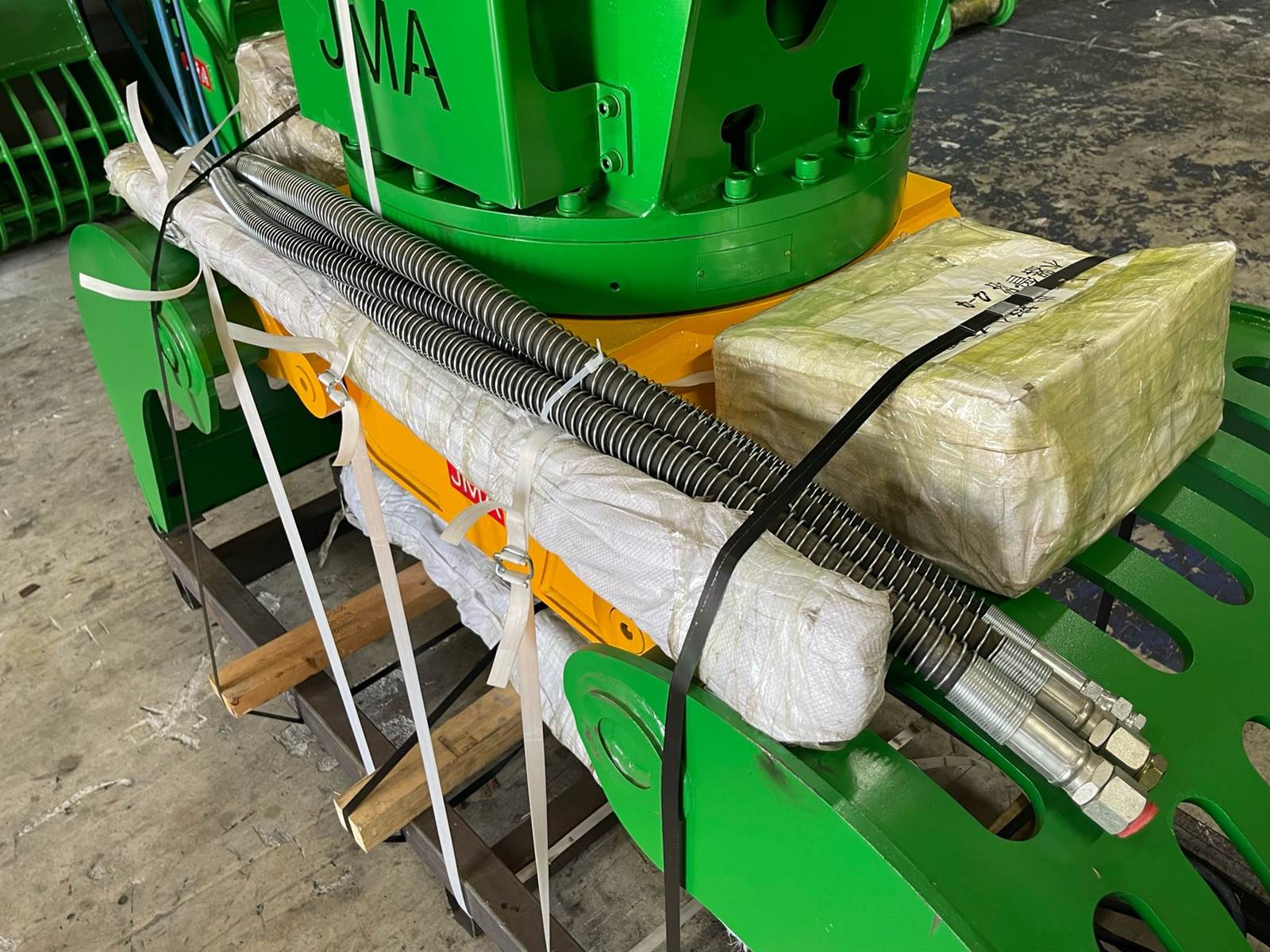

Introducing our unbeatable JMA Hydraulic Demolition Rotating Grapple Specifically for Caterpillar 311, 312,
313, 314, E110B E120B Excavators.
Transform your approach to material handling and demolition with the Rotating Hydraulic Grapple for 11 - 15 Tons Excavators. 65mm Pins. This premium Rotating Hydraulic Grapple is designed to dominate in construction, demolition, and waste management scenarios.
Technical Specifications:
Rotation Degree: 360 degrees
Max Opening: 1300 - 2300mm
Recommended Application: Optimized for demolition, rock, and waste handling applications
Carrier weight class ¹ 11 – 19 tons Excavators.
Service weight (rotation) ² 1200 KG.
Service weight (non-rotation) ² 1200 KG.
Product weight (rotation) 838 KG.
Product weight (non-rotation) 728 KG / 1601.6
Jaw opening, max 2,082 MM
Grapple width 800 MM
Max.
closing force 305 KN.
Oil flow 80 LPM – 120 LPM / 21.13 GPM – 31.70 GPM
