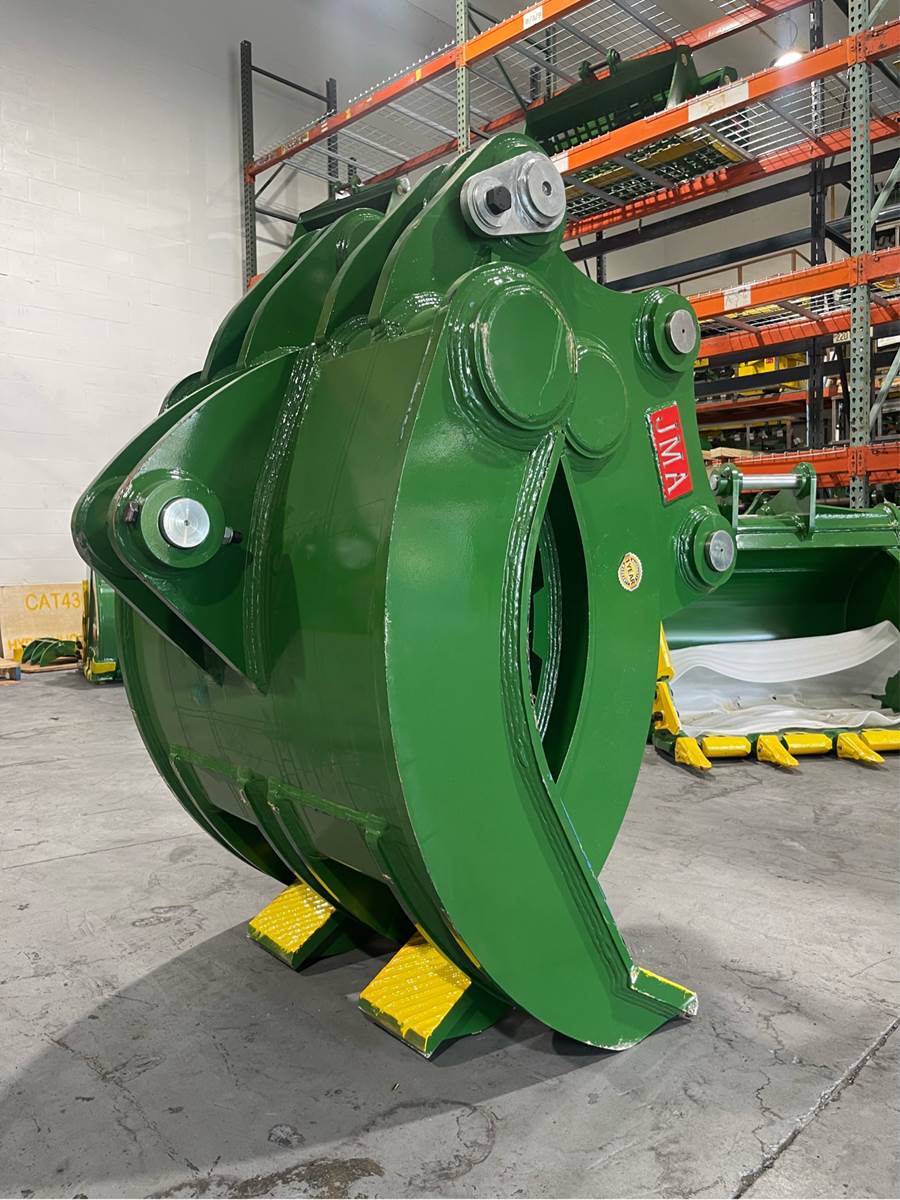

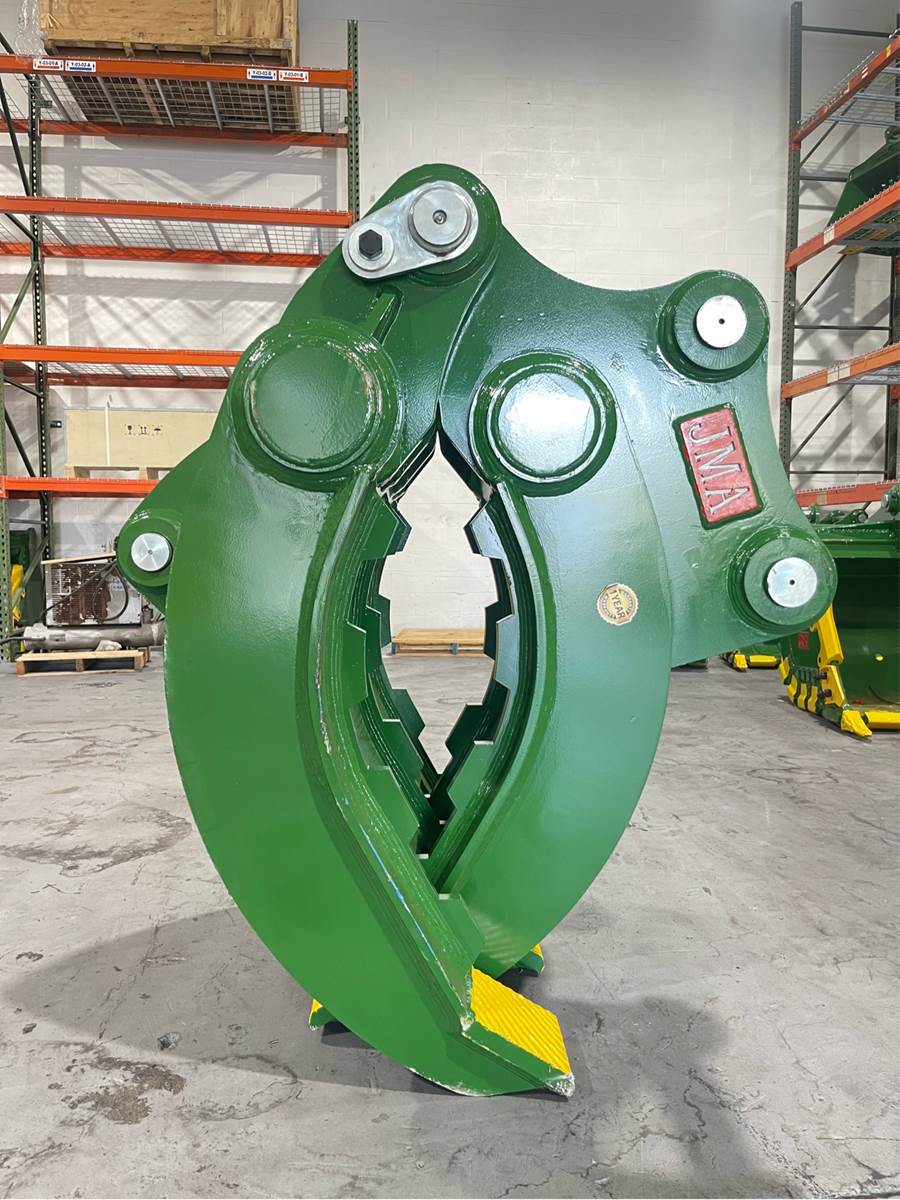

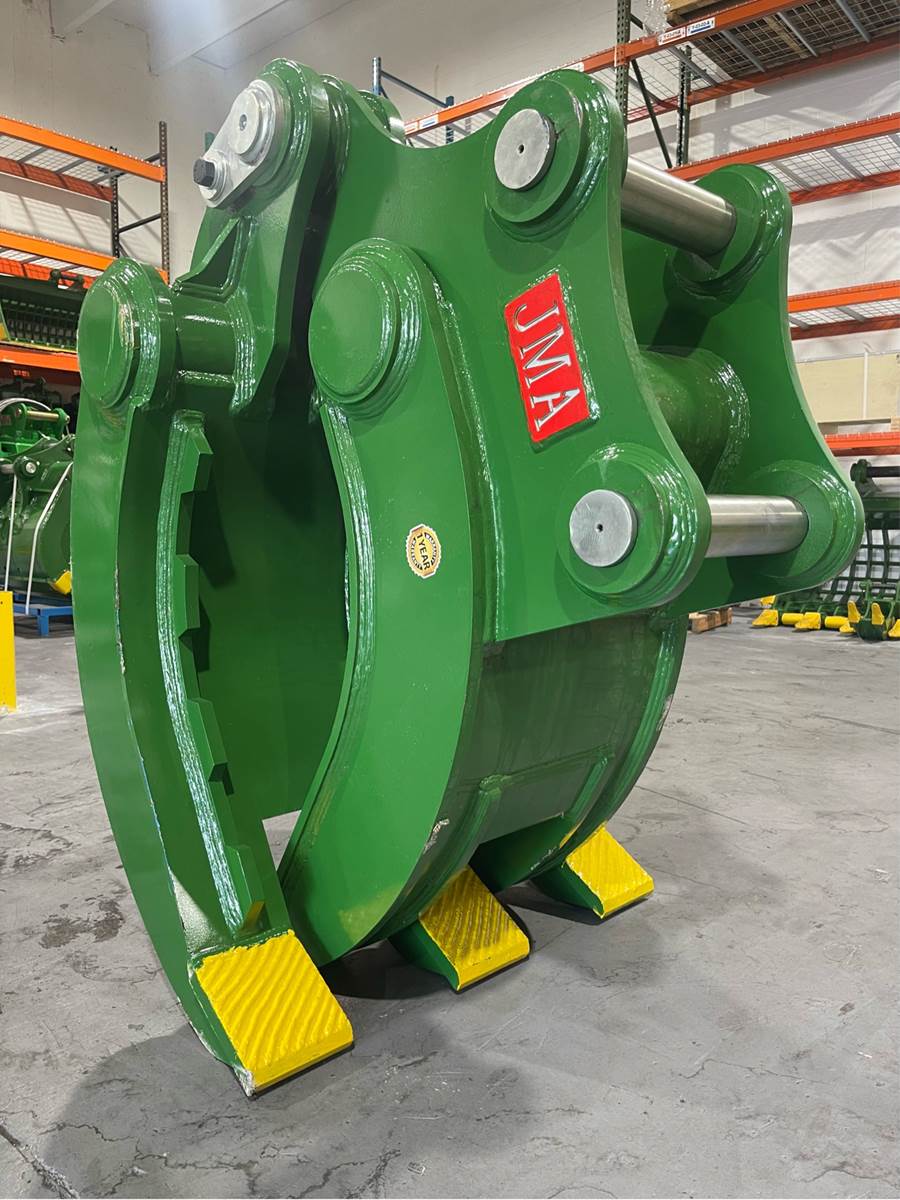

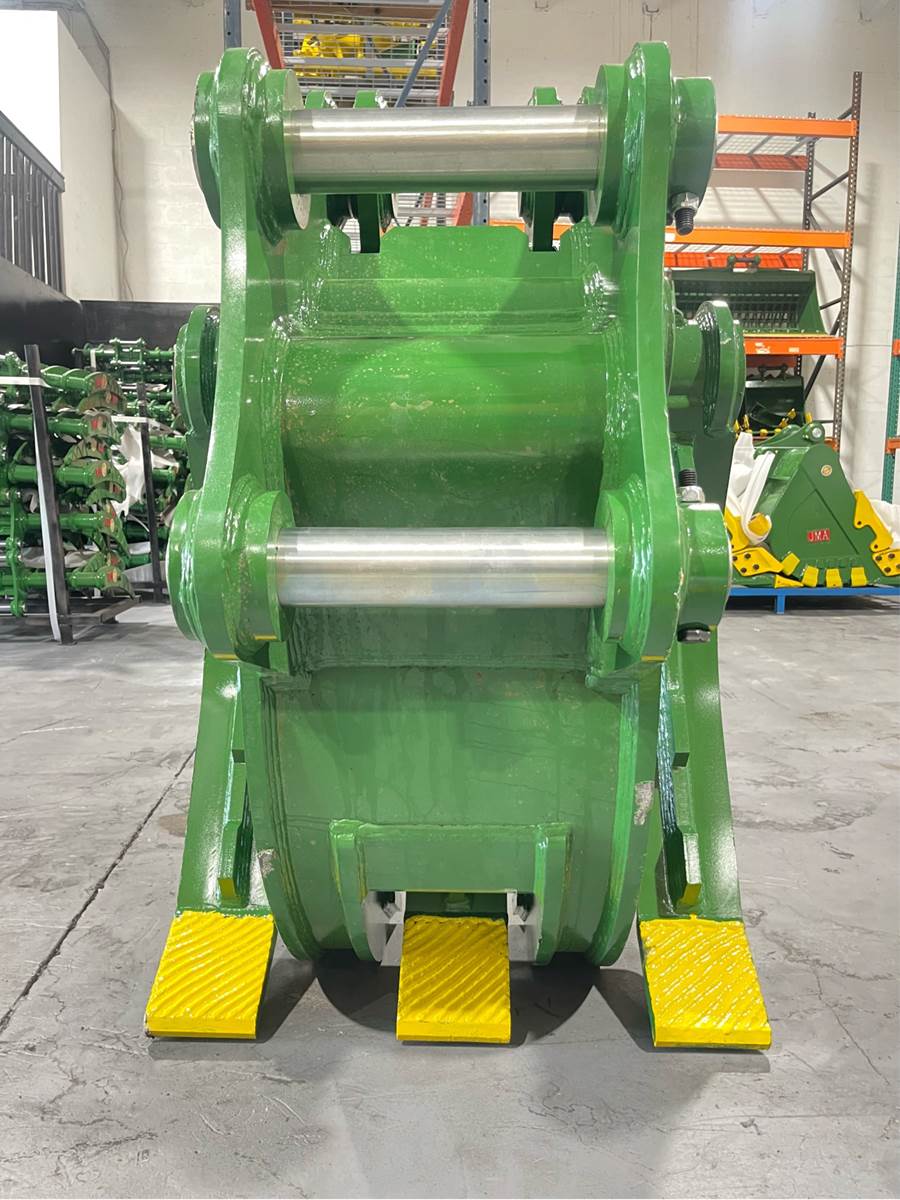

Introducing our JMA 40" Mechanical Grapple Specifically for Hyundai HX190, HX200, HX210, HX215, HX220, HX225 Excavators.
Revolutionize your demolition and material handling capabilities with the 40” Mechanical Grapple for 16 - 25 Tons Excavators. 80mm Pins. Engineered specifically for Excavators, this robust mechanical grapple is your key to maximizing efficiency in the most demanding job sites.
Technical Specifications:
Excavator Range:16 - 25 Ton Machine
Rotation Degree: Fixed
Max Opening: 2,20 MM - 86.62” inch
Recommended Application: Optimized for demolition, rock, and waste handling applications
Carrier Weight Class
16 – 25 tons Excavators.
Product Weight:
1,450 KG / 3,190 Lbs
Jaw Configuration:
2 over x 3 Tines
Jaw Opening
2,200 mm / 86.62” inches
Lower Width
940 mm / 37” inches
Upper Width
520 mm / 20.50” inches
Grapple Height
1,436 mm / 56.53” inches
Grapple Width
1,267 MM / 49.88” inches
HEAD SIZE
80x446x311
Key Features:
• Versatile Jaw Design: 4*3 configuration for optimal grip on various materials.
• Impressive Capacity: 40" grapple width with 86.61" max jaw opening for handling large objects.
• Sturdy Construction: Built with AR450 Steel for unmatched durability in tough conditions.
• Precision Grip: 37" fixed jaw width ensures secure hold on demolition debris and materials.
• No Hydraulics Needed: Utilizes the excavator's existing linkage for seamless operation.
Transform your Excavator into a demolition powerhouse. The 40” Mechanical Grapple for 16 - 25 Tons Excavators. 80mm Pins isn't just an attachment – it's your strategic advantage in efficient site clearance and material handling.
