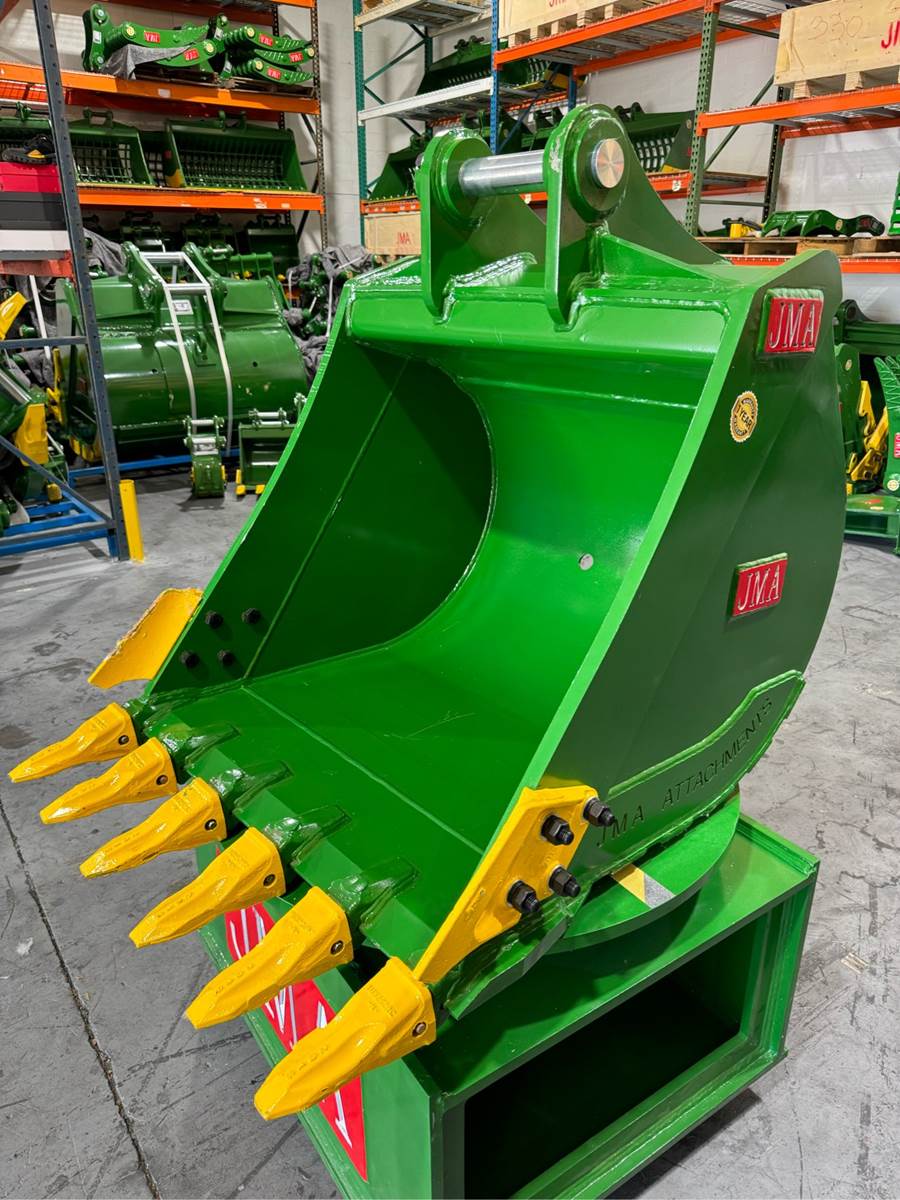

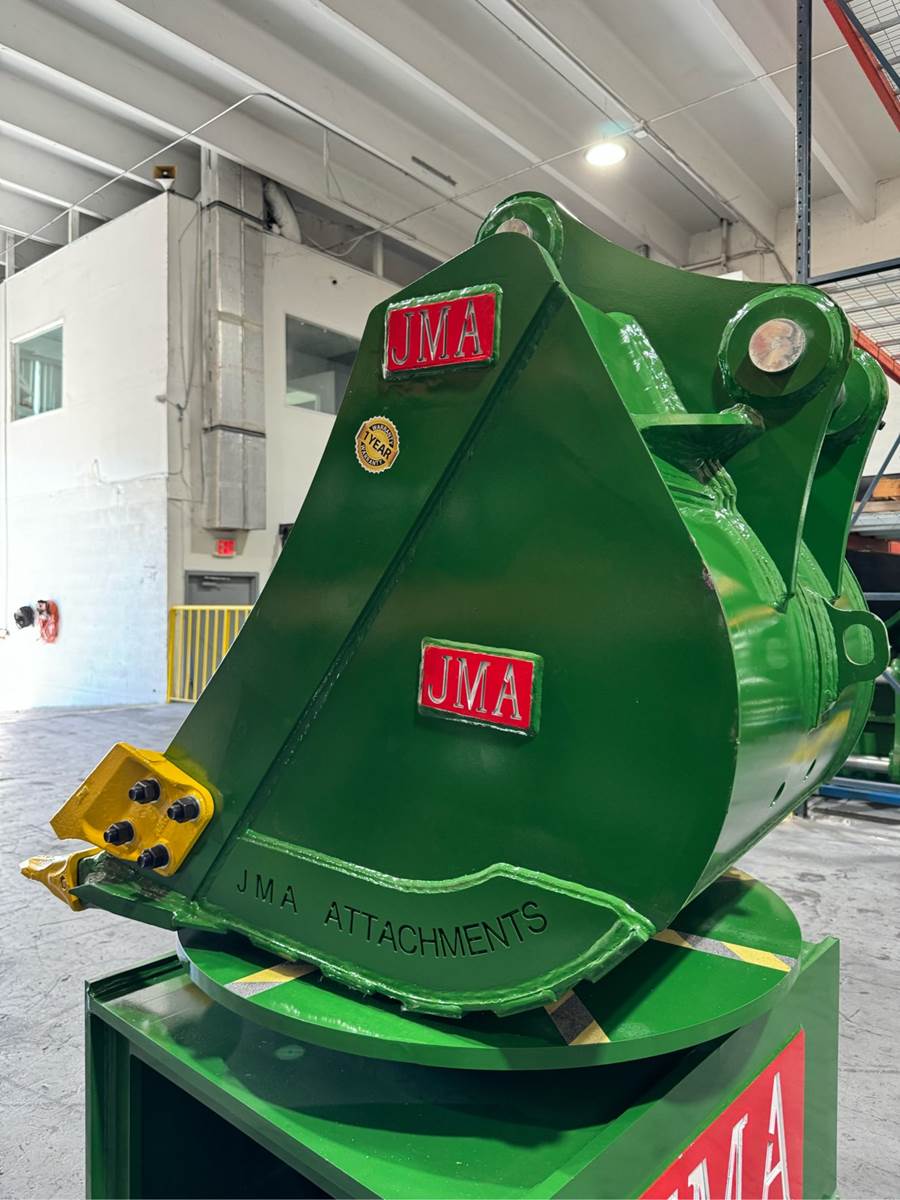

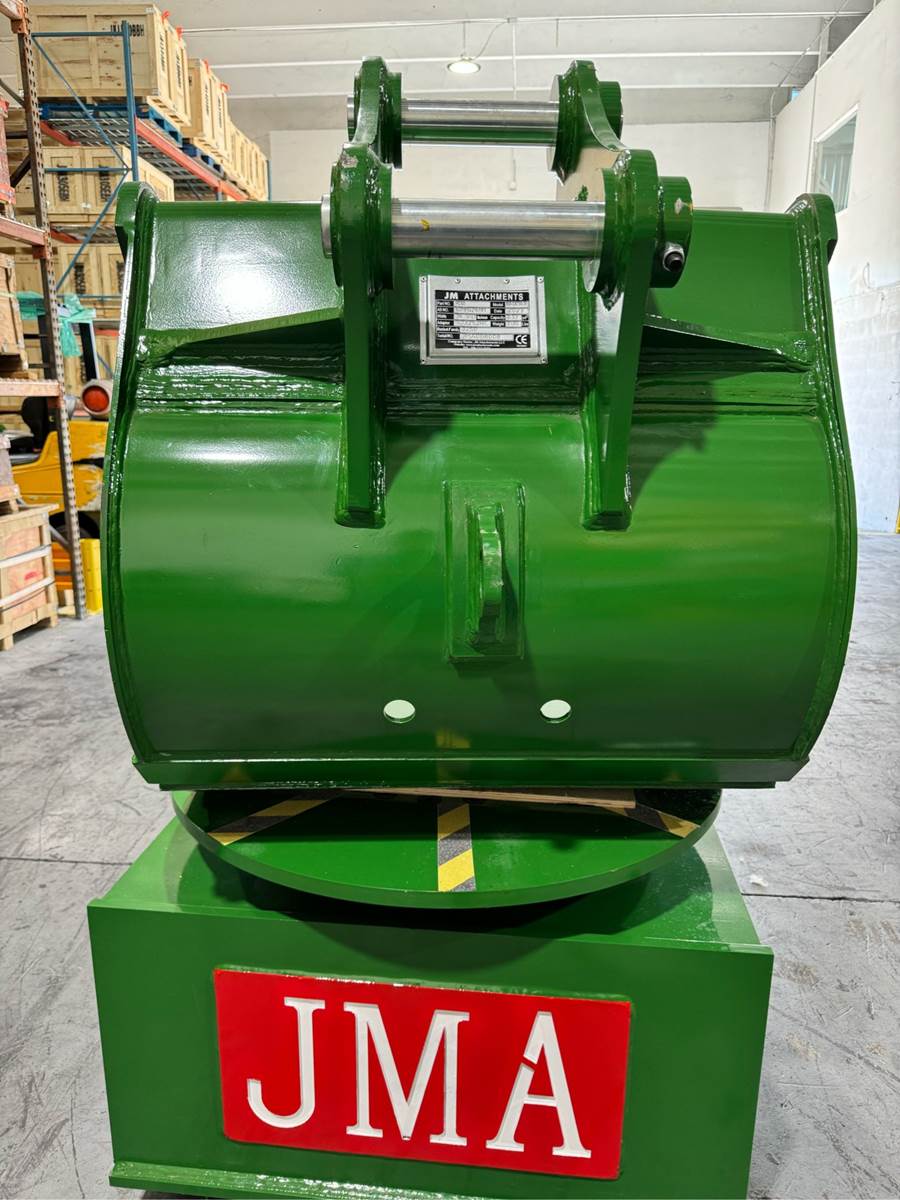

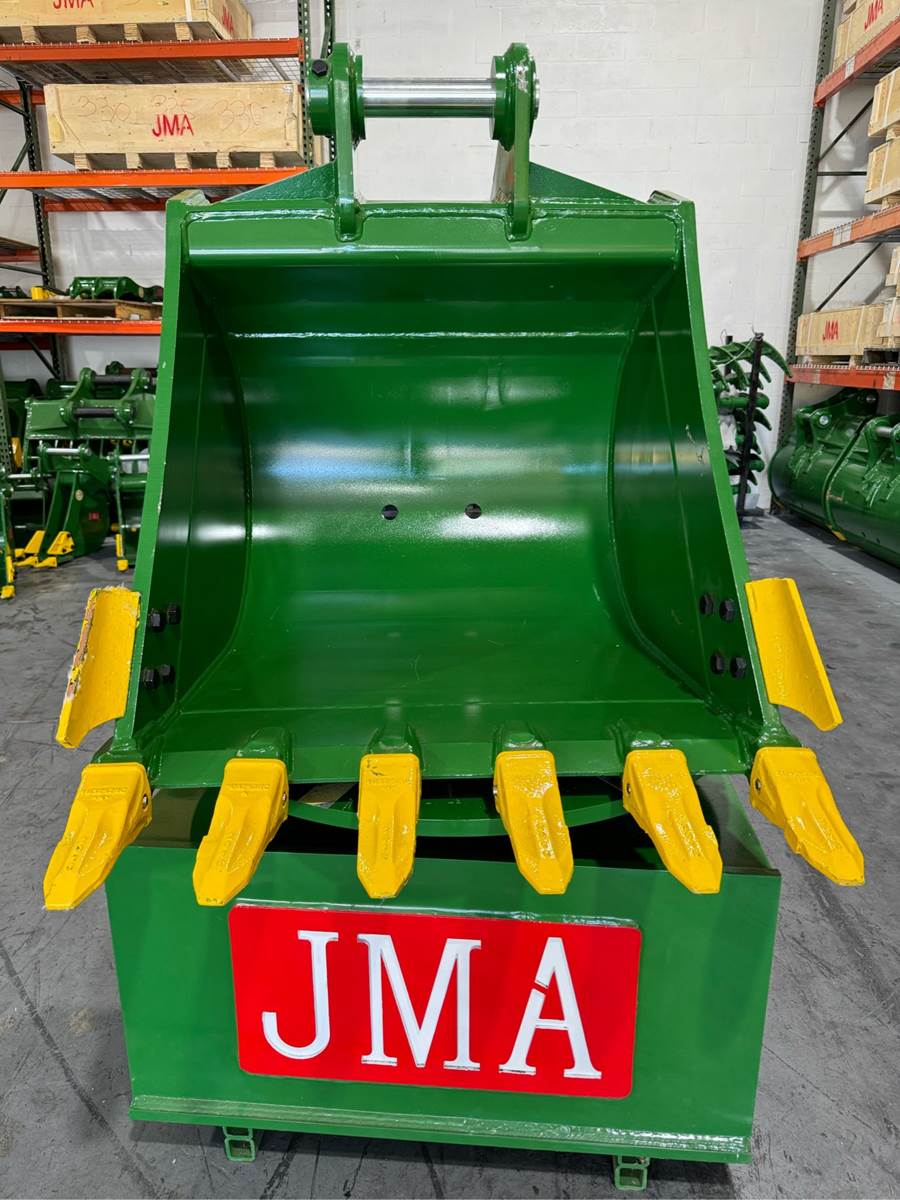

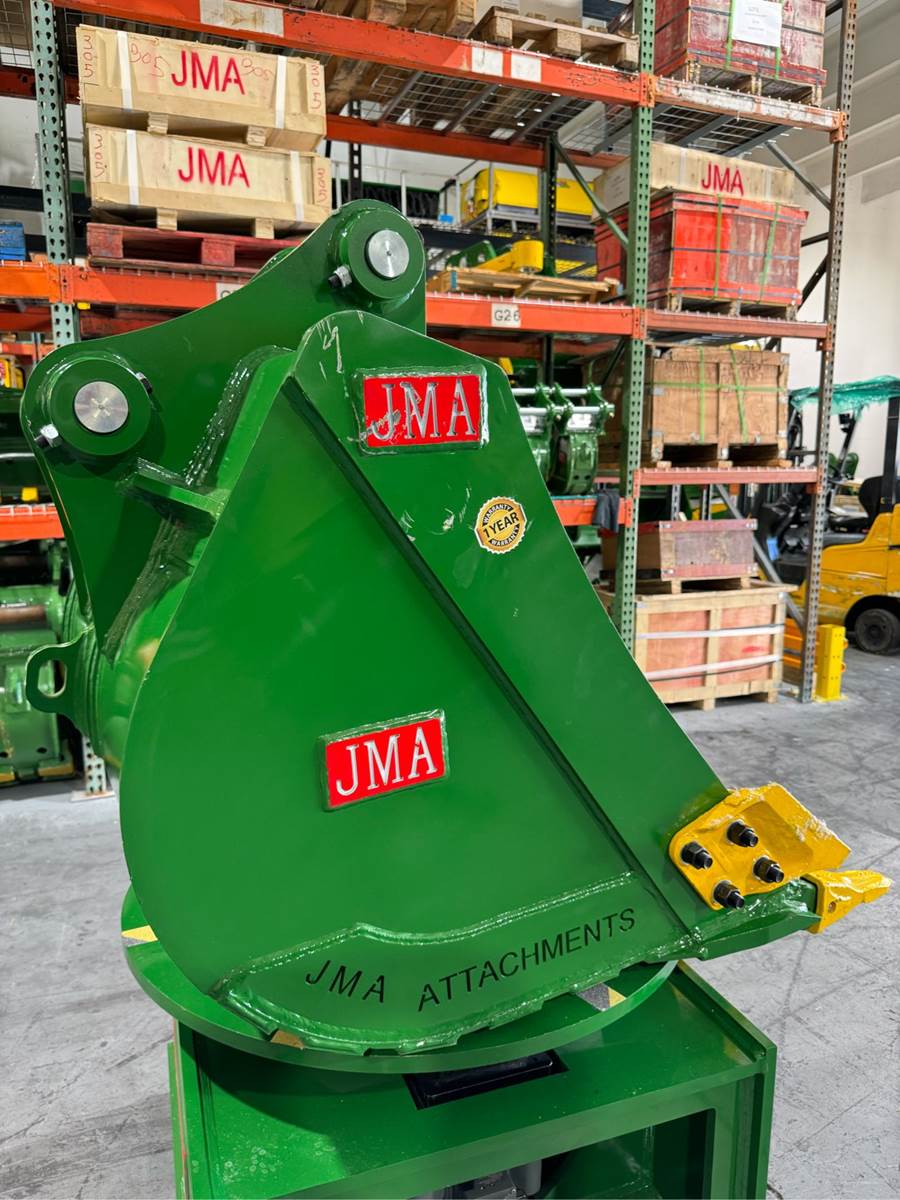

Introducing our unbeatable JMA 36" Heavy Duty Rock bucket Specifically for Caterpillar 311, 312,
313, 314, E110B E120B Excavators.
Revolutionize your excavation capabilities with the 36" Heavy Duty Digging Bucket for 8 - 13 Tons Excavators. 60mm Pins. Designed for 16,000 - 26,000 lbs class Excavators, this premium bucket sets new standards in productivity and return on investment.
Technical Specifications:
✅ SKU Number: CAT310HDBGP36
✅ Width: 914 mm / 36” inches
✅ Capacity: 0.55 CU M / 0.72 CU yds.
✅ HEAD Dimension: 2 X 60mm x 428mm x 216mm
✅ Teeth: 6 Teeth ESCO V23SYL, 2 side cutter PC100, (Included)
✅ Total Weight: 544kgs / 1,199 Lbs.
Industry-Leading Features:
• Capacity Champion: 0.65 m³ volume ensures maximum material moved per cycle, driving project efficiency.
• Uncompromising Durability: AR400 Steel construction guarantees exceptional longevity, minimizing lifetime costs.
• Advanced Tooth System: 6 Teeth Esco Dirt Bucket Tooth teeth (V23 series) provide superior digging performance and reduced maintenance.
• Versatility Boost: Equipped with a AMH 20 Ton Weld-on Bucket Hook to expand your operational capabilities.
• Innovative Design: 3x Reinforced Side Plates for optimal material handling and reduced cycle times.
Invest in excellence. The 36" Heavy Duty Digging Bucket for 8 - 13 Tons Excavators. 60mm Pins isn't just a bucket – it's a precision tool engineered to elevate your profitability and operational efficiency.
