2025 Interstate 40DLA Tag Trailer Tag Trailer, New, Arizona, Tandem Axle IN STOCK

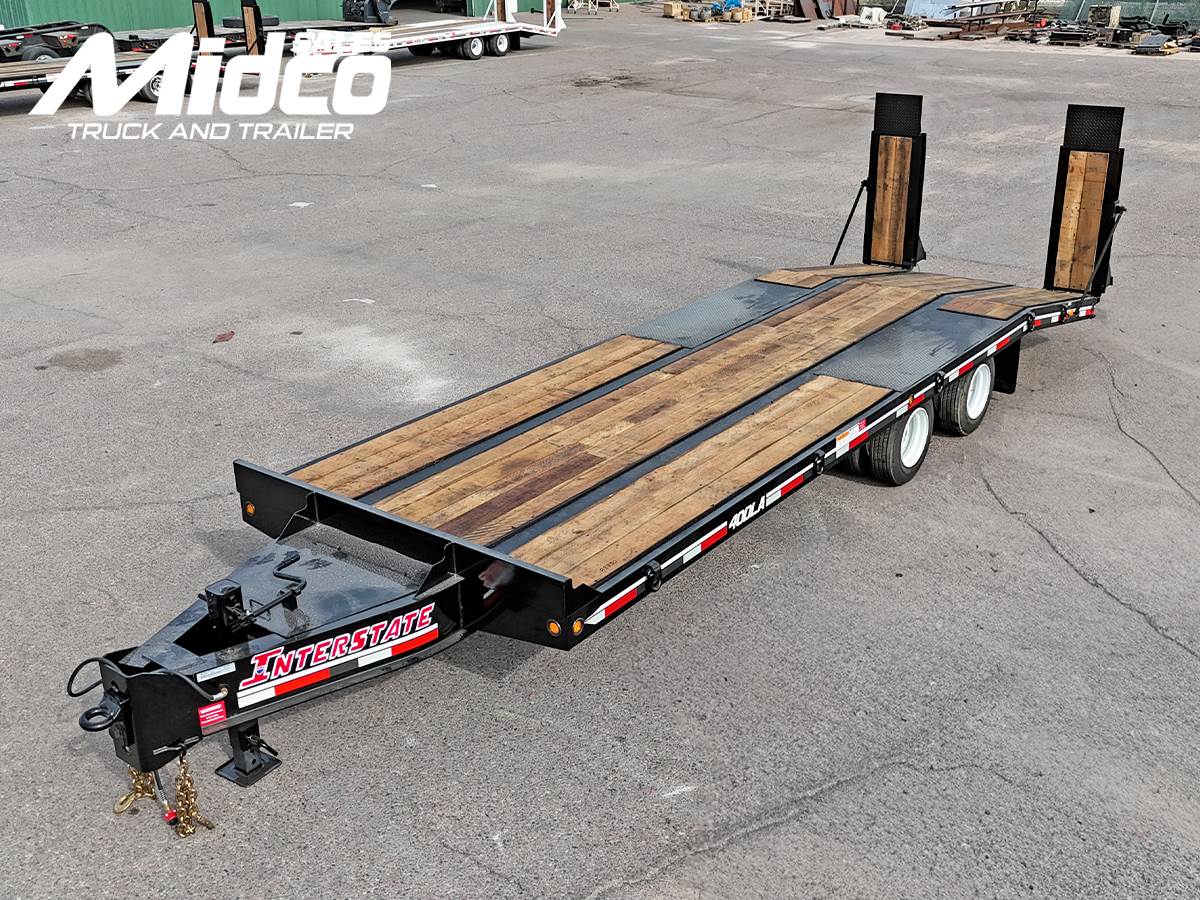

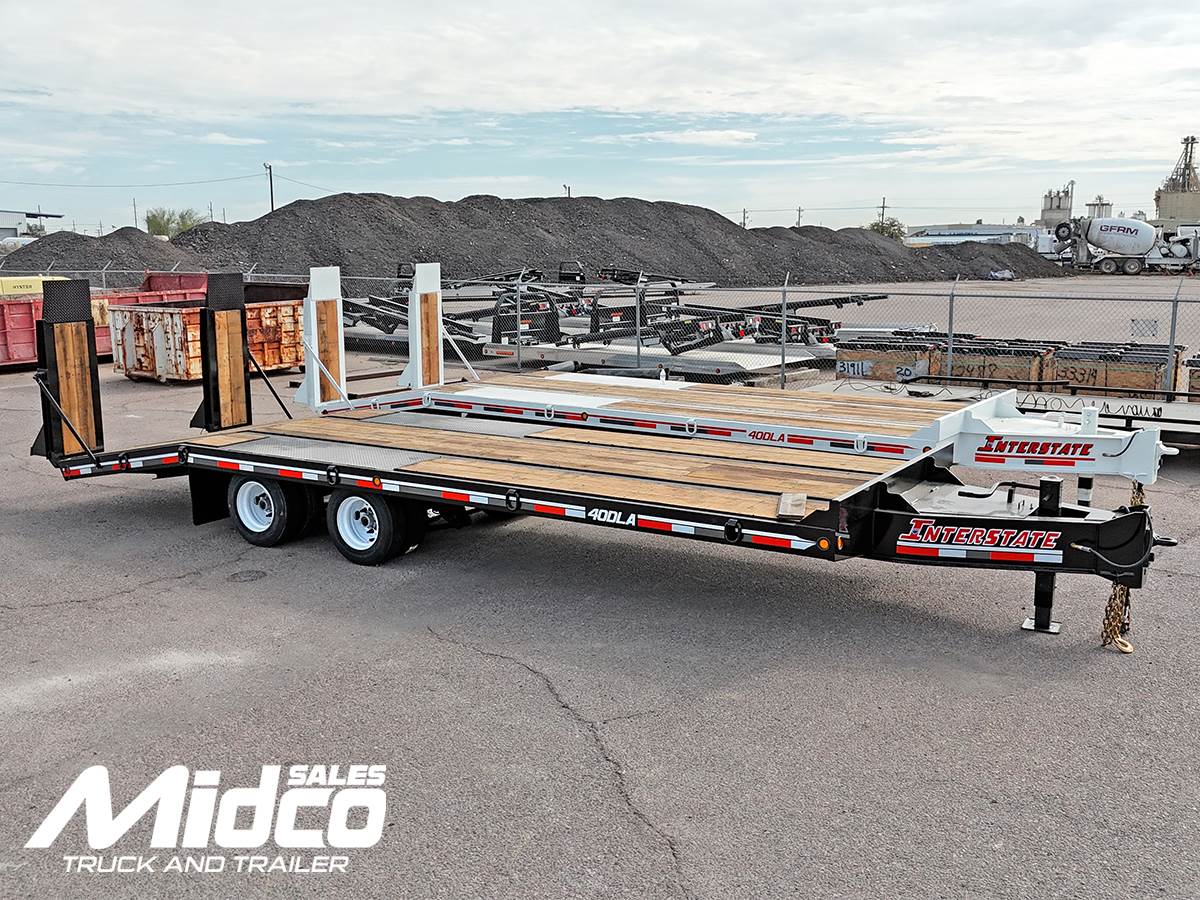

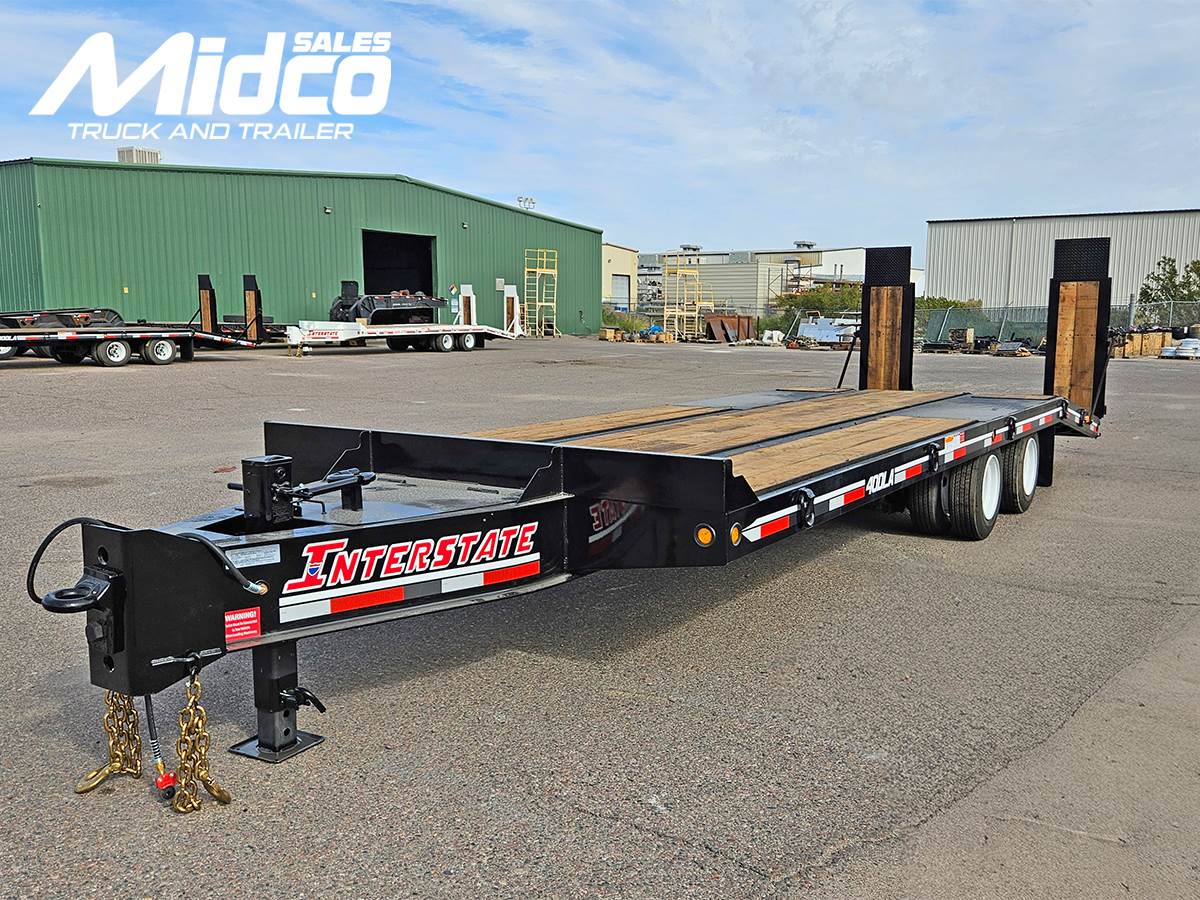

Interstate 40DLA tag trailer for sale at Midco Sales in Chandler, AZ.   Key Specs:  40,000 lb capacity, 5' ramps.  This Interstate tag trailer has a 40,000 pound capacity.  It has 5' spring-assisted ramps, tandem axles and steel disc wheels.

DIMENSIONS & CAPACITY
Deck length:  26' (21' flat deck + 5' beavertail)
Deck width:  102"
Deck height:  36" unloaded
Capacity:  40,000 lbs

TRAILER CONSTRUCTION
Pierced mainbeam construction with one piece interlocking crossmembers
Mainbeams:  W14" x 22 lbs. per ft., grade 50 Hi-tensile
Crossmembers:  6" I-beam x 3.9 lbs per ft., grade 50 Hi-tensile on 22" centers.  3/16" steel fabricated knee bracing on every other crossmember
Siderails:  C8" x 11.5 lbs. per ft. Grade 50 Hi-tensile
Headboard:  8" channel, full width of trailer
Decking:  2" oak

RAMPS

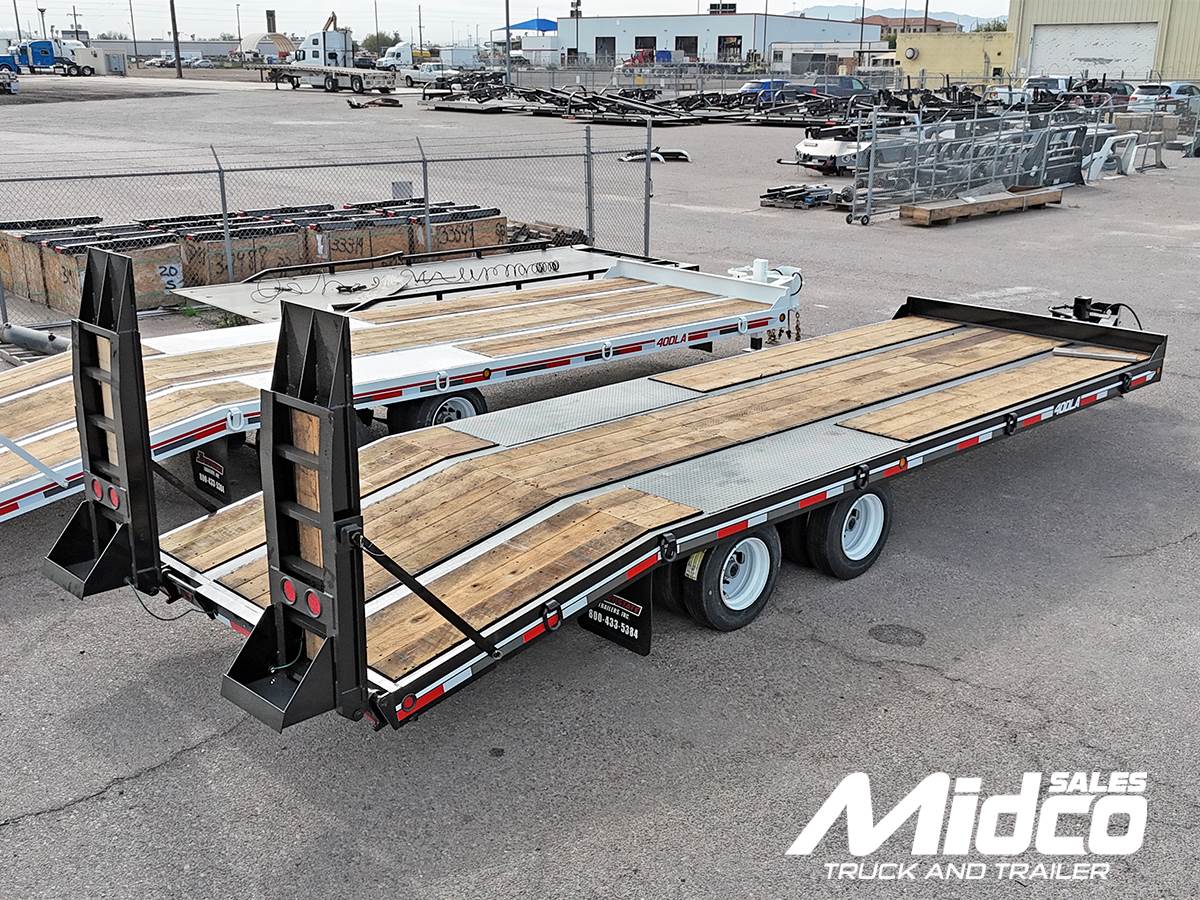

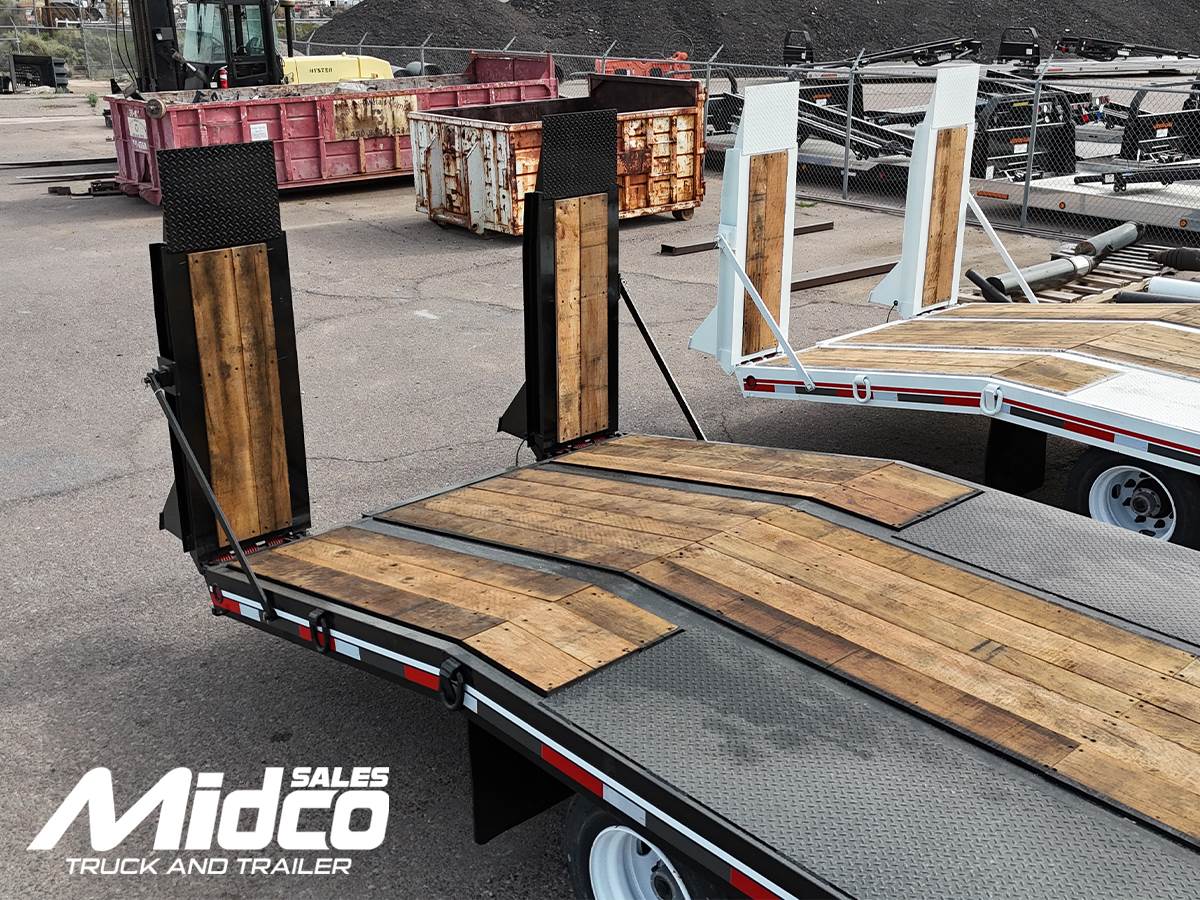

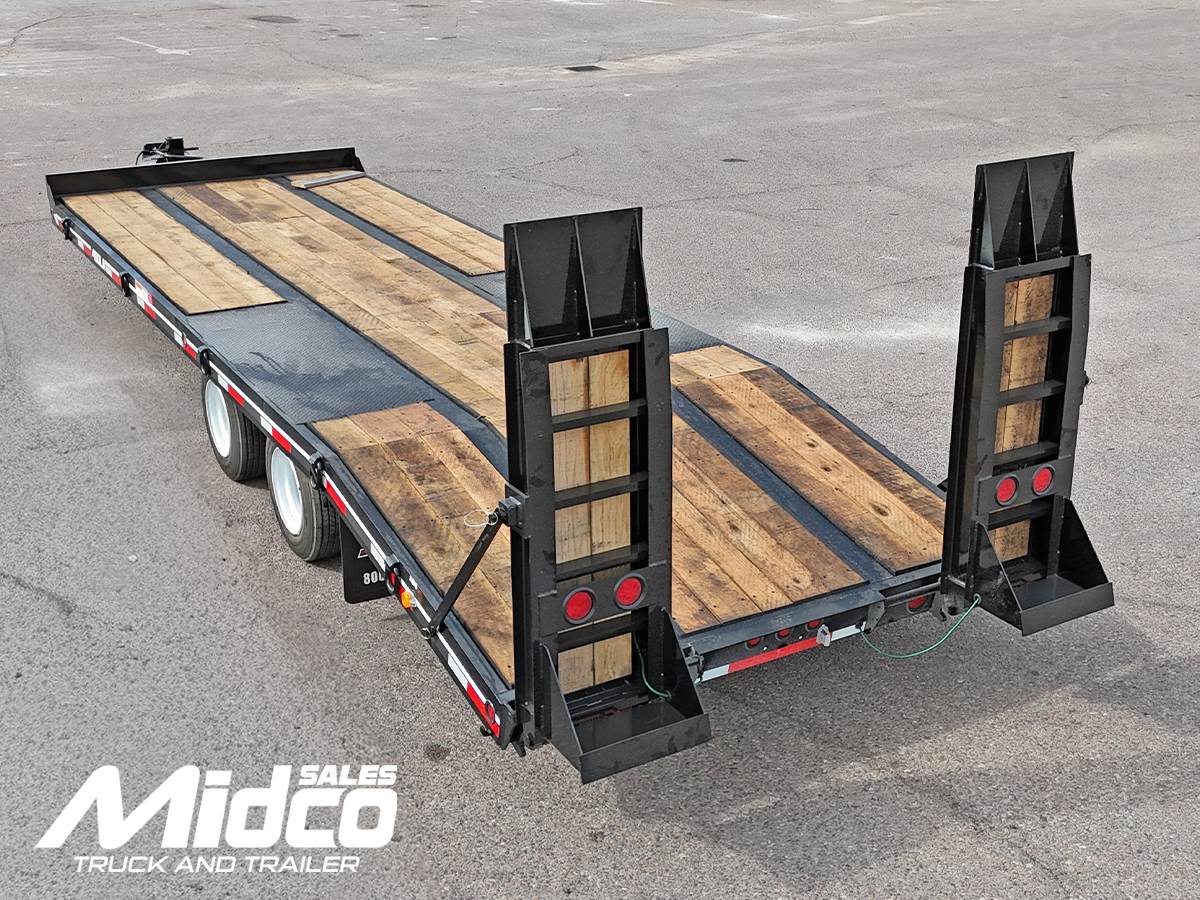

60" x 22" wood-filled ramps (spring assisted)
Vertical ramp storage w/ lights in rear

JACK
25,000 lb, 2-speed, side crank

HITCH
4 position cast steel pintle eye, 1-5/8" stock, 3" I.D.

SUSPENSION & AXLES
Axles:  Tandem 22,500 lb axles with oil bath hubs
Suspension:  Hutch 9700 multi-point spring suspension
Brakes: 12-1/4" x  7-1/2" air with Wabco anti-lock braking system and spring parking brakes

WHEELS & TIRES
Tires:  215/75R17.5 tires
Wheels:  8 hole, hub piloted steel disc

LOAD CONTROL & STORAGE

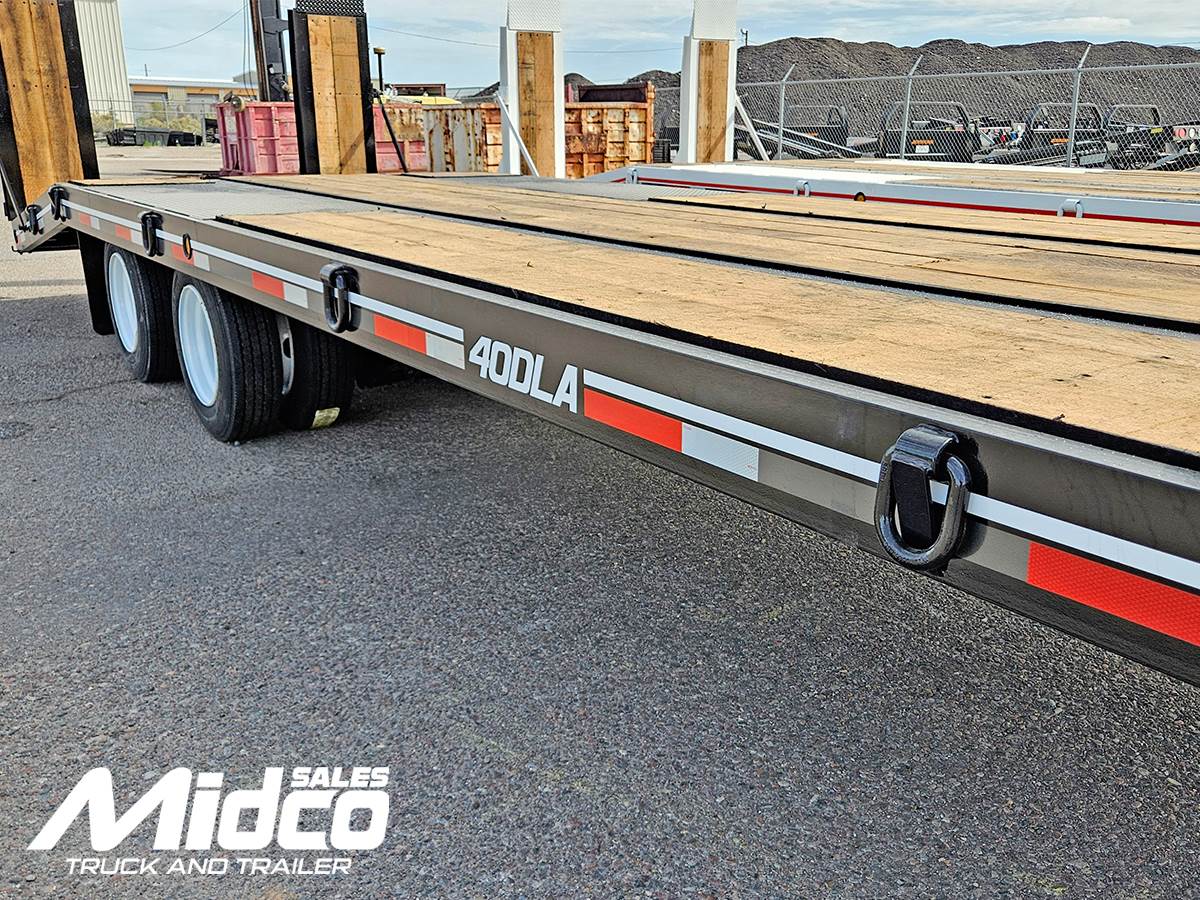

8 heavy duty D-rings (4 per side)
Lockable toolbox

LIGHTING & ELECTRICAL
12 volt DOT & ICC approved
All lights are LED type and flush mounted in rubber grommets
Wiring is run in flexible neoprene jacket and modular in design
7 way plug
