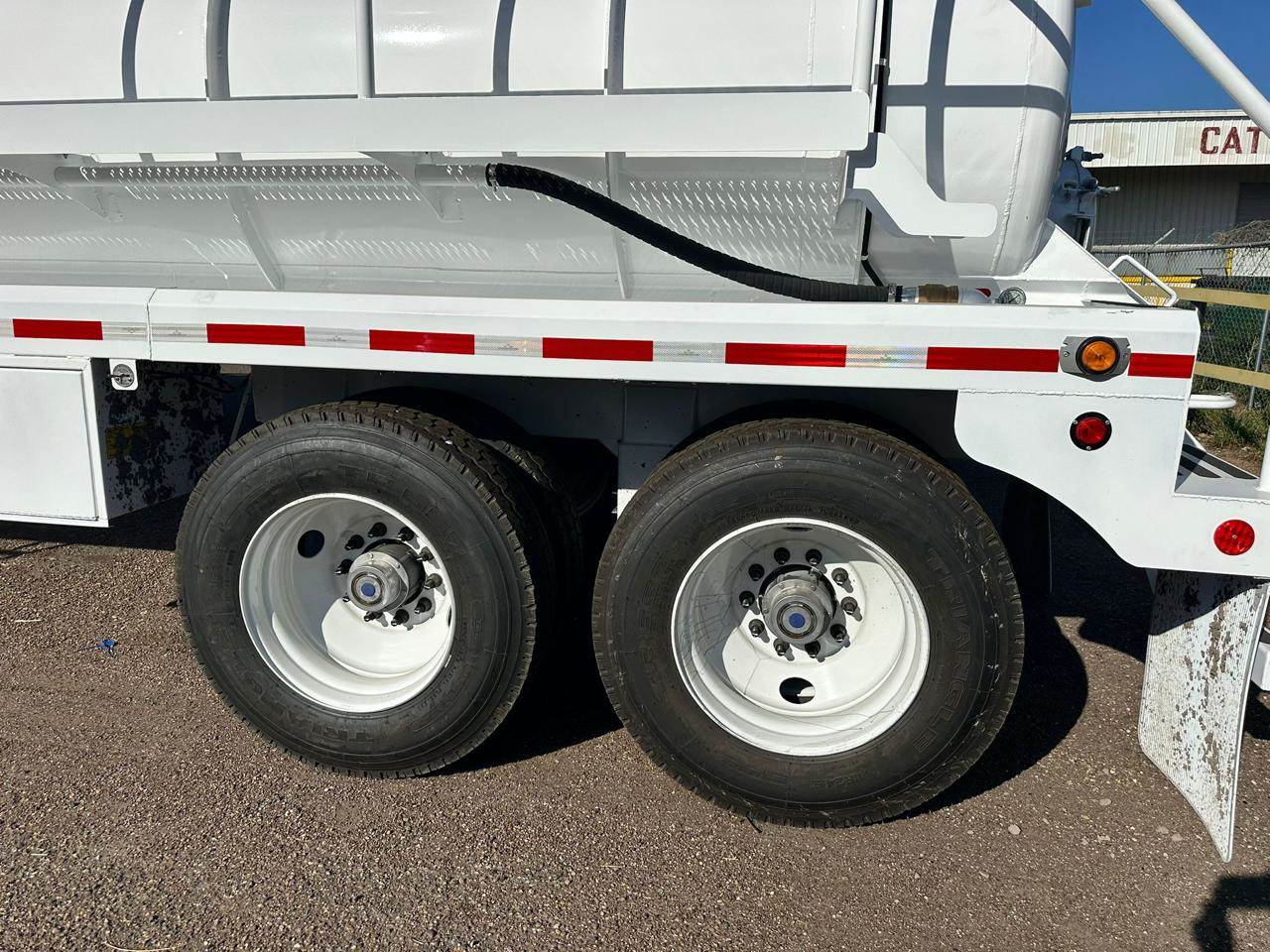

2025 GRECER 130BBL VACUUM STEEL TANK TRAILER Non-Coded. Capacity: 130 BBL or 5,460 gal. + 1% Expansion. Overall Length: 41 ft. Height: 9 ft. 6 in. Width: 102 in. Material: A-36 Carbon Steel. F.O.B. Laredo, TX. SPECIFICATIONS: Commodity: Transportation of oilfield fluids such as water, mud, oil field waste. UPPER COUPLER: Adjustable 3/8 in plate with Holland Kingpin 2". DESIGN PRESSURE: 15 PSI, Tested At 23 PSI. COMPARTMENTS: Single COMPOSITION: Body Carbon Steel A-36 ¼” gauge. Chassis: 1/4 plate chassis designed for high strength. Frame: Full Length 3/16 in. A-36 Both sides. BAFFLES: 3 (1/4”) steel plate. FENDERS: 40 ft length steel GA 12. STIFFENERS: Eight (8) rolled of 3/8 in. SIGHT GLASS: 2”. WELDS: Inside and out, with mig welding. AXLES: 2 (30,000 lbs.) each, 102 in. wide, 77.5 in. track TP type with automatic slack adjuster. SUSPENSION: 2 (30,000 lbs each, air ride, Hendrickson) HT-300. BRAKES: Air brakes with two boosters. FMVSS-121, ABS 4S/2M Bendix anti-lock brake system. LANDING GEAR: 2 Speed Crank Heavy Duty (JOST). ACCESS LADDER: One (1) stairway in the rear with thru-tread steps. WALKWAY: Driver's aluminum side tank length through-treaded walkway with toe-kicks and handrails. TOOLBOX: (1) 18” X 22” X 30” located at driver’s side and Basket for cones. BUMPER: Heavy duty (tubing 4x3x.375), per DOT requirements. MANWAYS 20”: 3 on top, one on rear head. OUTLET: Two (2) 4 in. butterfly valves at rear. SHUT OFF: ball type primary in front manway, ball type secondary 14 gal on driver’s side front with drain. RELIEF VALVES: 1 1/2” vacuum and 1 ½” pressure. V/P GAUGE: +30, -30 vacuum / pressure. OUTSIDE PAINT: Polyurethane with Hempel etching primer, previous sand blast. COATING INSIDE: HEMPADUR 204 high build epoxy. LIGHTS: Sealed harness and GROTE LED lights per DOT. Two rear work lights. WHEELS: 10 holes, 8000 lb, 8.25 x 24.5 (8 pcs). TIRES: 11R 24.5 all-terrain Triangle
