Product Description

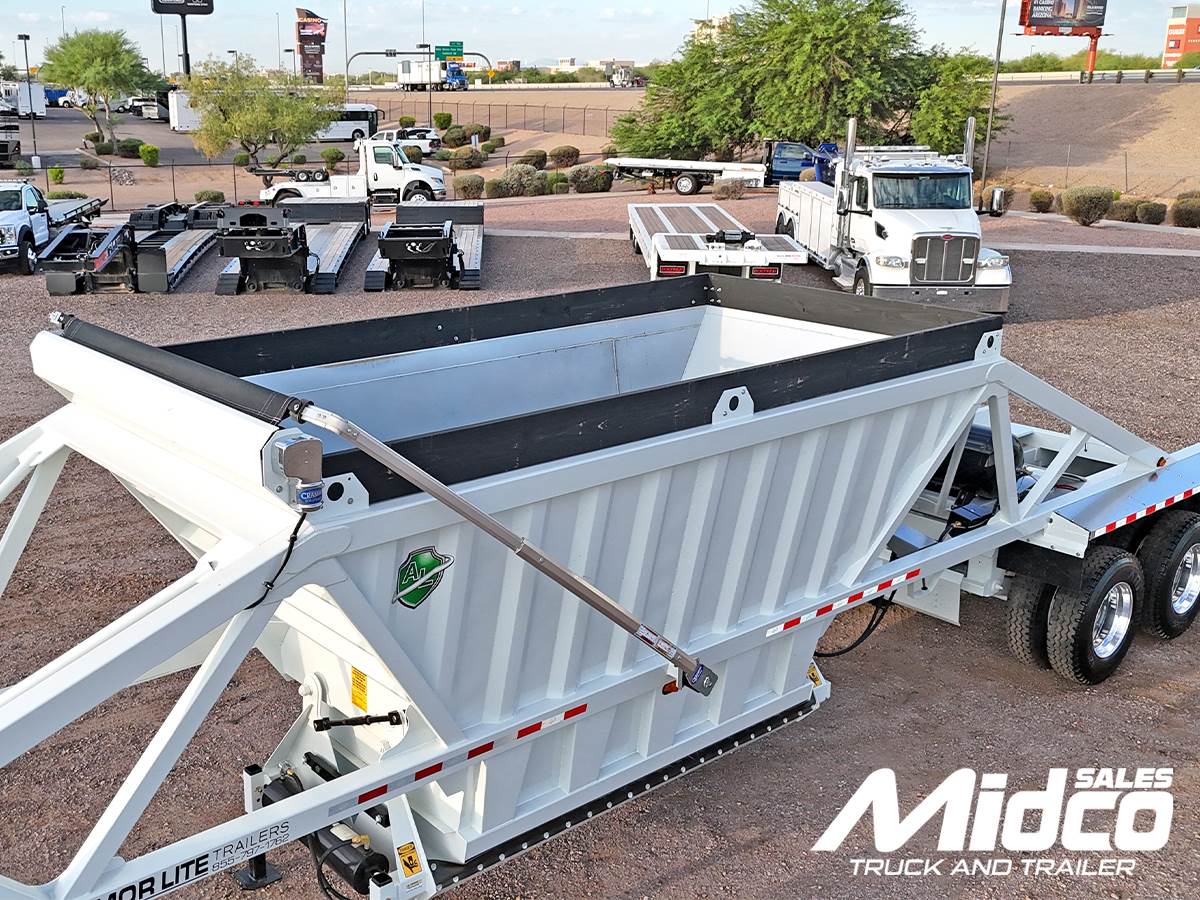

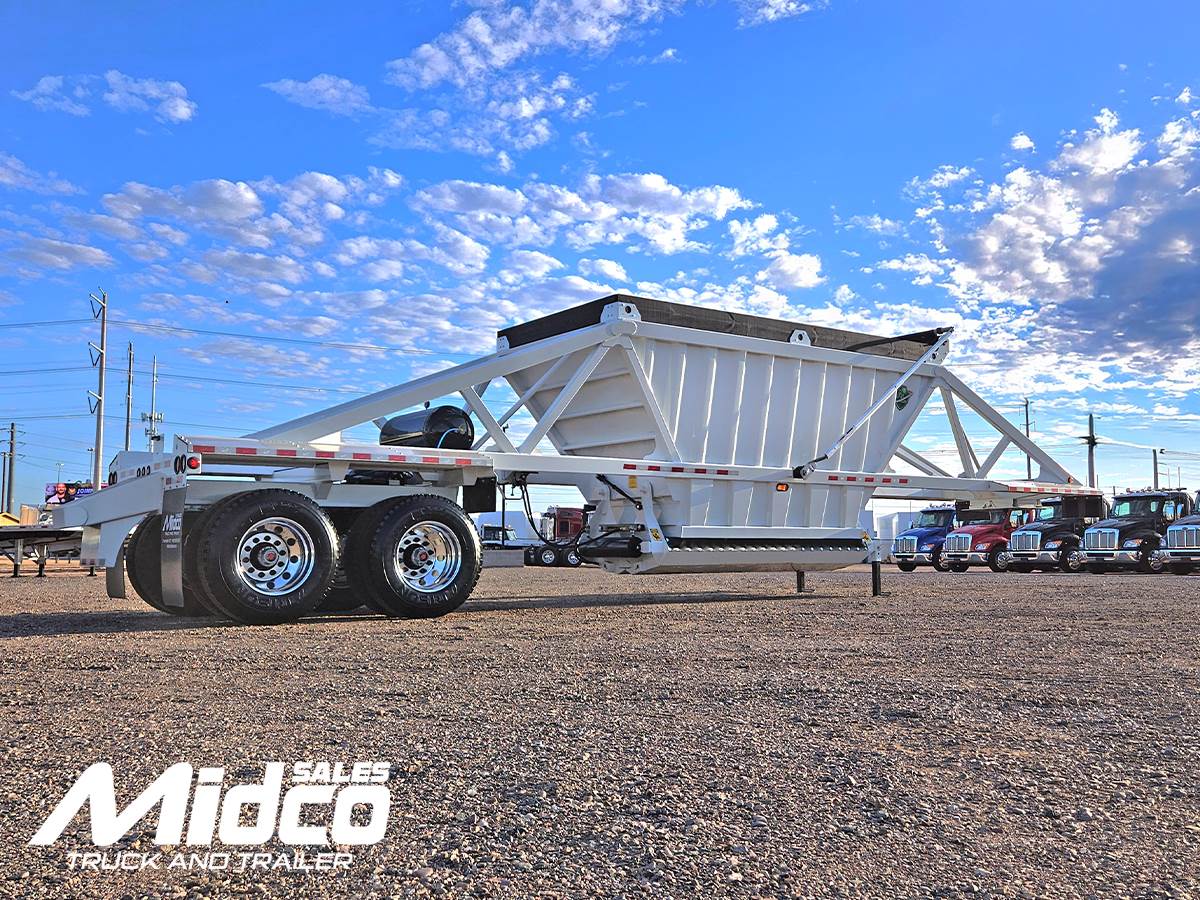

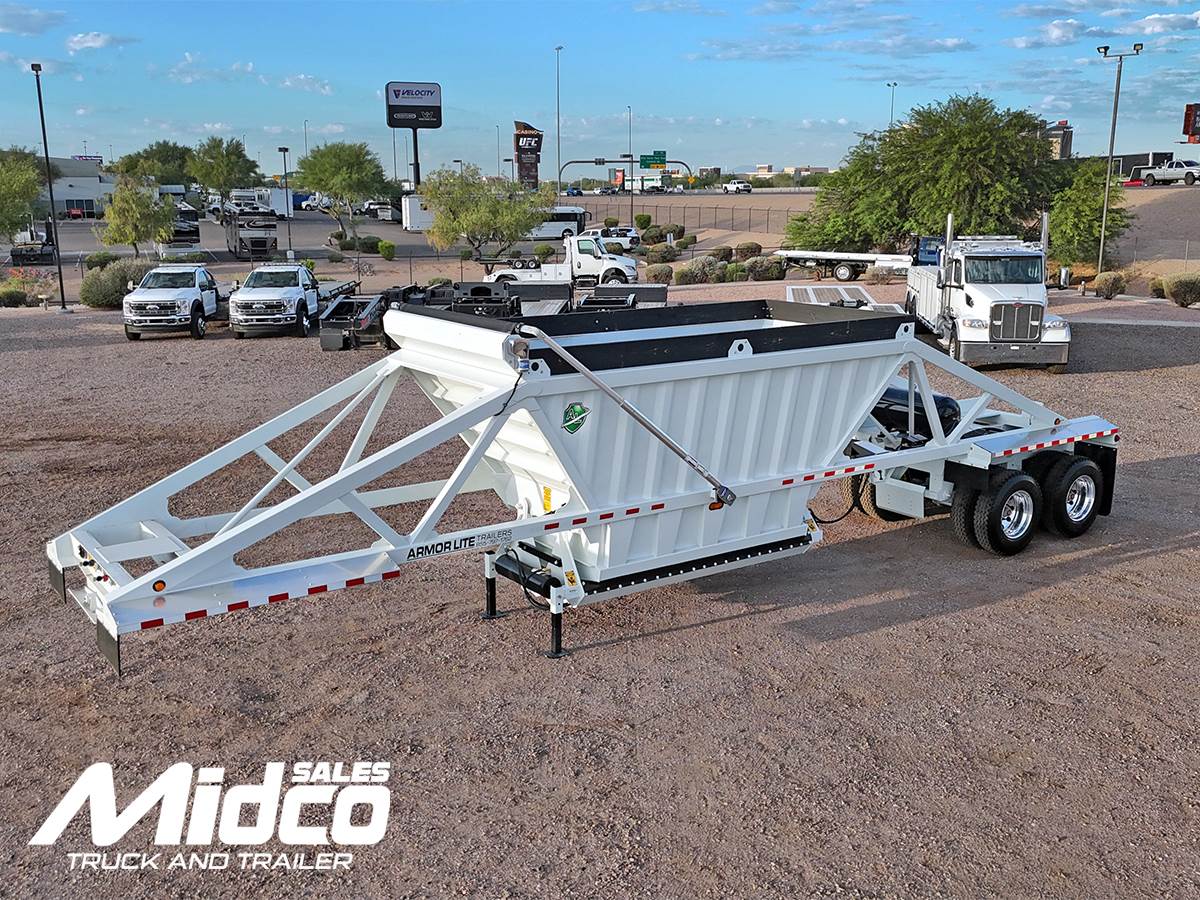

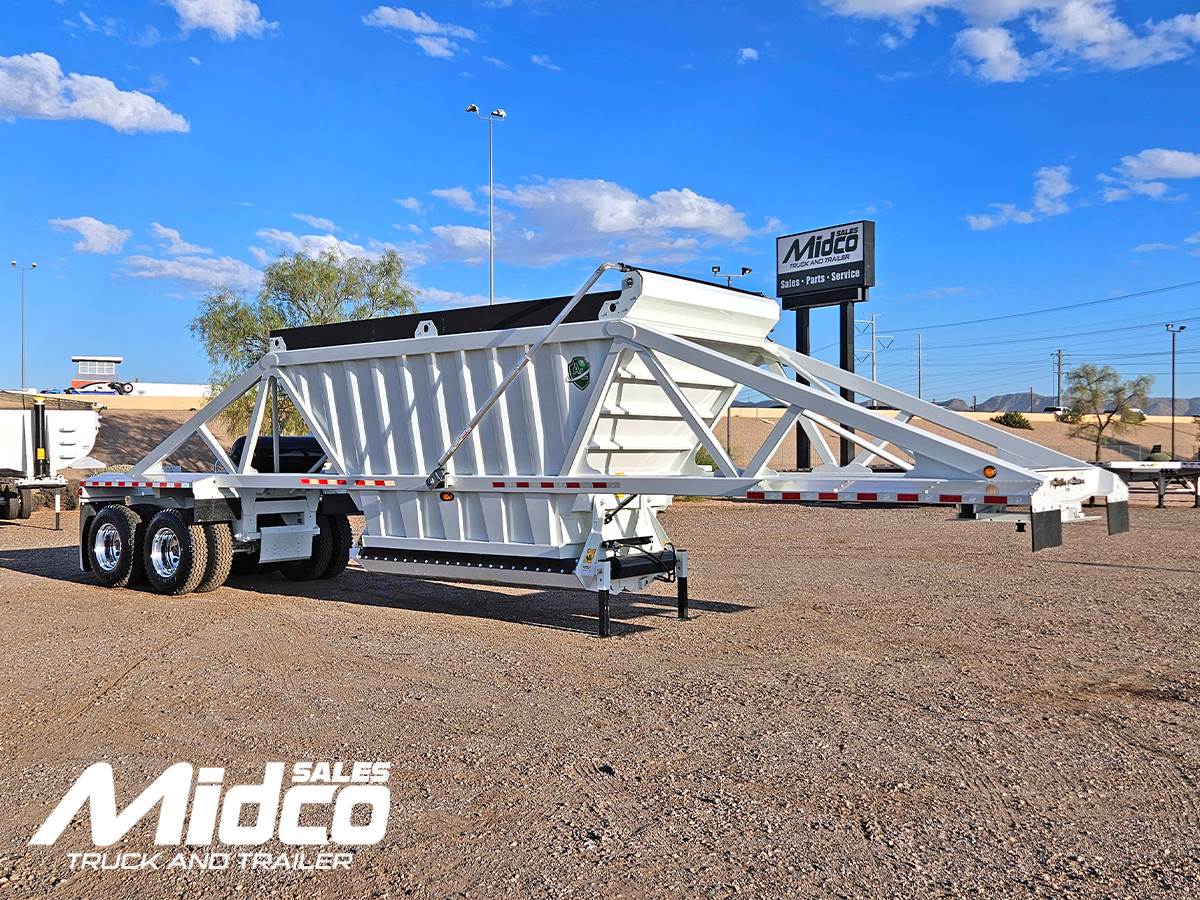

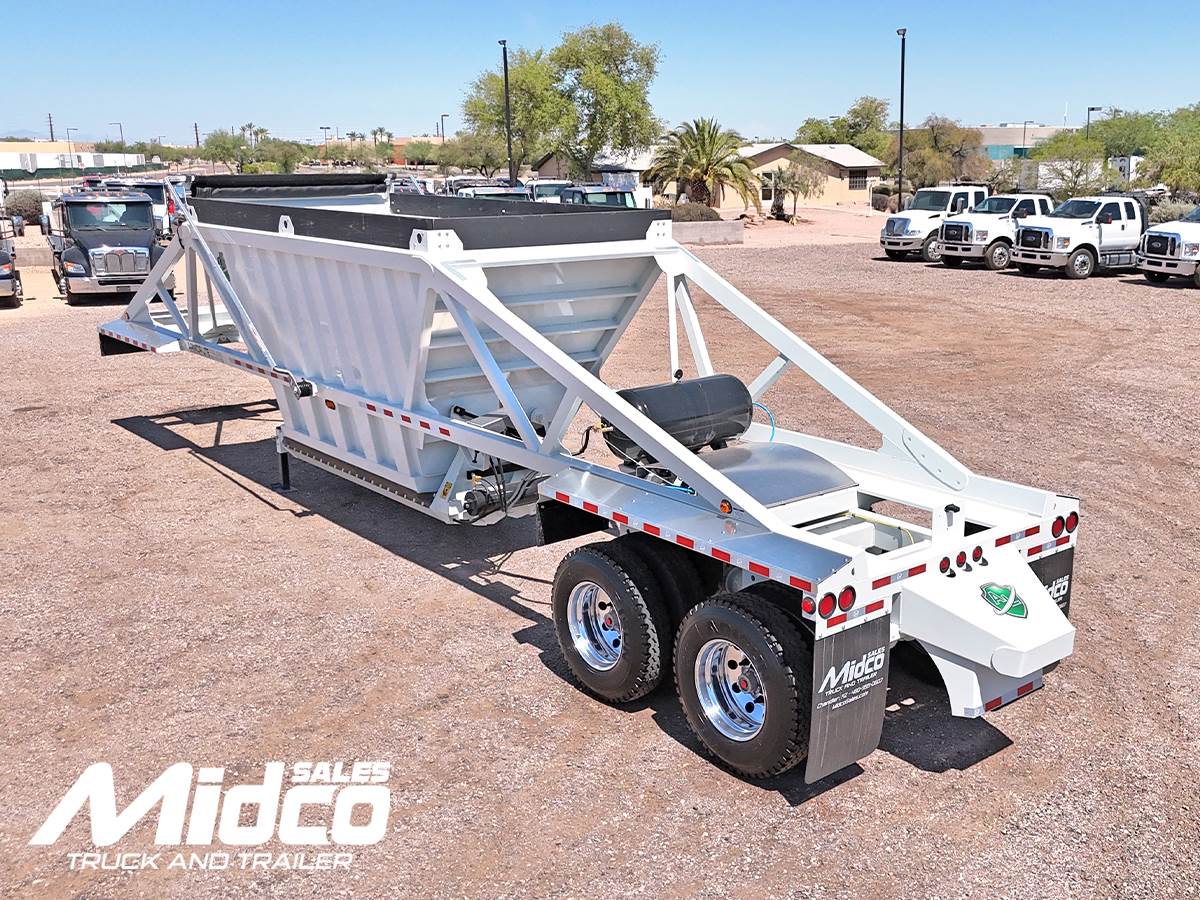

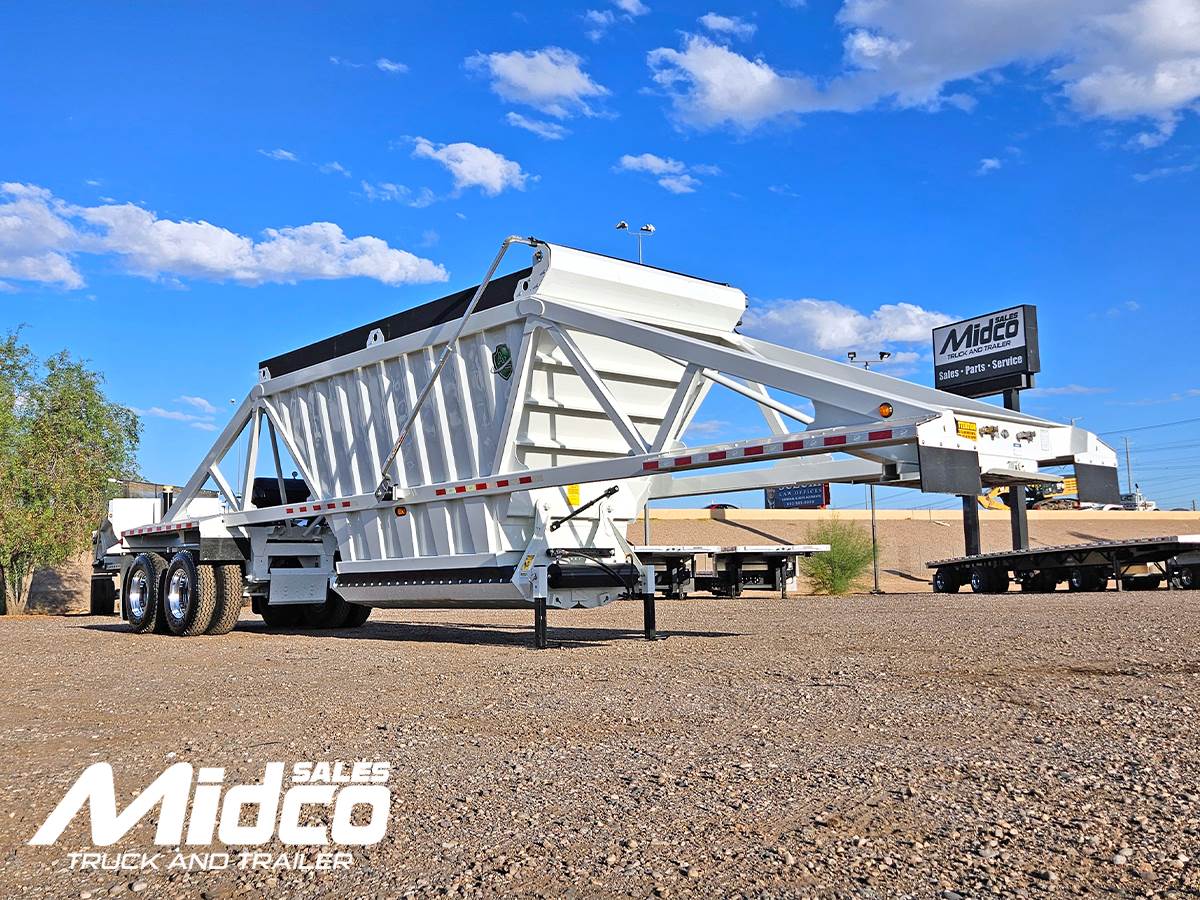

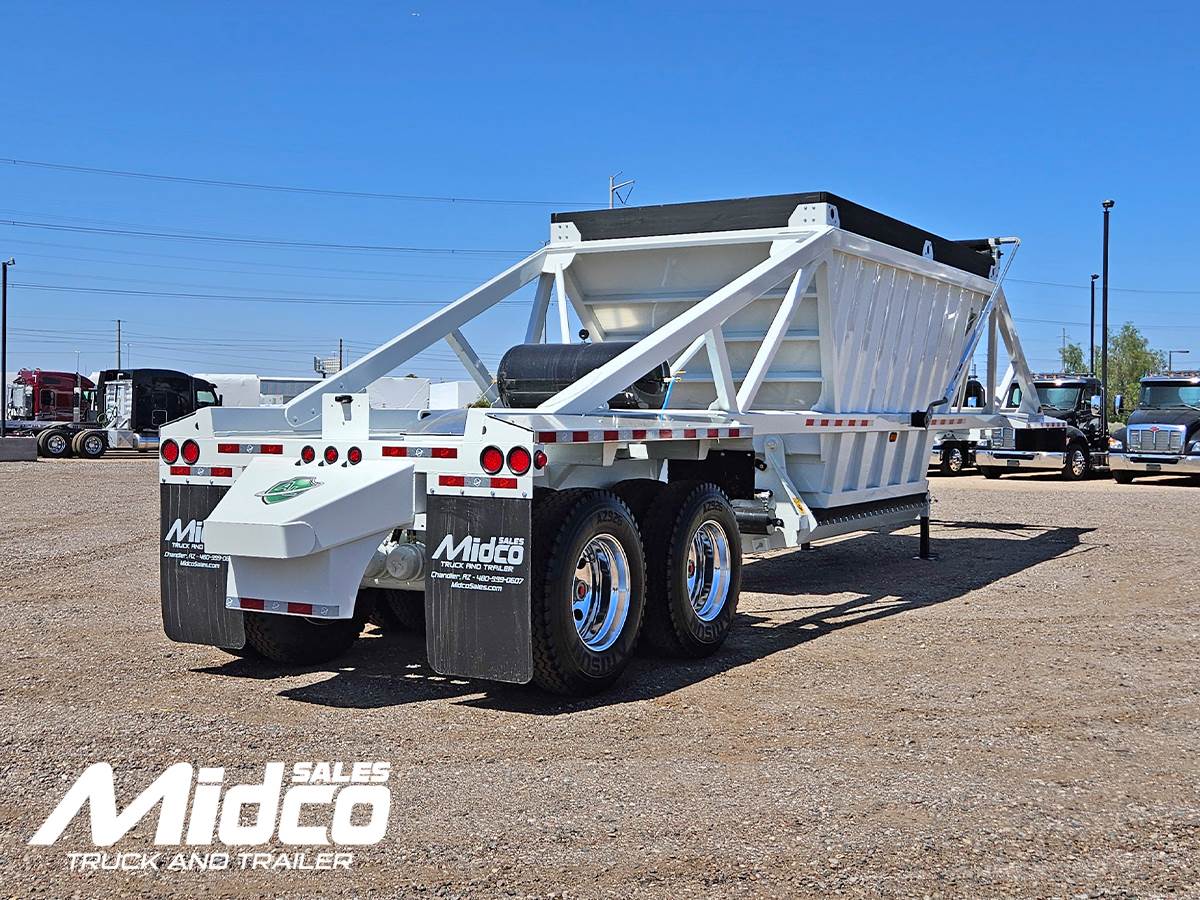

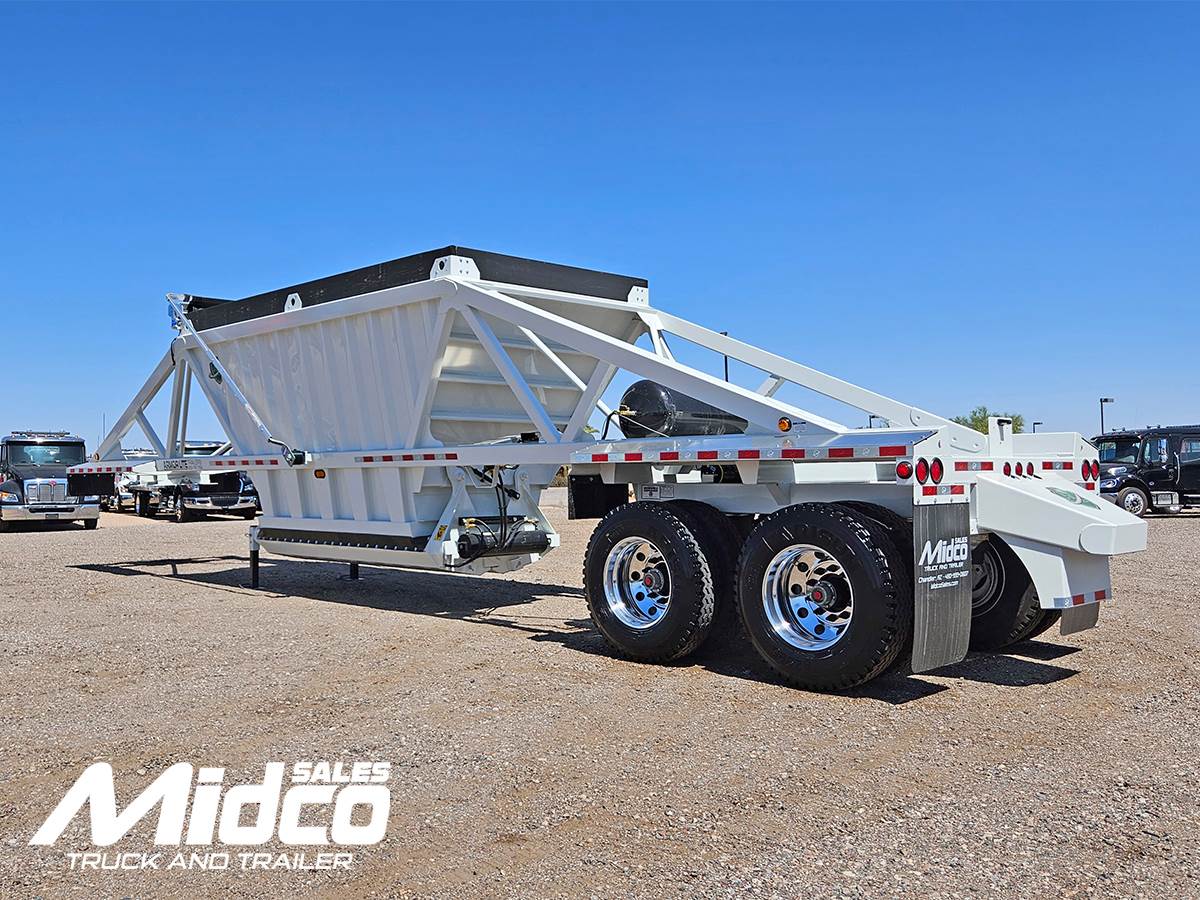

2026 Armor Lite belly dump trailer for sale at Midco Sales, built to deliver exceptional performance in demanding aggregate applications. With a 40-foot length, 96-inch width, and a 23.5-cubic-yard capacity, this trailer is ready to move serious material. Moreover, its high-strength 3/16" Grade 50 steel hopper ensures lasting durability, even under constant heavy use. Because the hopper measures 54" x 108", you get a wide, efficient opening for fast unloading.
In addition, this trailer features an 8-inch air cylinder with a 60-gallon reservoir and integrated water trap, giving you smooth, reliable gate operation. The Ridewell air ride suspension and tandem 25,000-lb axles provide stability and performance on all terrain. Not only that, but it comes equipped with heavy-duty 16.5" x 7" cast drum brakes and a WABCO 2S/1M ABS system for dependable stopping power.
The 11R22.5 tires are mounted on polished aluminum outer wheels and steel inners, giving it both strength and style. To enhance usability, a Cramaro electric flip tarp system keeps your load covered. Furthermore, the trailer includes front and rear bolt-on aluminum fenders, integrated drop-leg landing gear, and a fixed rear push block.
Finally, a complete LED lighting system, ICC and D.O.T. approved, rounds out the spec sheet to keep you road-legal and visible. Whether you're hauling asphalt, gravel, or sand, this Armor Lite belly dump trailer combines toughness, efficiency, and low-maintenance operation—all from one of the most trusted names in the industry.
DIMENSIONS & CAPACITY

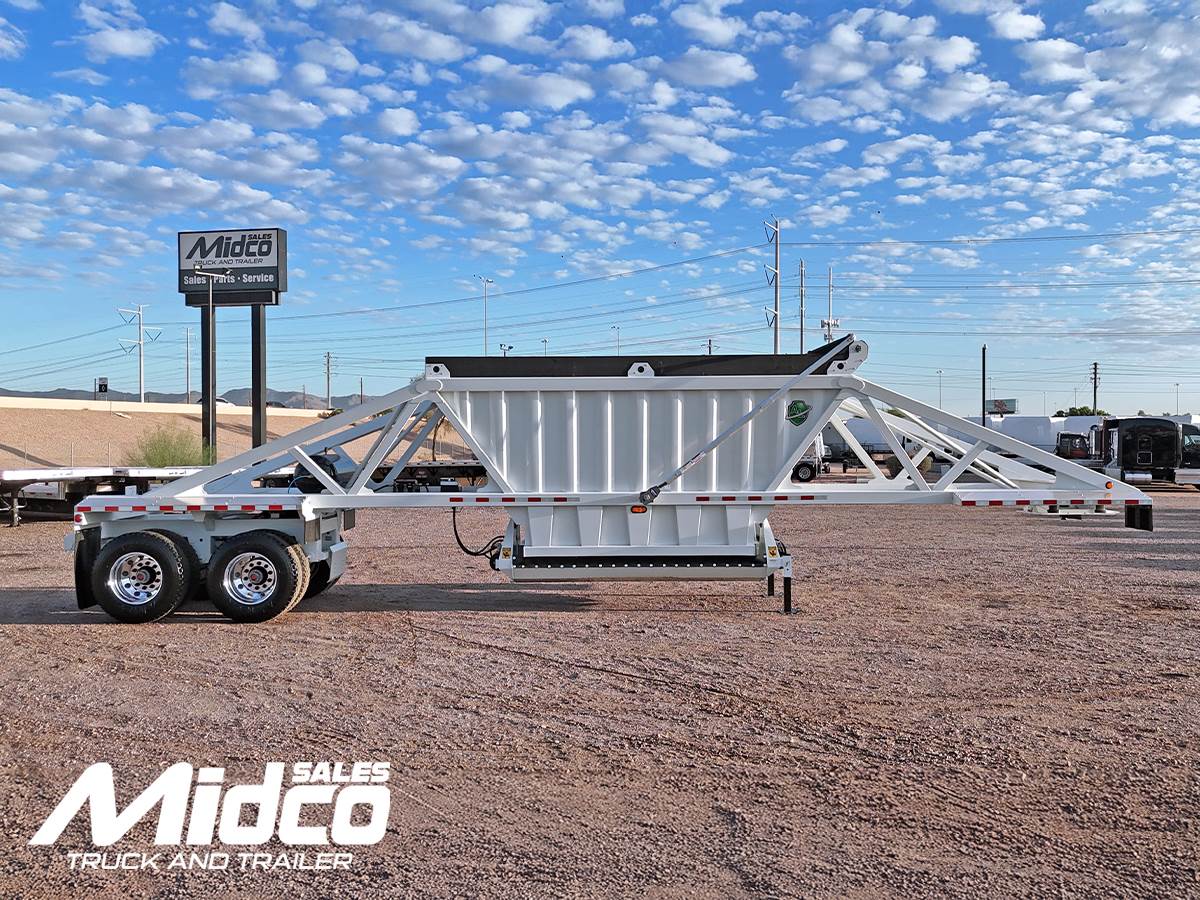

Length: 40'
Width: 96"
Capacity: 23.5 cu. yds. (with 10" Bang Boards)
Side Height: 60"
HOPPER & GATES

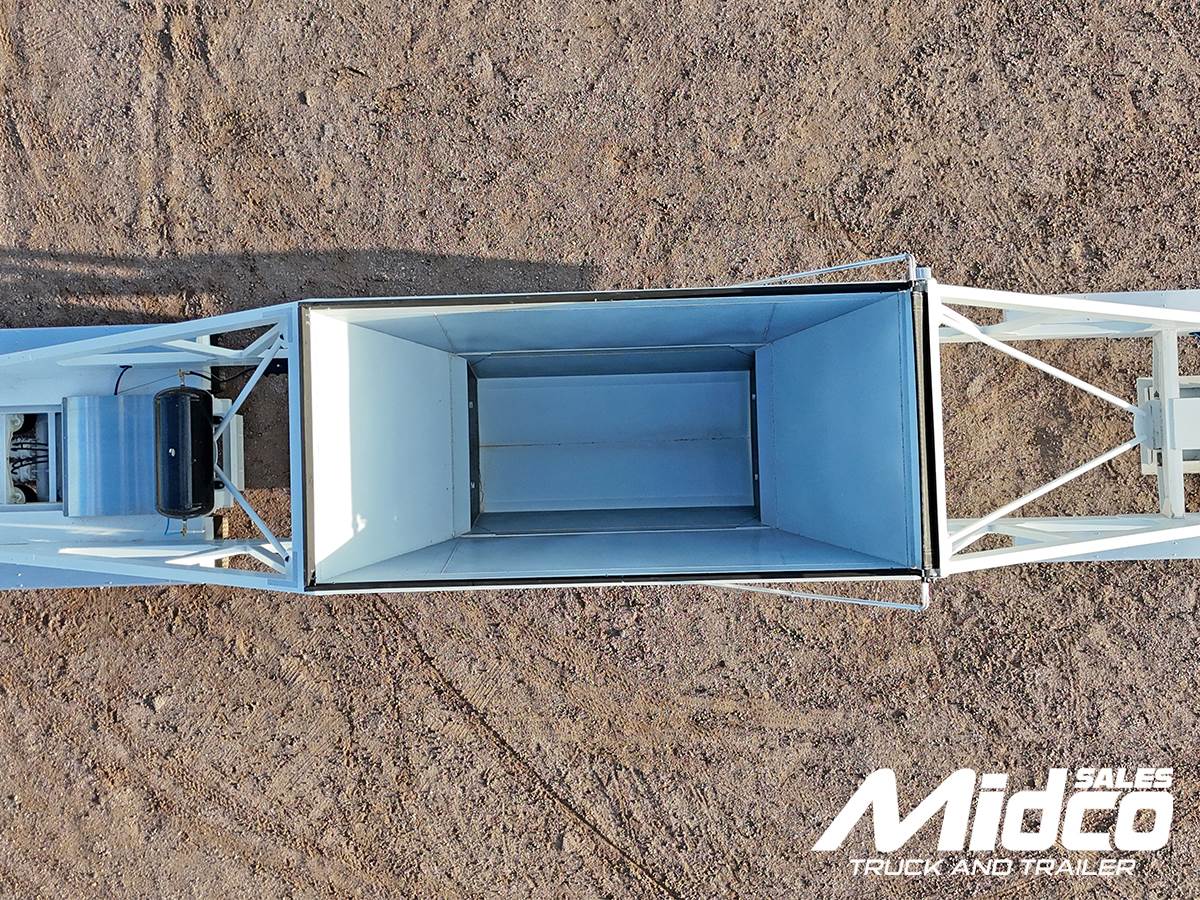

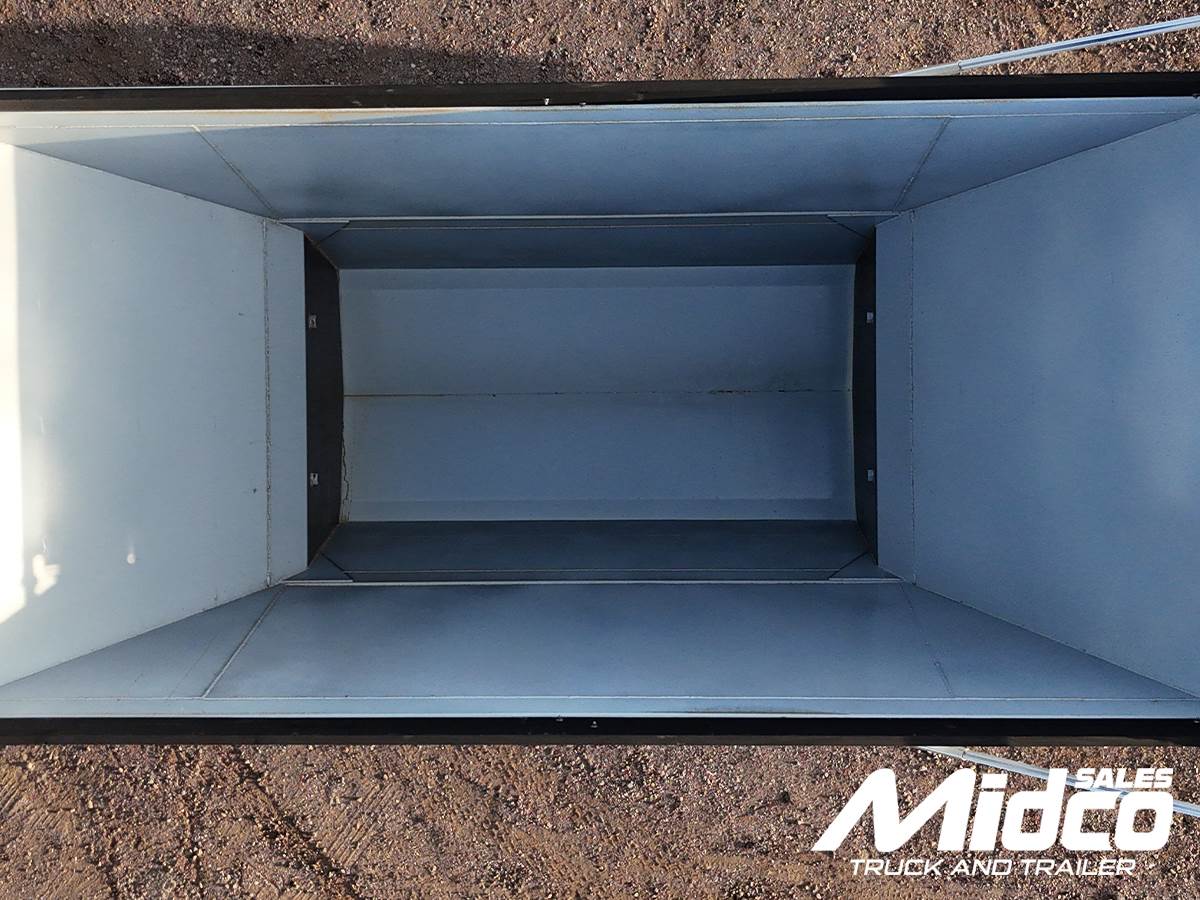

Hopper Opening: 54" x 108"
Hopper Material: 3/16" Grade 50 High-Strength Steel
Side Sheets: 16-Gauge Corrugated High Strength Steel
Front & Rear Slope Sheets: 10-Gauge Grade 50 High-Strength Steel

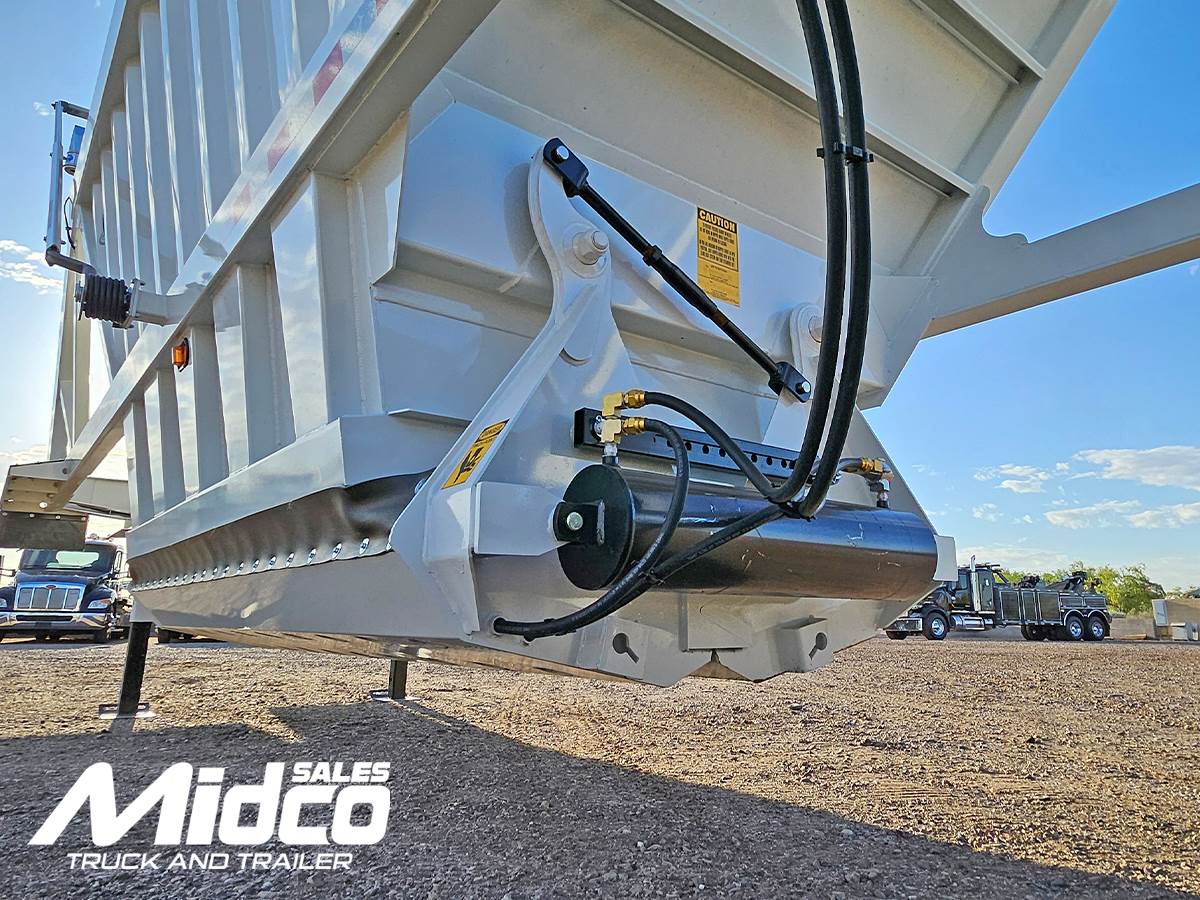

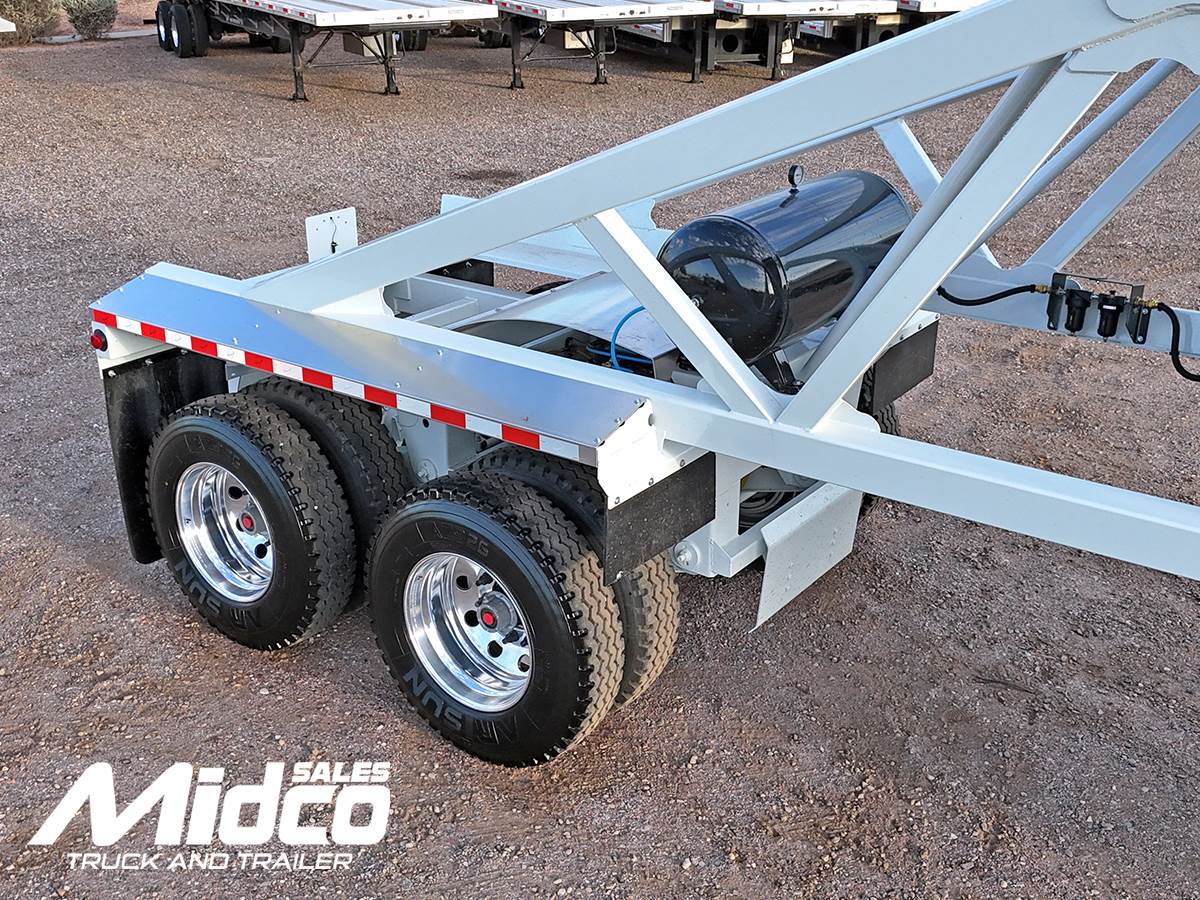

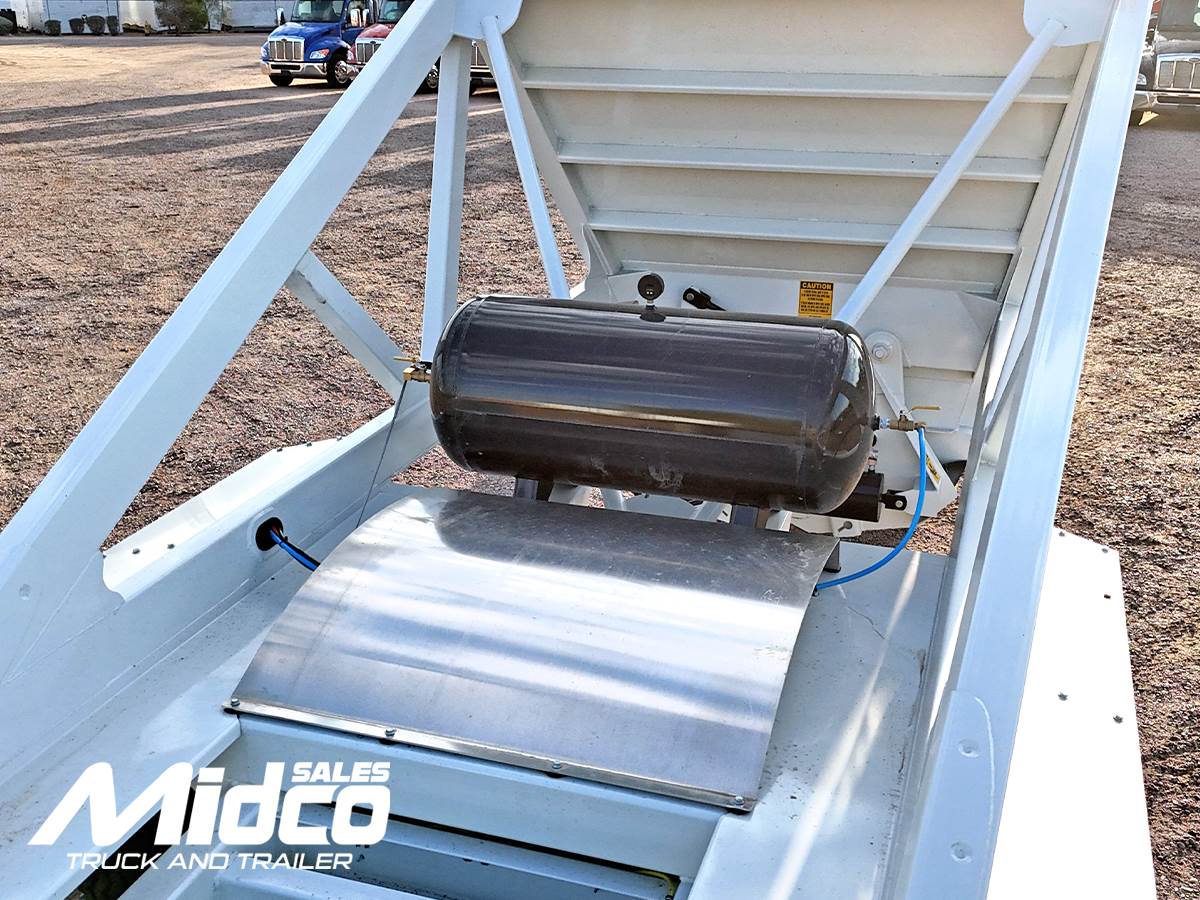

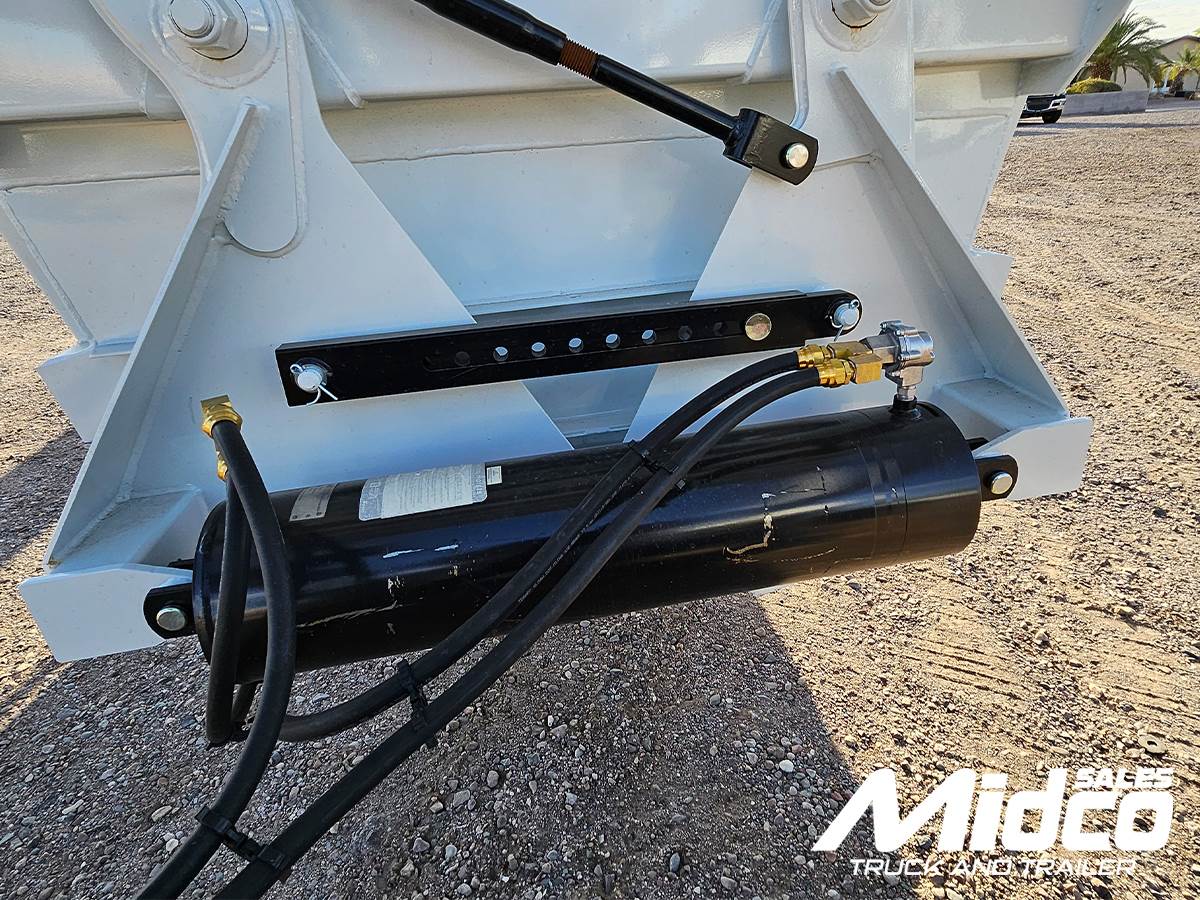

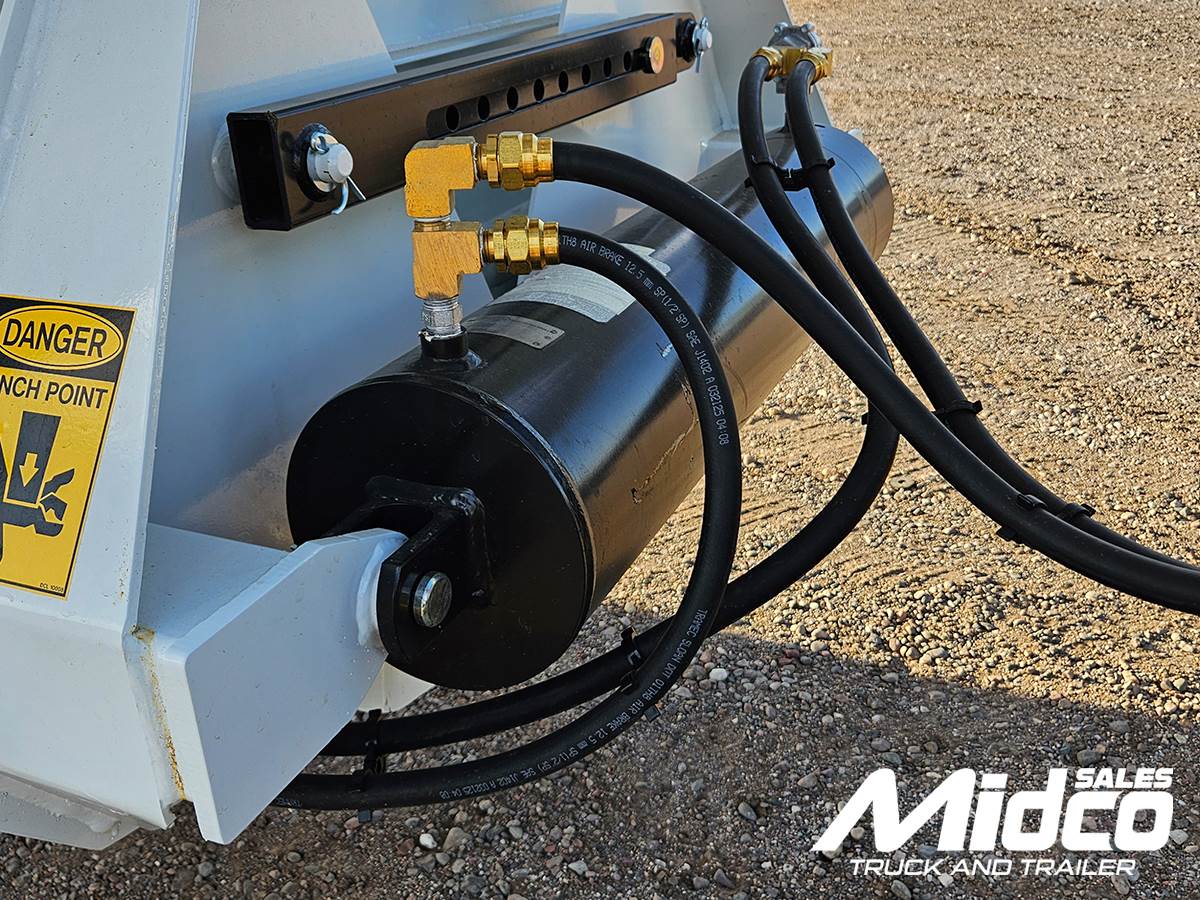

Cylinder: 8" Air Cylinder with 60-Gallon Reservoir and Water Trap
LANDING GEAR

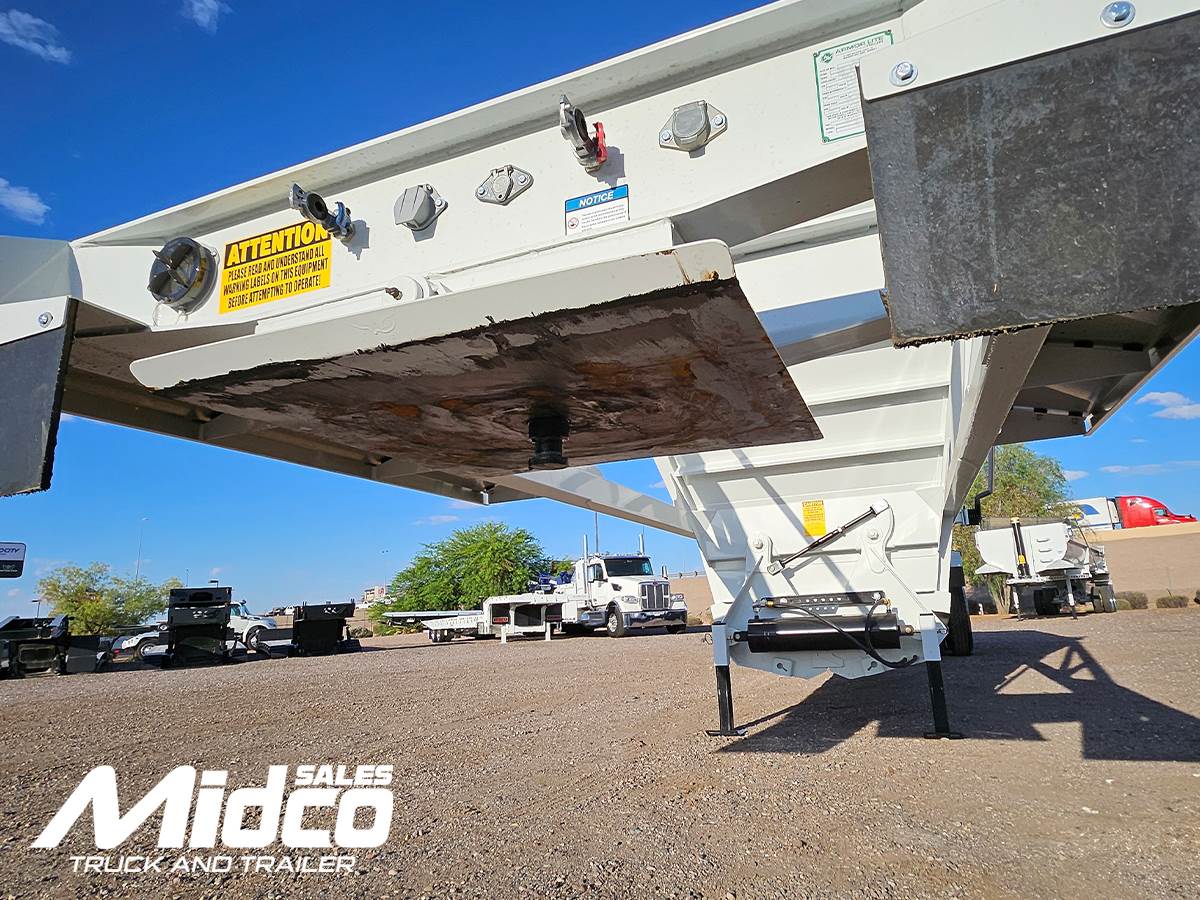

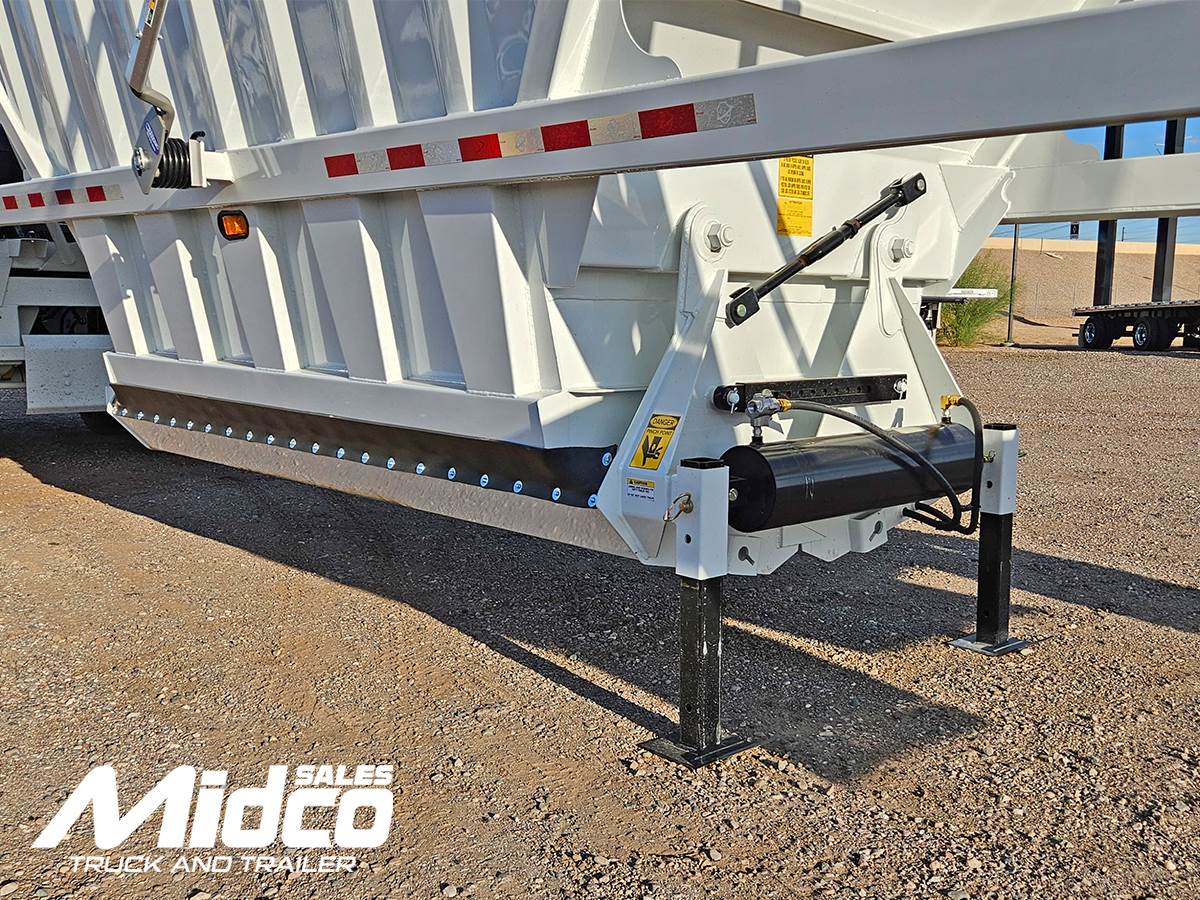

4" x 4" Drop Legs with Integrated Lift Handle
FENDERS
Front & Rear, Aluminum Bolt-On
PUSH BLOCK

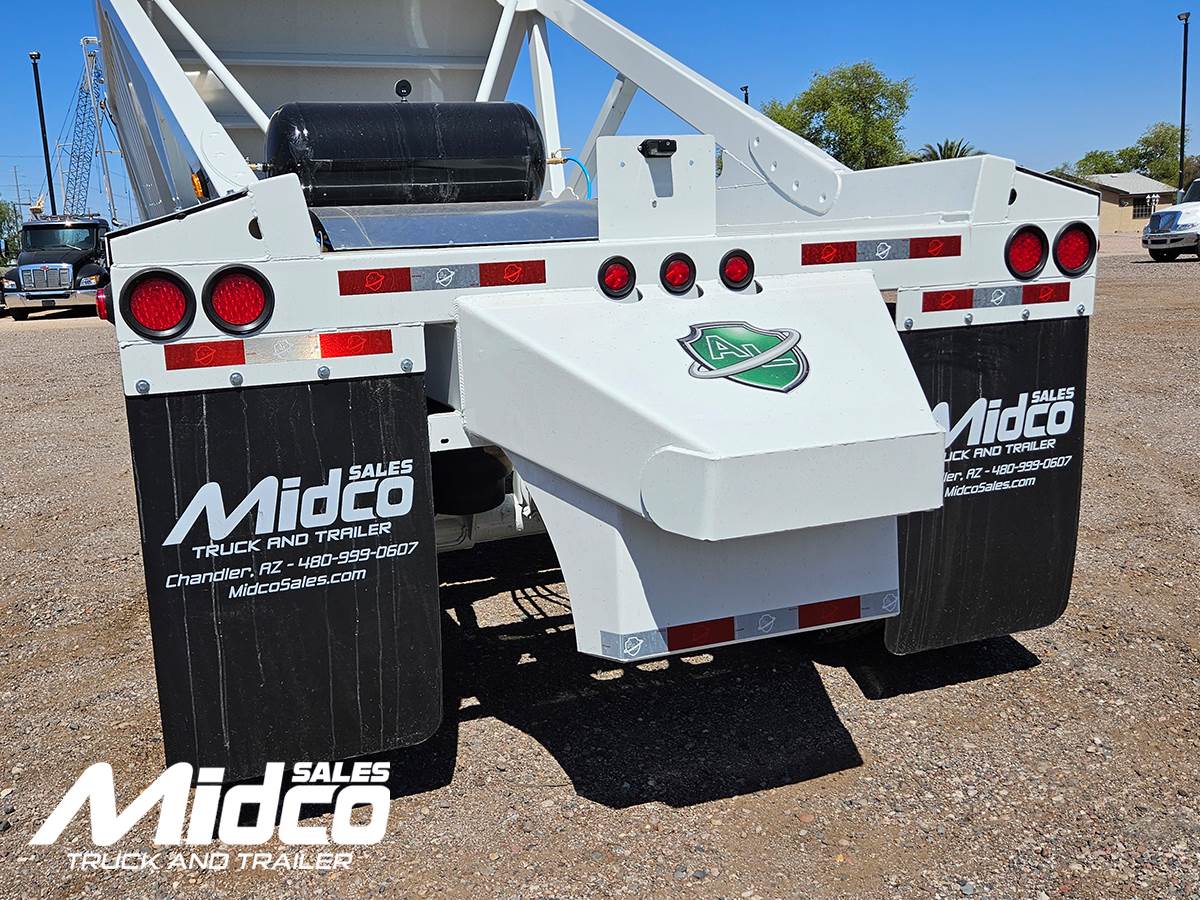

Fixed Rear with D.O.T. Approved Underride Bumper
AXLES & SUSPENSION
Axles: Tandem 25,000-lb, 5" Tubular with 5/8" Wall Thickness

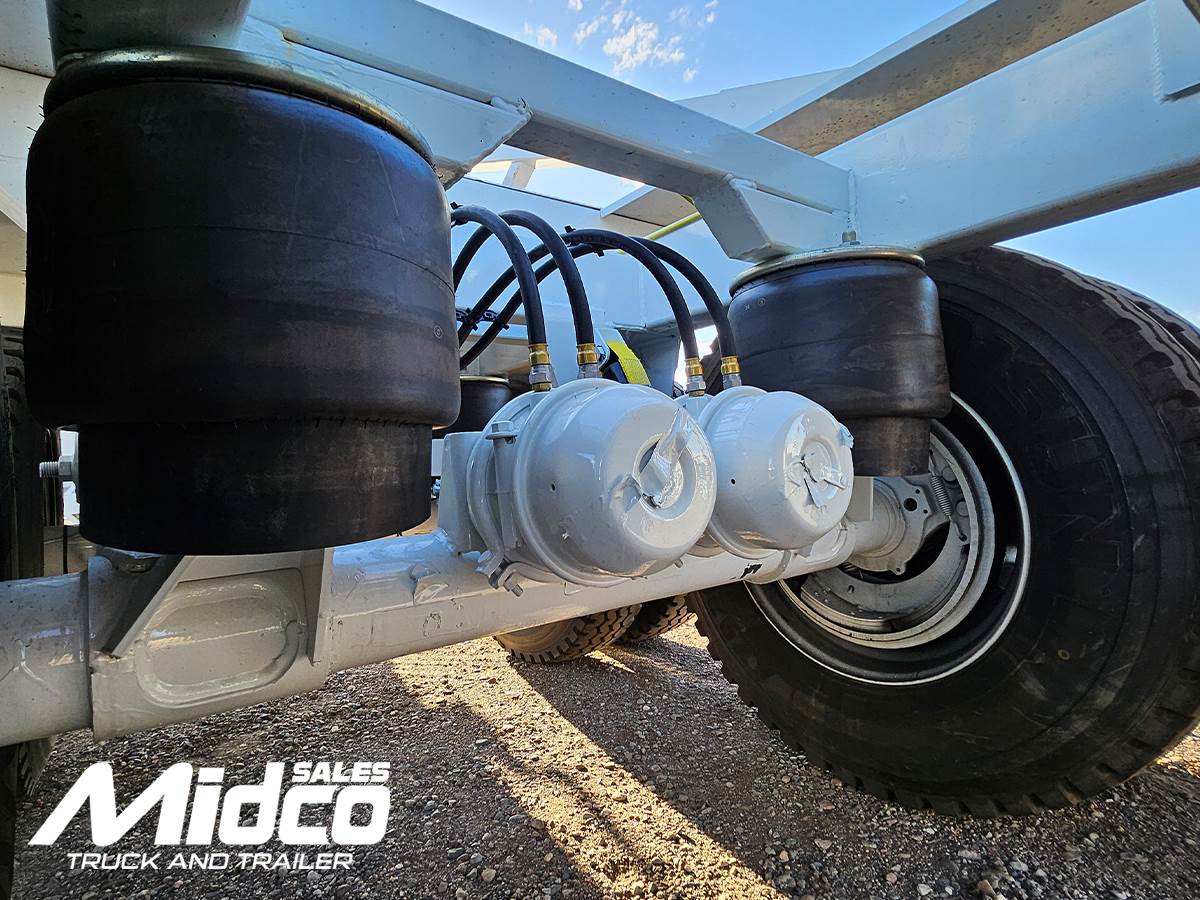

Suspension: Ridewell Air Ride Suspension

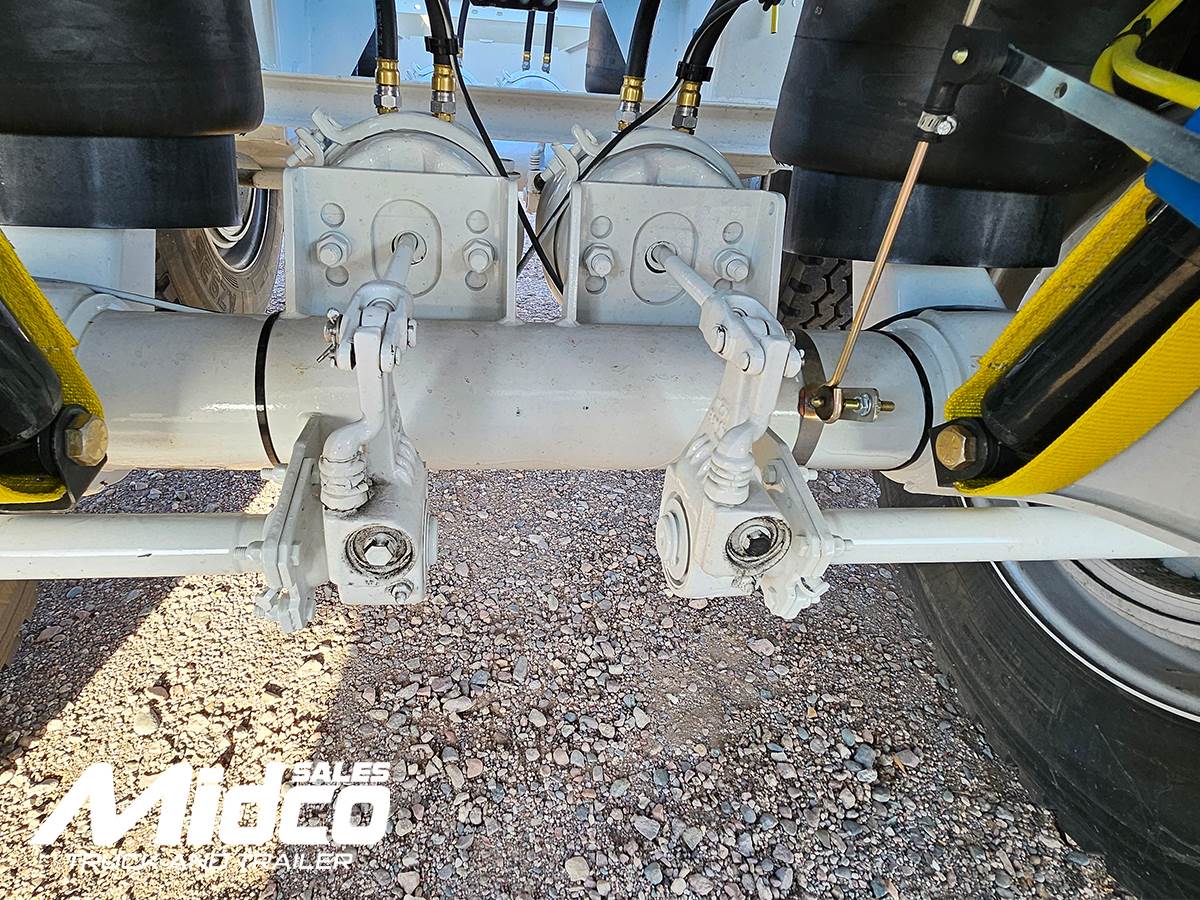

Brakes: 16.5" x 7" Cast Drum Brakes, WABCO 2S/1M ABS
WHEELS & TIRES

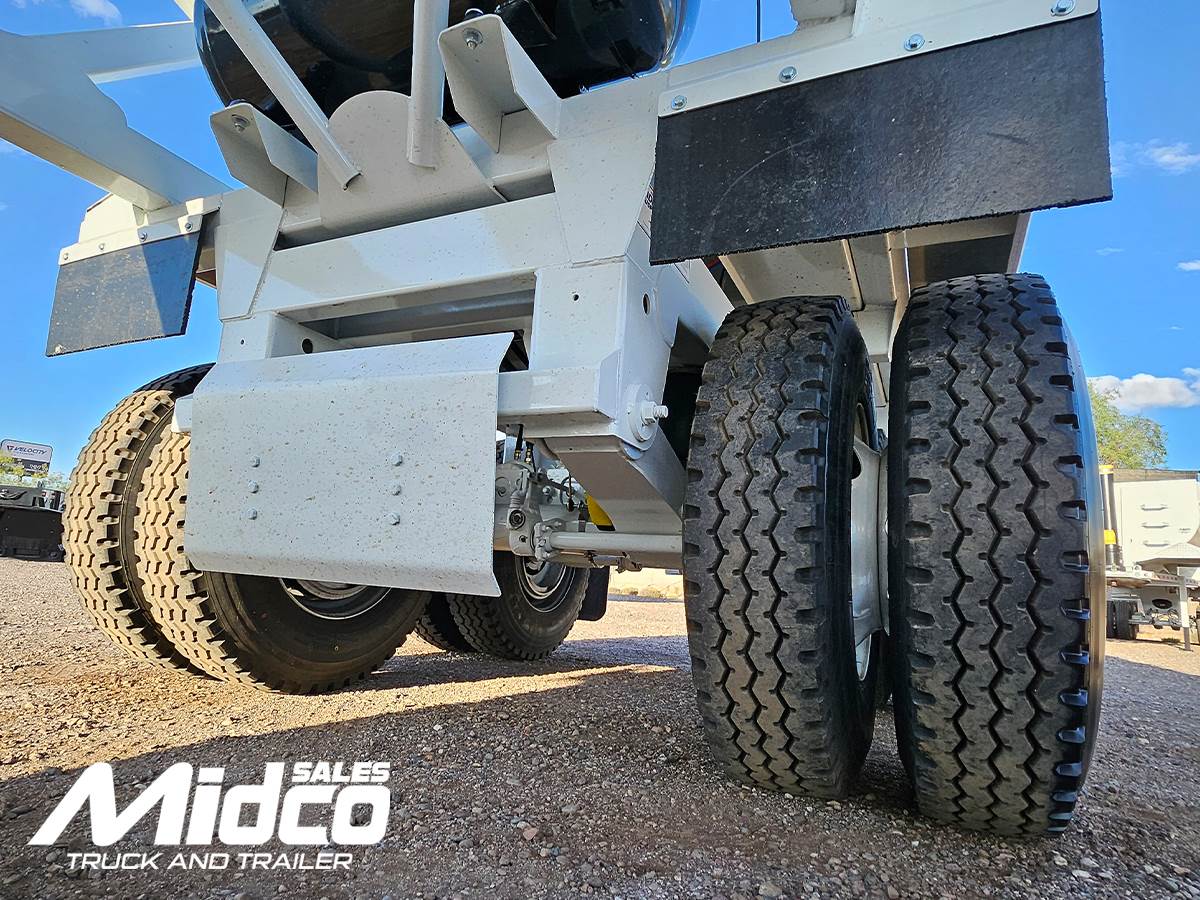

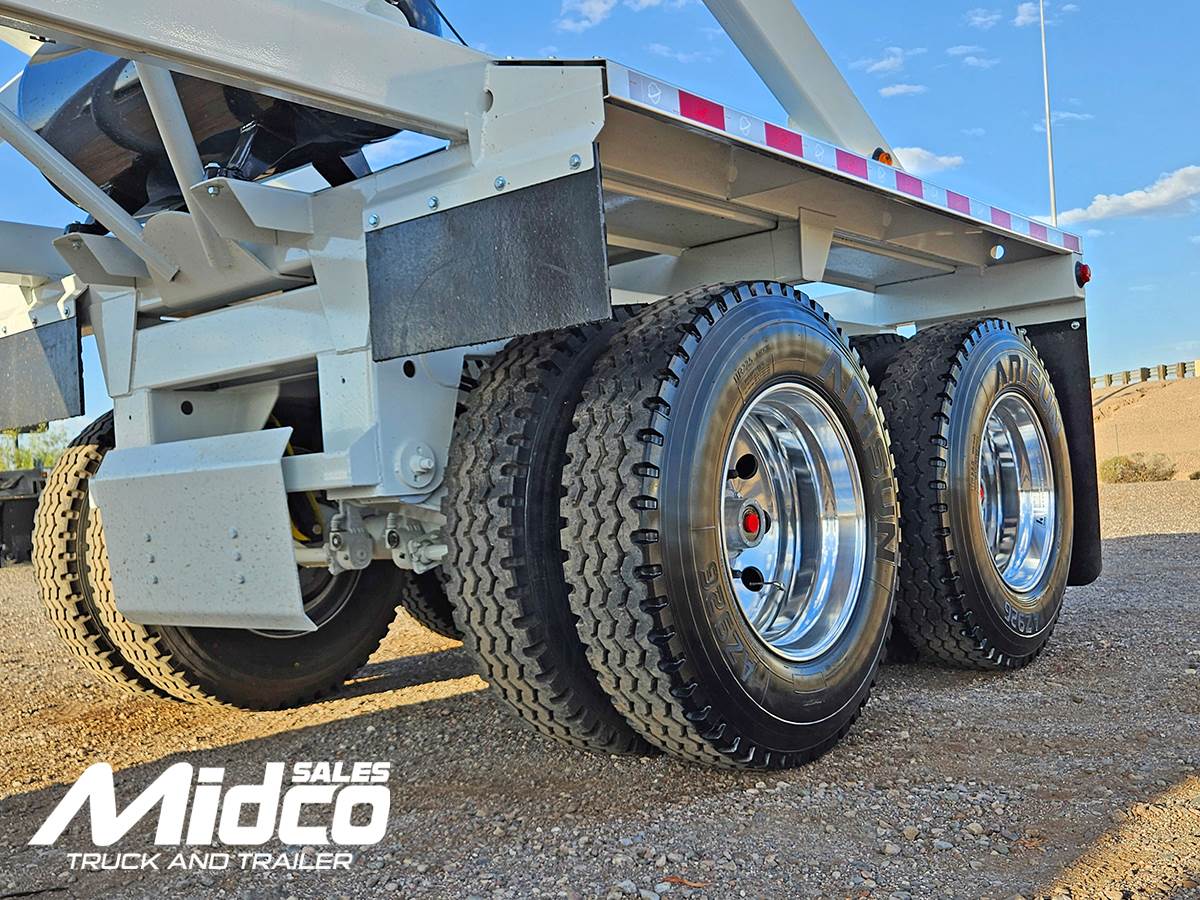

Tires: 11R22.5 Tires, Chip & Cut Resistant
Wheels 22.5" x 8.25" Outside Polished Aluminum, Inside Steel
TARP SYSTEM

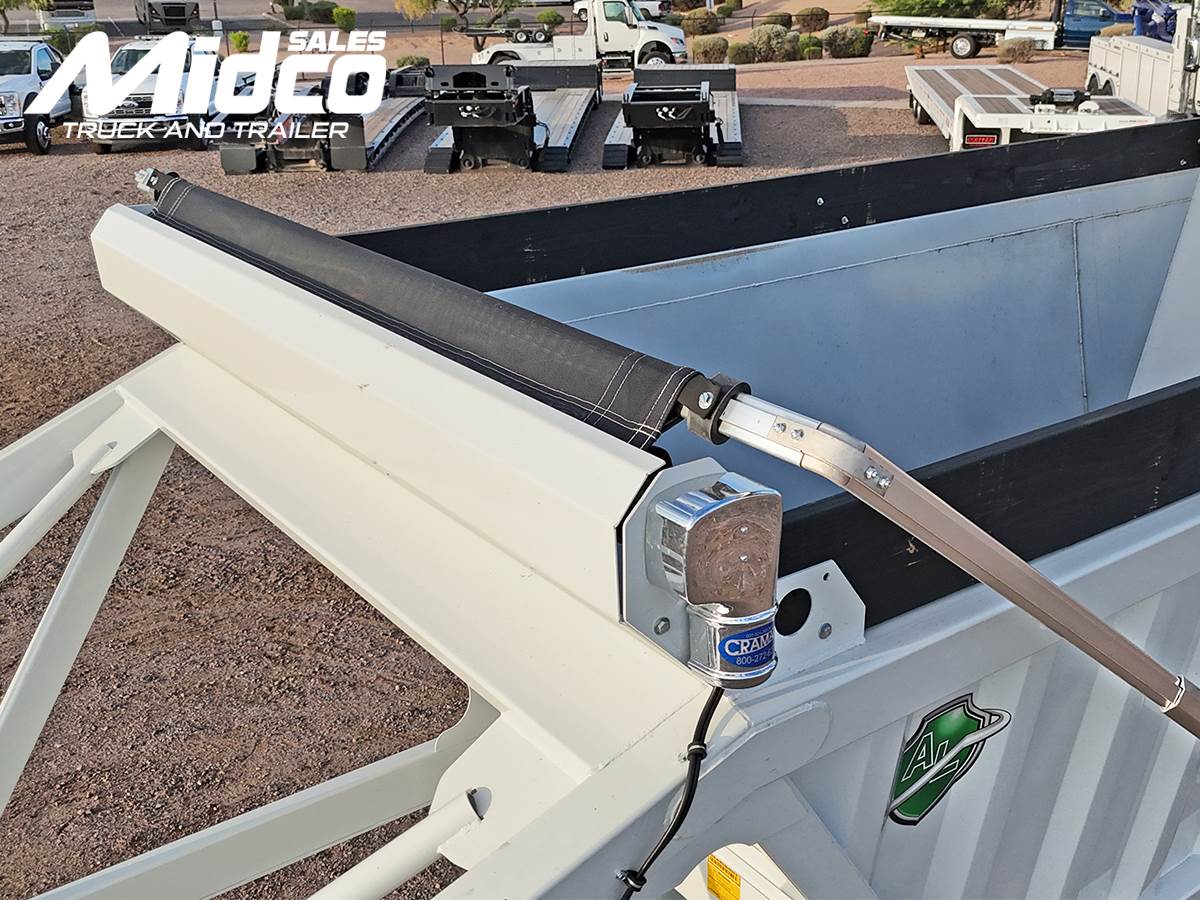

Cramaro 4 Spring Electric Flip (Offset Arms), Vertical Plug
XL Style Modified Front Tarp Header
LIGHTING
Complete LED Lighting System, ICC & D.O.T. Approved
