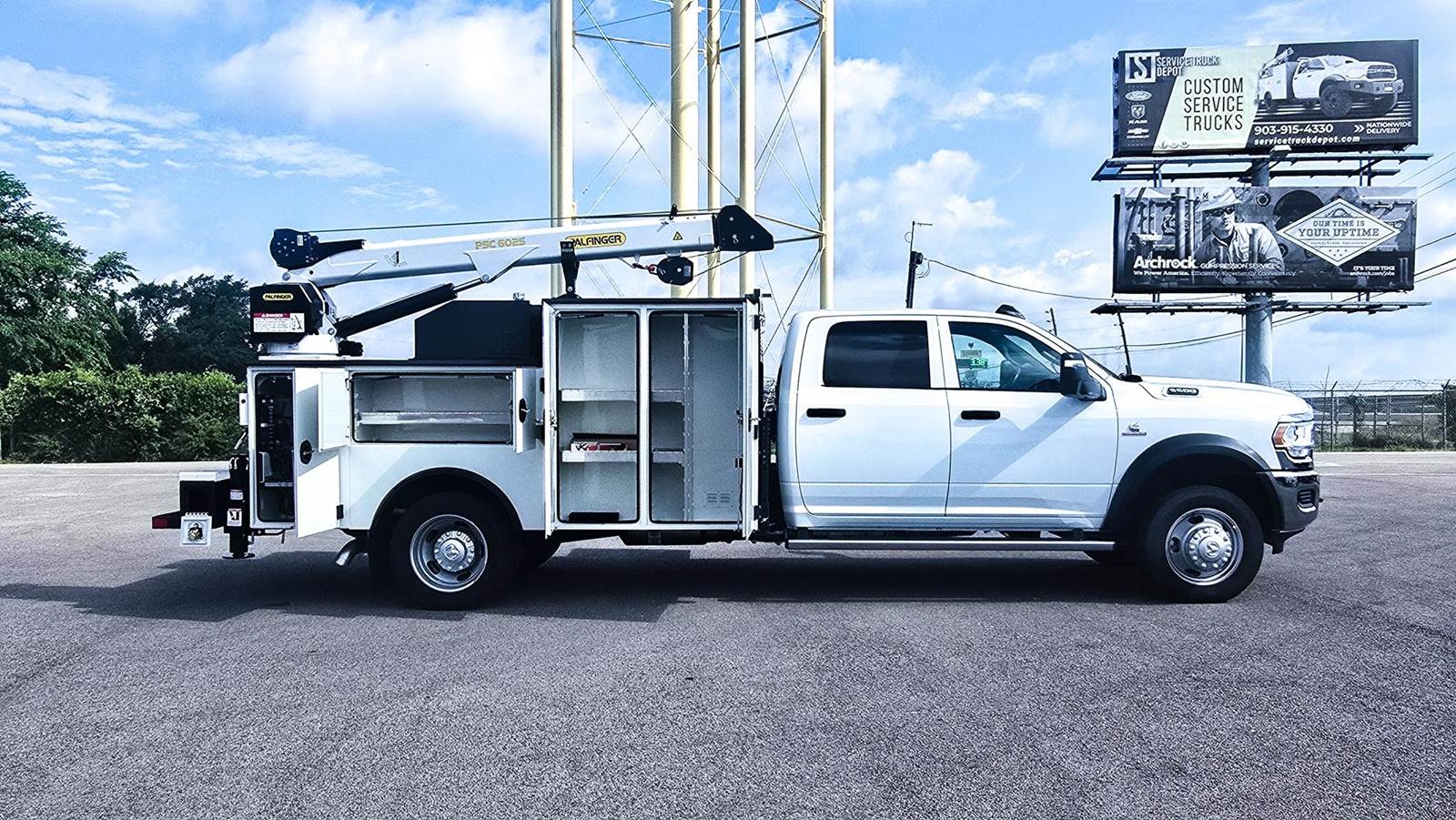

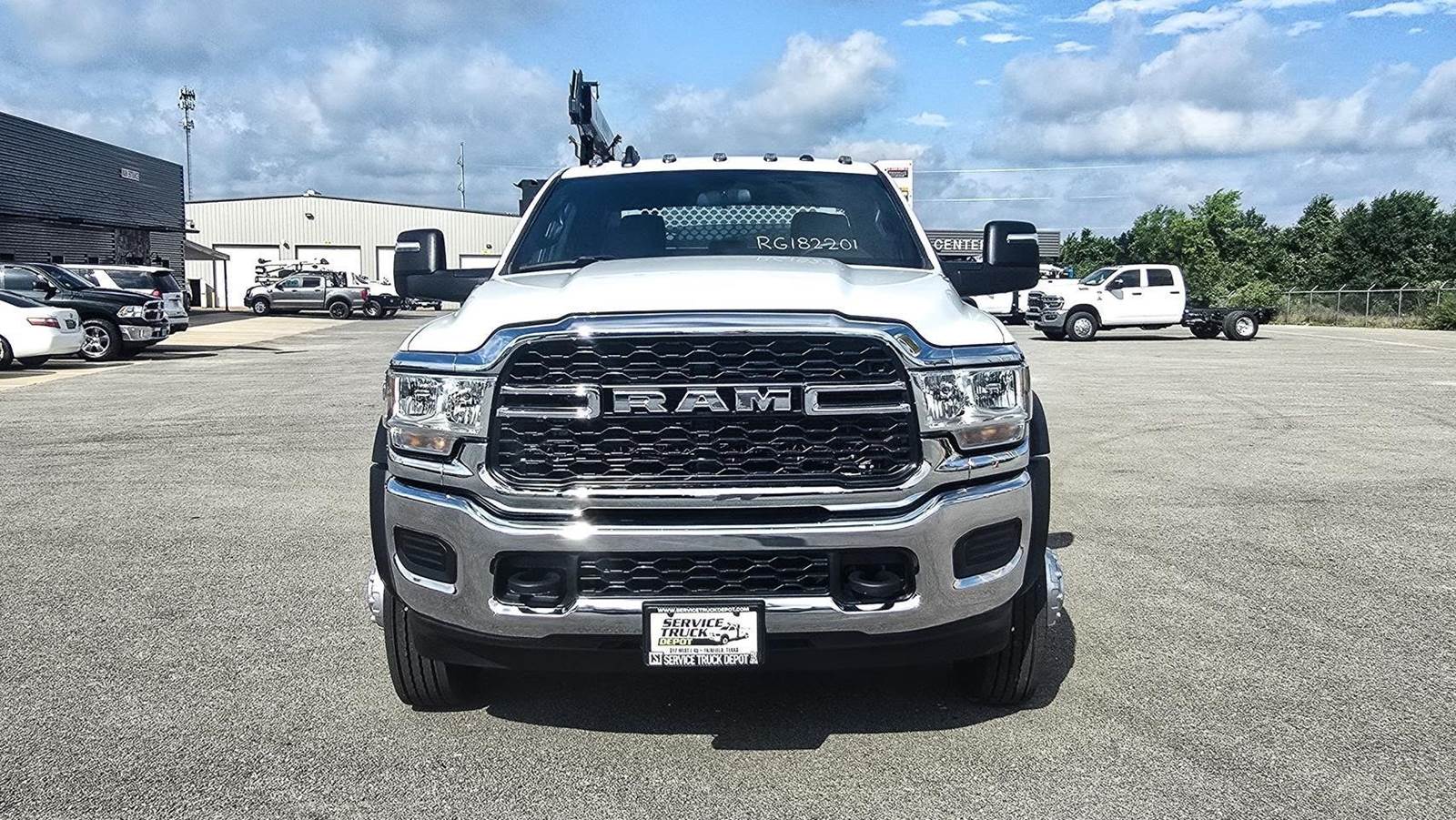

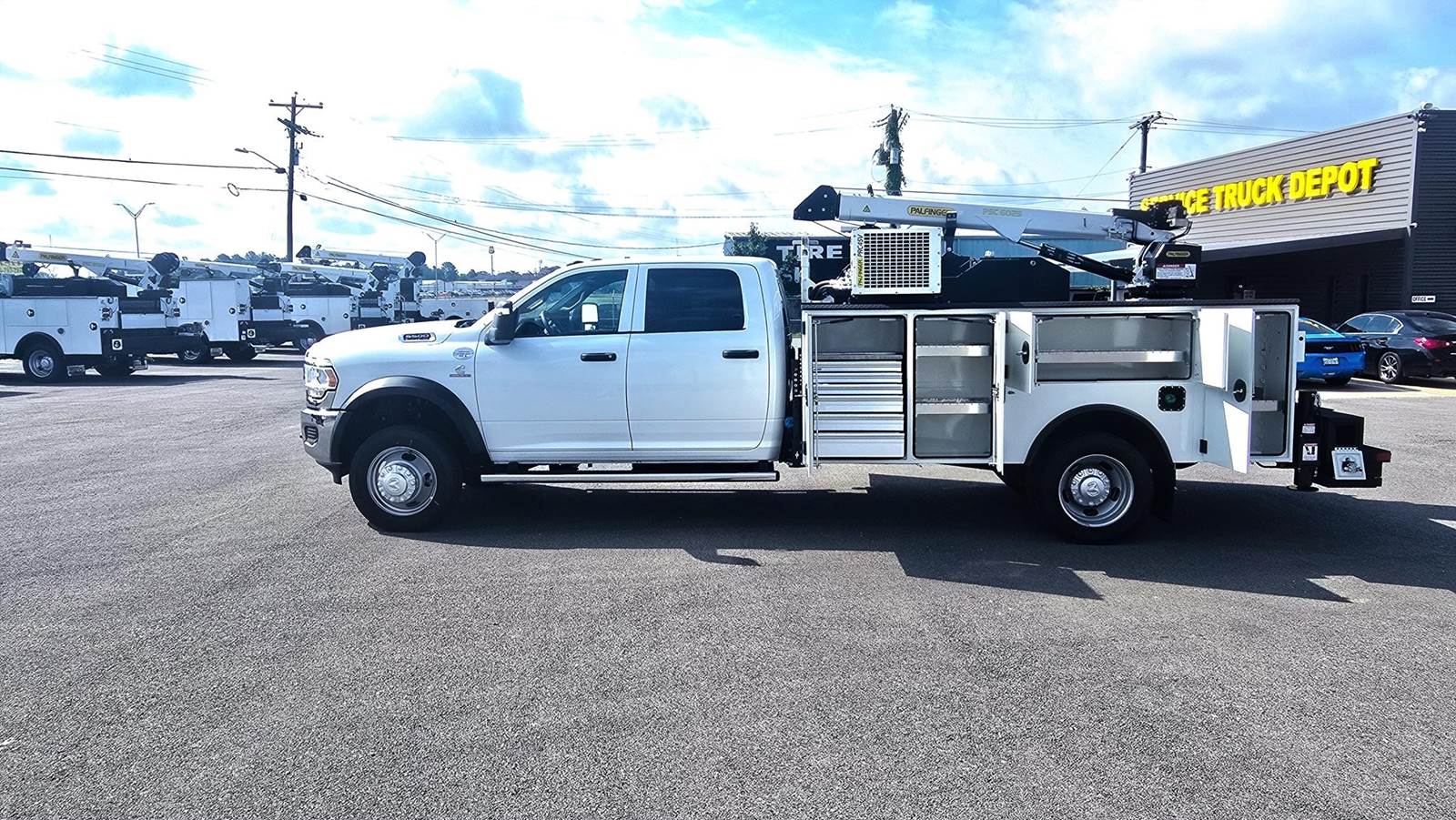

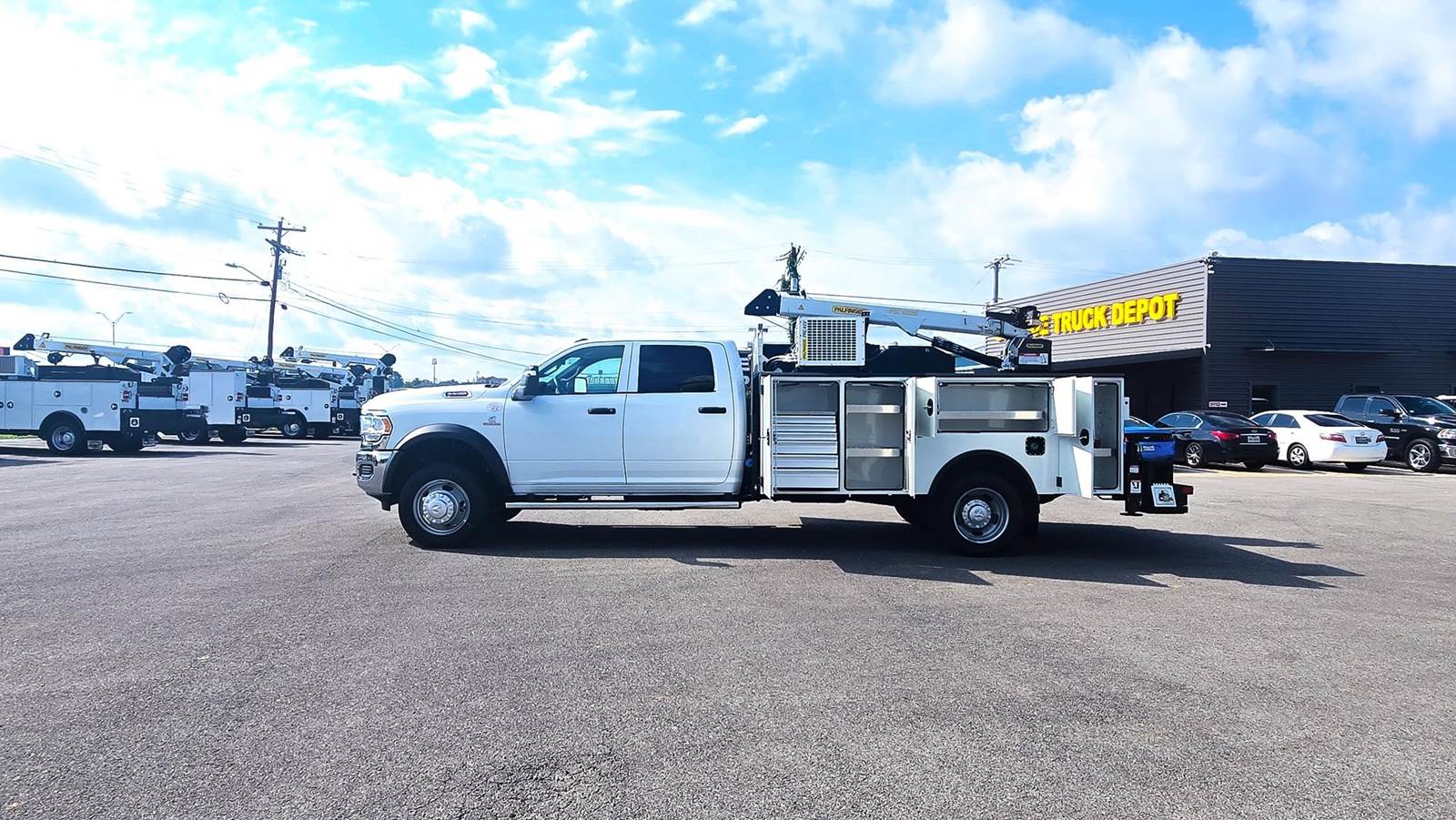

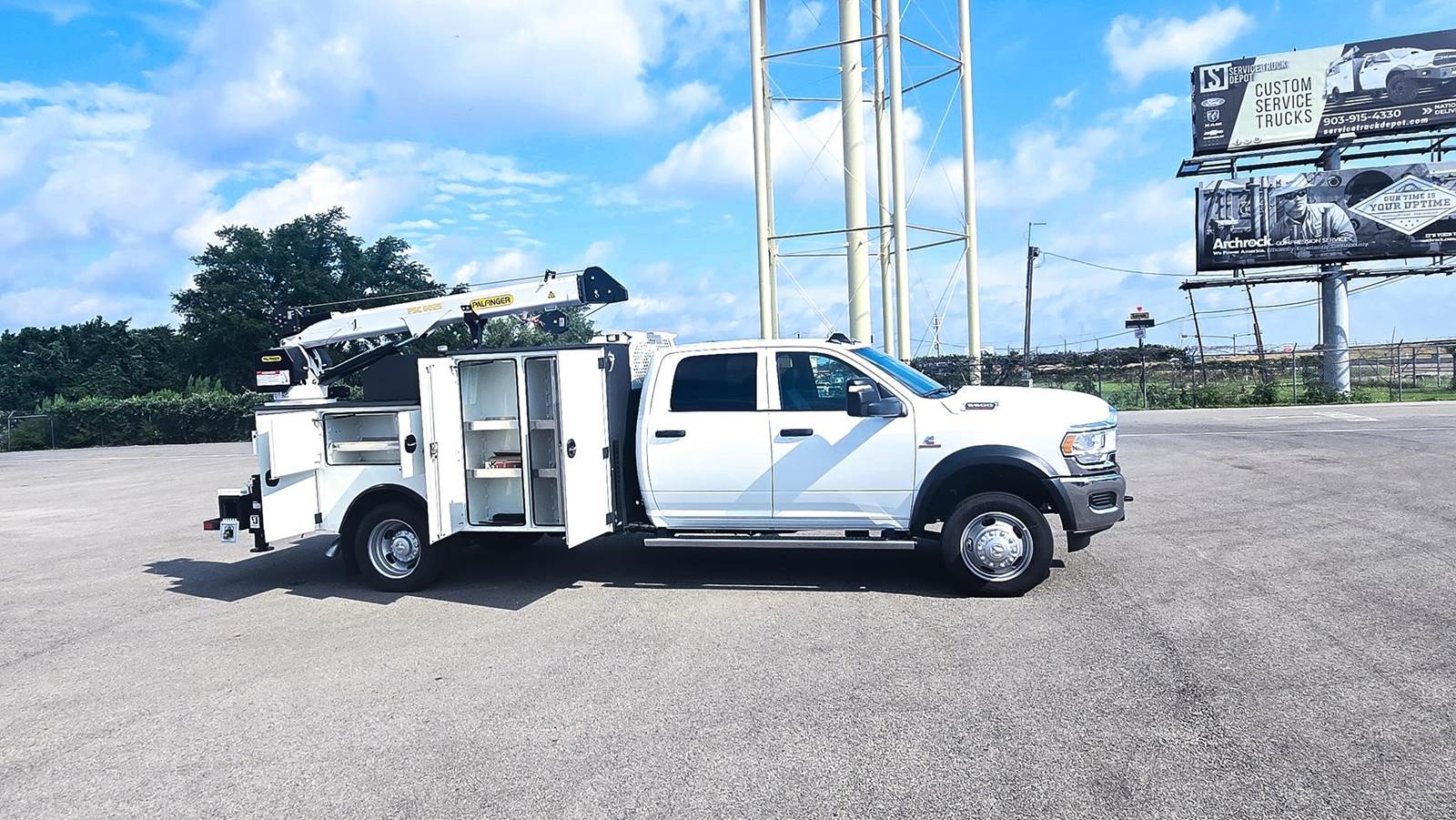

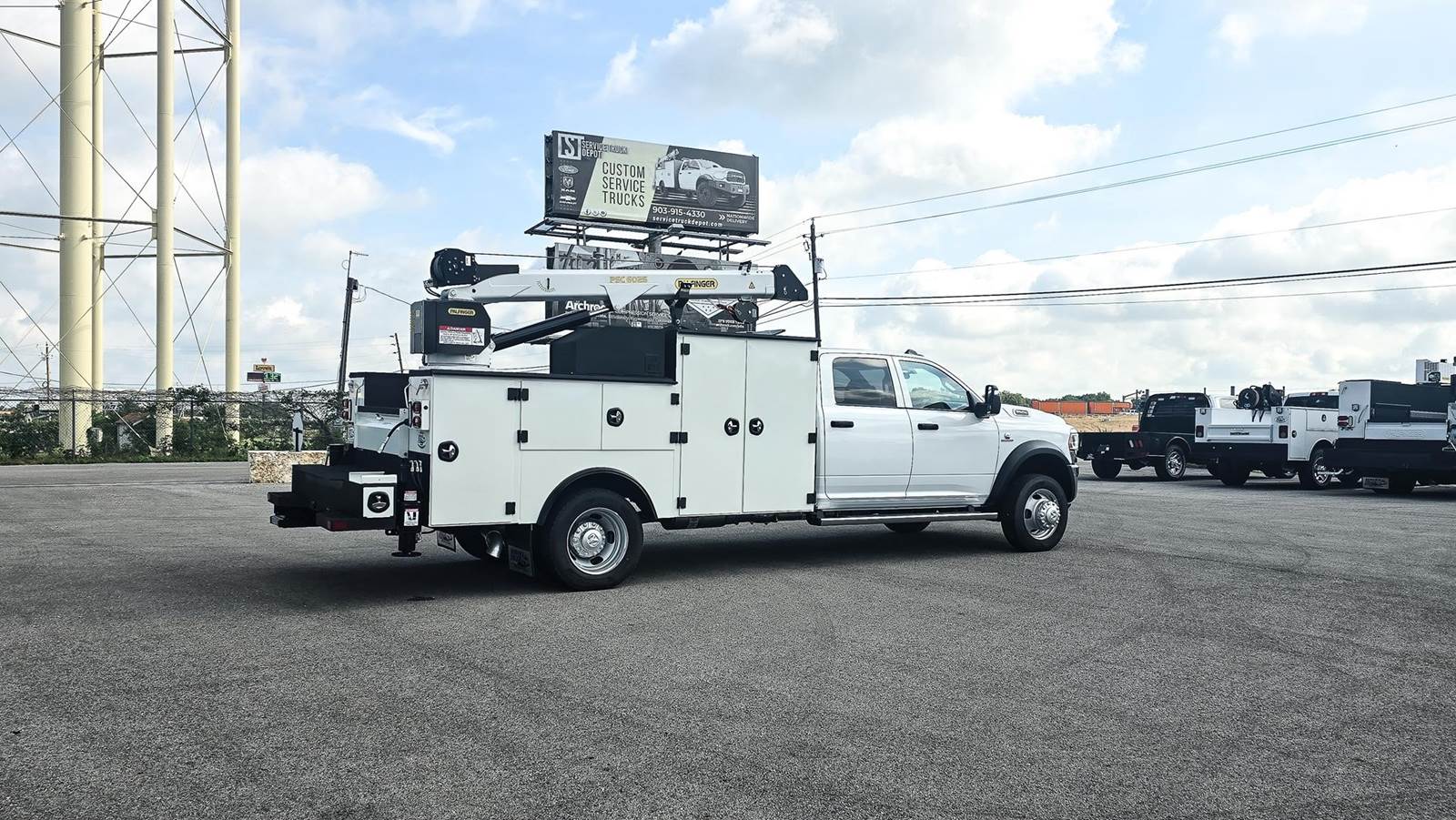

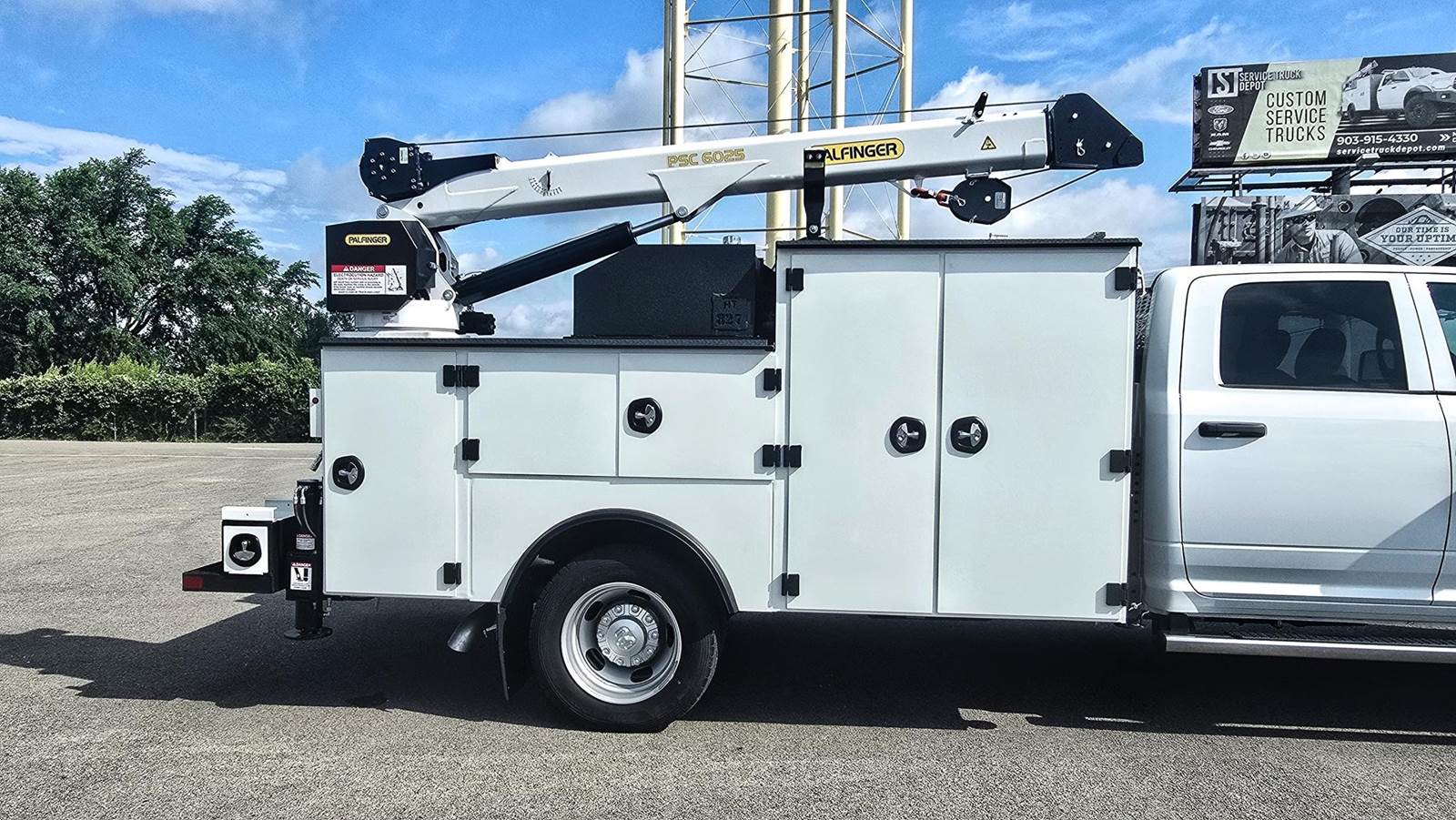

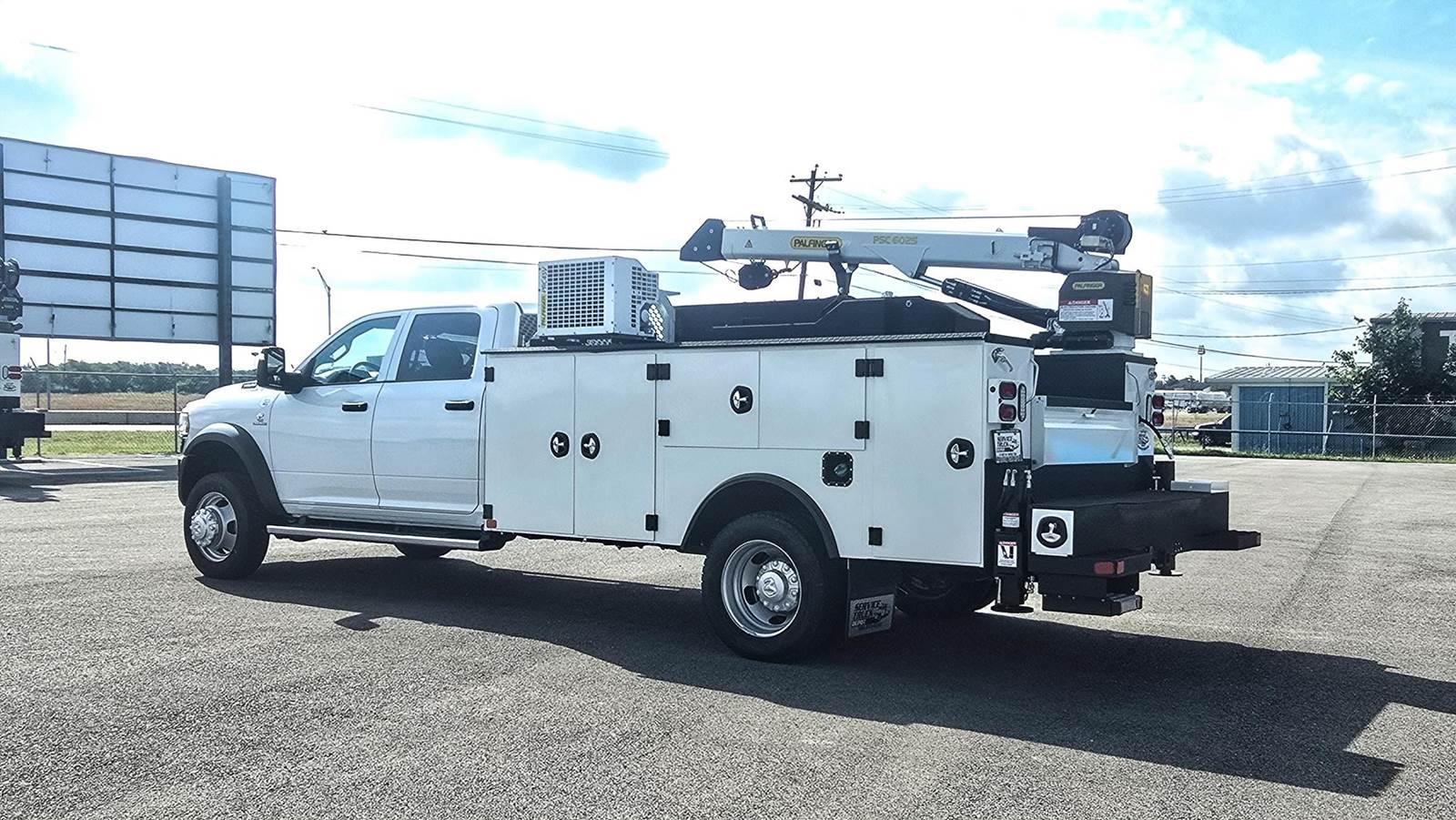

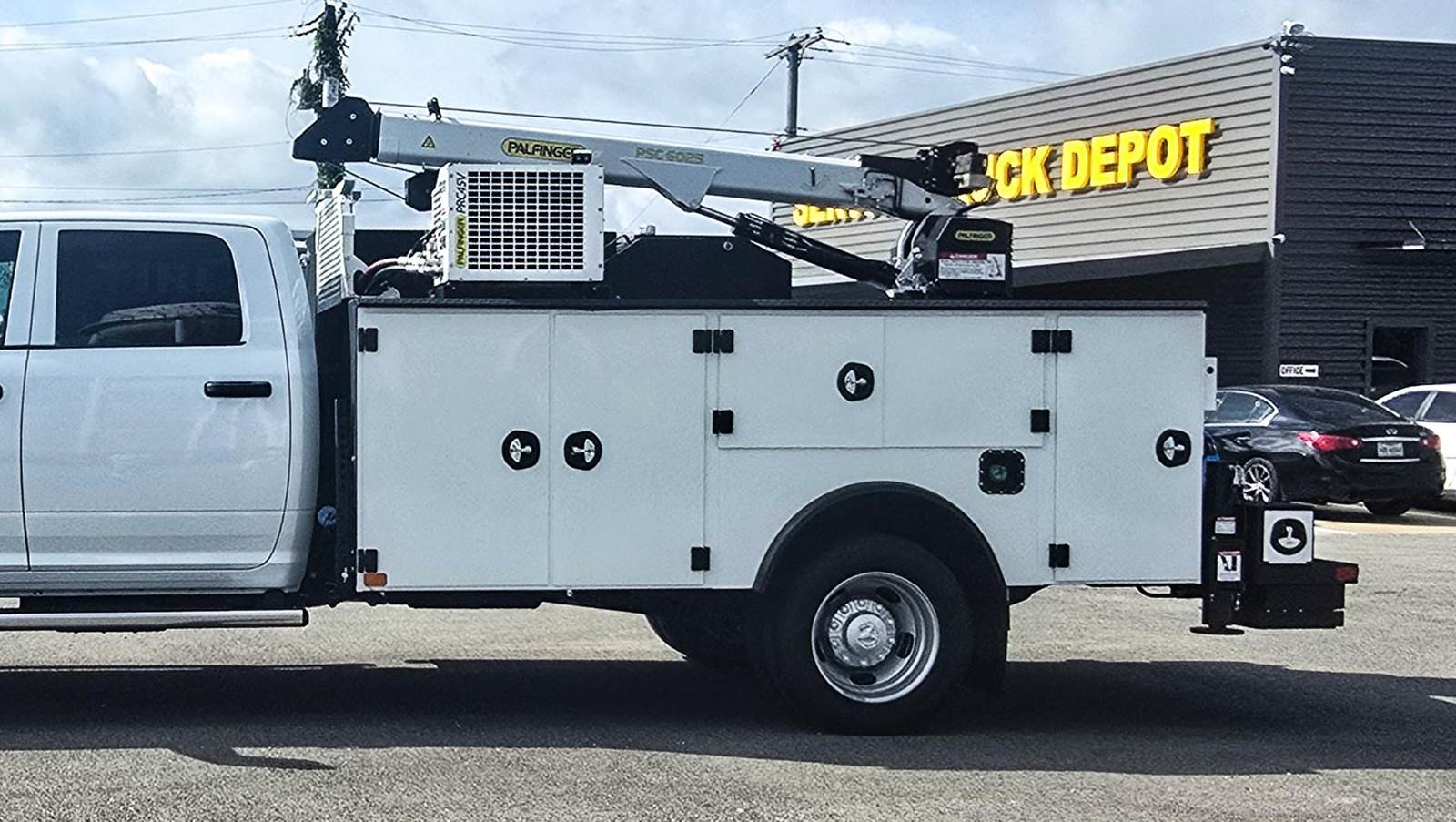

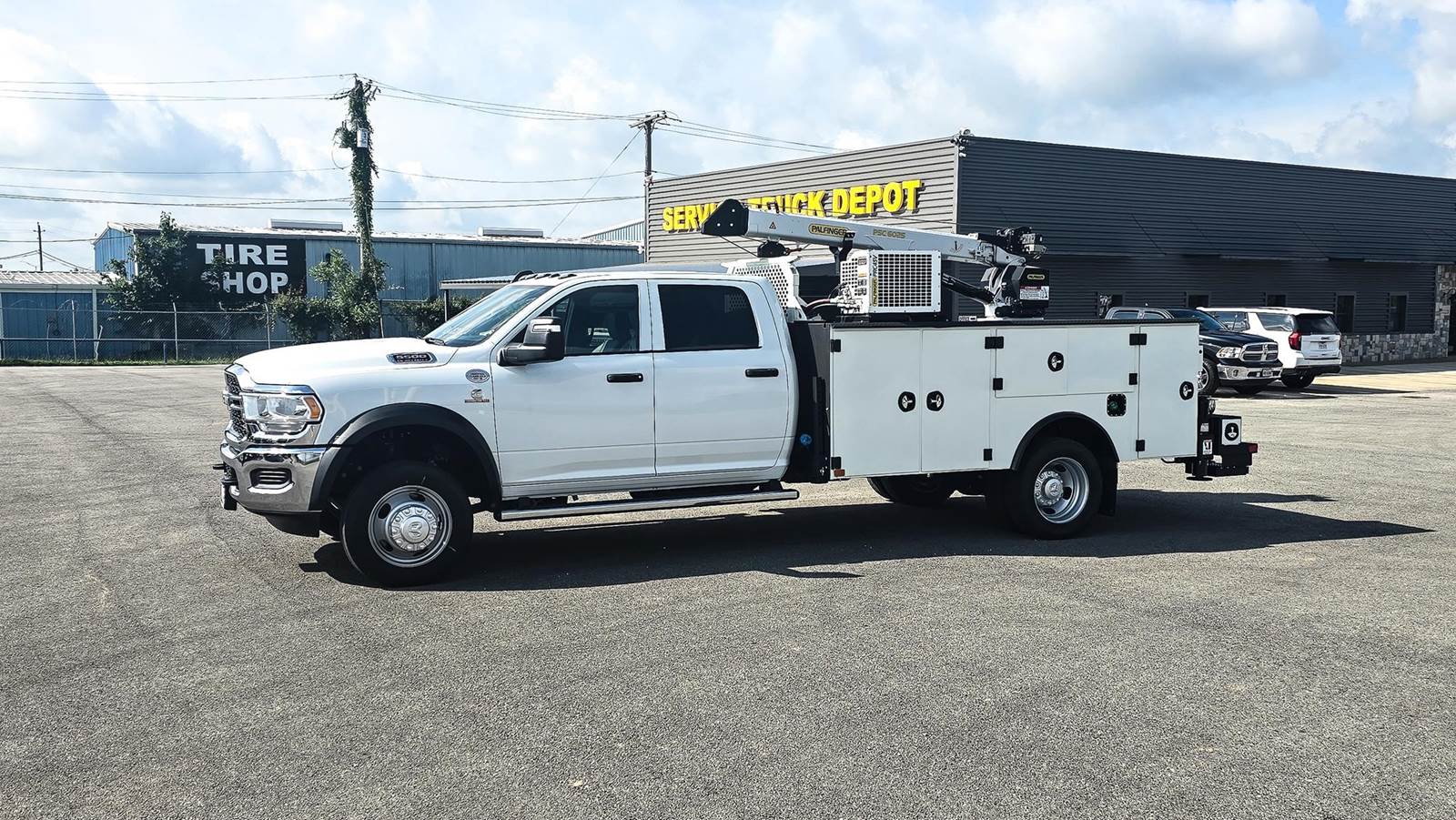

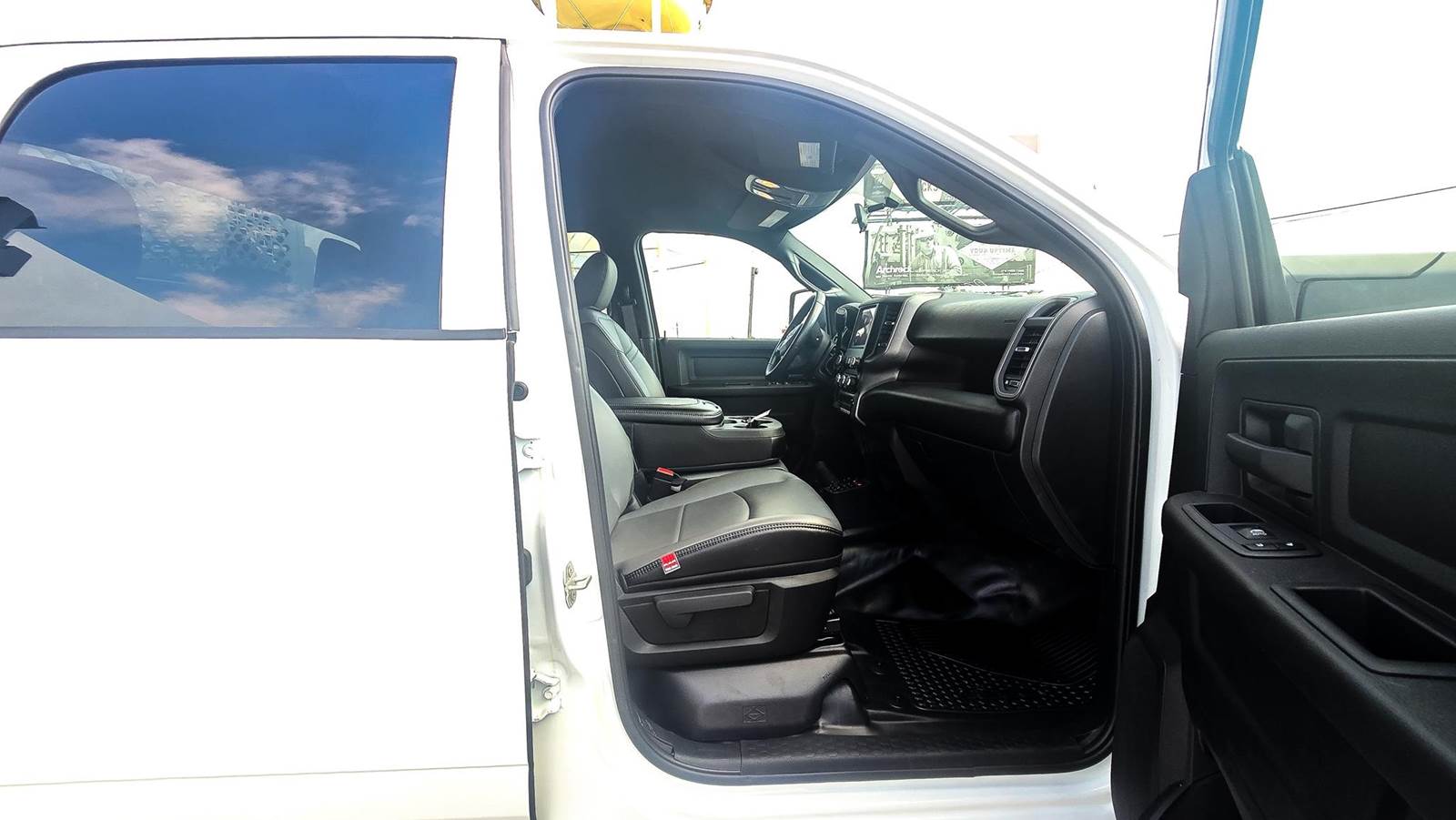

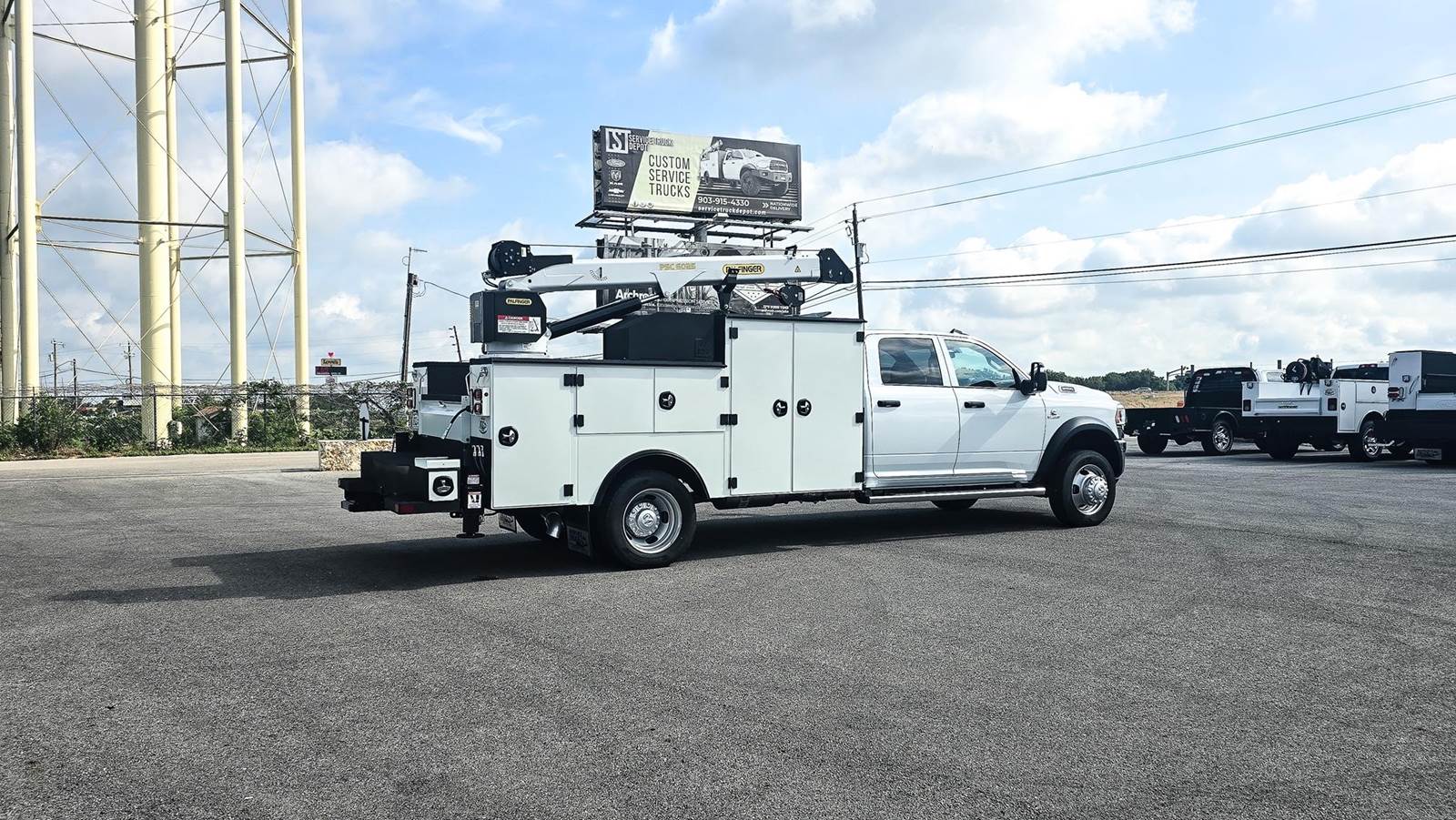

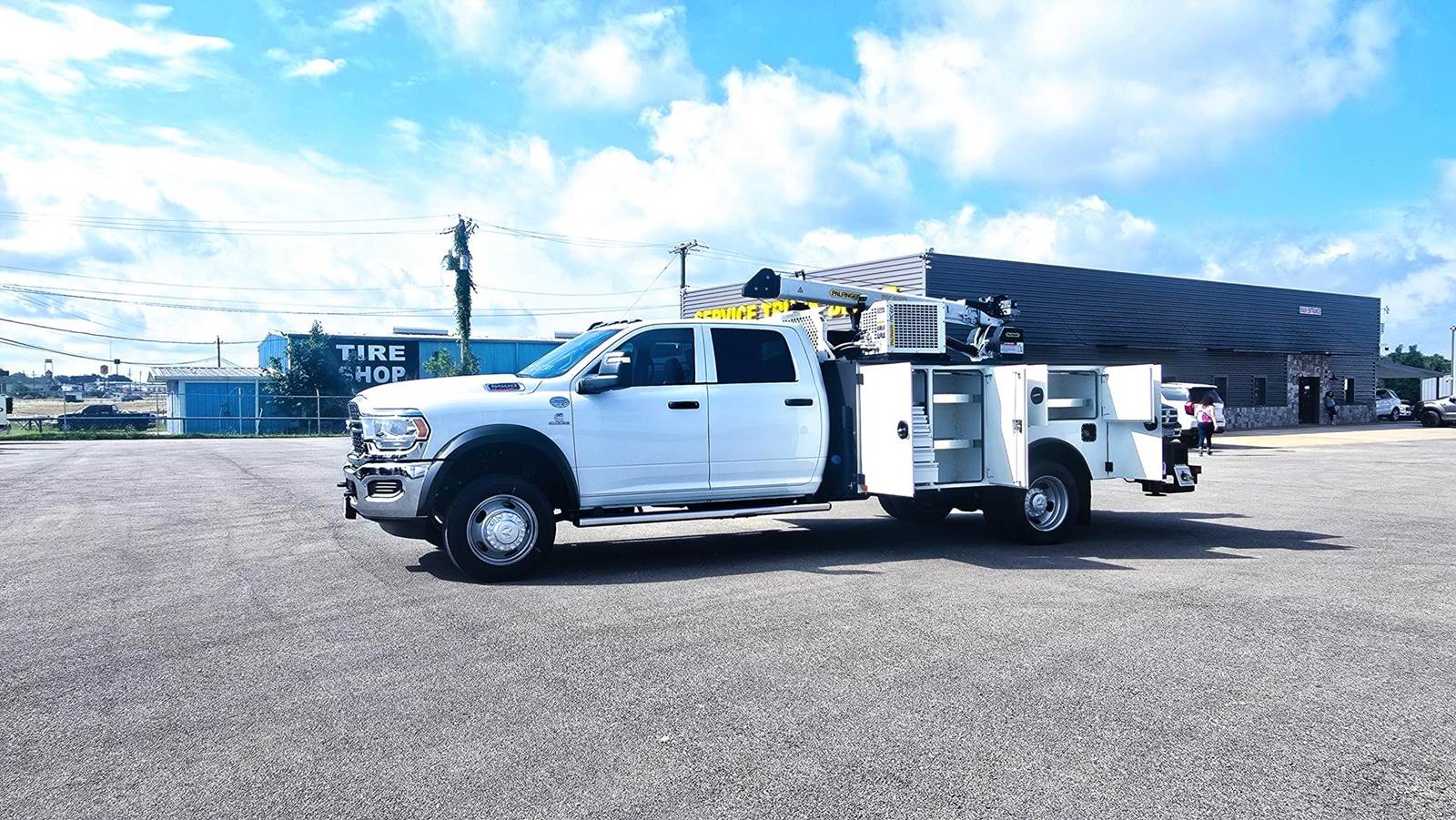

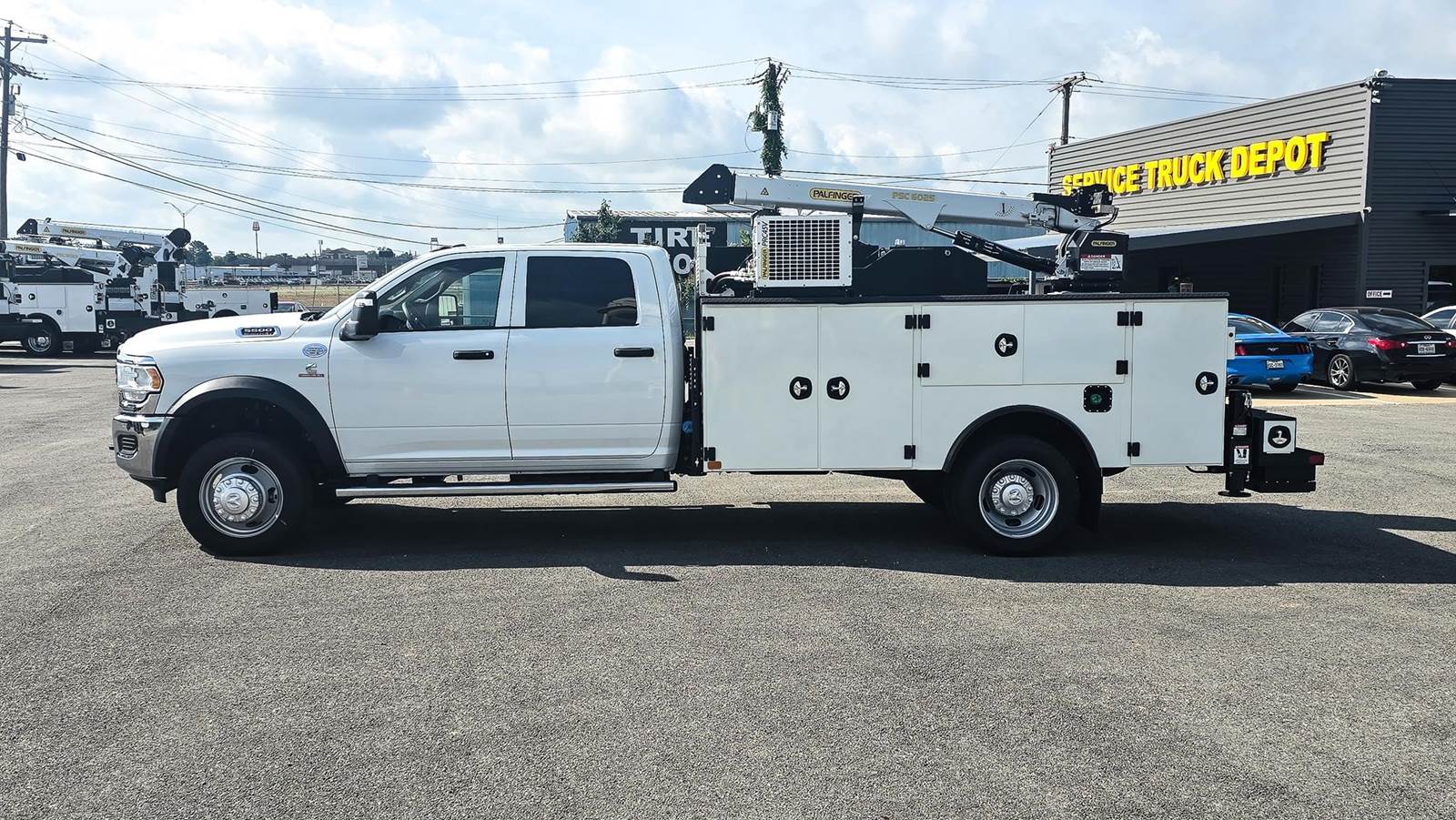

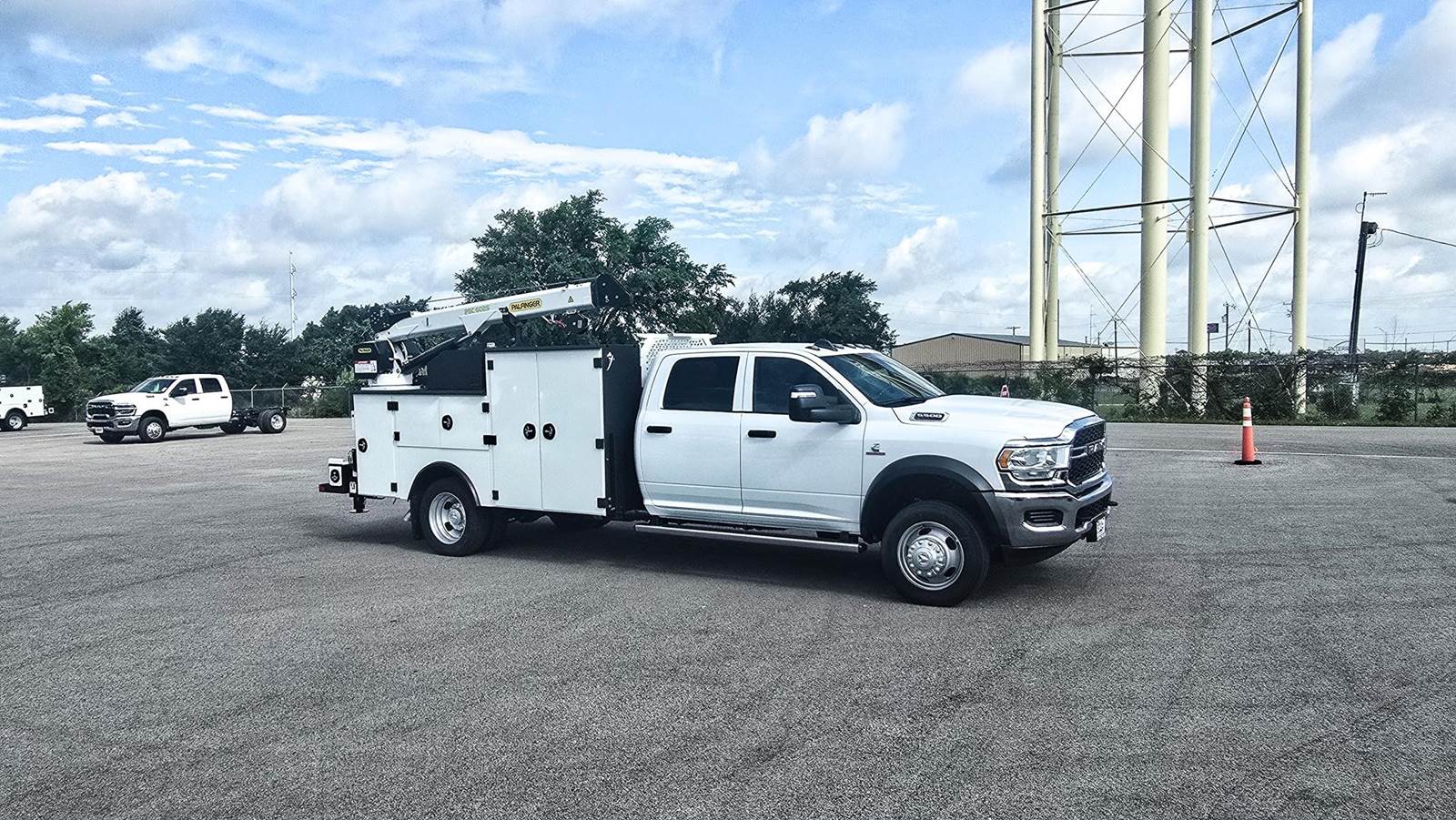

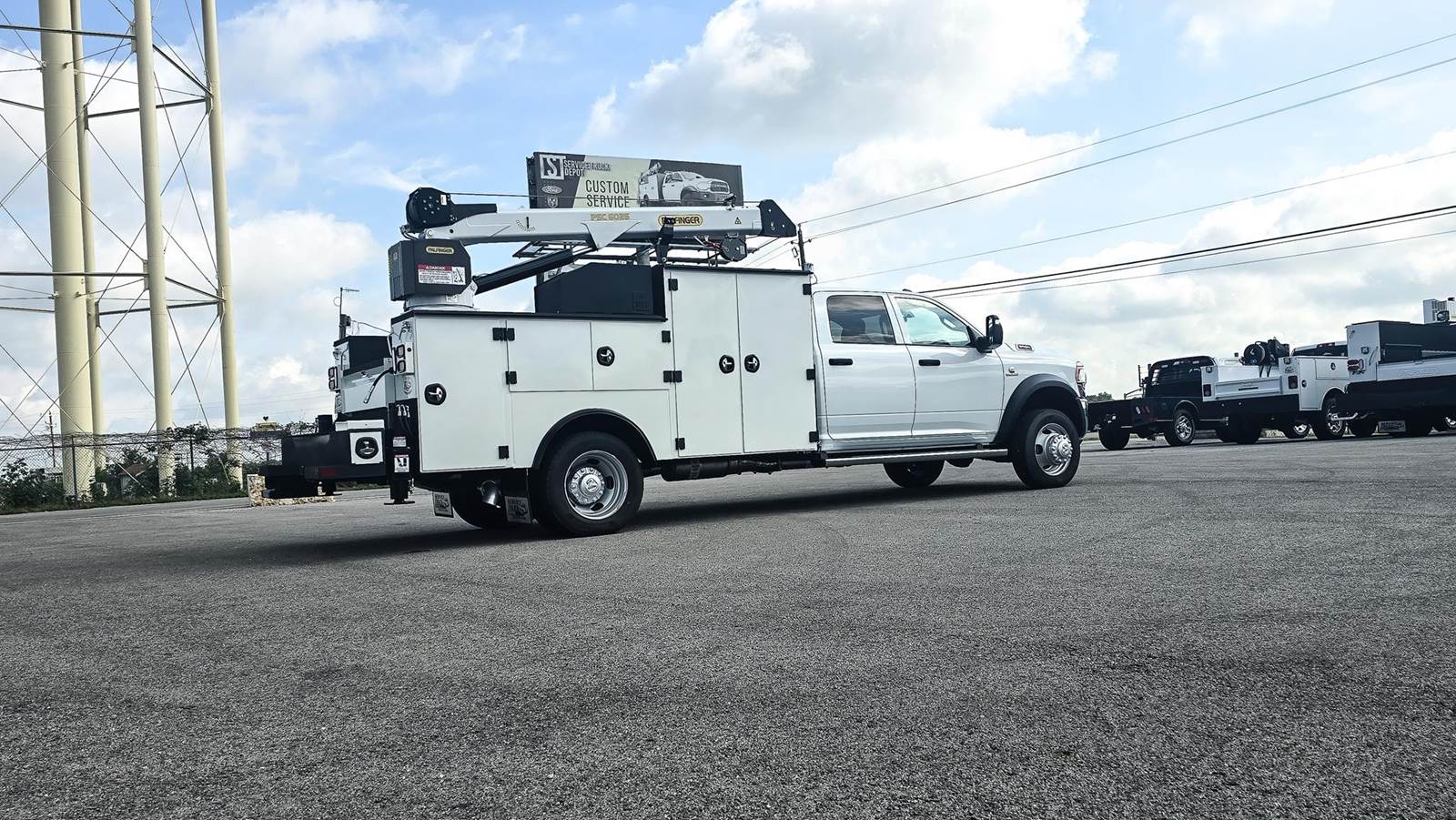

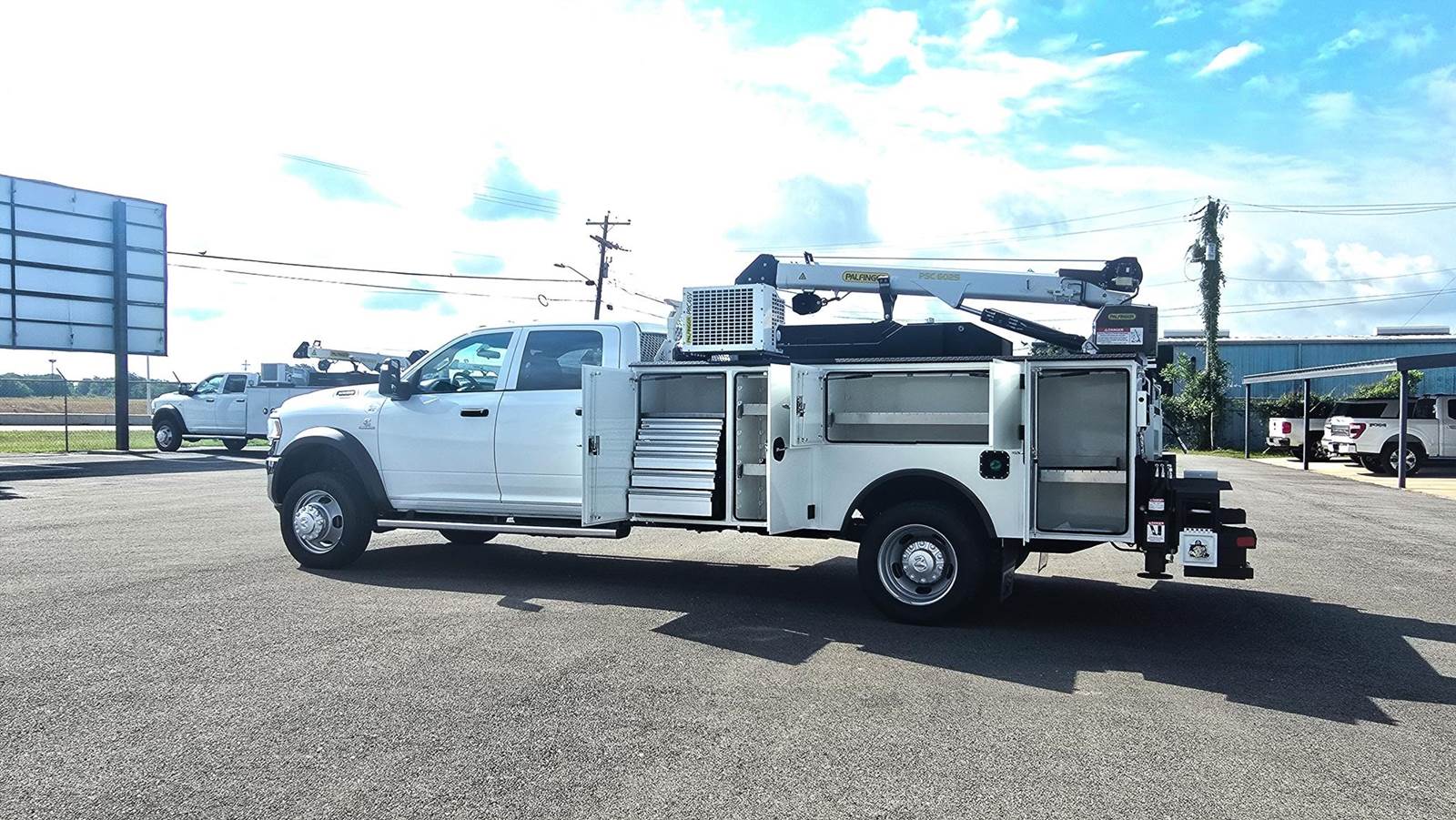

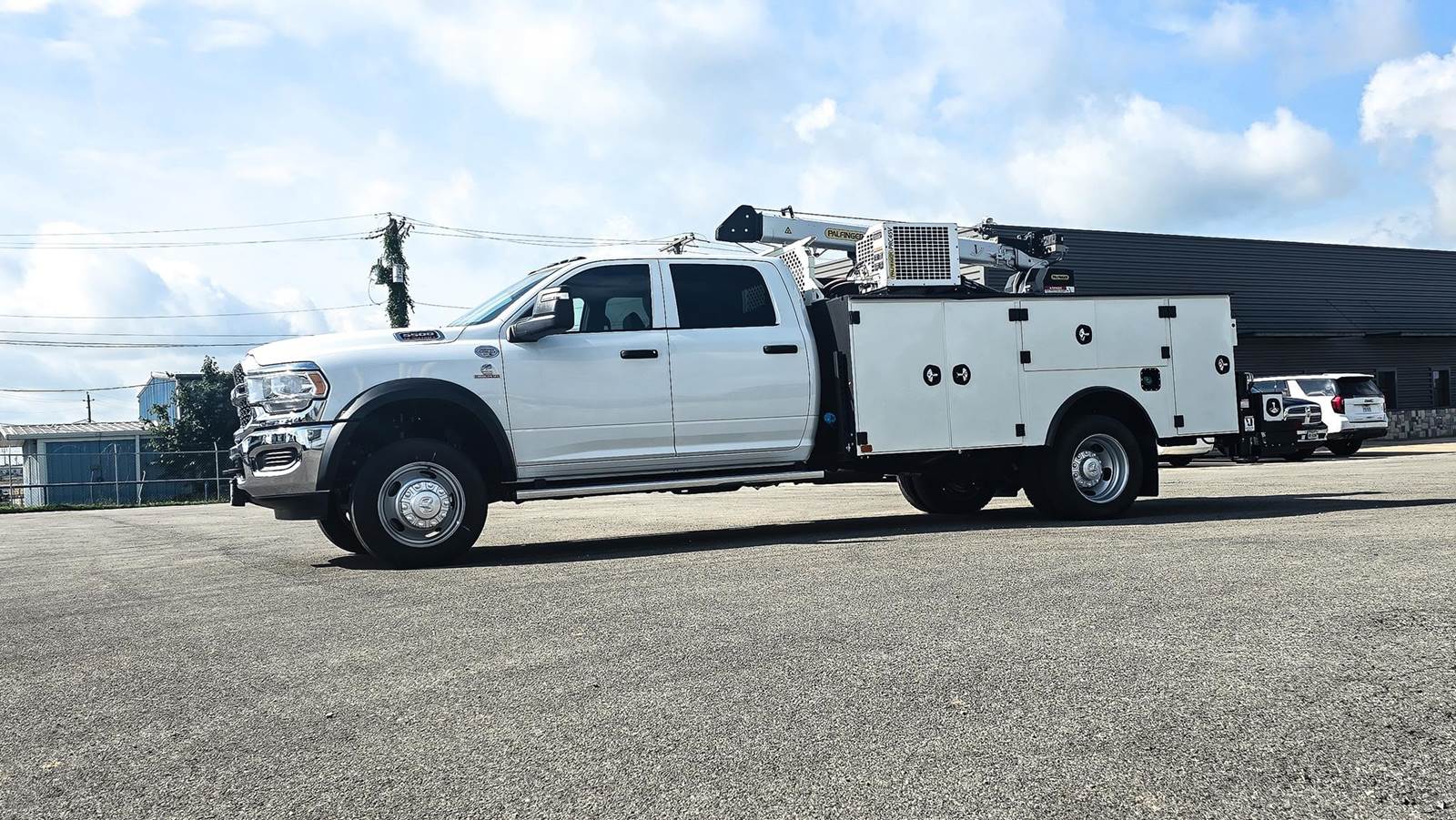

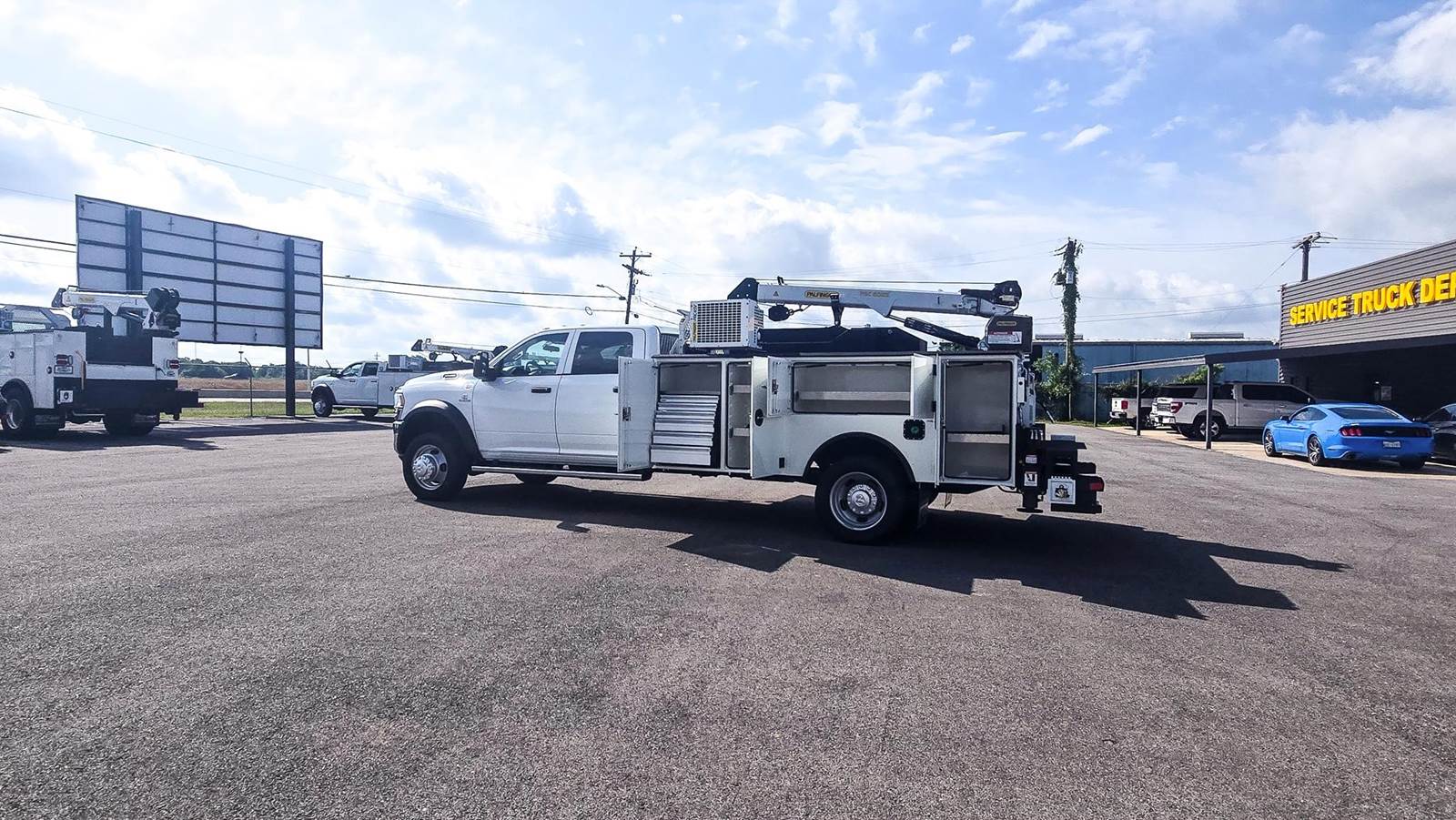

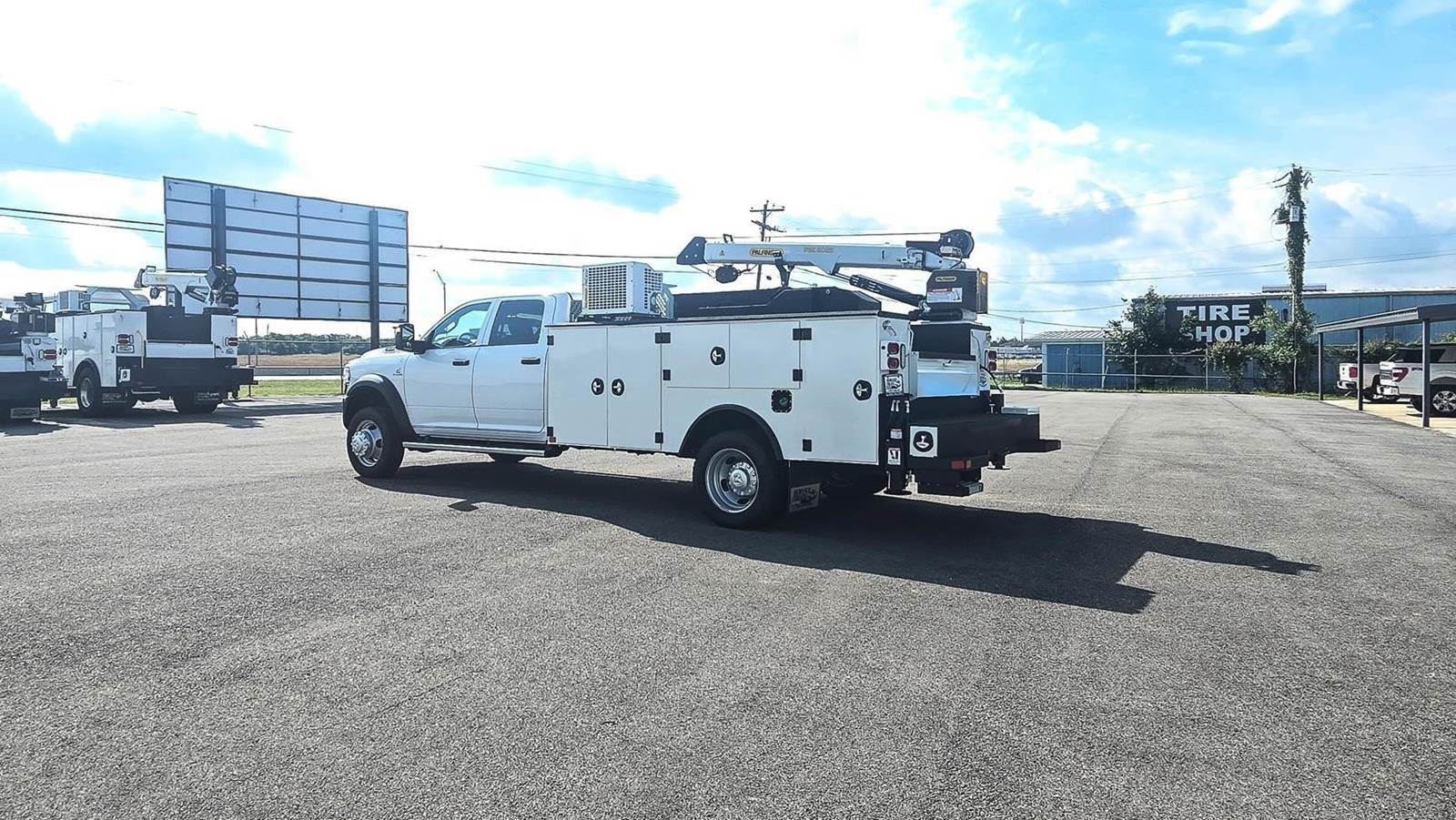

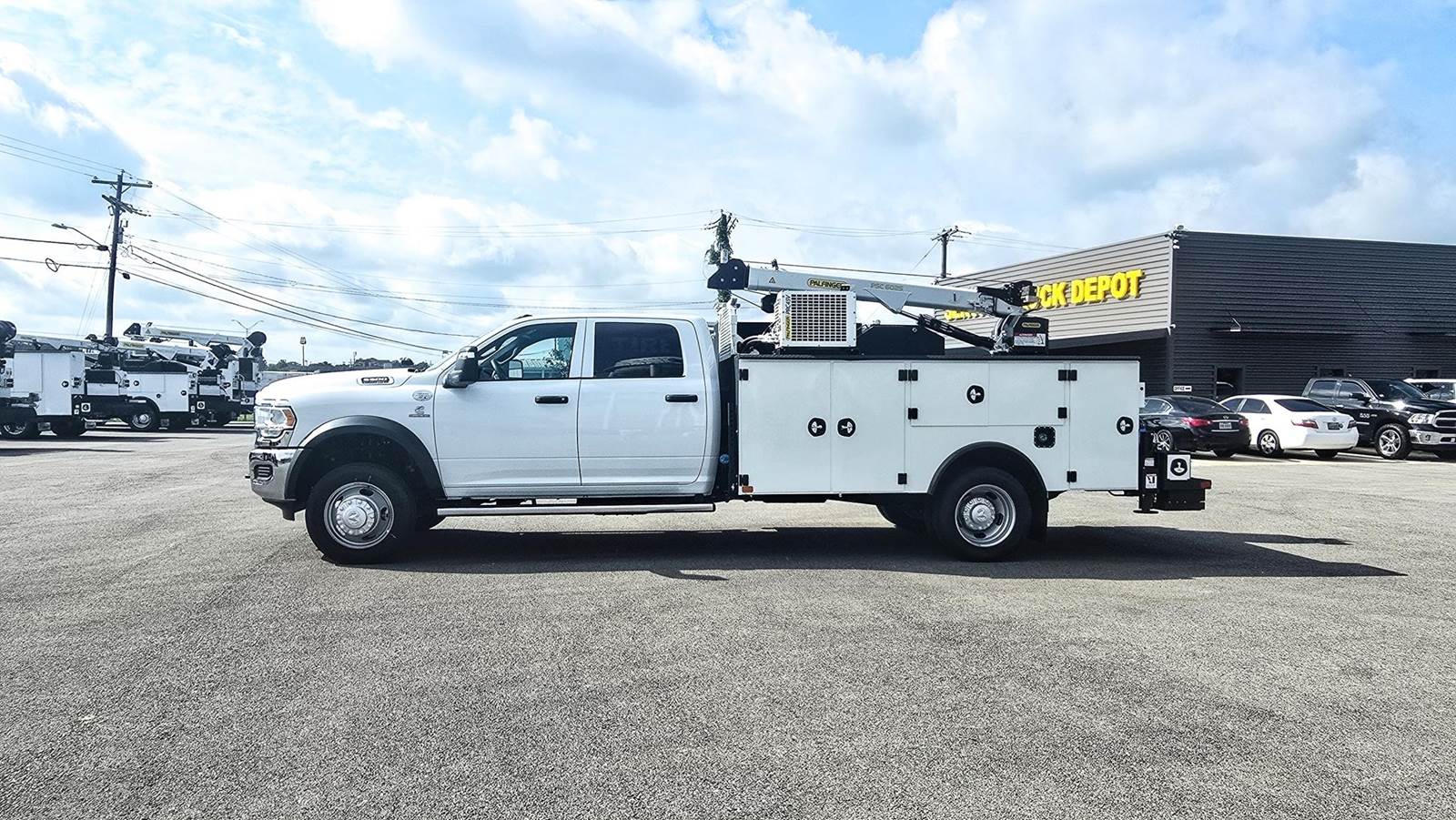

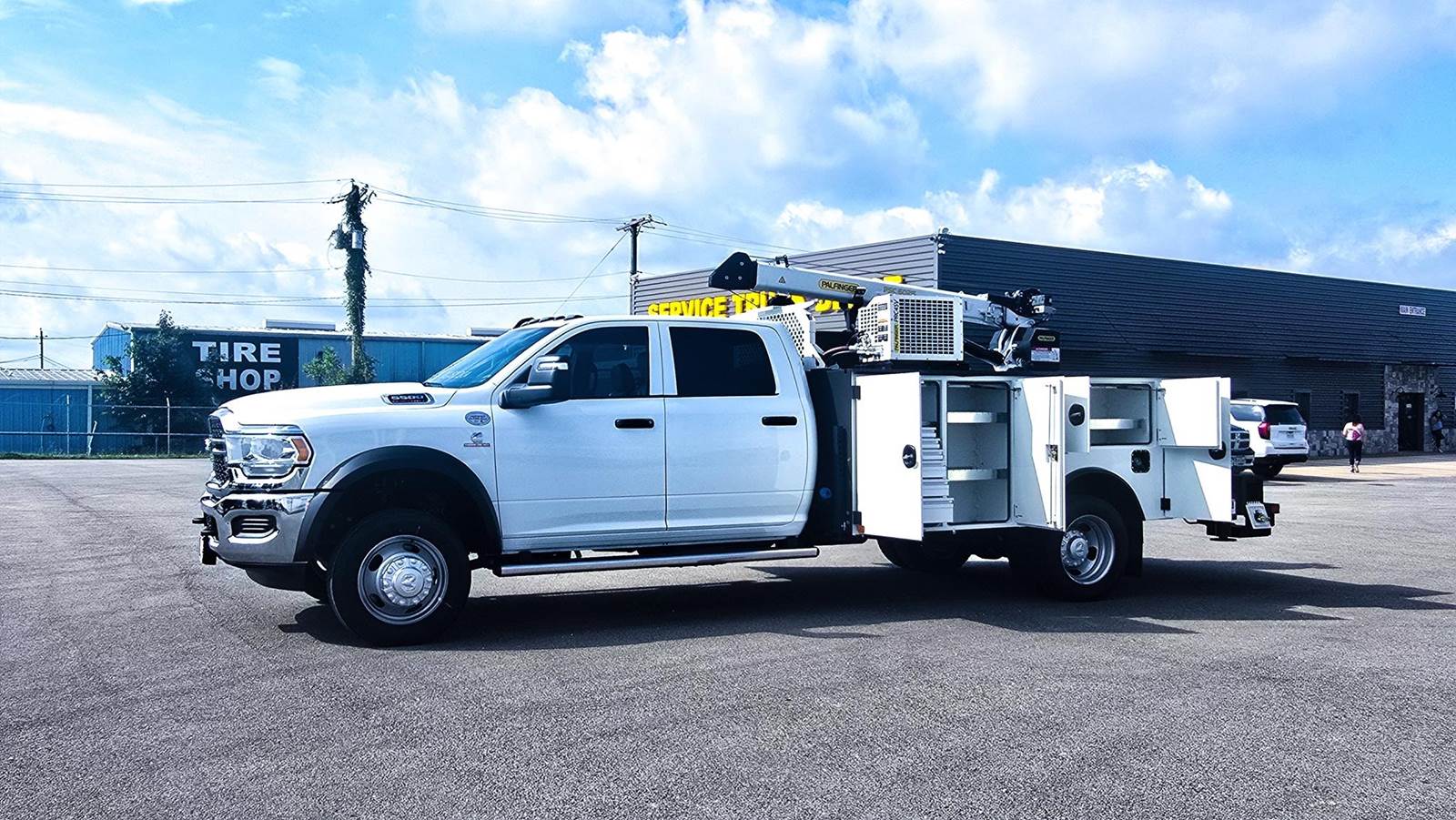

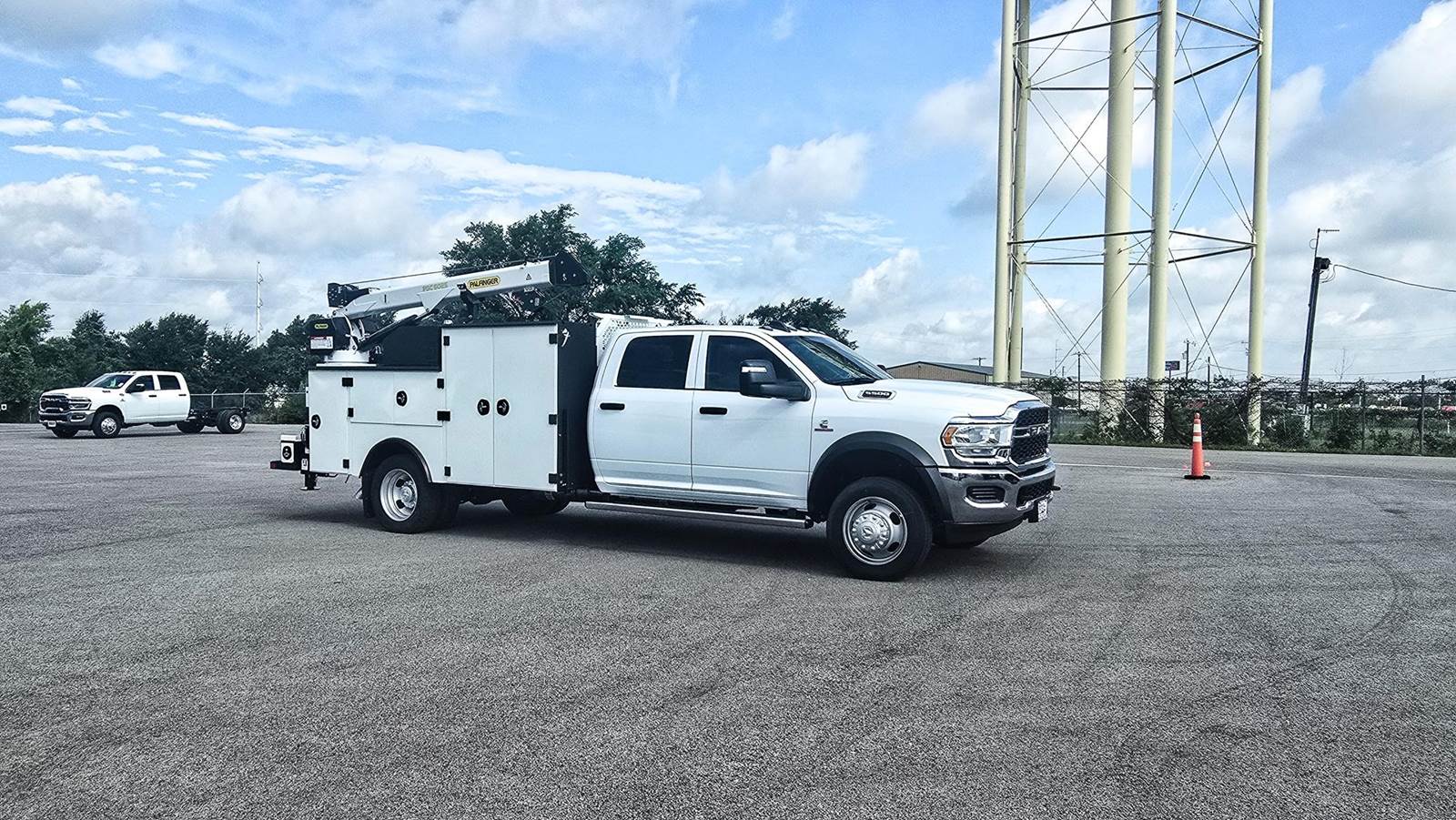

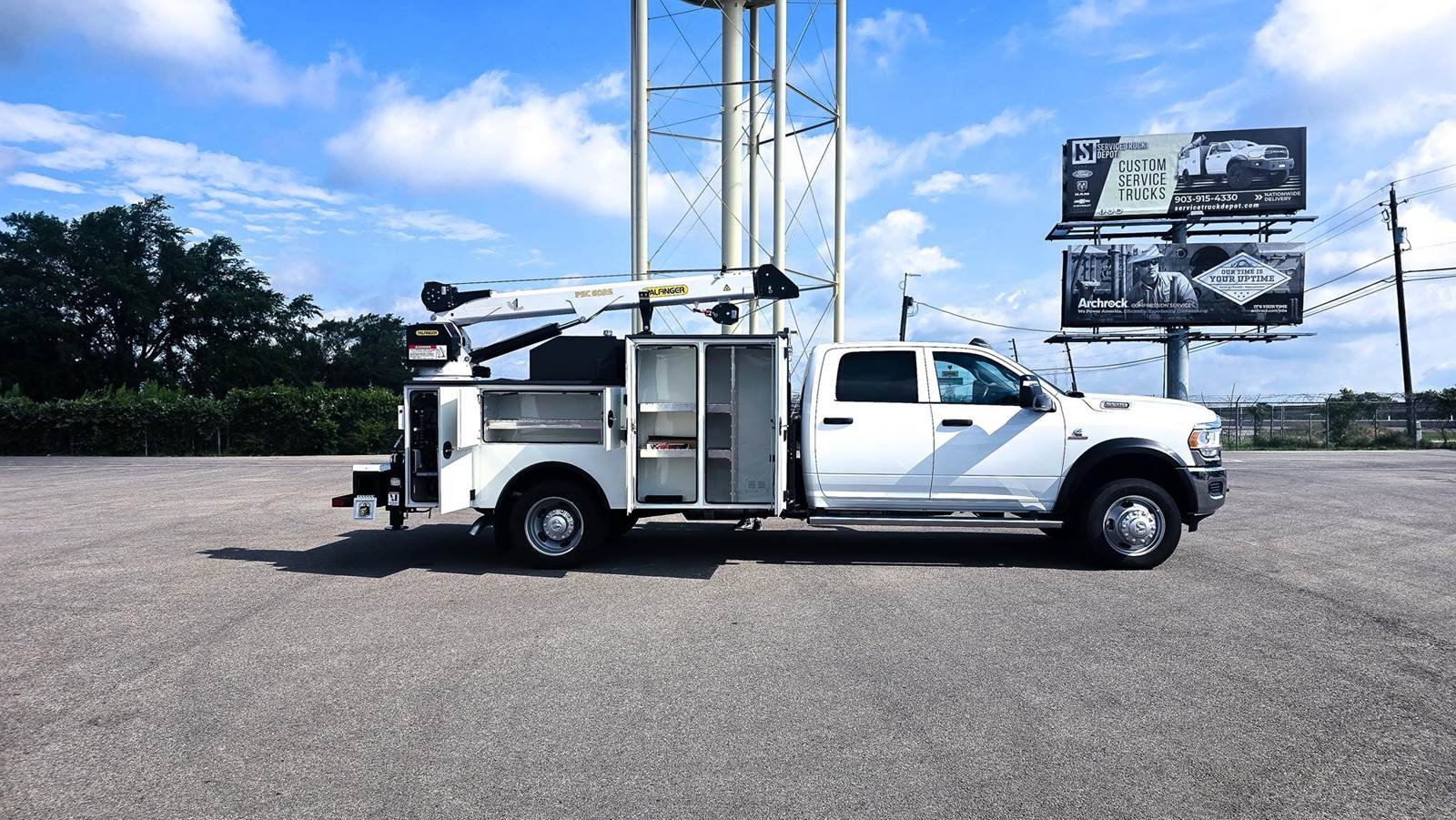

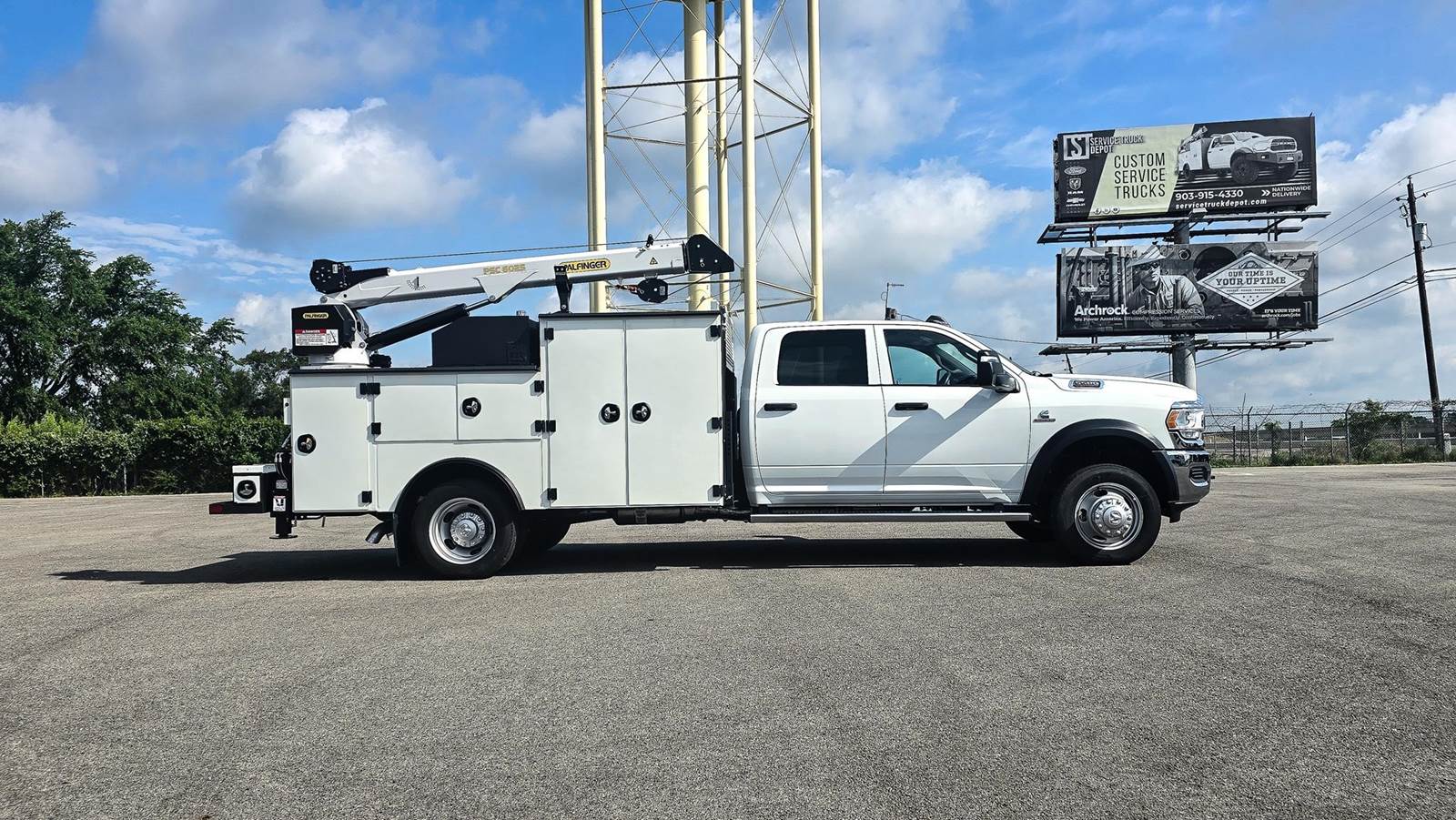

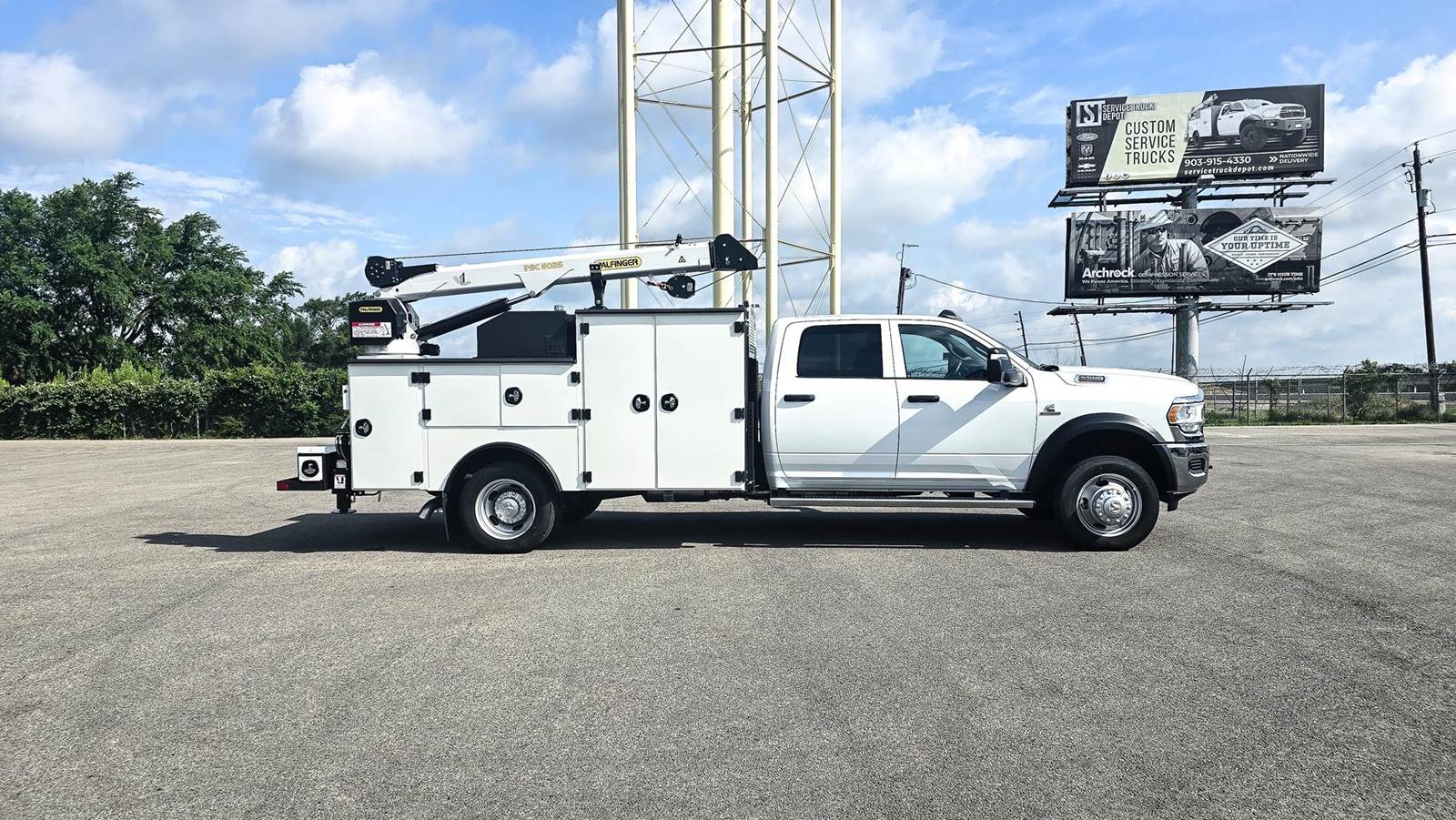

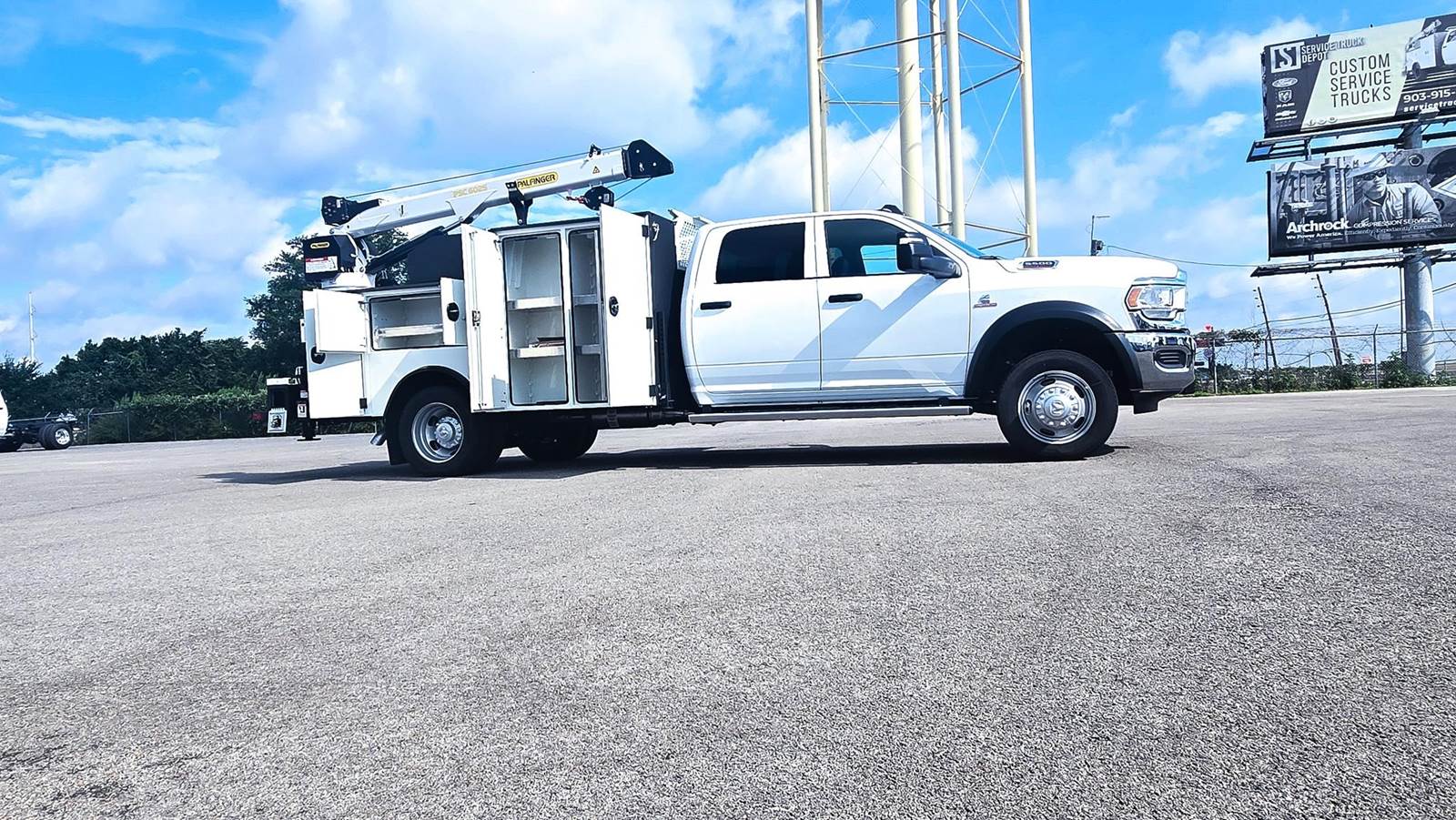

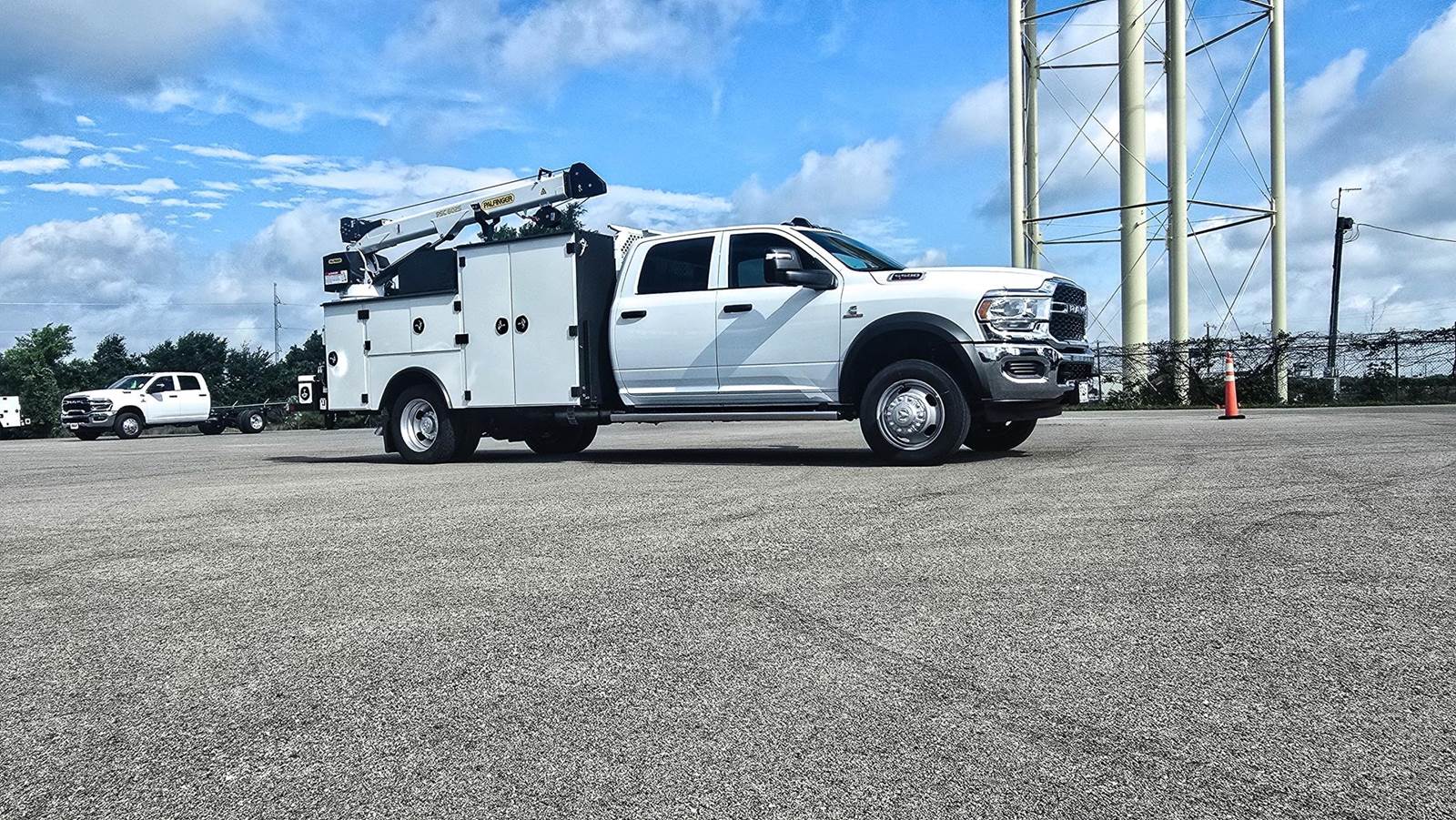

2024 RAM 5500 Tradesman Cab & Chassis Truck - Cummins, 360HP, Automatic

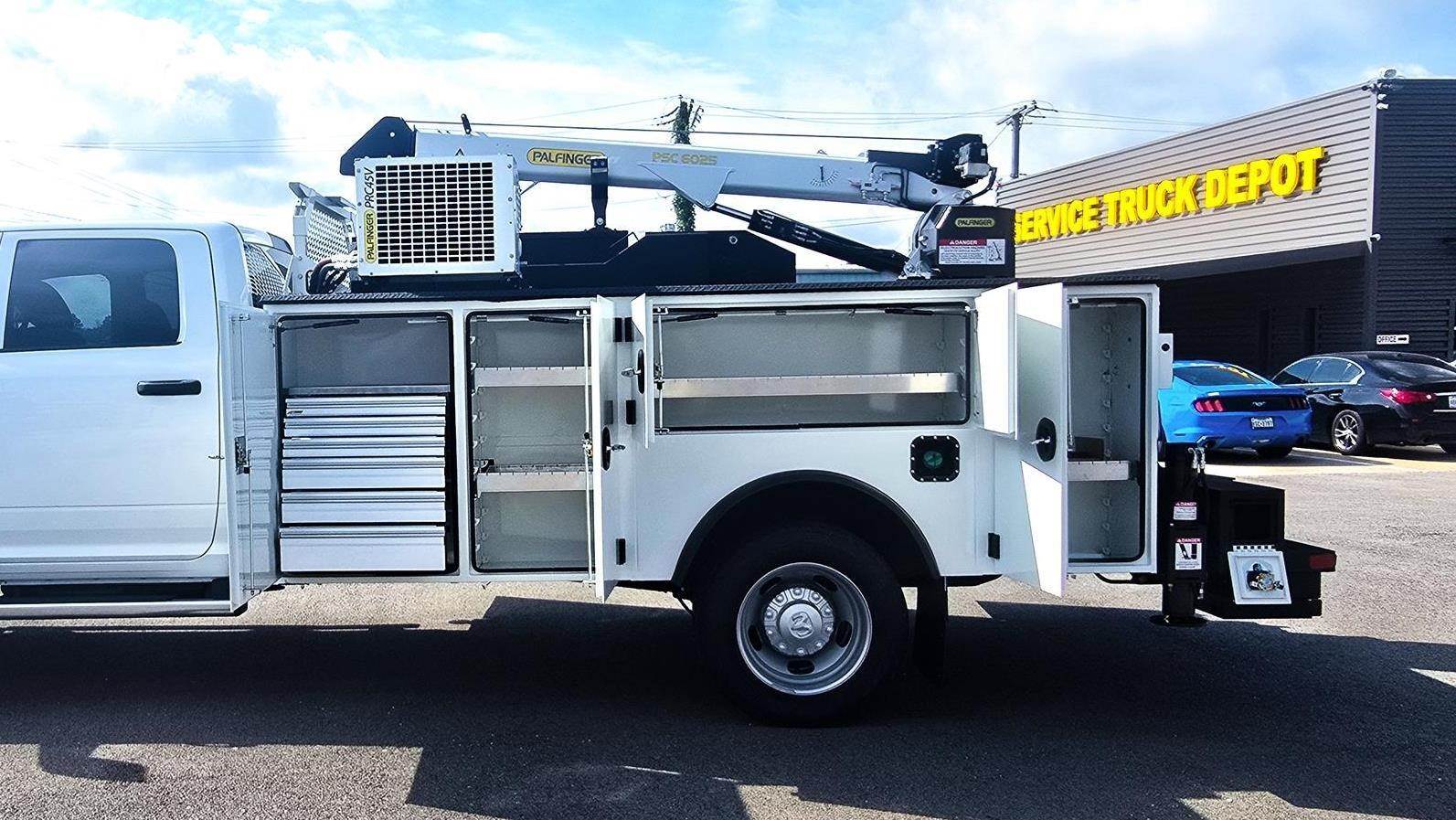

BoxCar Pro 55
Curb side reinforced crane box rated at 55,000 ft/pds will handle the newer 8500#
cranes
•100% baked on powder coated with a zinc rich primer to maximize road protection
for all climate types to preserve your asset
•Durable Bed Liner on all wear surfaces
•Best in Class Military grade undercoating for additional protection

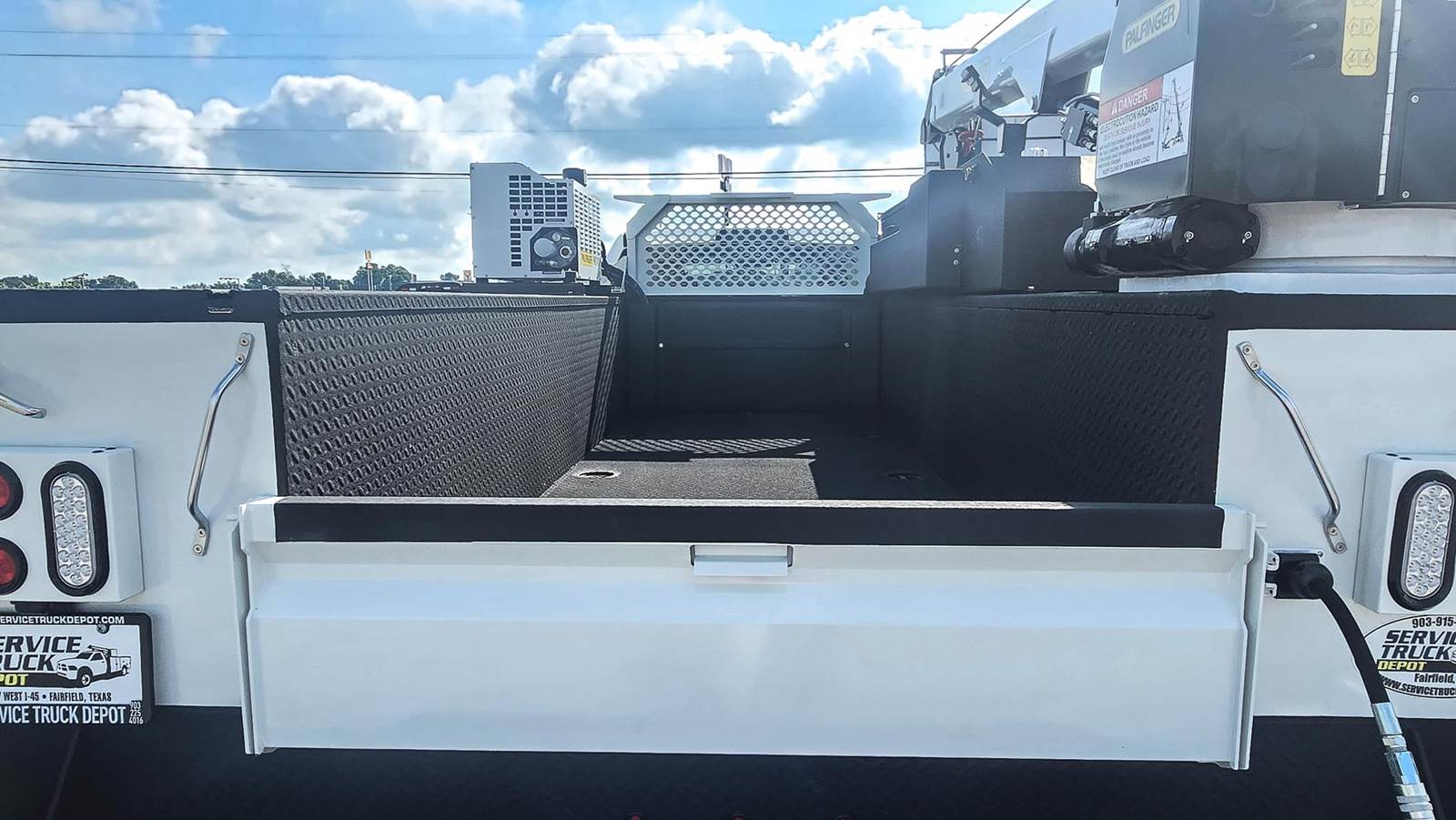

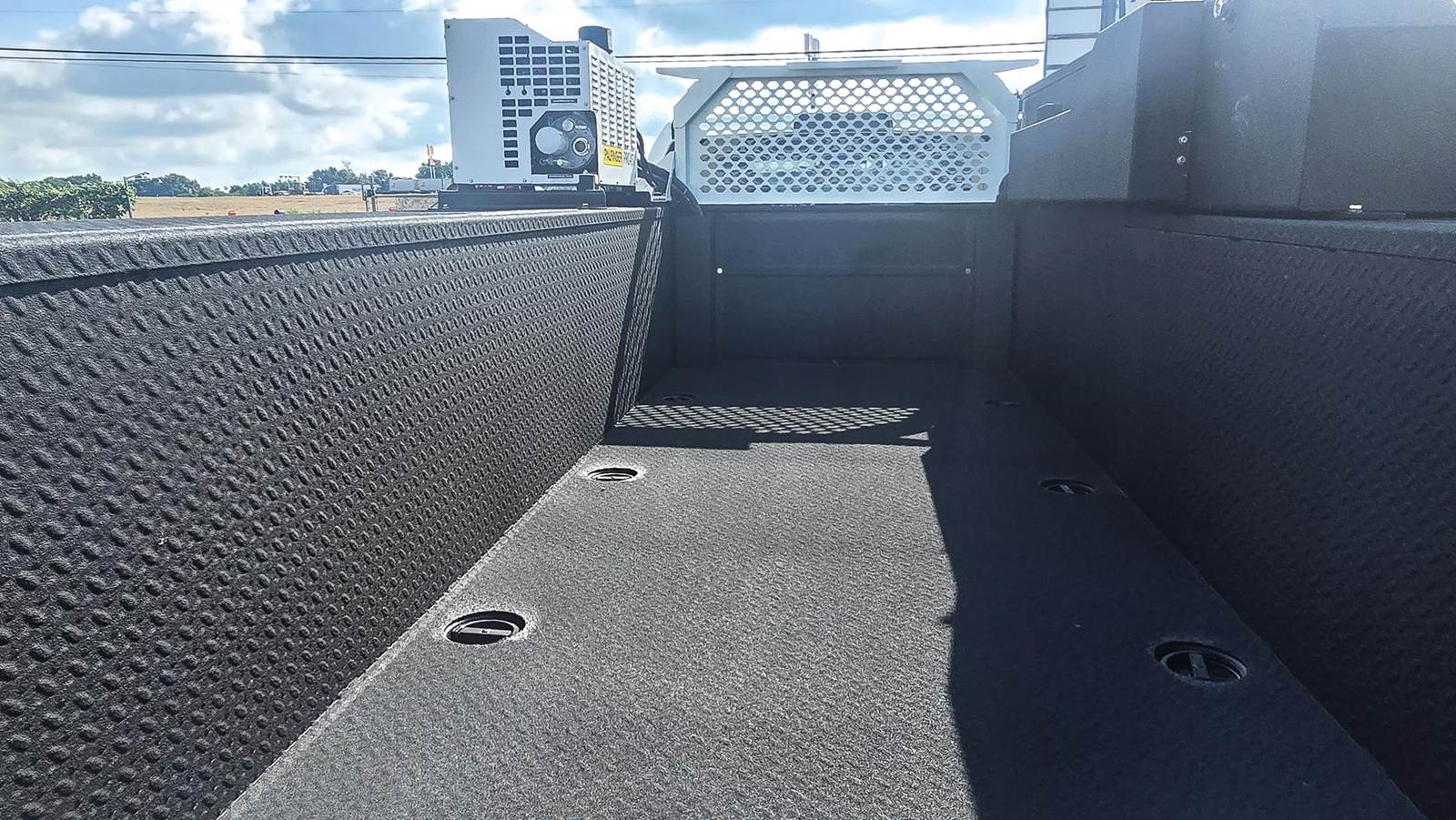

•E track and dividers standard in the bed
Heavy duty Grab handles

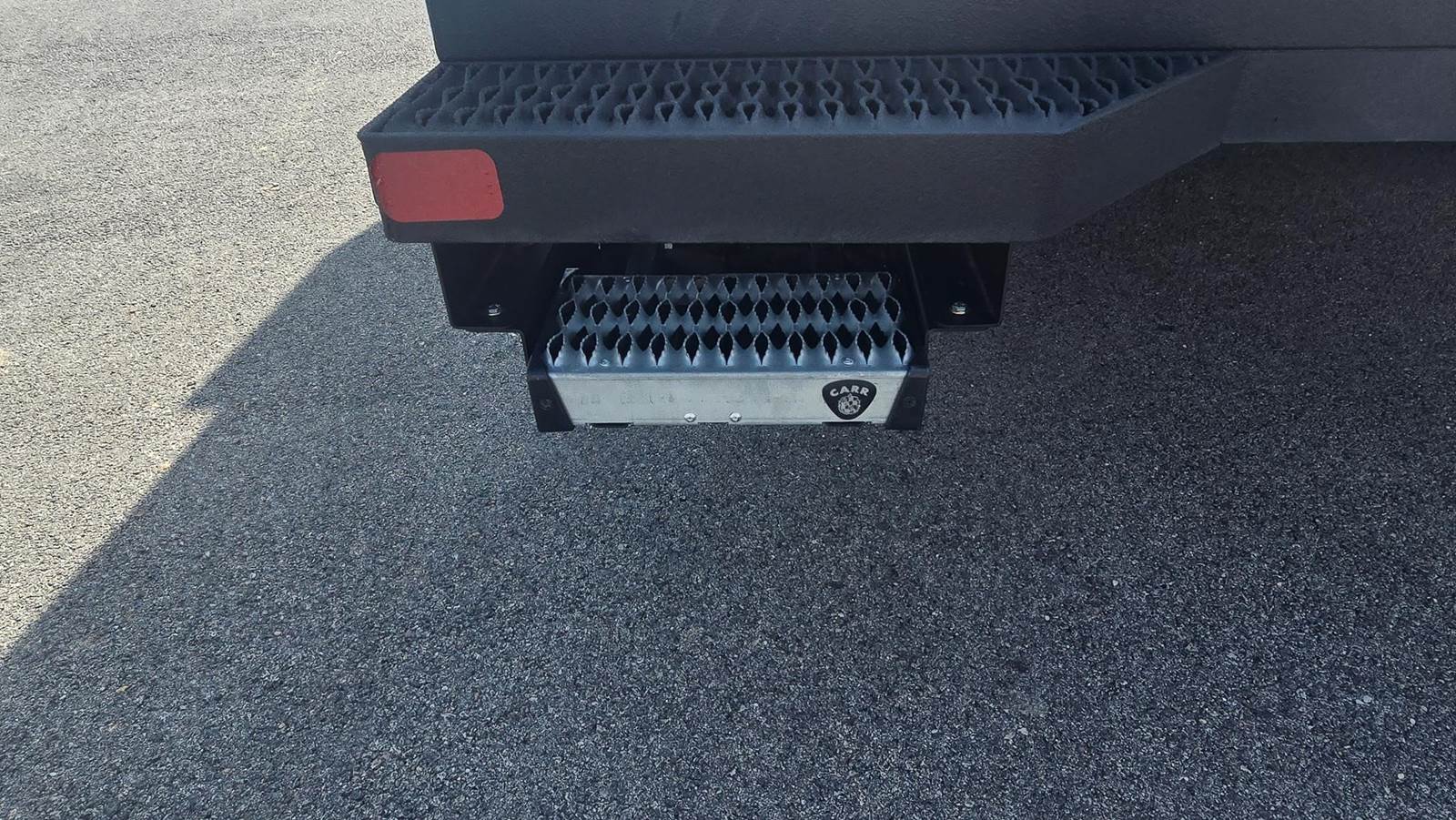

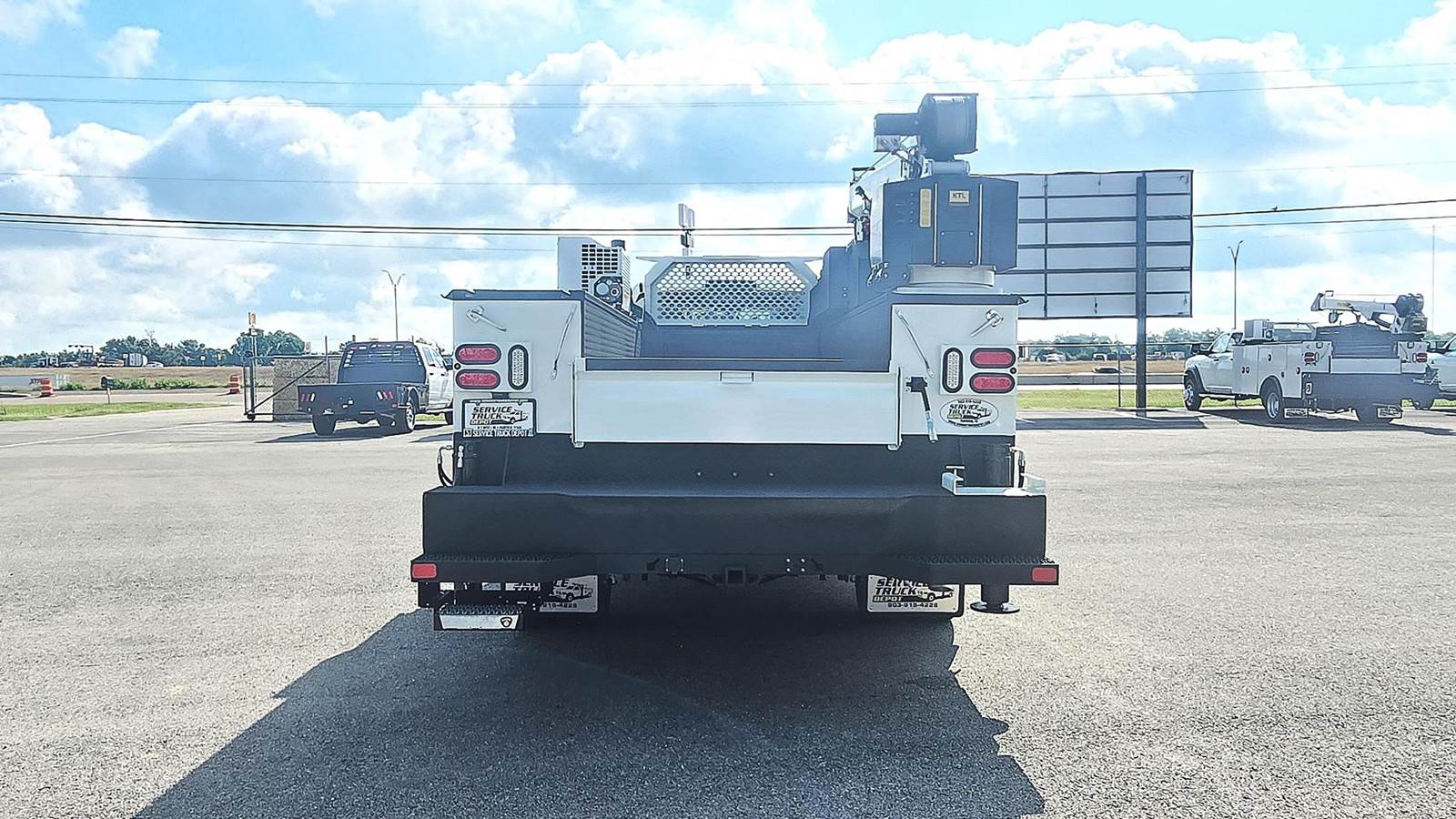

•Workbench Bumper provides a work surface, a vise plate and two steps

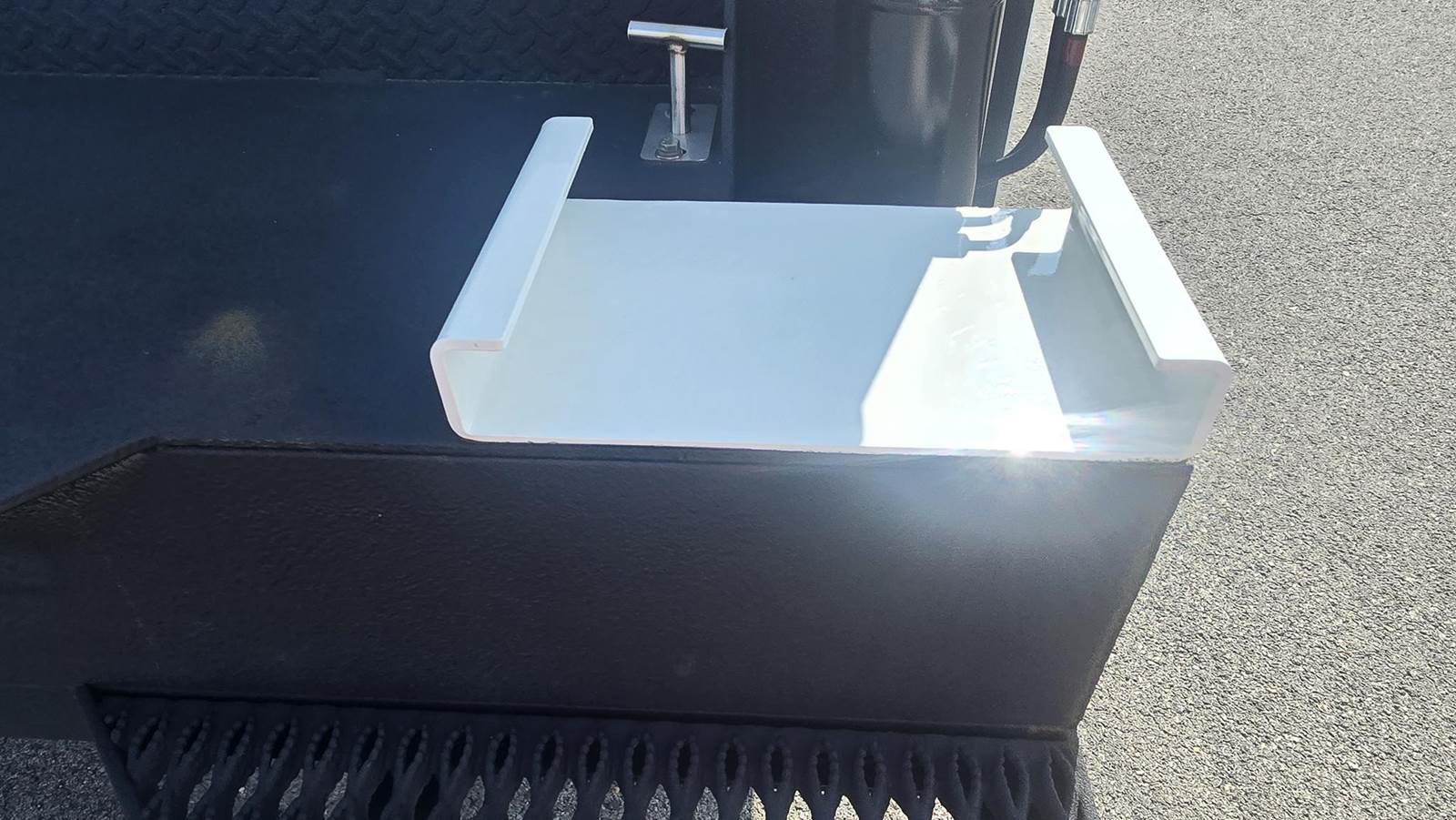

•Workbench Vise and heavy-duty Vise Plate
•Headache rack

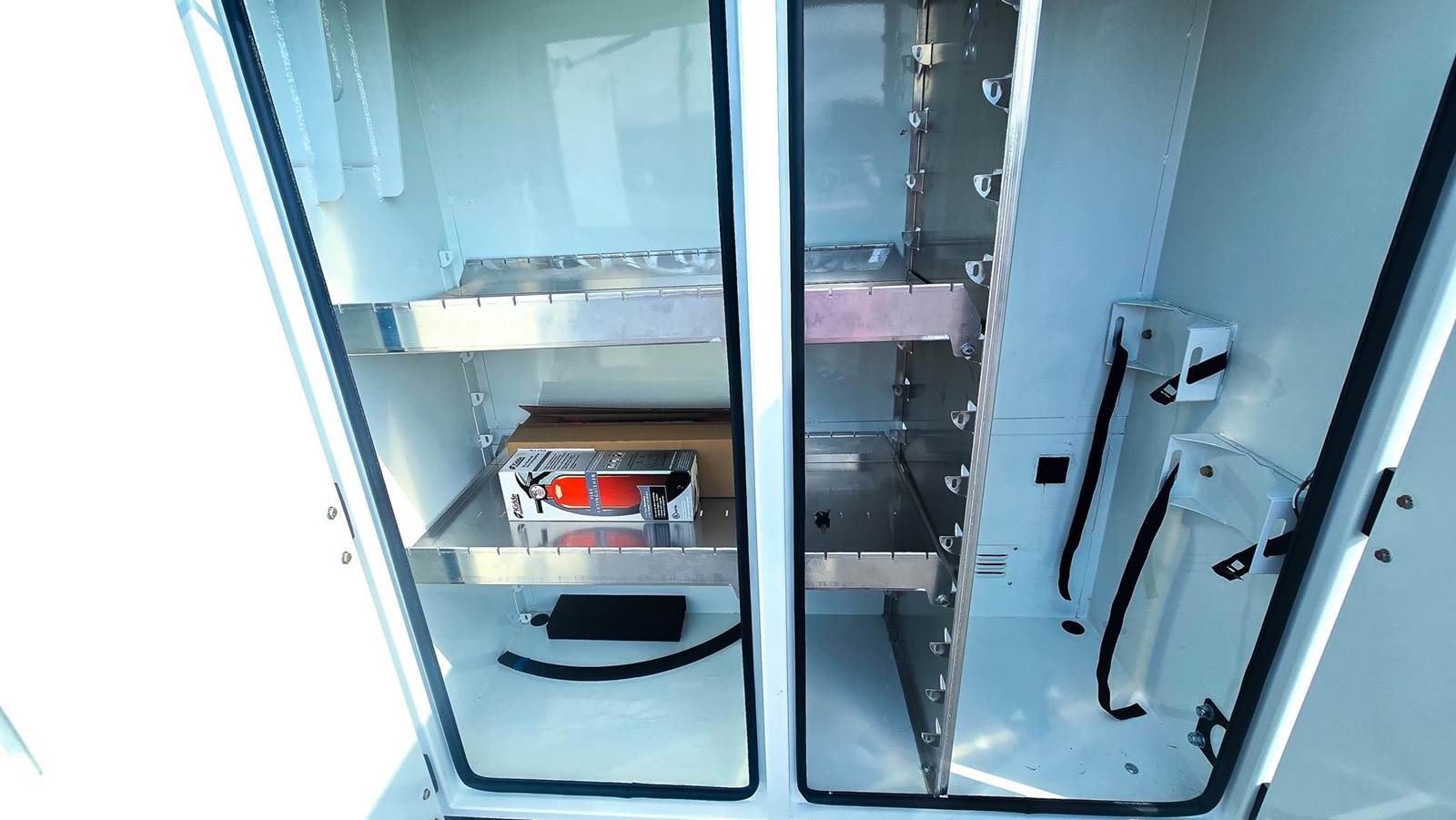

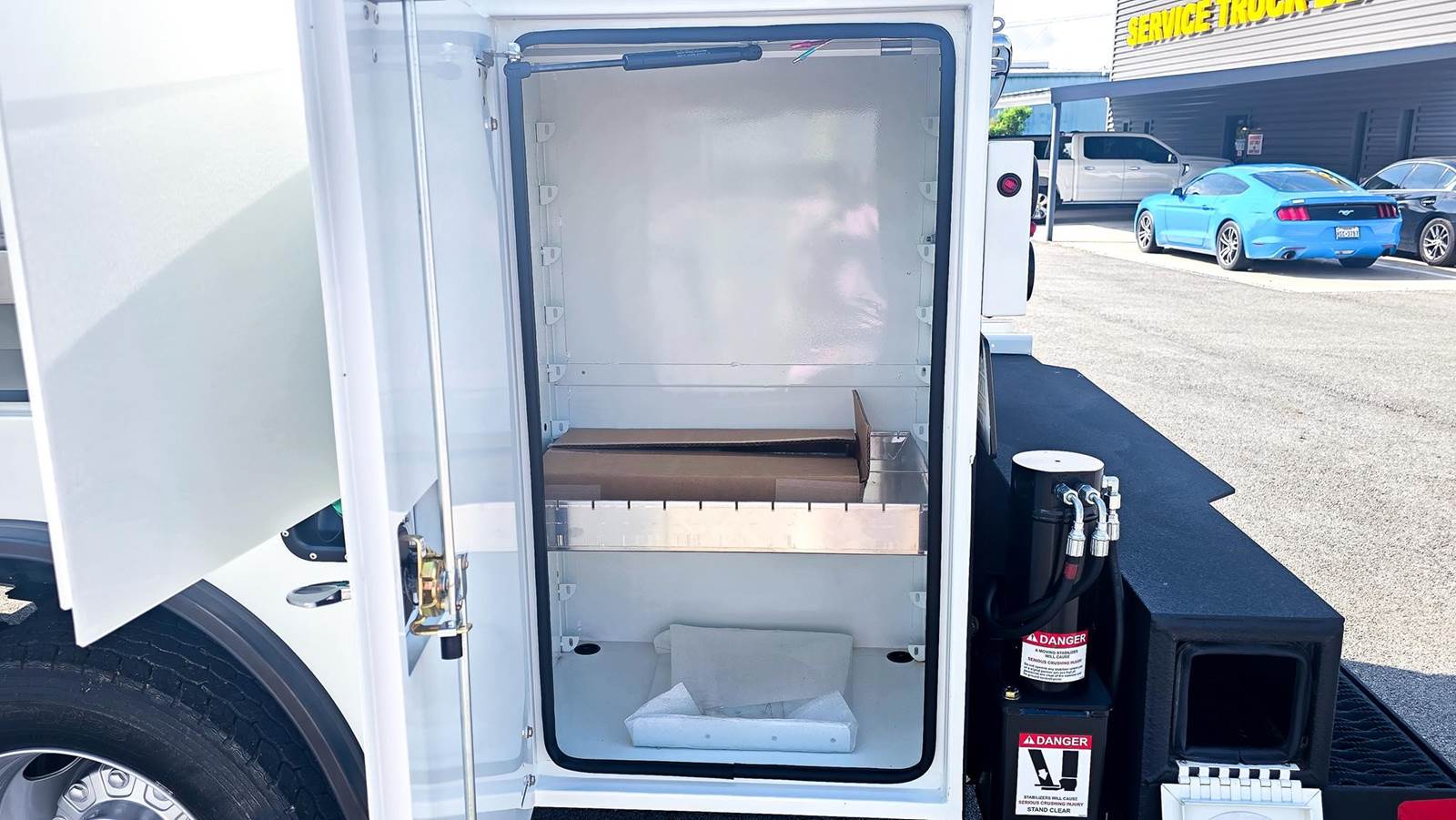

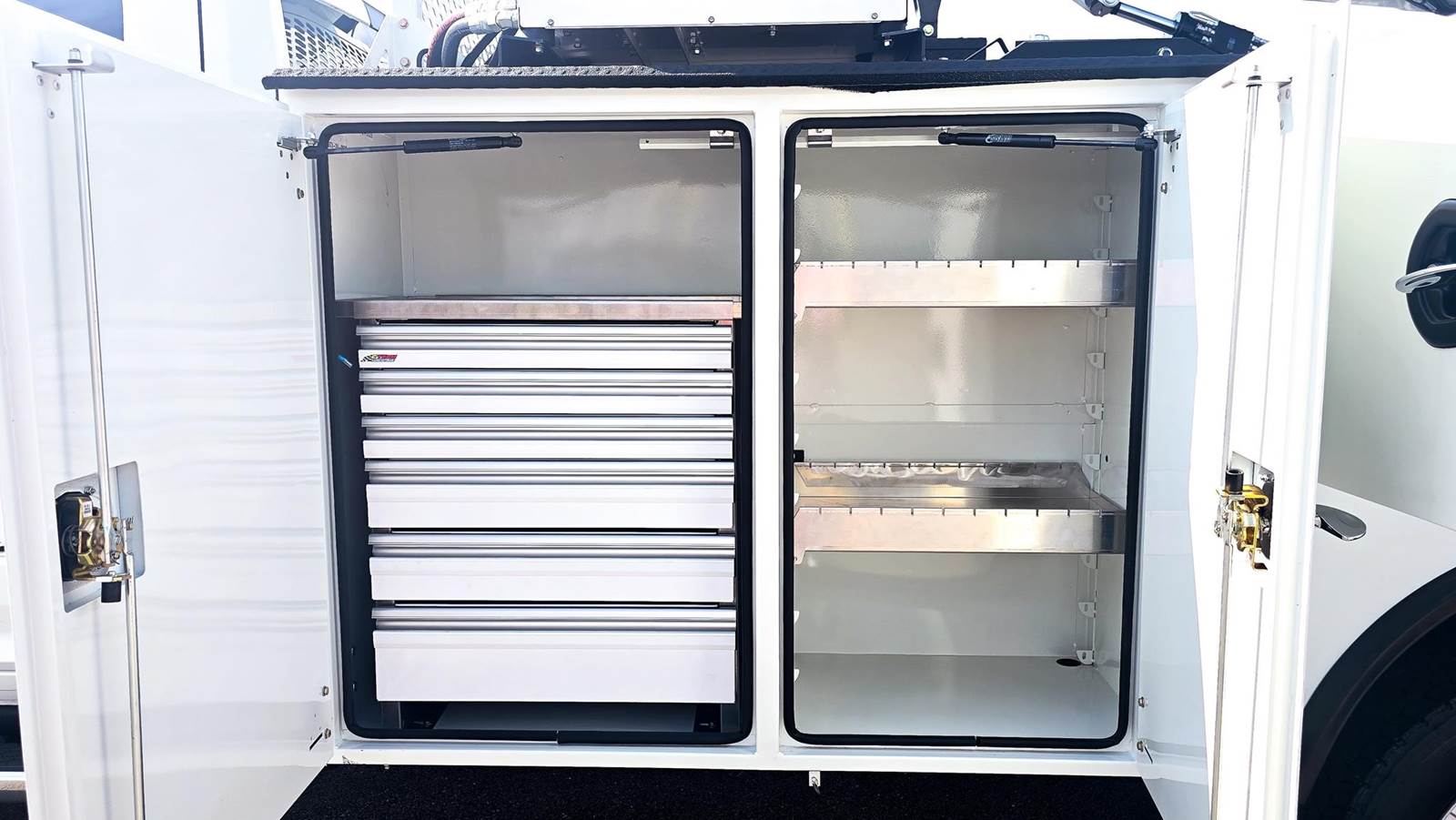

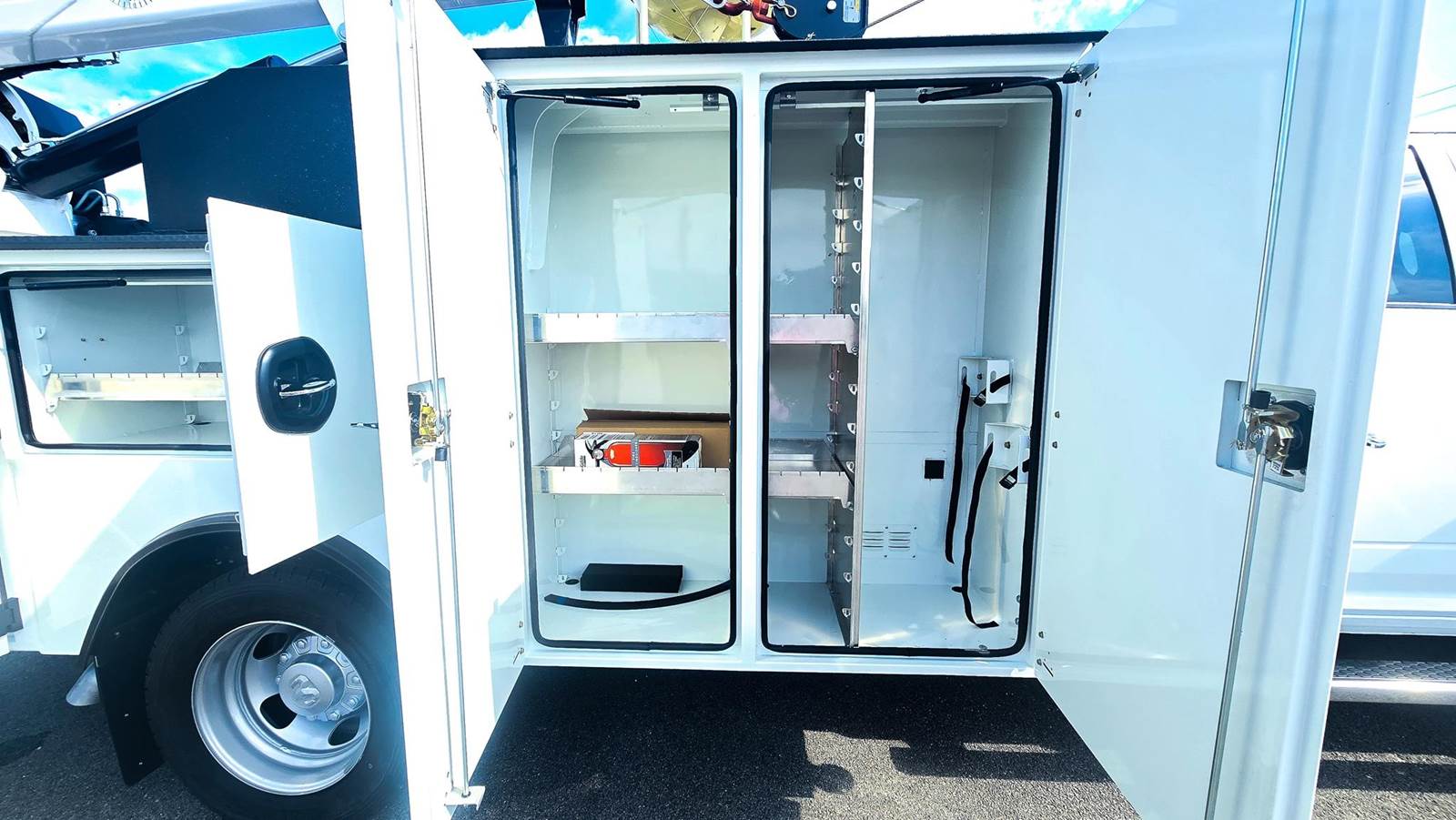

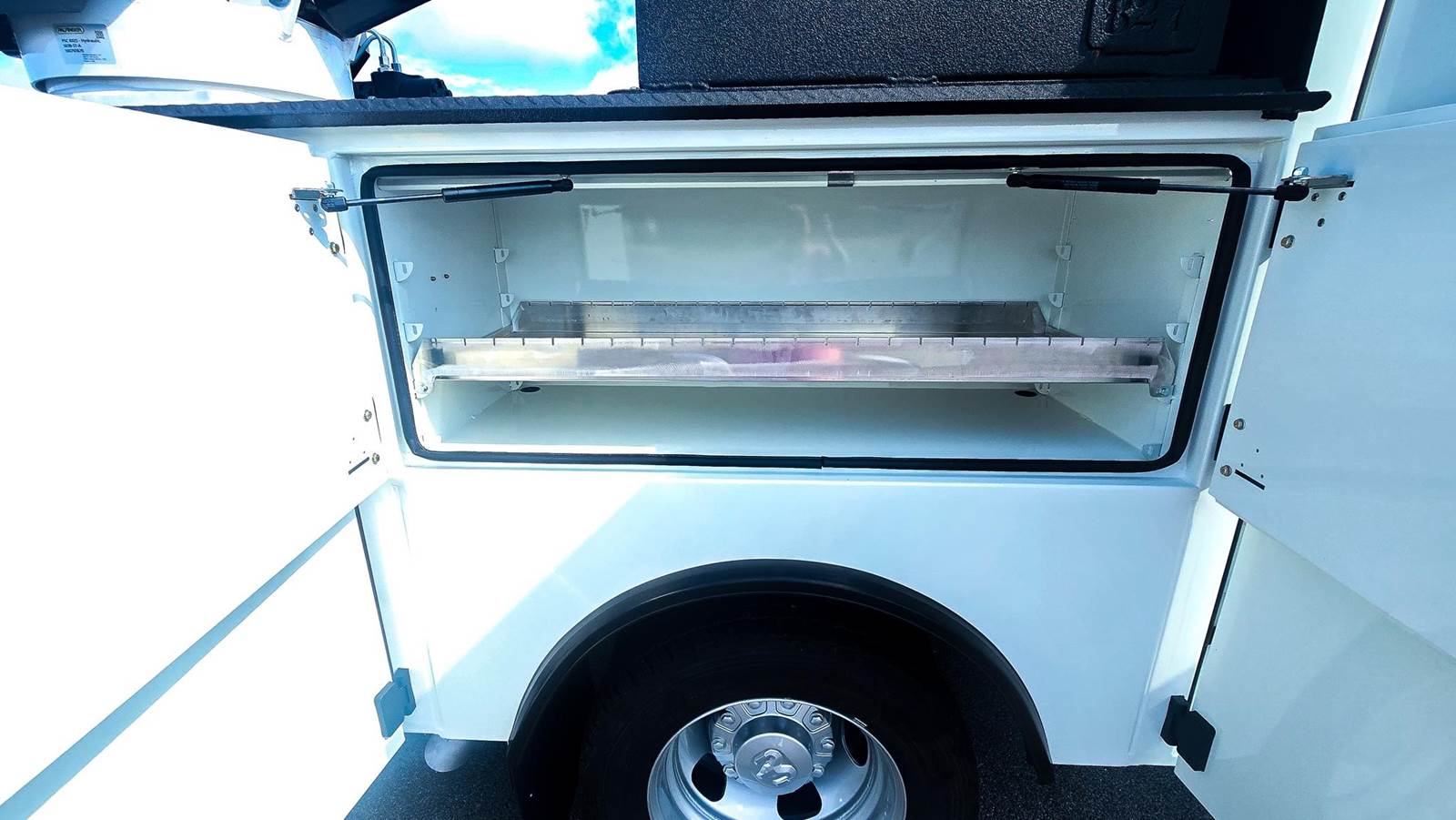

•Unibody Aluminum Door System with Interchangeable parts
•Best in Class Adjustable top rail to easily mount accessories and equipment
• Body engineered to
• 11 Gauge floorplate rigid design for increase strength of the body. (Others Standards are a lighter 12 Gauge)
• (6) Heavy duty D Ring tie downs in the bed rated for 6000 lbs each
• Applicable chassis 14,000-22,900 GVWR
• The Body alone is 3322 and the Bumper is 445 for a total of 3767
• 21 inch heavy duty work bumper

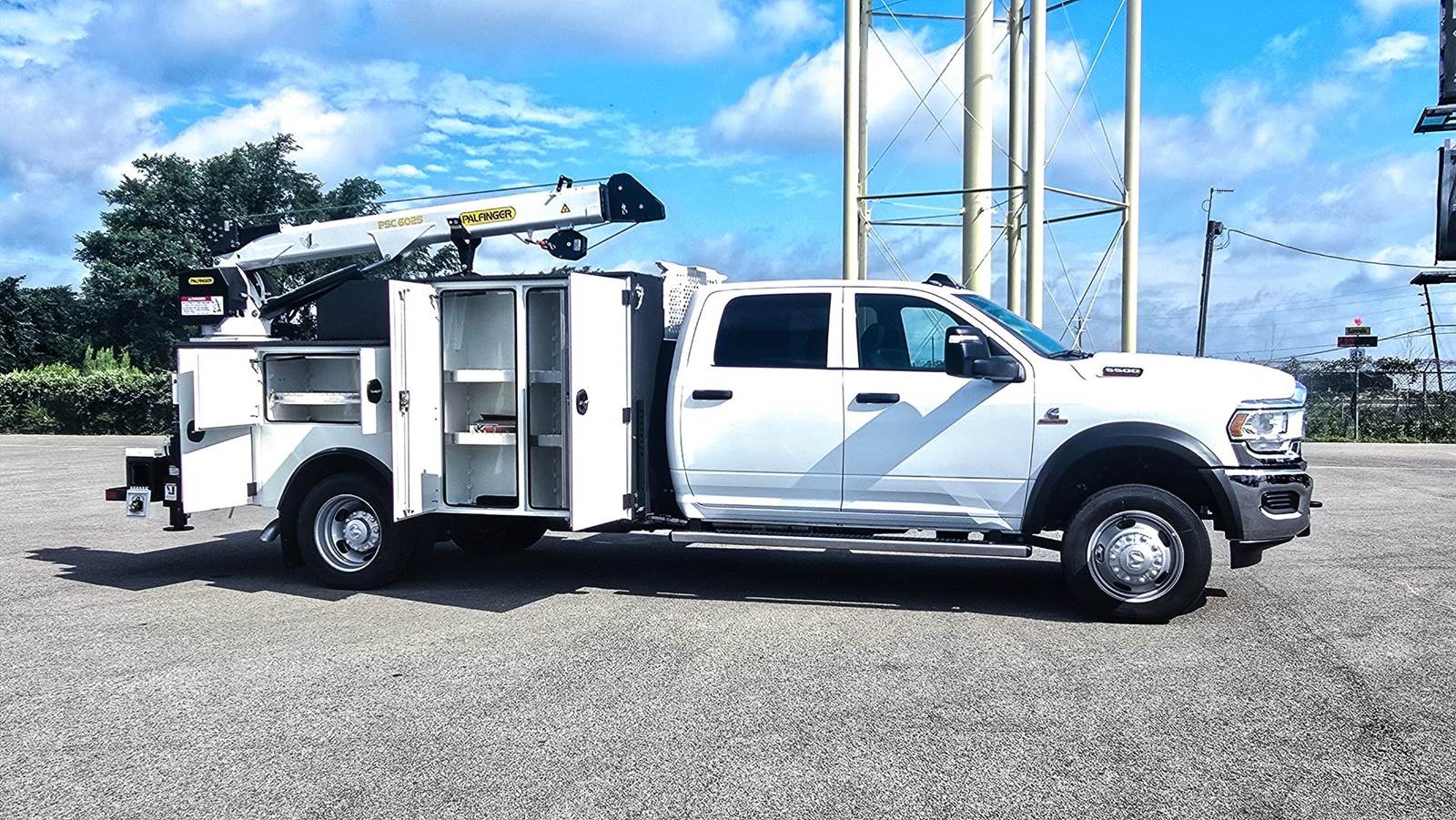

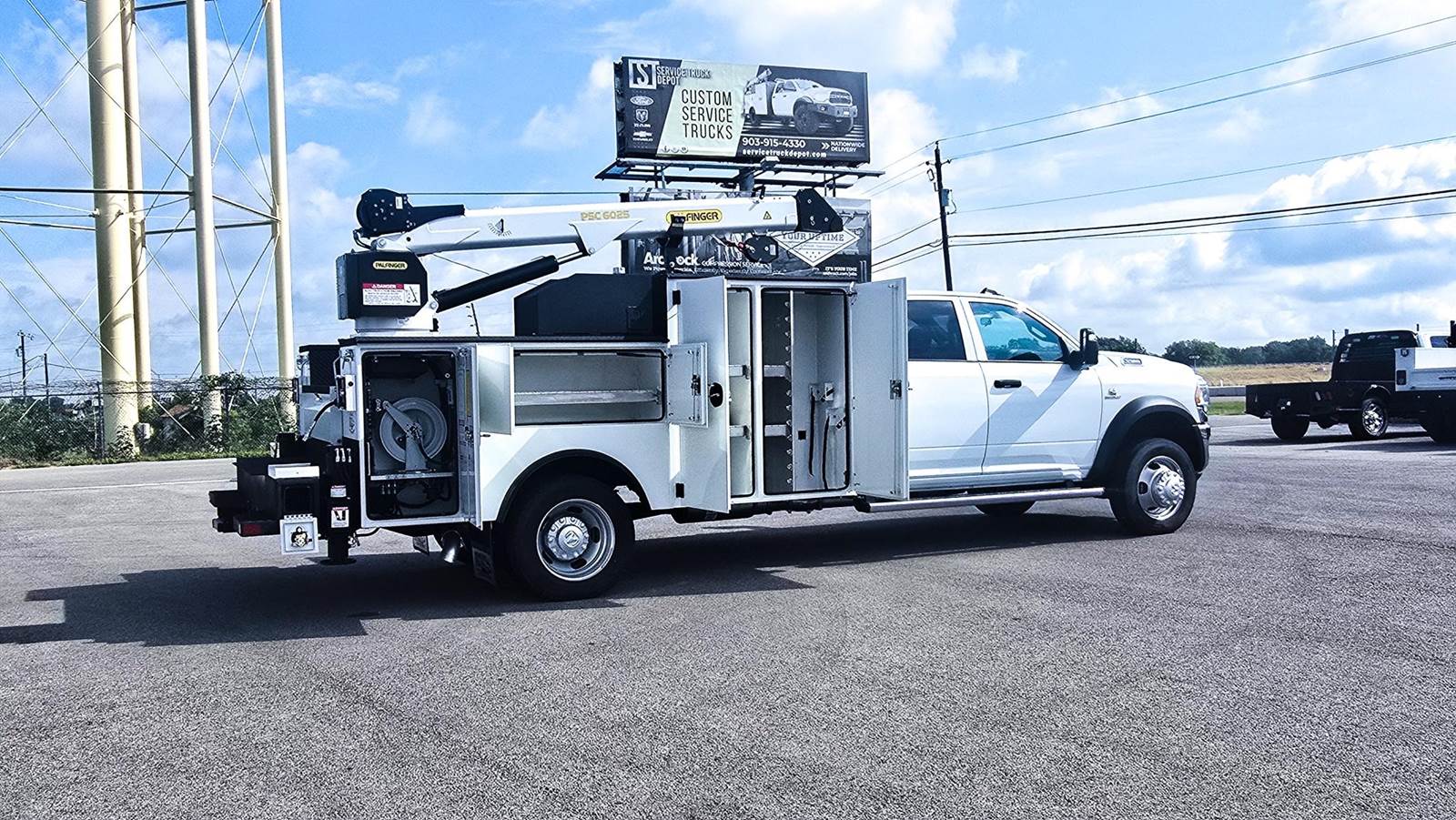

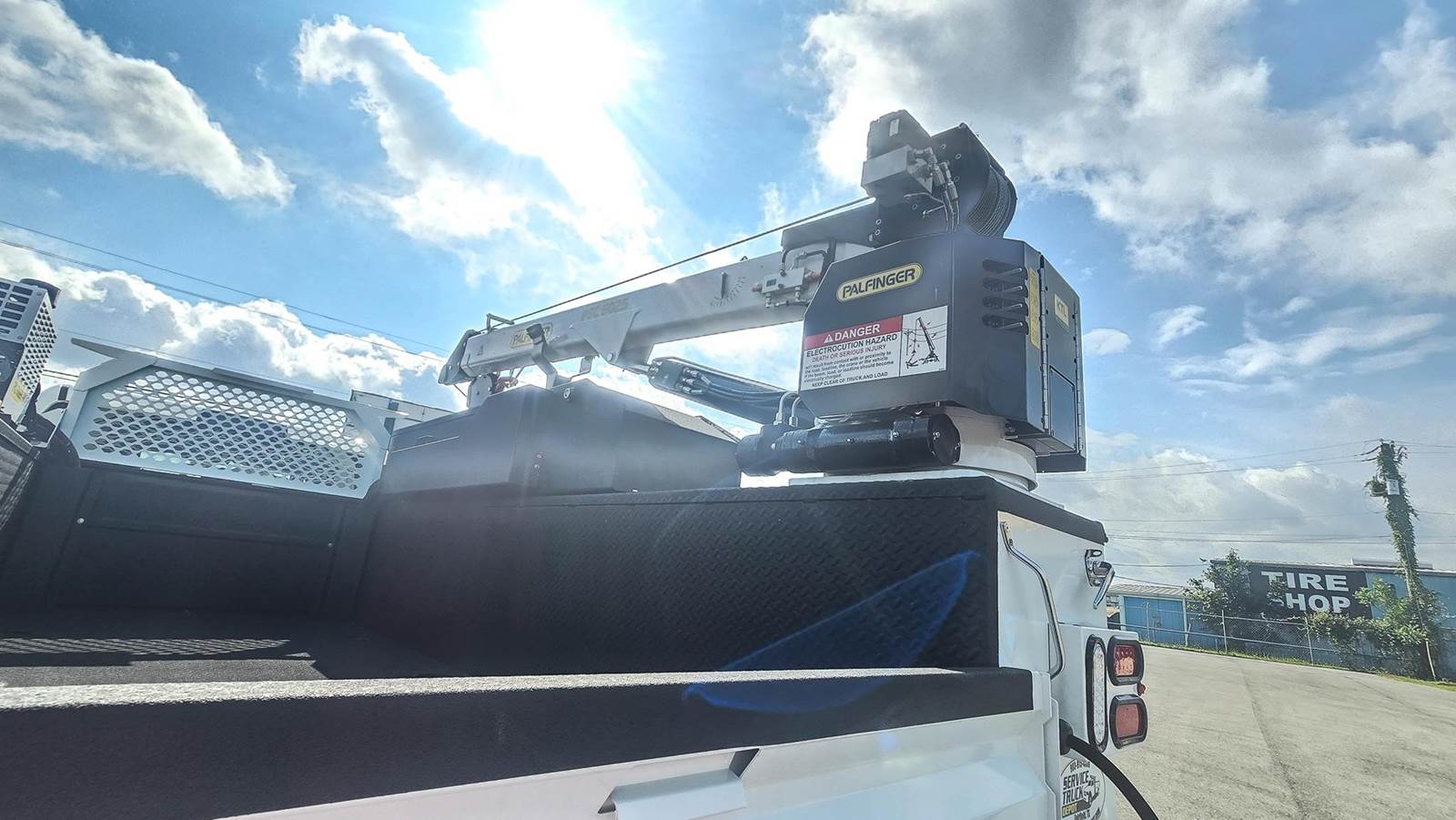

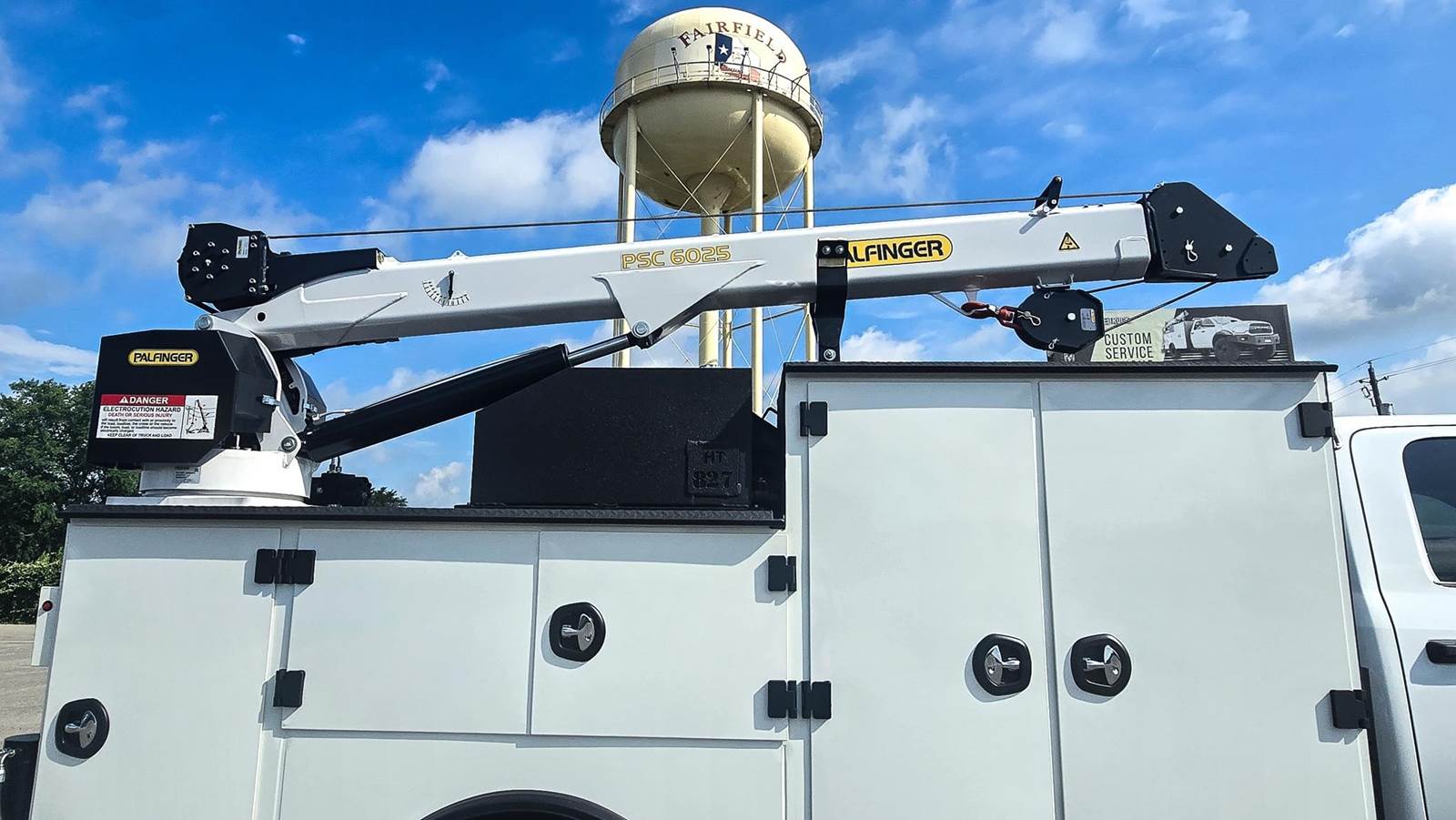

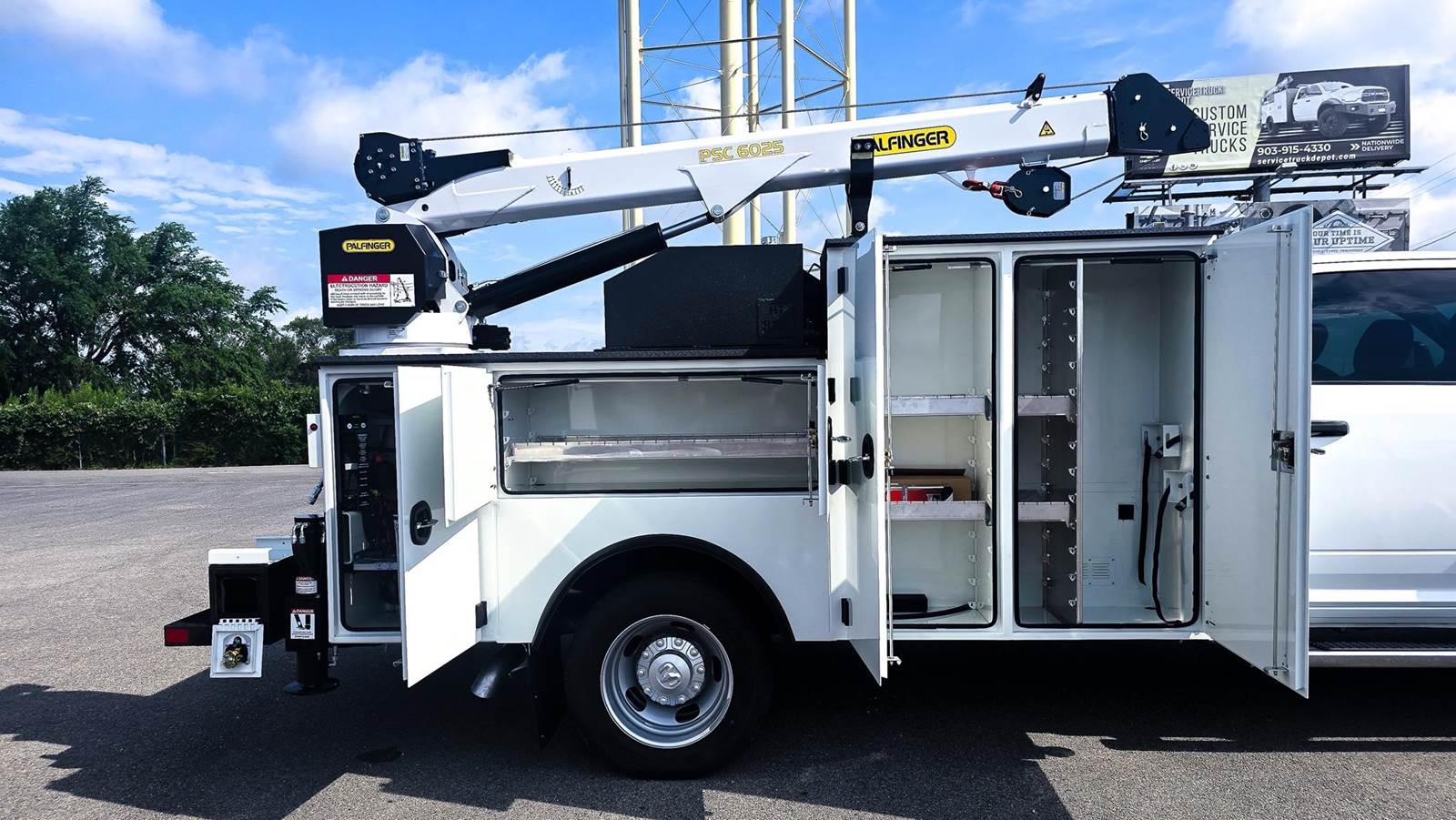

Palfinger PSC6025 Features

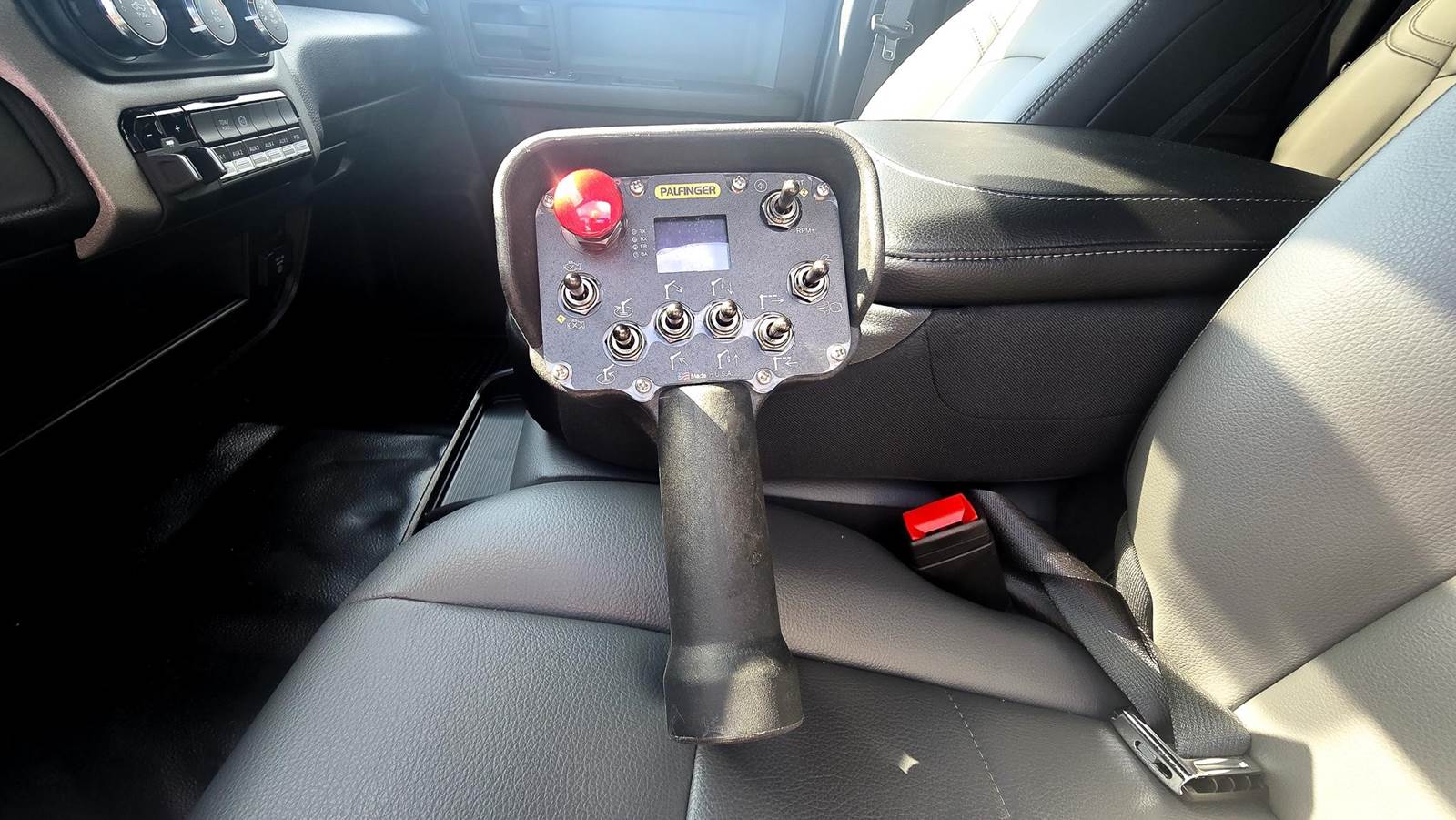

Palfinger model PSC 6025 telescopic service crane; 38,500 ft. lbs., 25' reach capability, two hydraulic powered extensions, 6,000 Lb. vertical lift capacity, - 25 to +75 degree boom elevation, double acting cylinders with load holding valves on all cylinders, overload shutdown system, wireless radio remote controller pistol grip and toggle controller with 36' pendant, decals, crane hook, load line block, Ecoat prime, finish paint white topcoat paint and crane mounting bolt kit.
Available for use on vehicles above 14,001 GVW. Consult factory for other applications.
