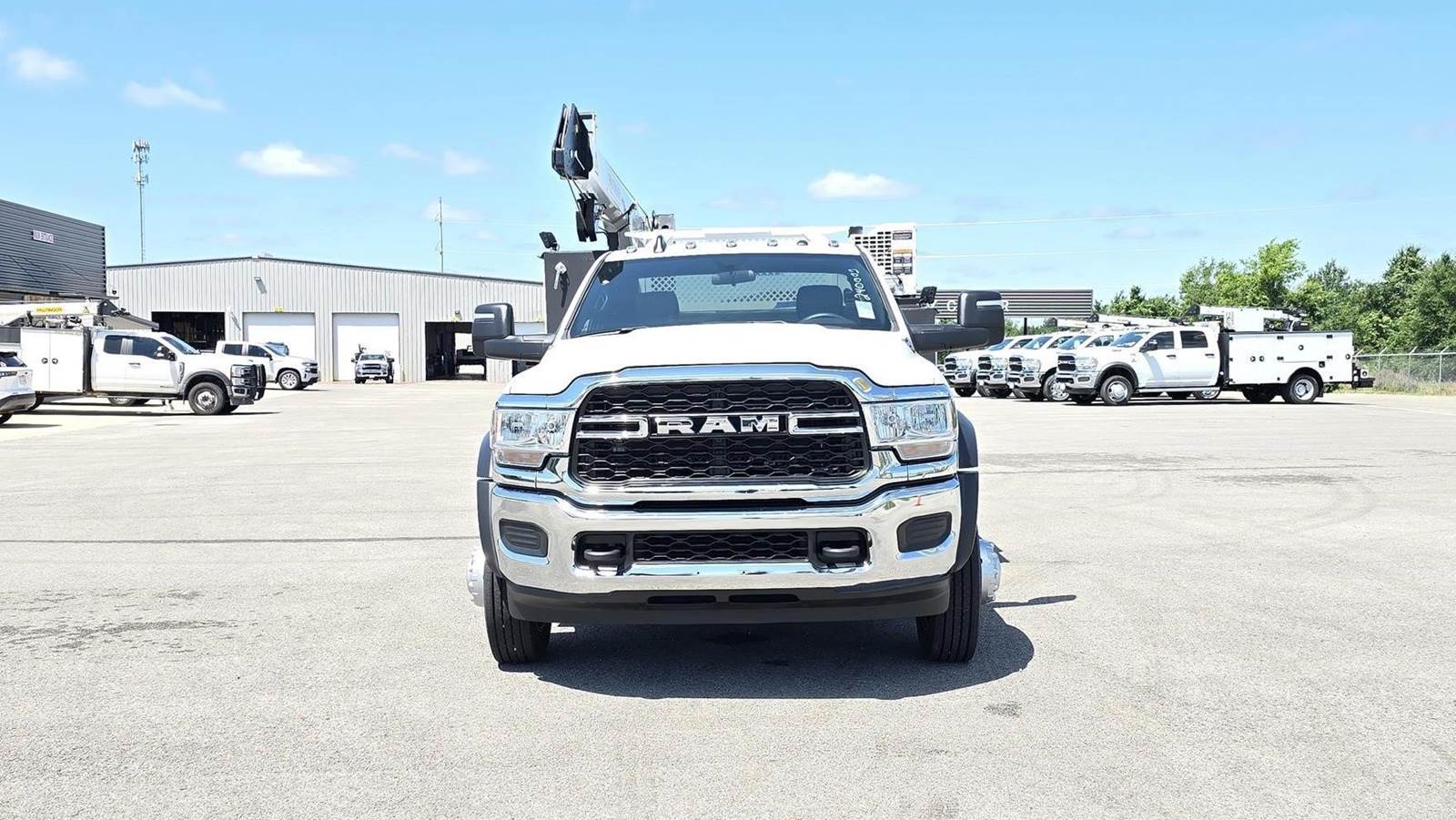

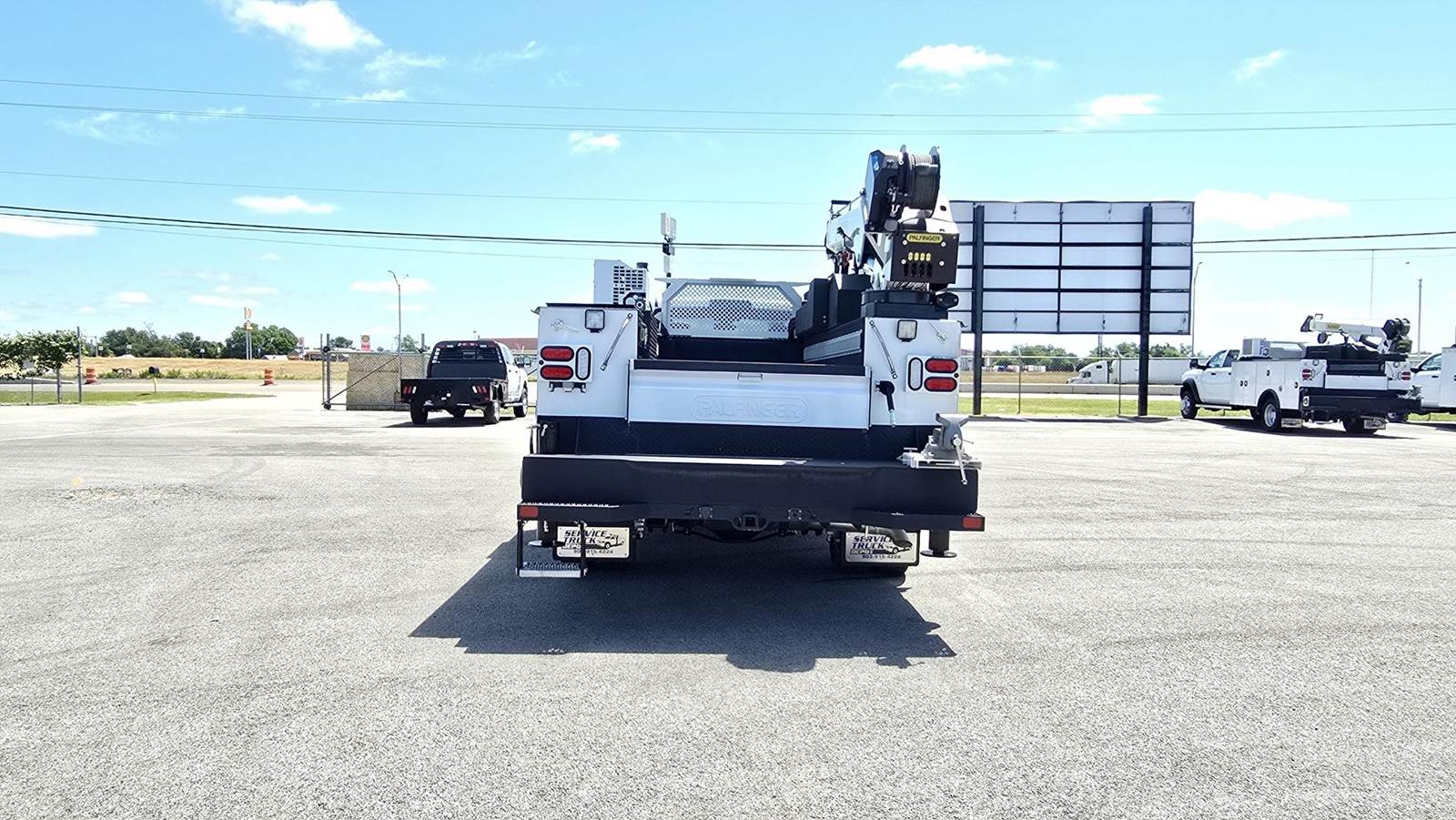

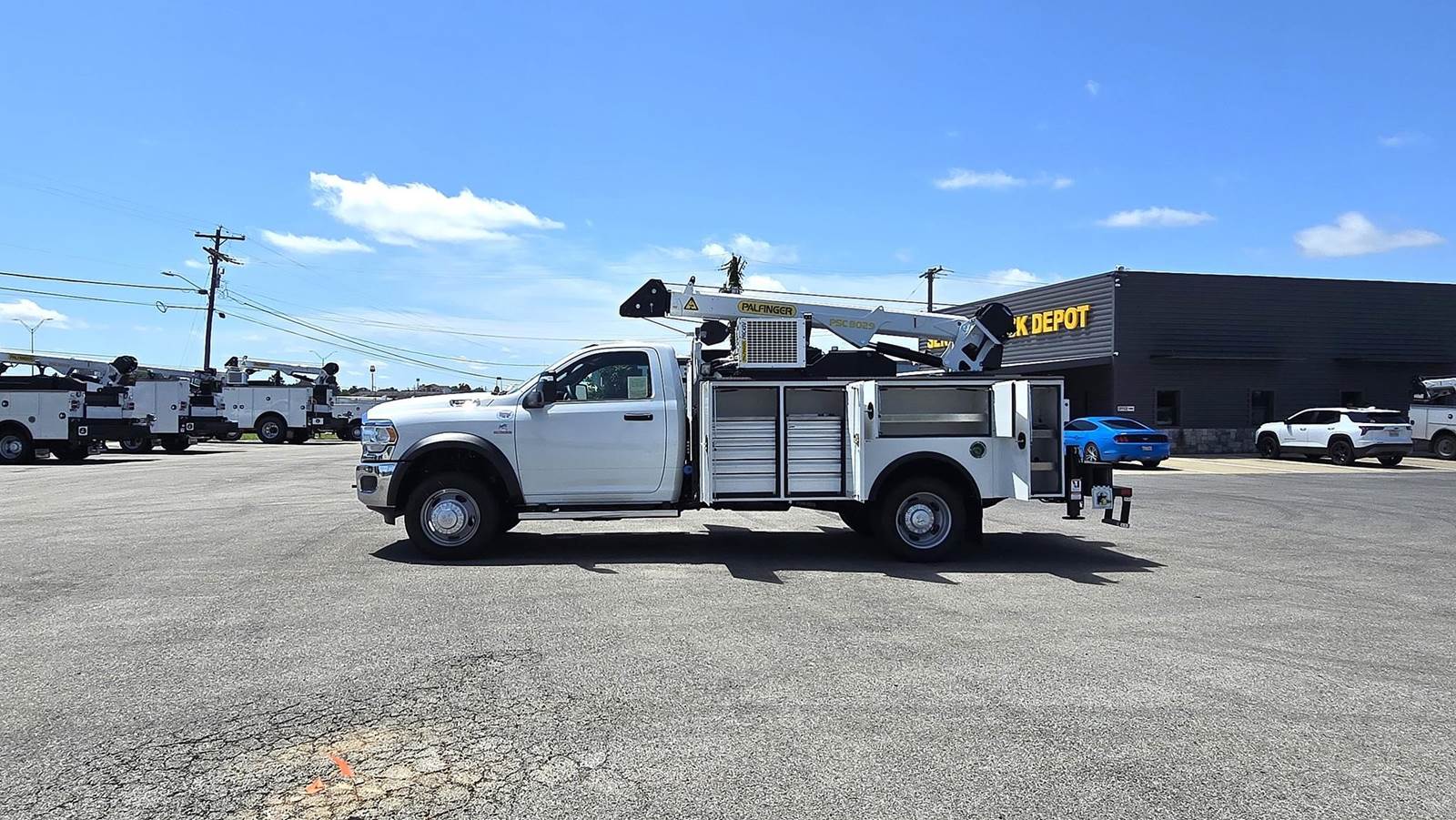

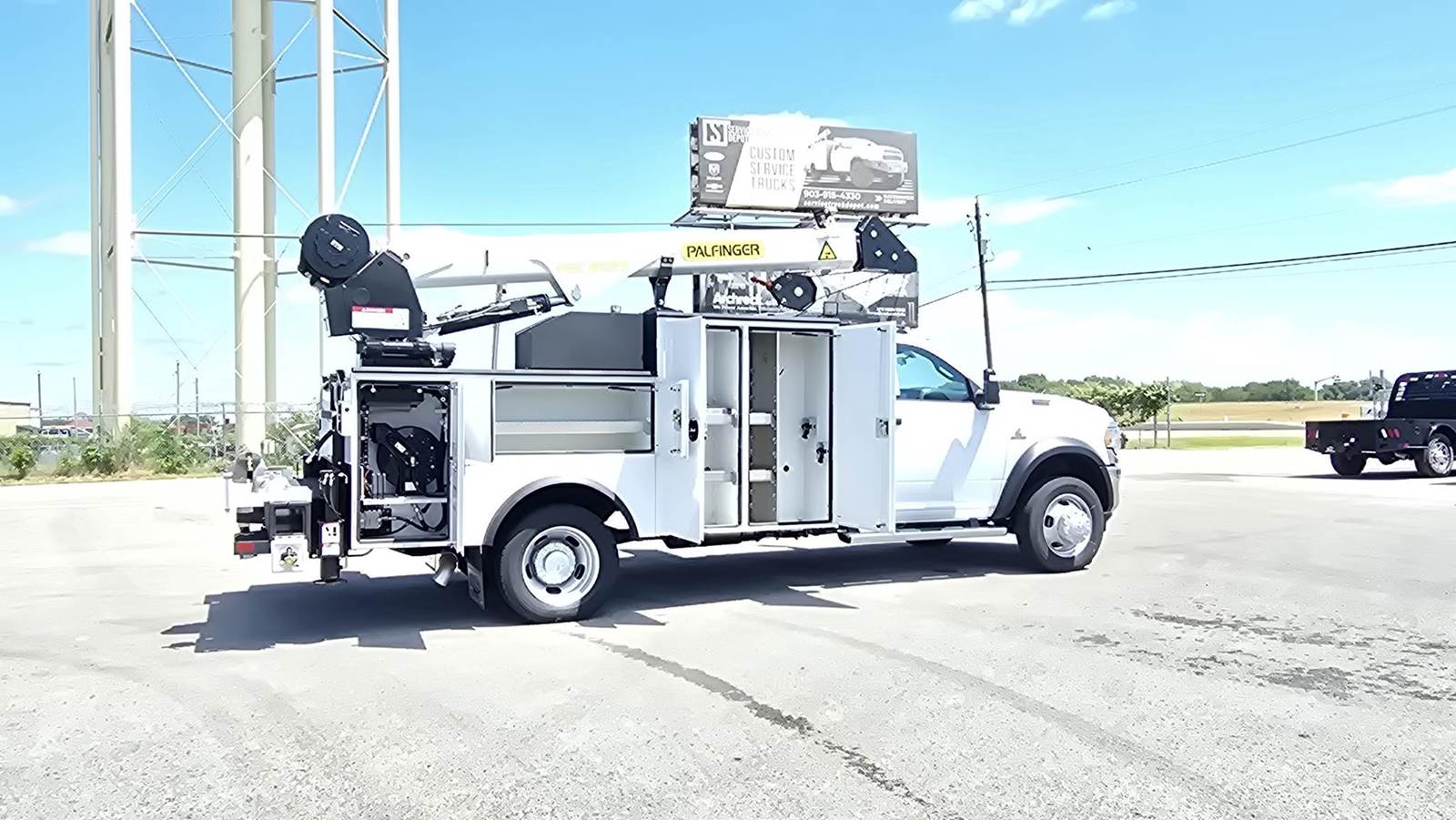

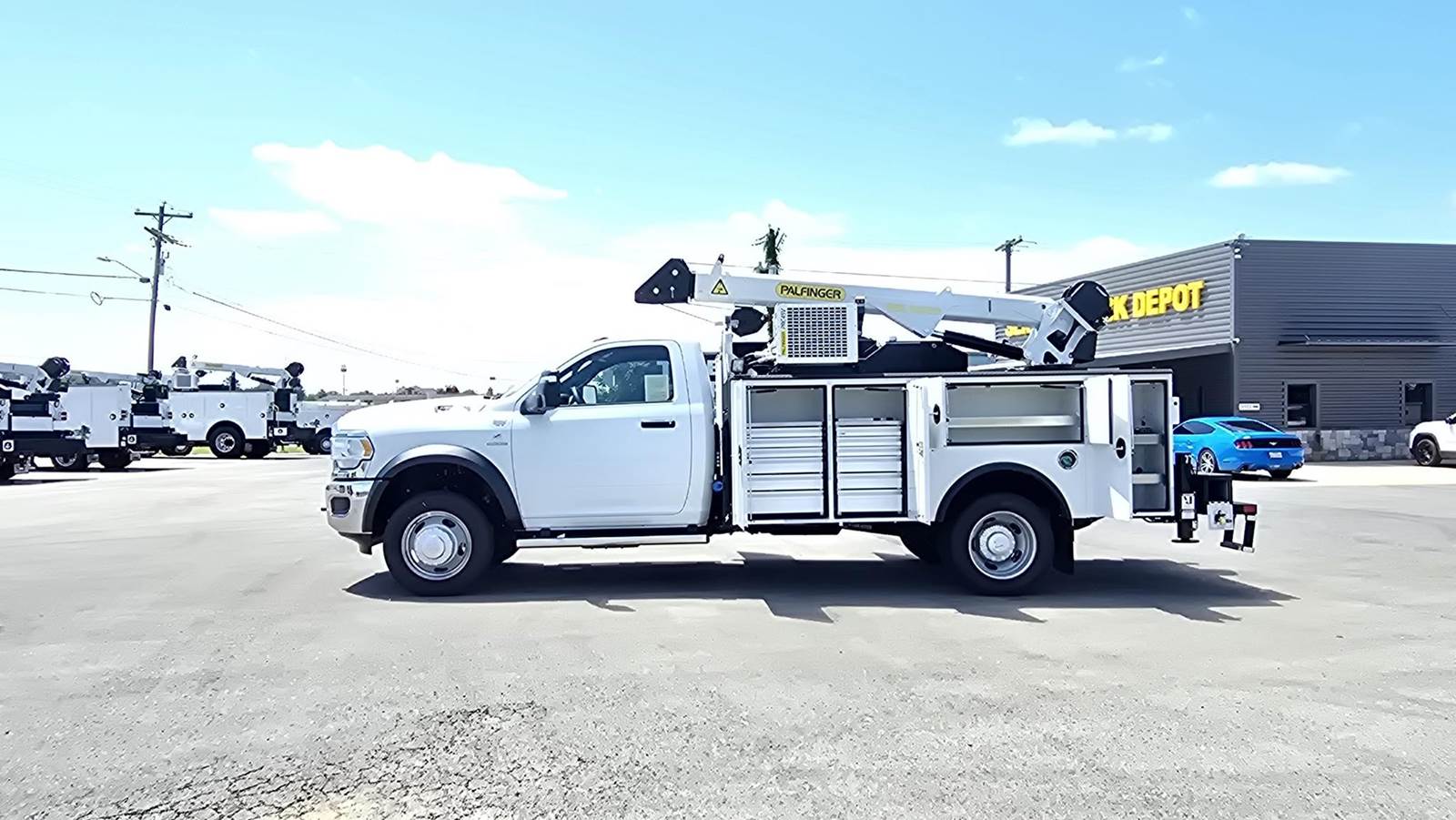

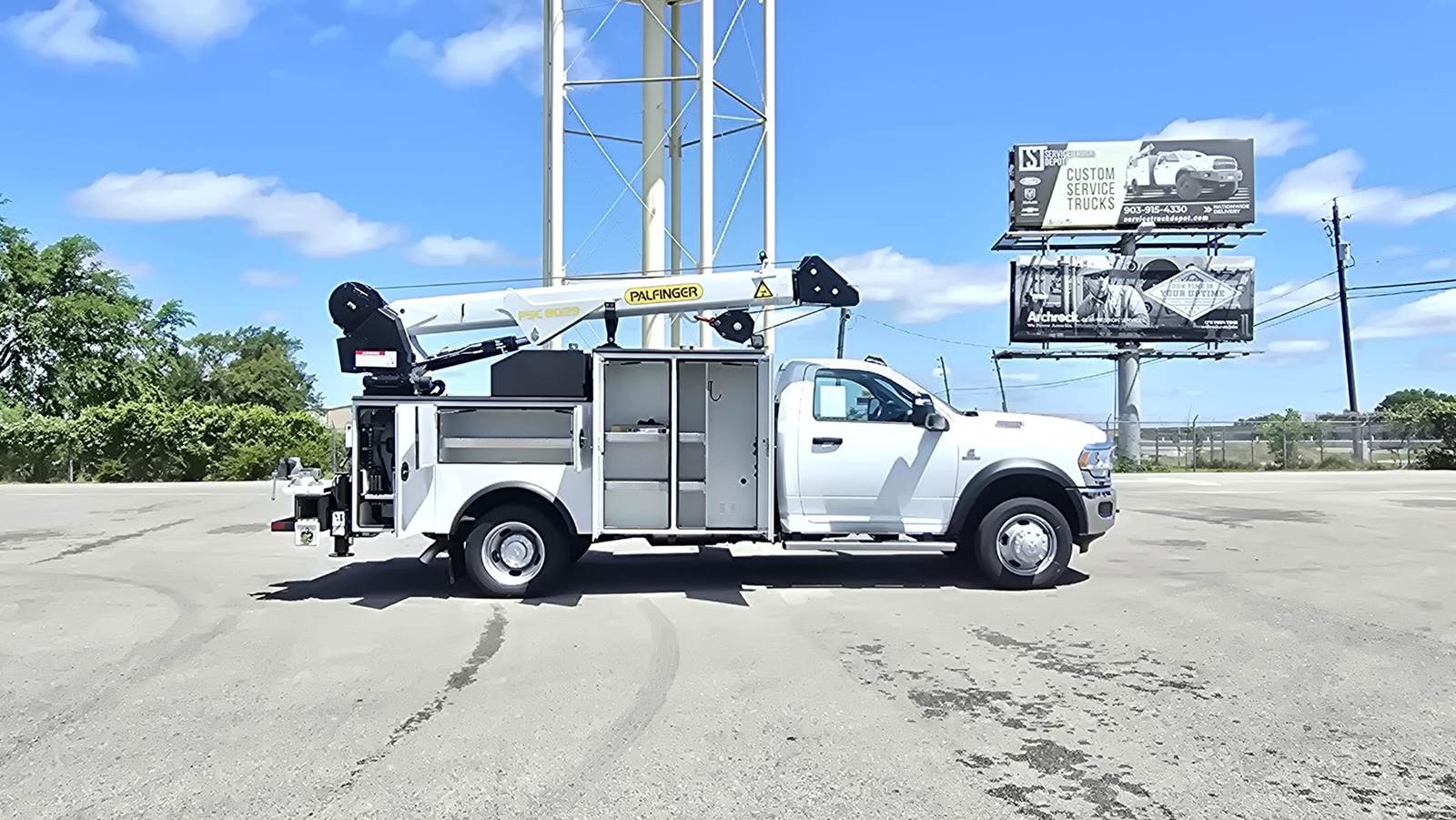

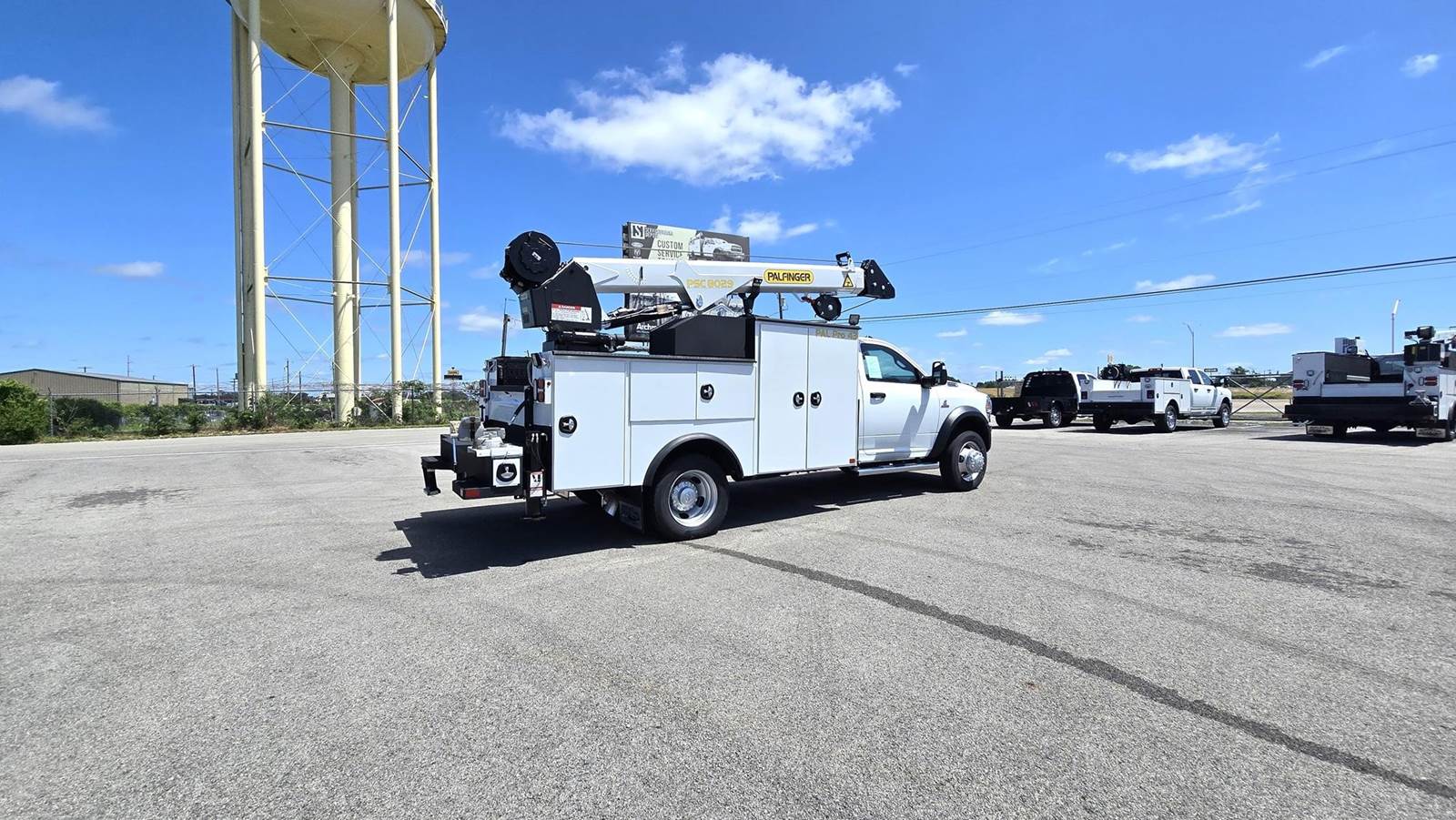

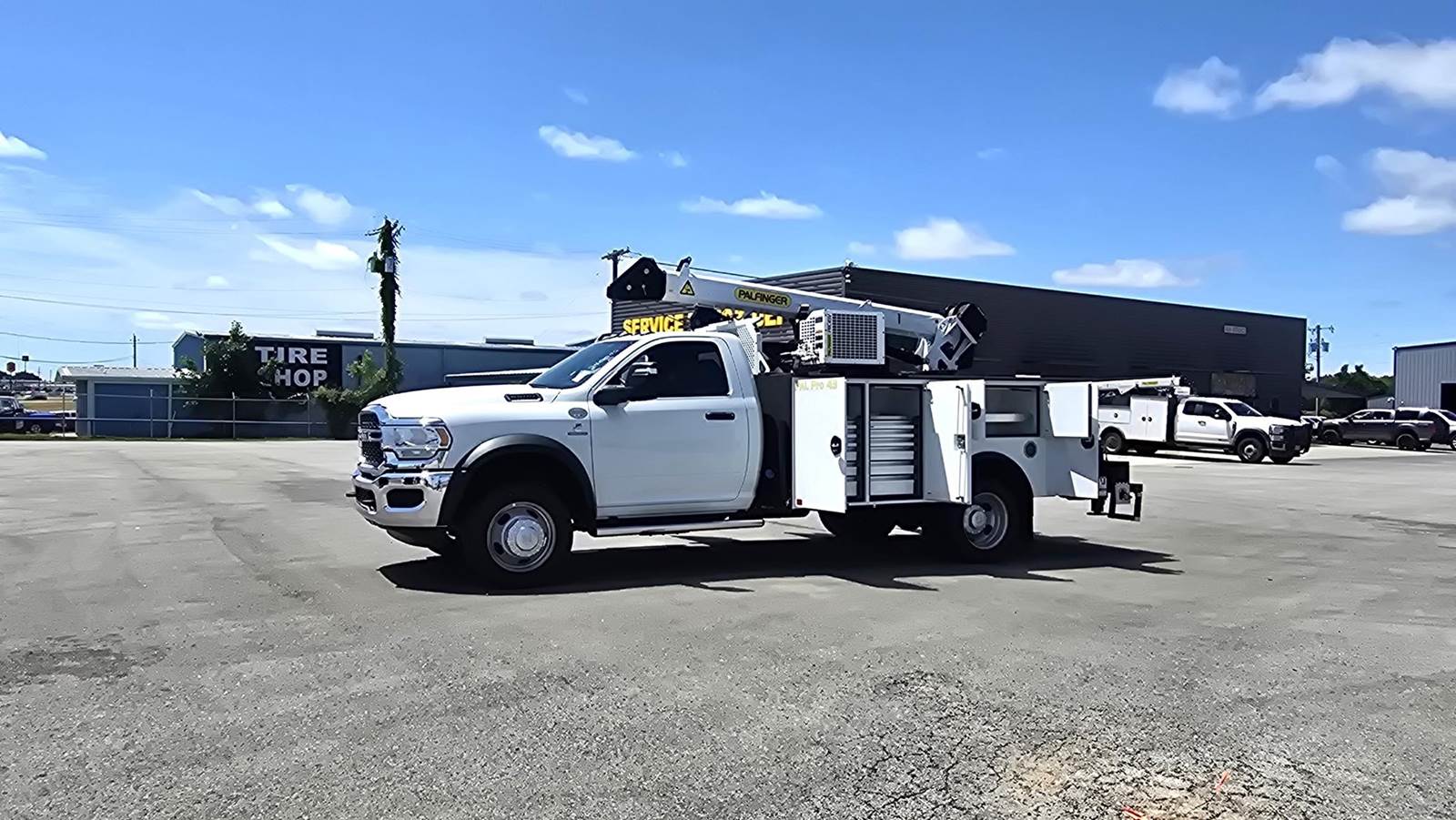

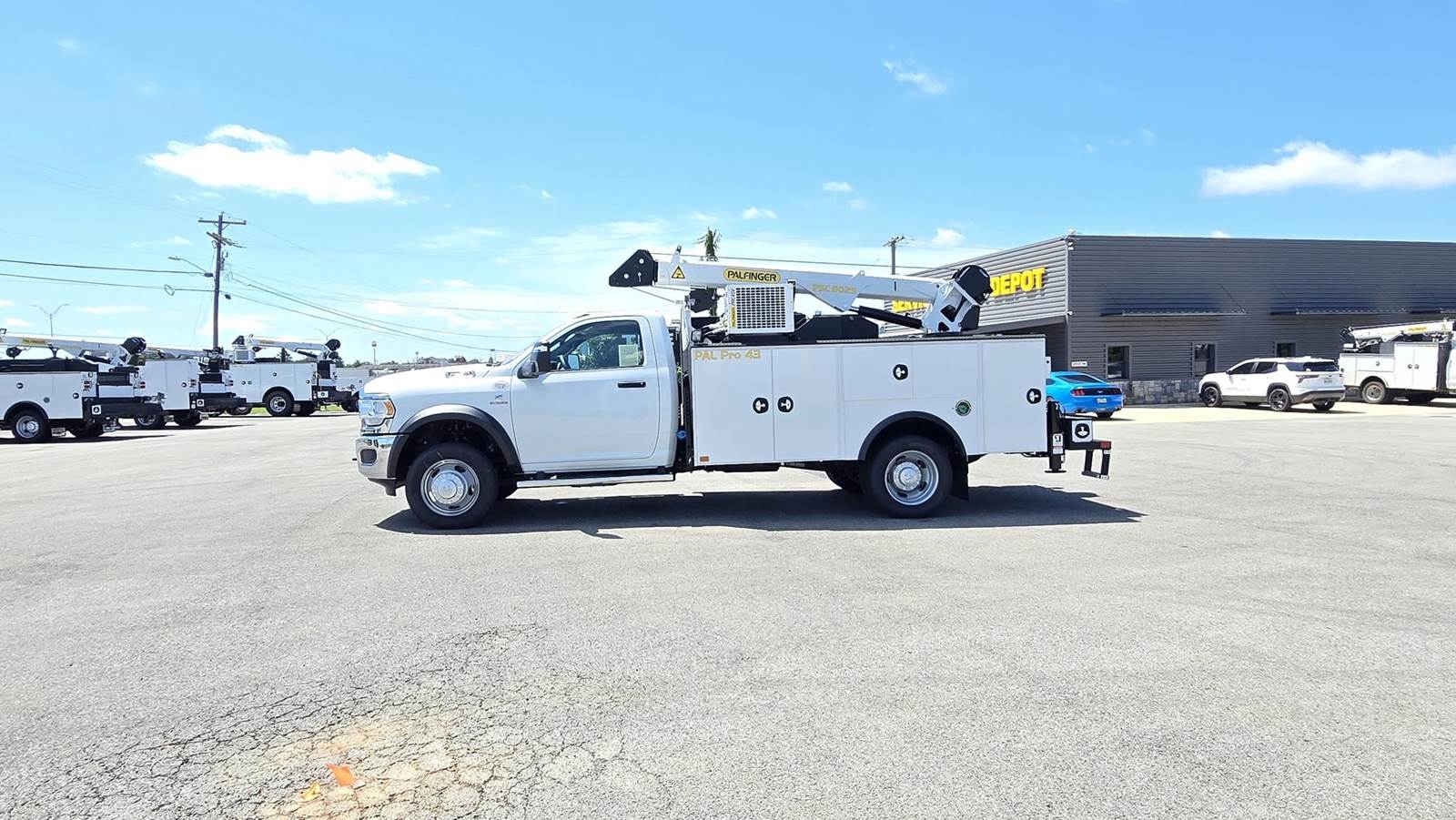

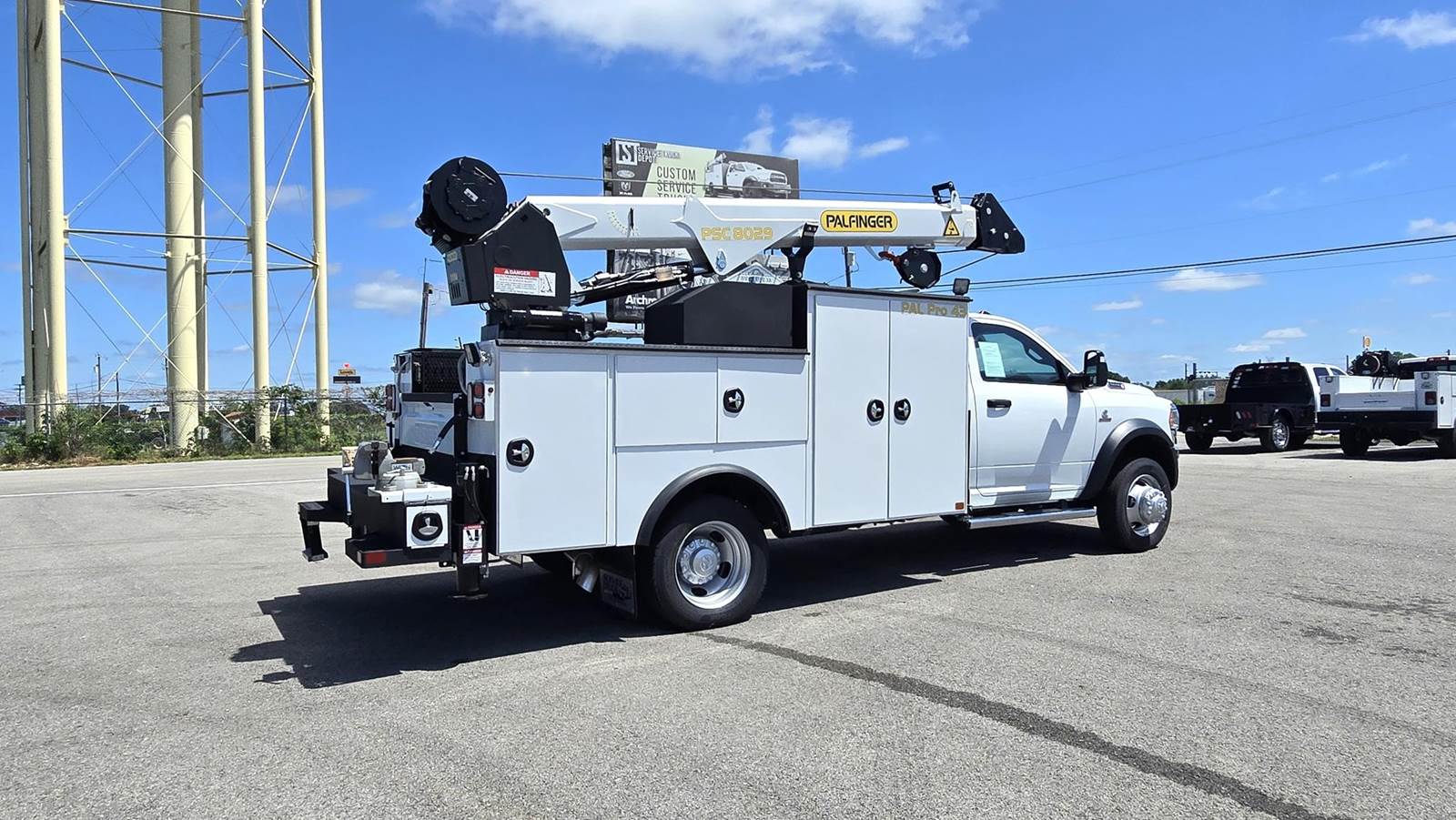

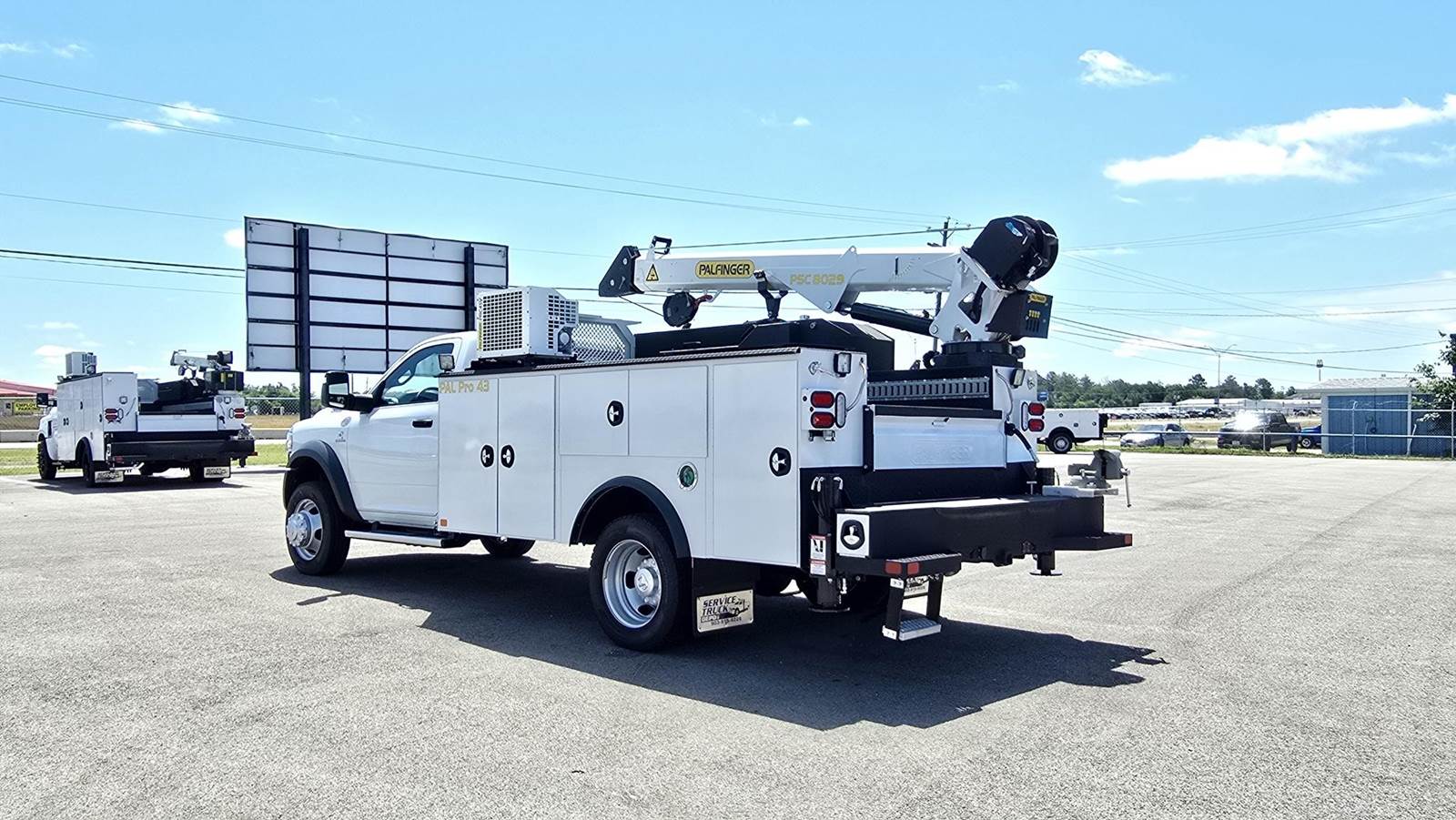

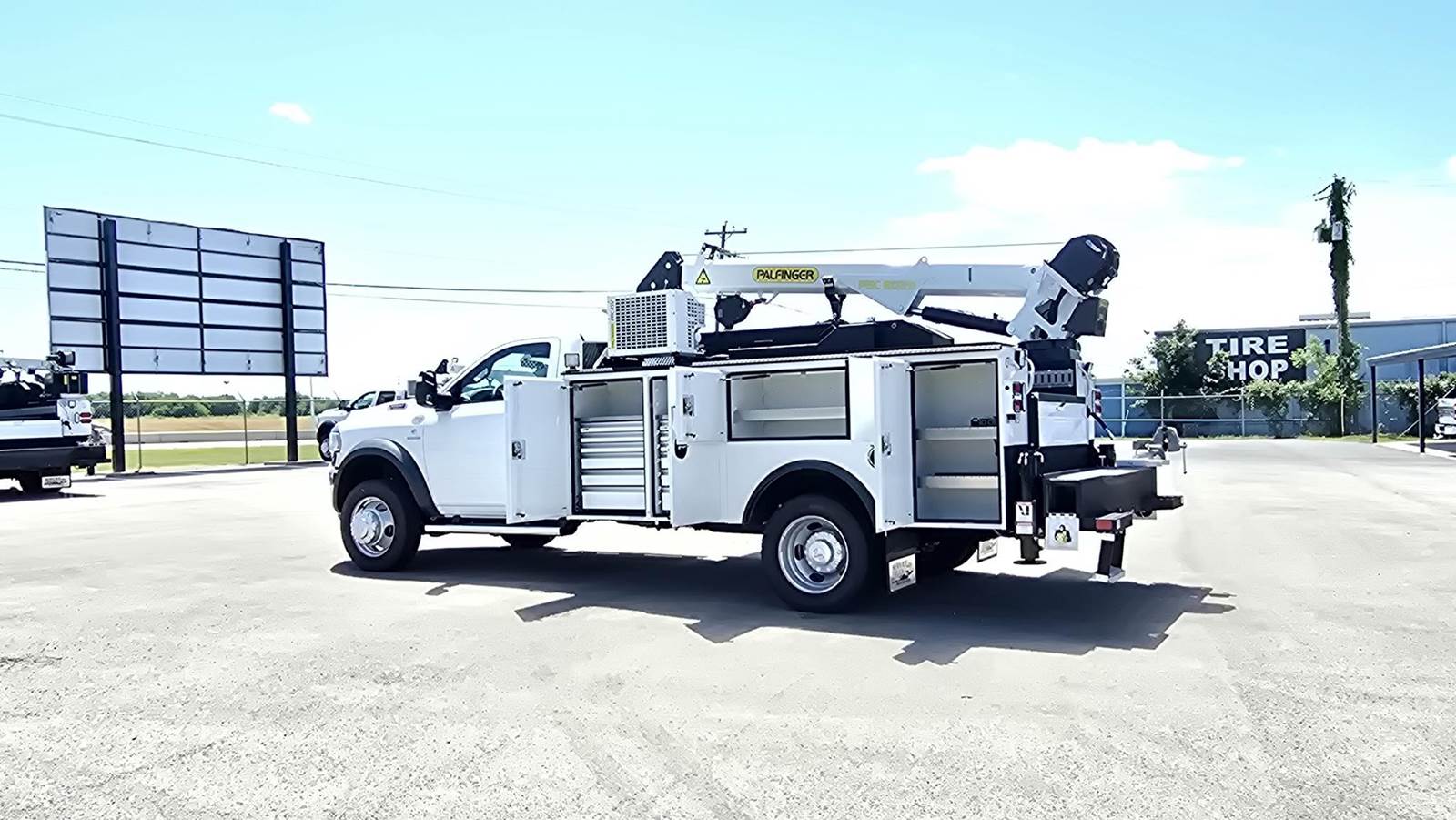

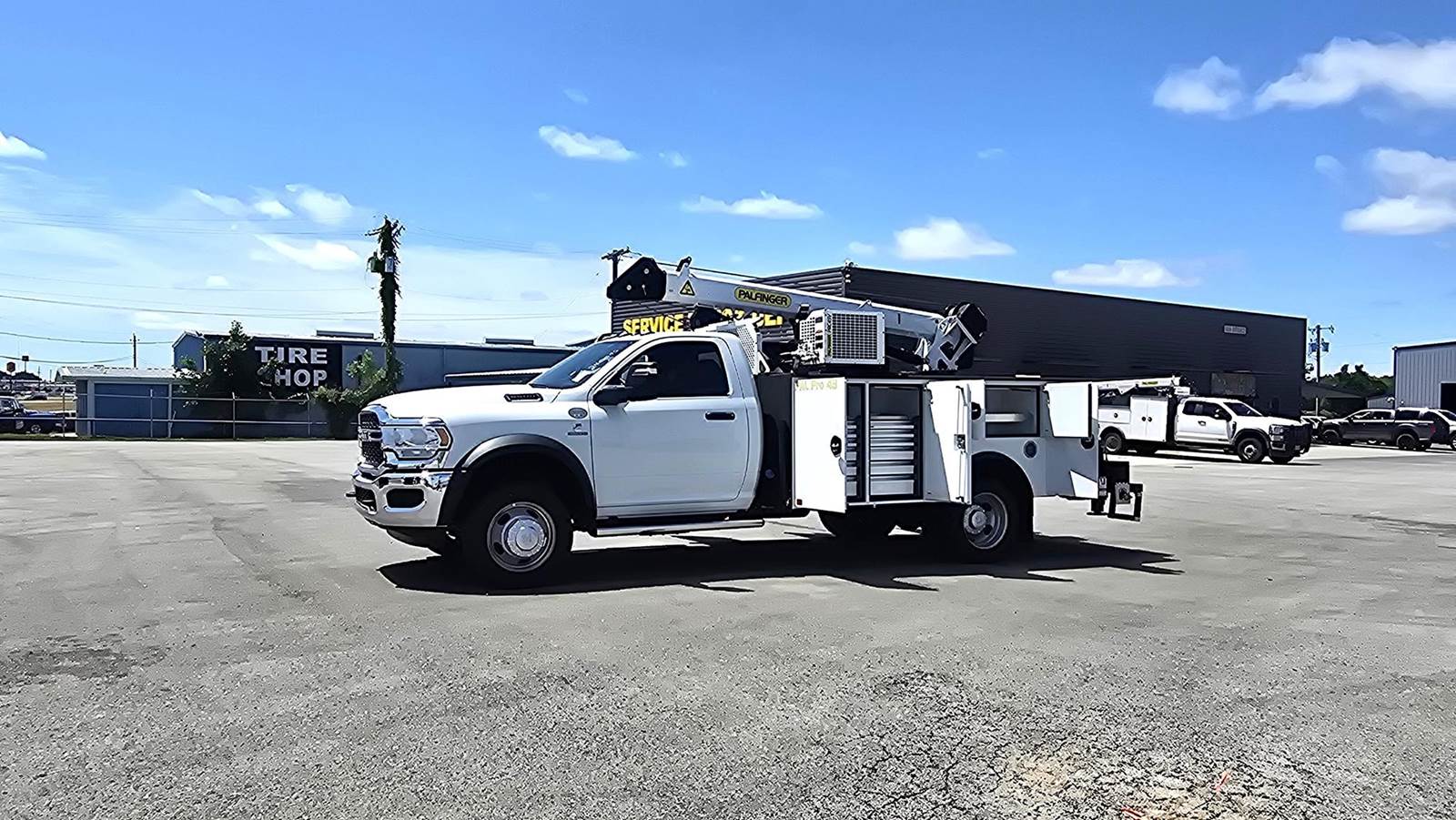

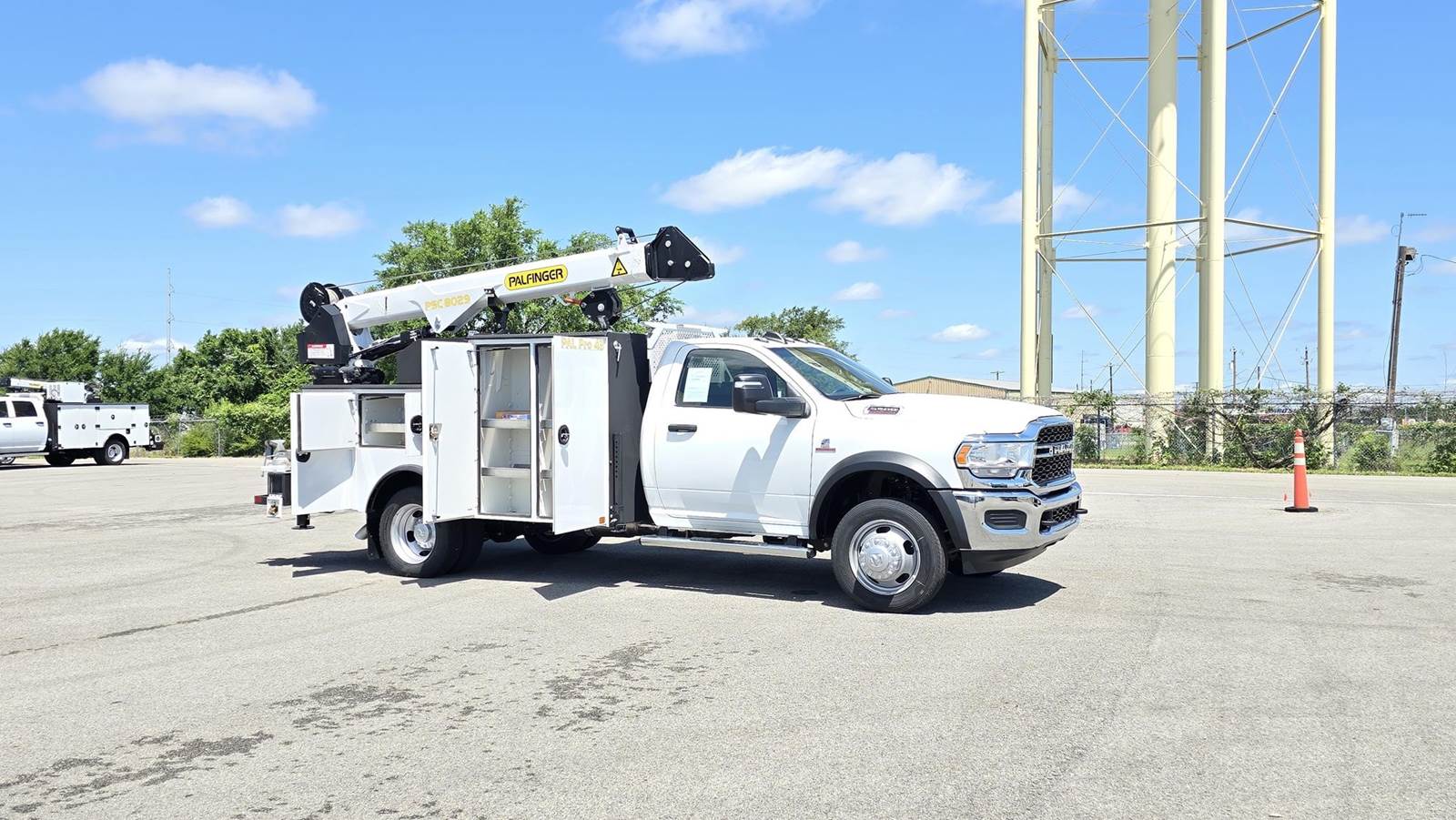

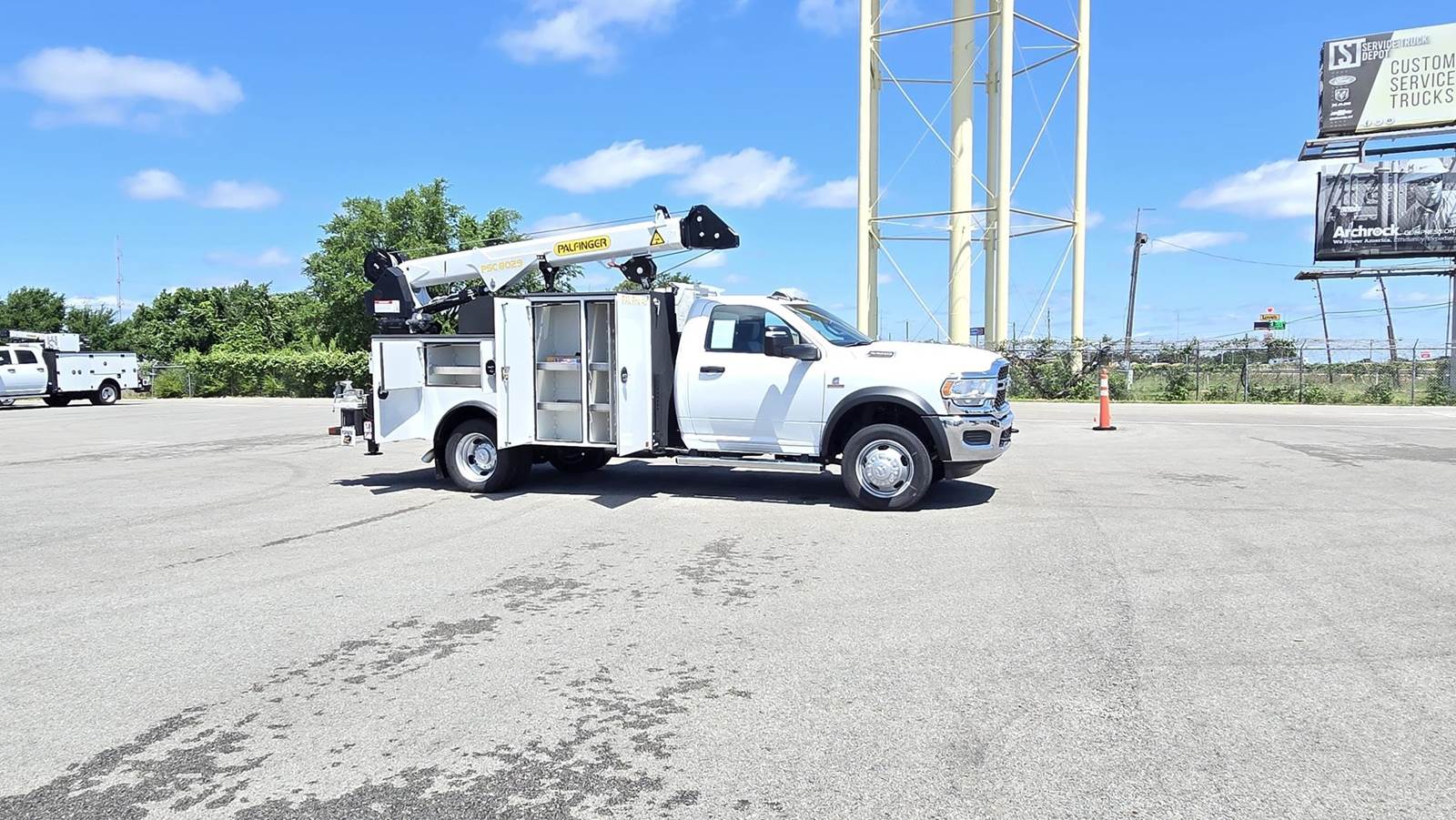

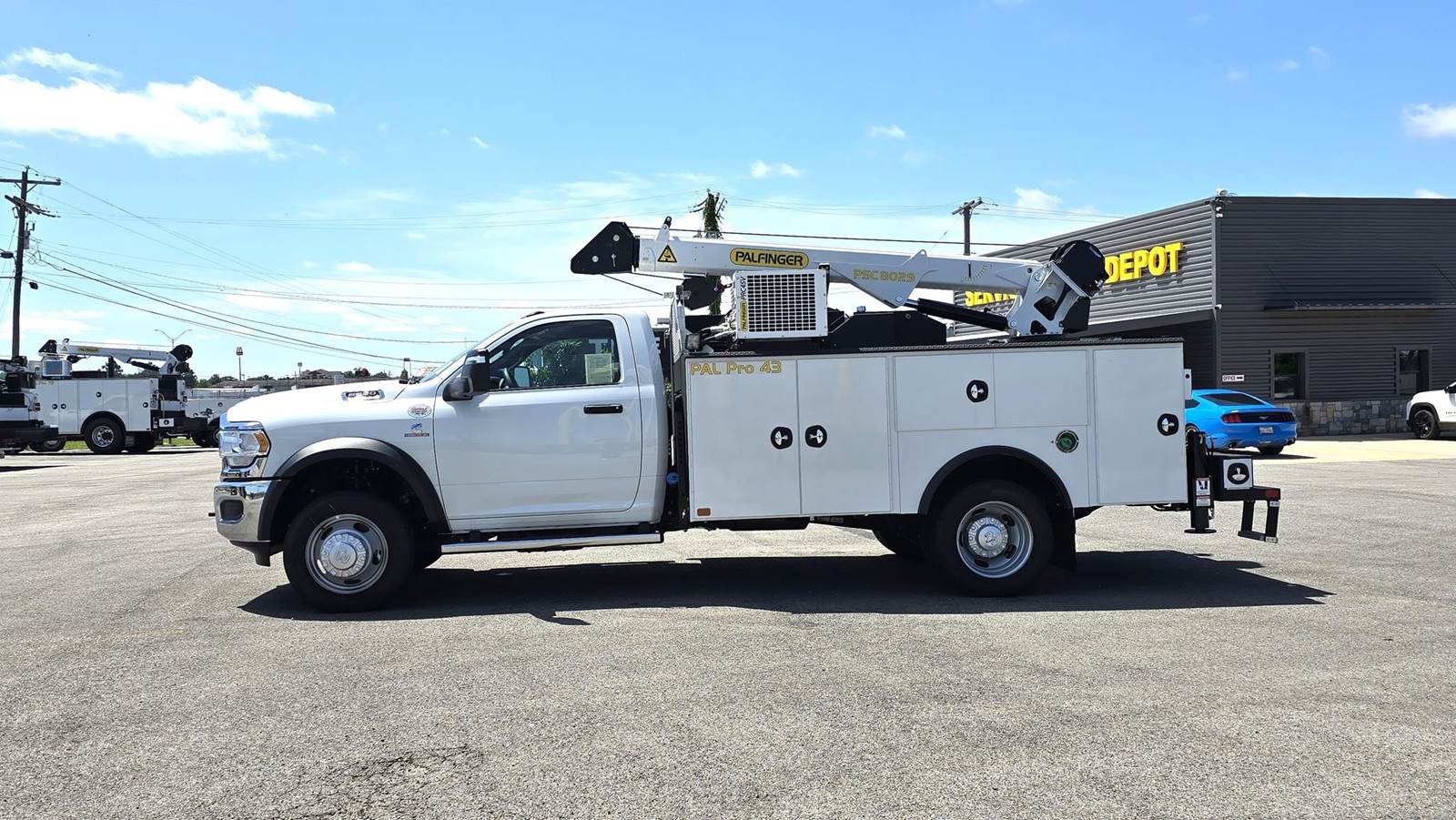

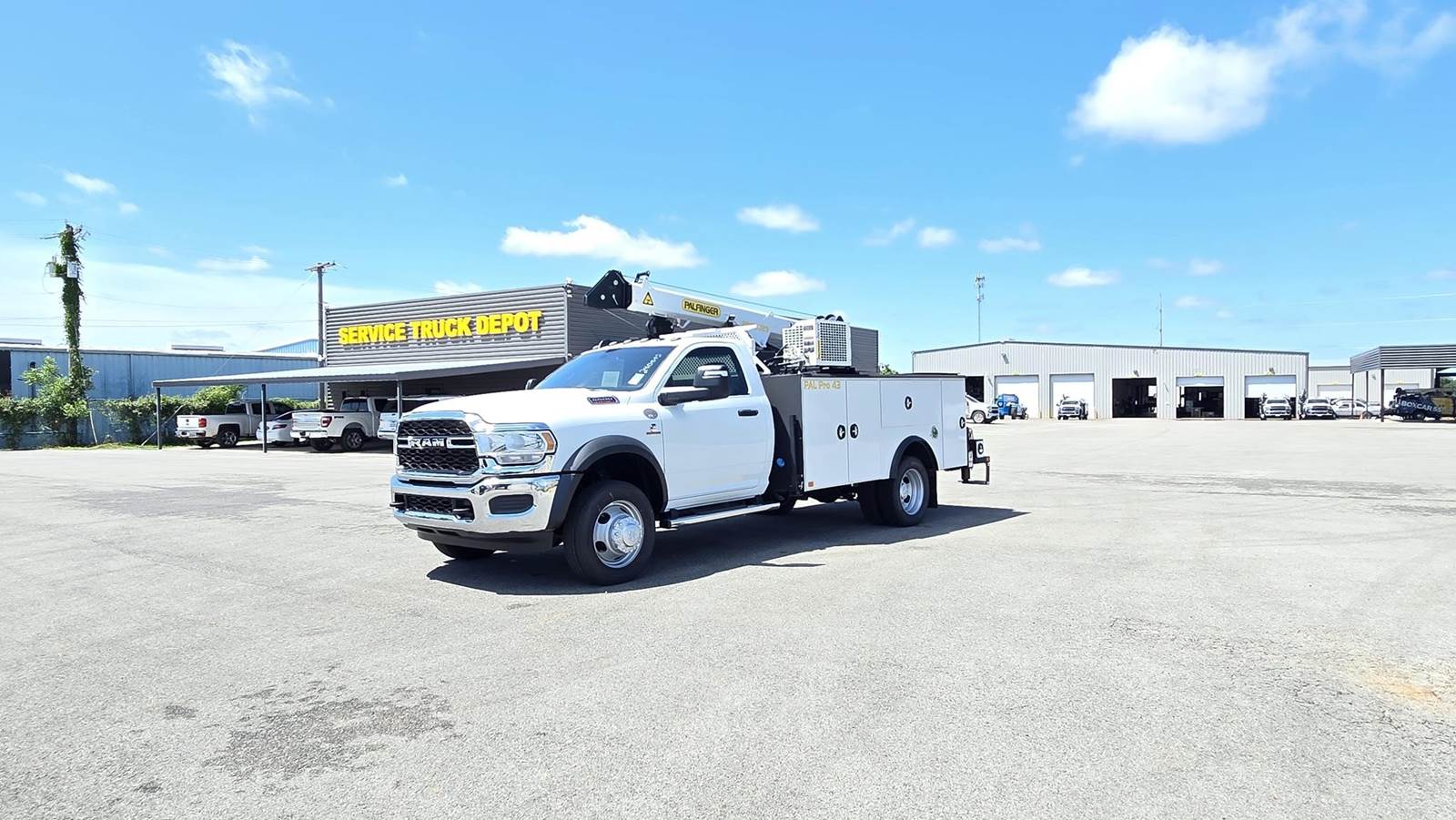

2024 RAM 5500 Mechanic / Service Truck - 360HP

43-11 Low Side
Body Details.

Manufacturer Palfinger
Body Type Mechanics Body
Body Line PAL Pro 43-11

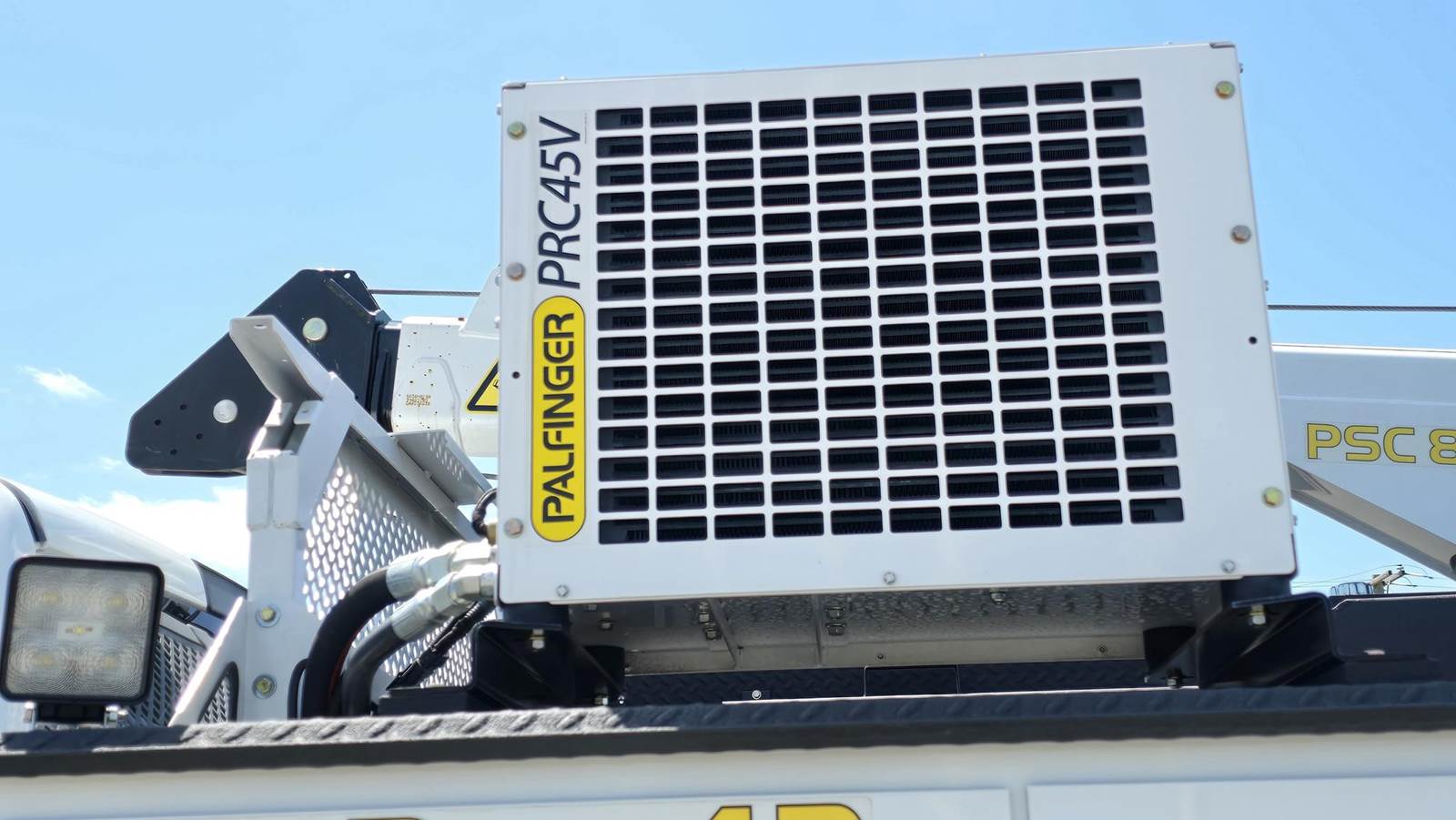

Has Air Compressor Yes

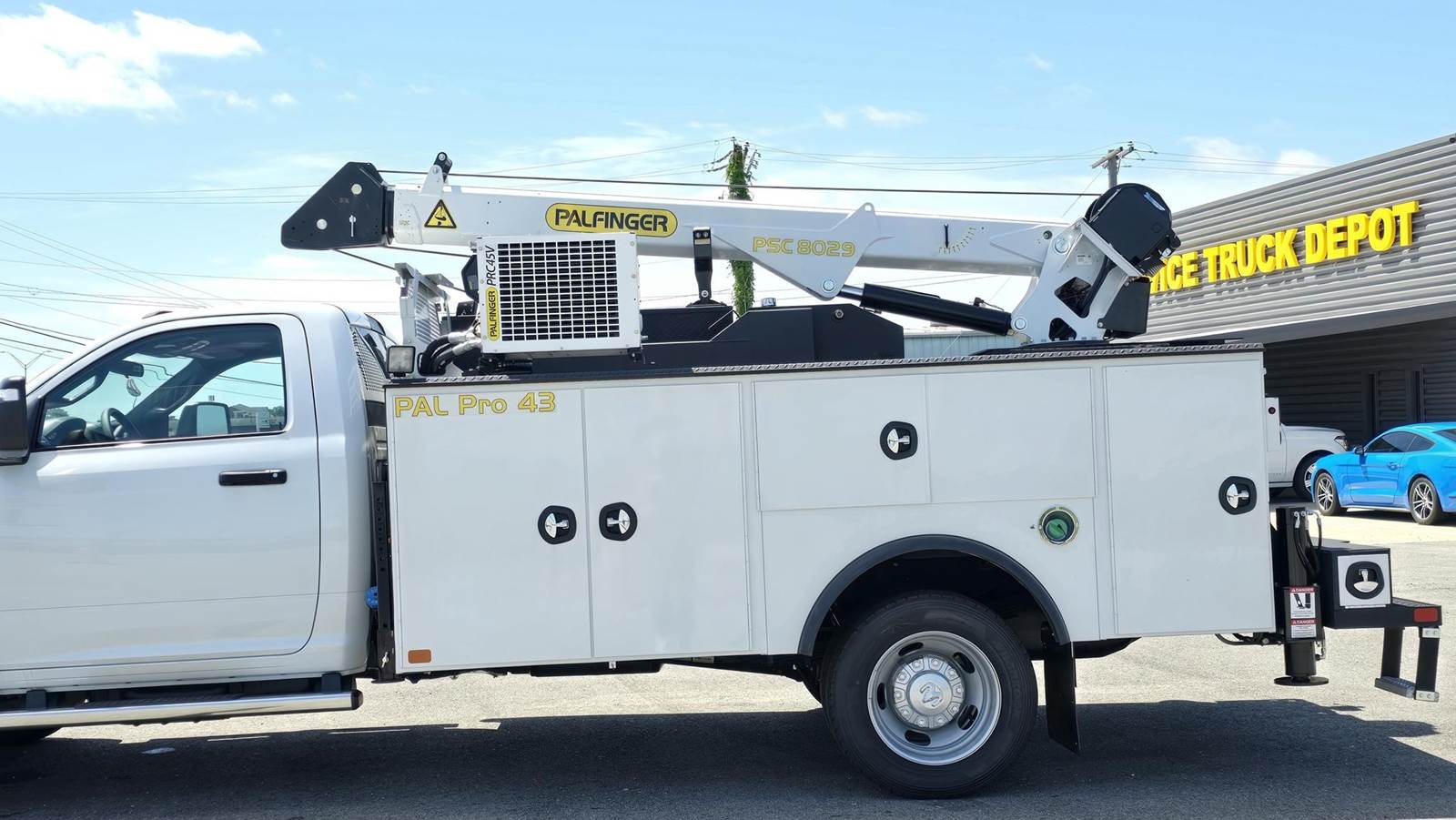

PAL Pro 43 Features

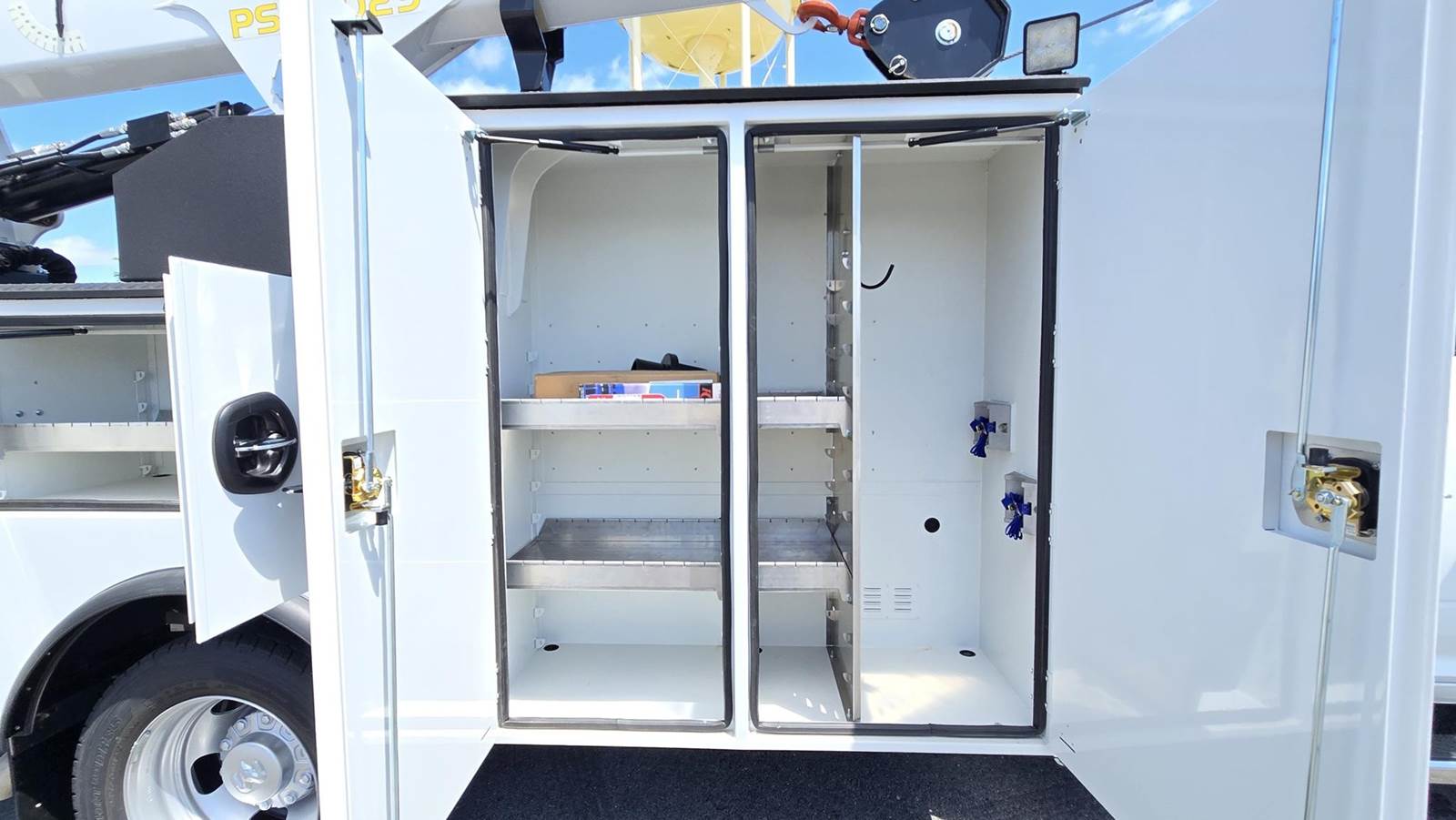

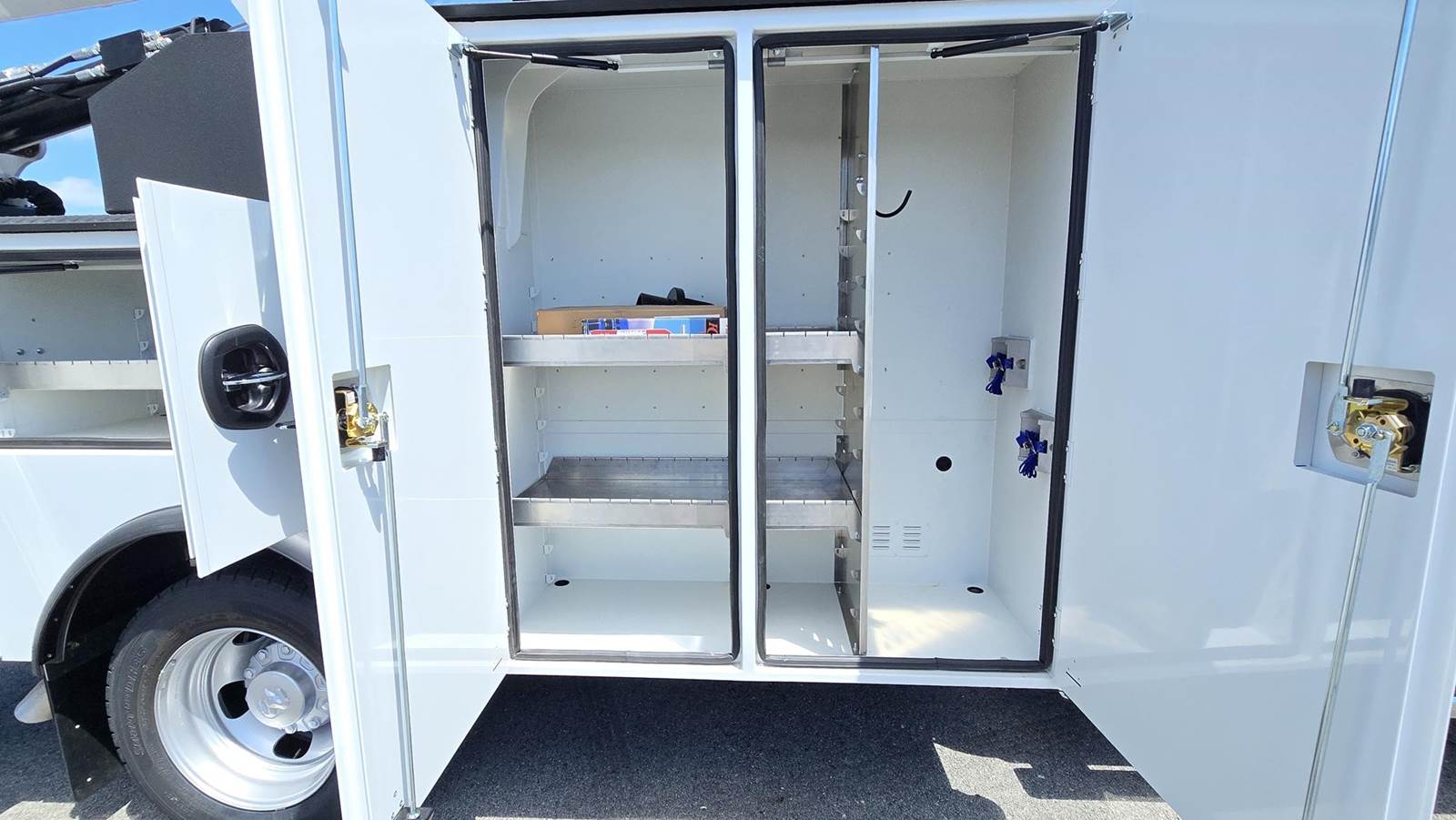

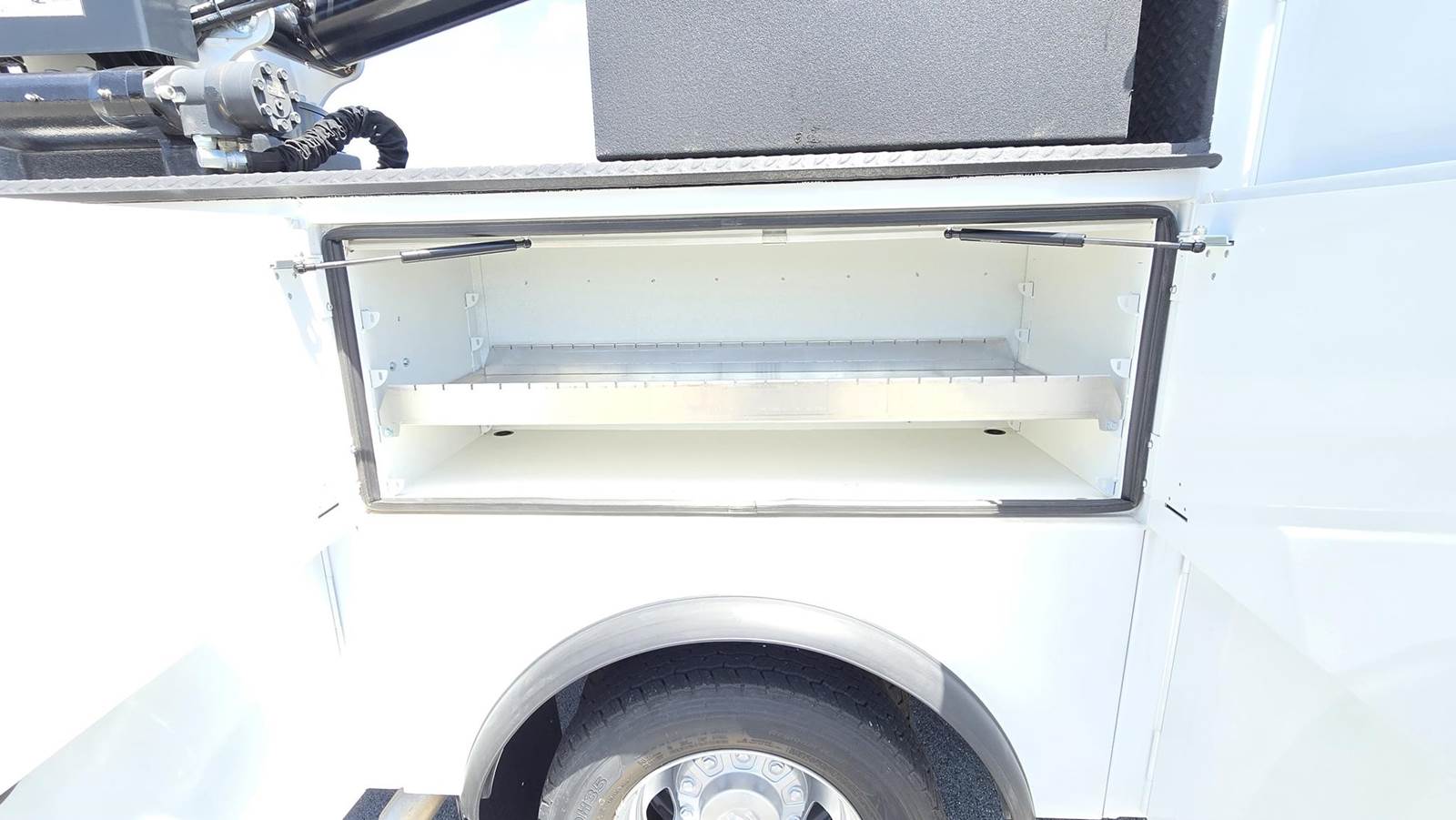

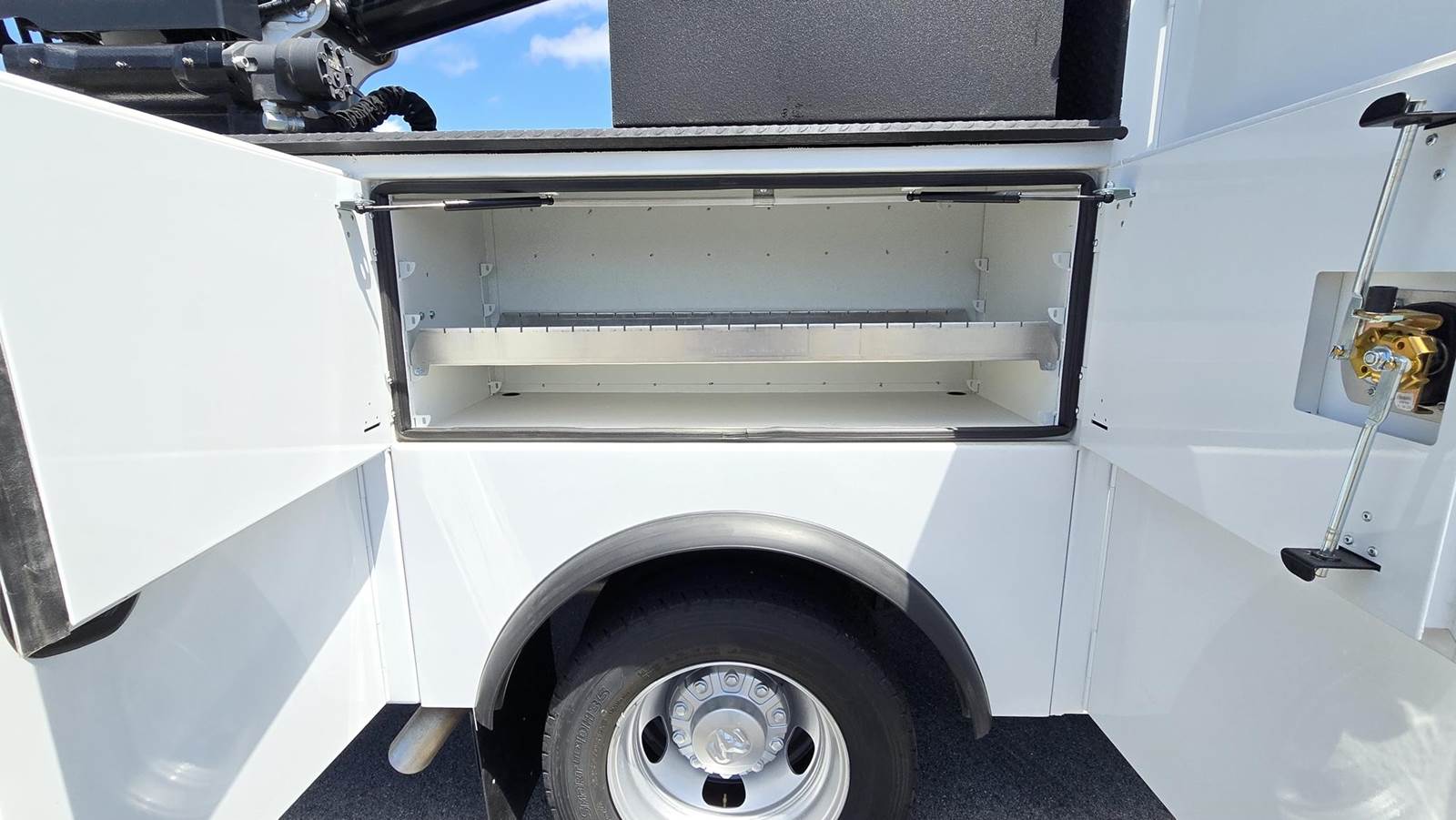

44" Standard Compartment Heights with Raised Compartment Options
11' Standard Configurations

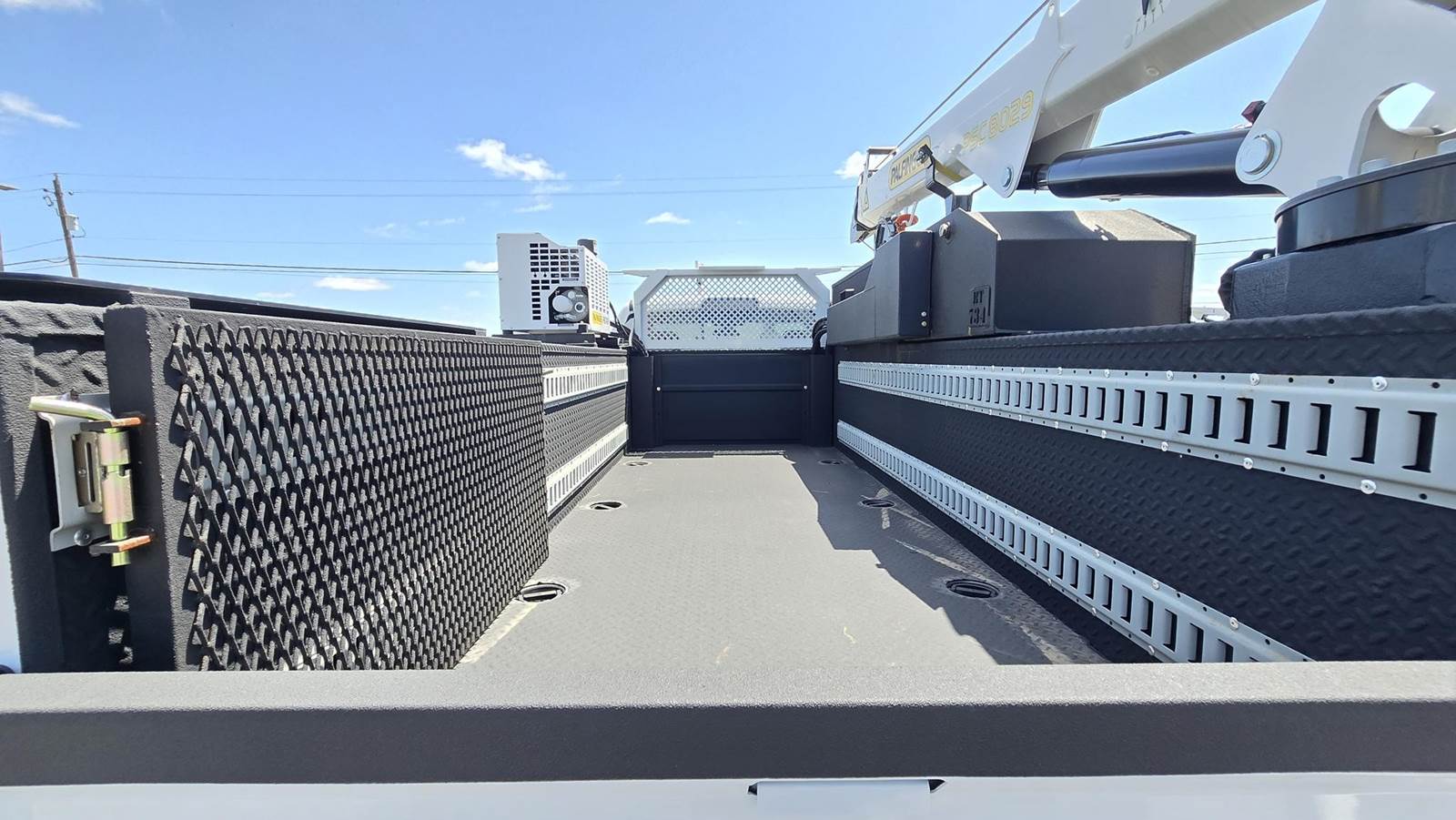

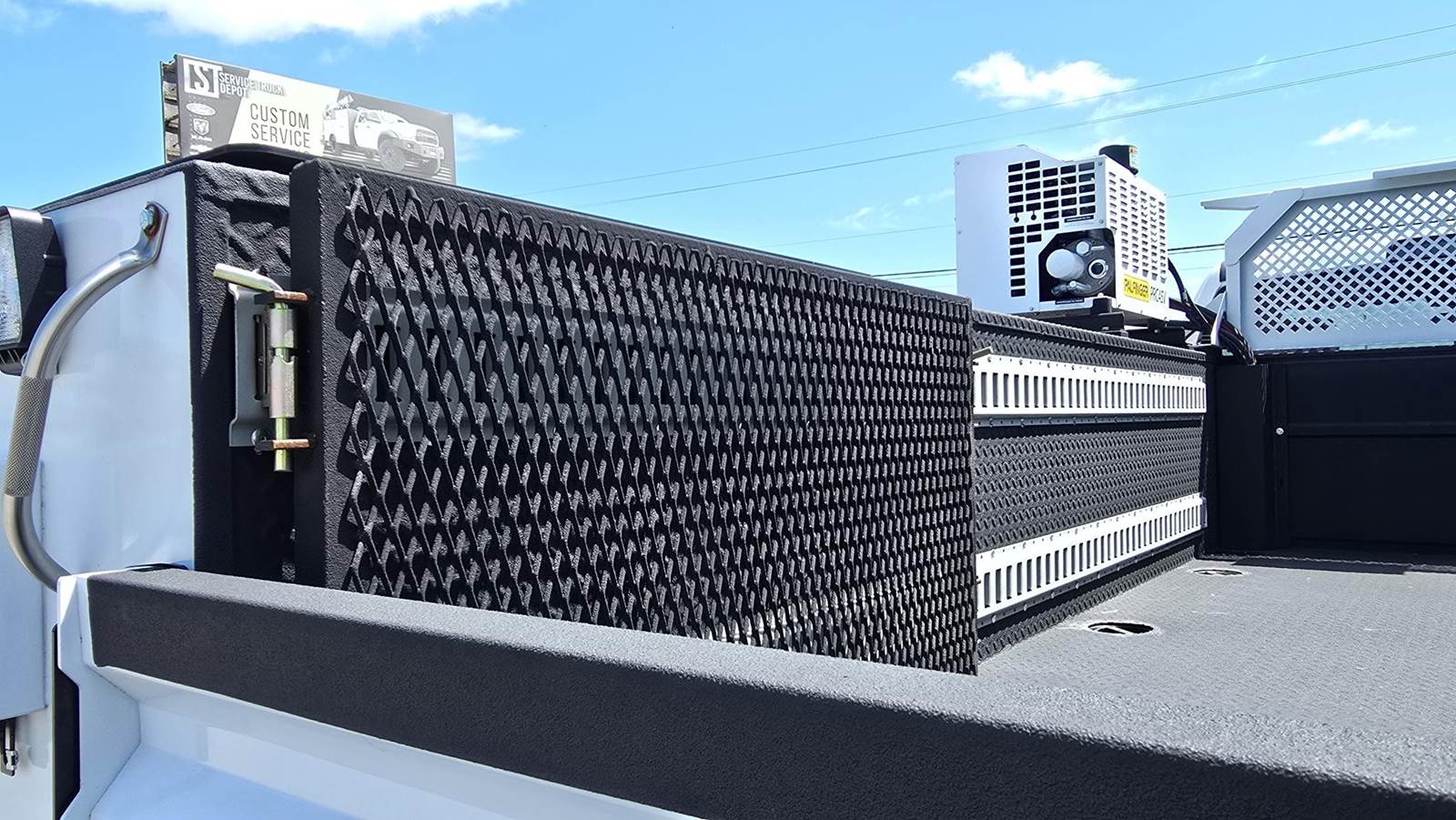

Treadplate Cargo Floor, Load Space Walls and Compartment Tops
Hybrid Torsion Box and Ladder Frame
Palfinger Engineered Internal Gussets Prevents Body Cracking
Full Length Channel Drip Rails
Double Panel Doors with Internal C-channel Stiffeners, Adhered with Structural Adhesive
Non-marring Boom Rest

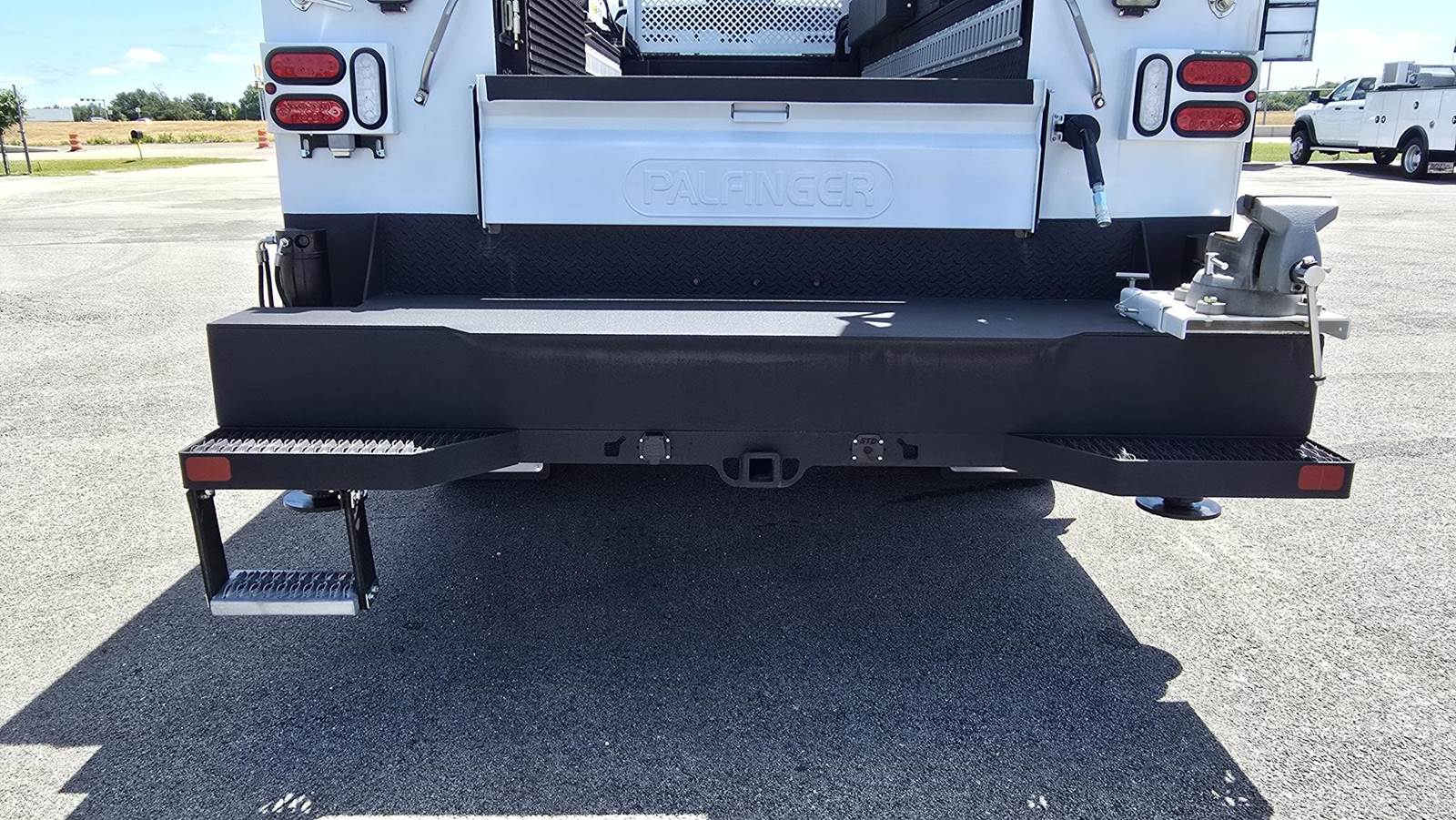

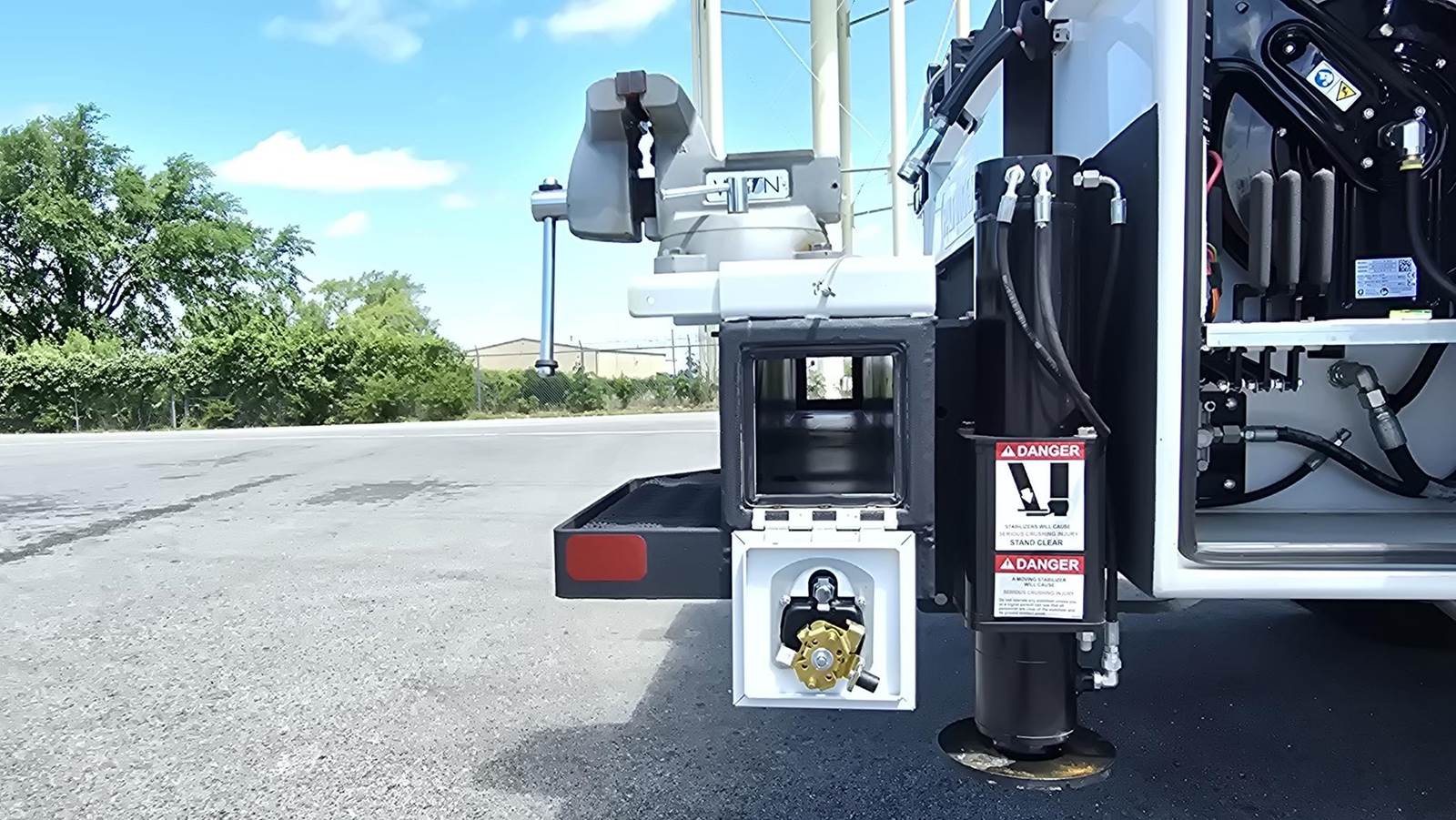

Workbench Featuring 12" or 21" Bumper, Receiver Hitch, 1/4" Steel Top Plate and Thru Compartment
Linear Adjustable Front Mounts
Aluminum Doors and Hinges
Rubber Mounted LED Lights
E-coat Primer

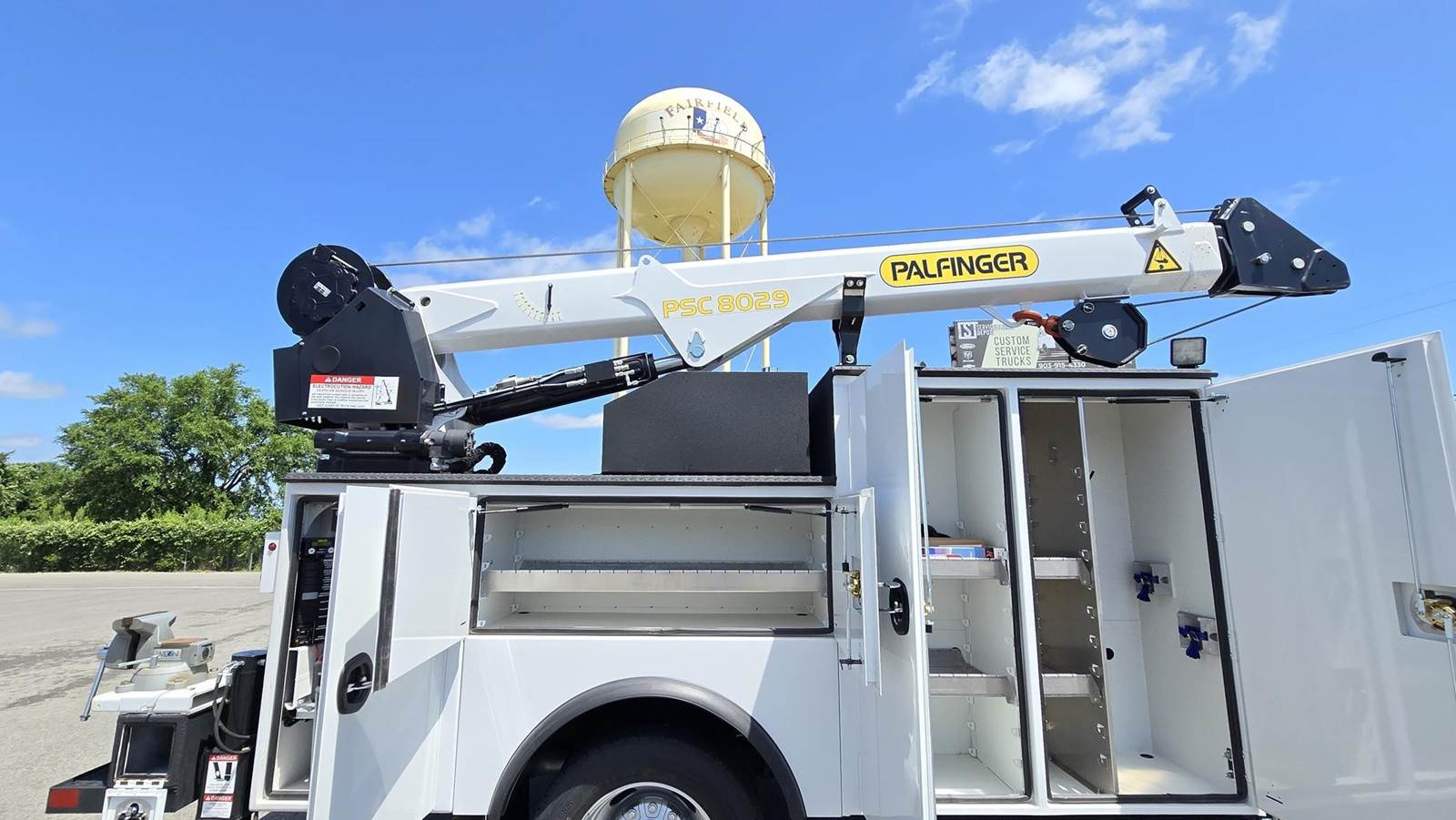

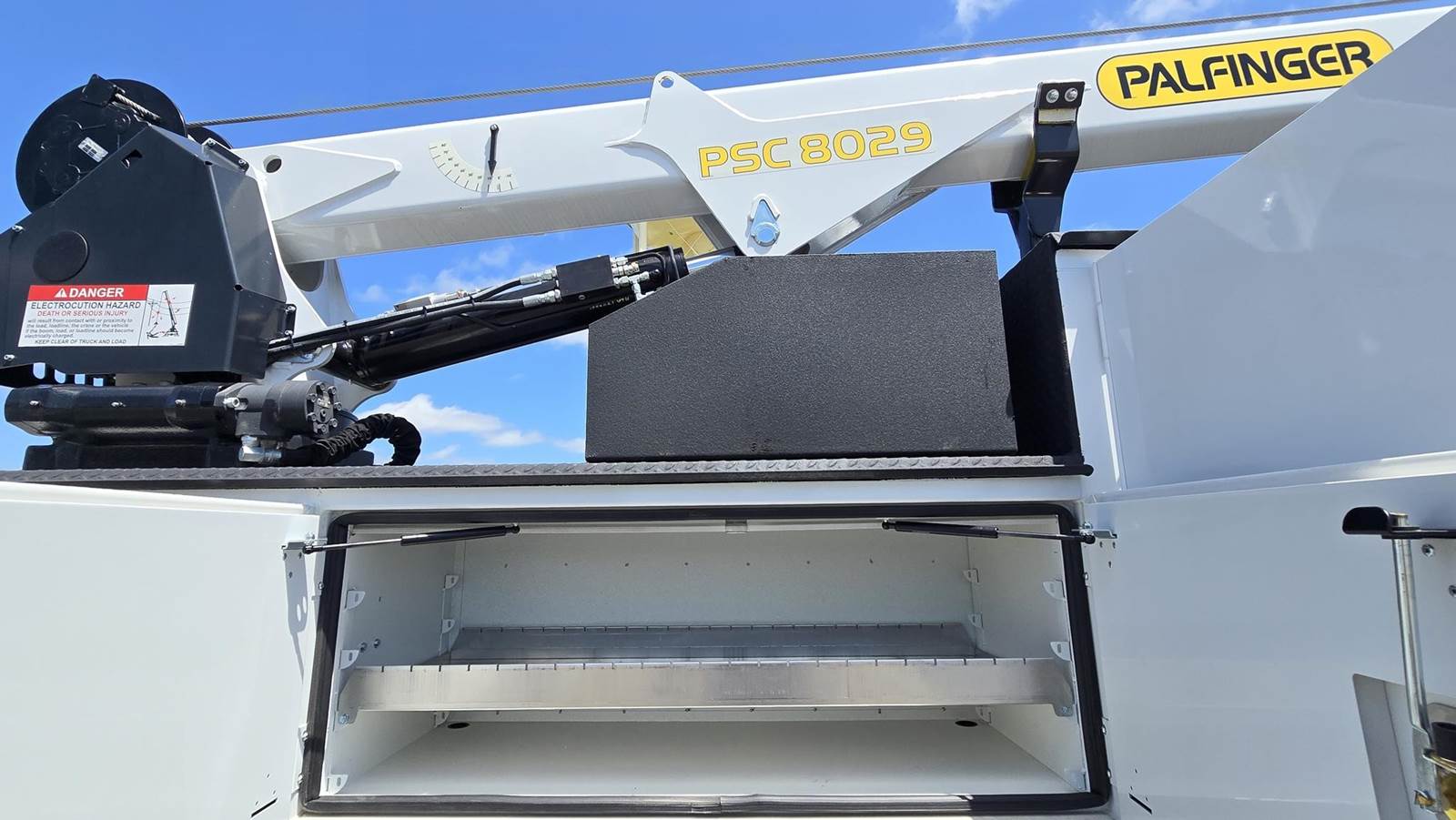

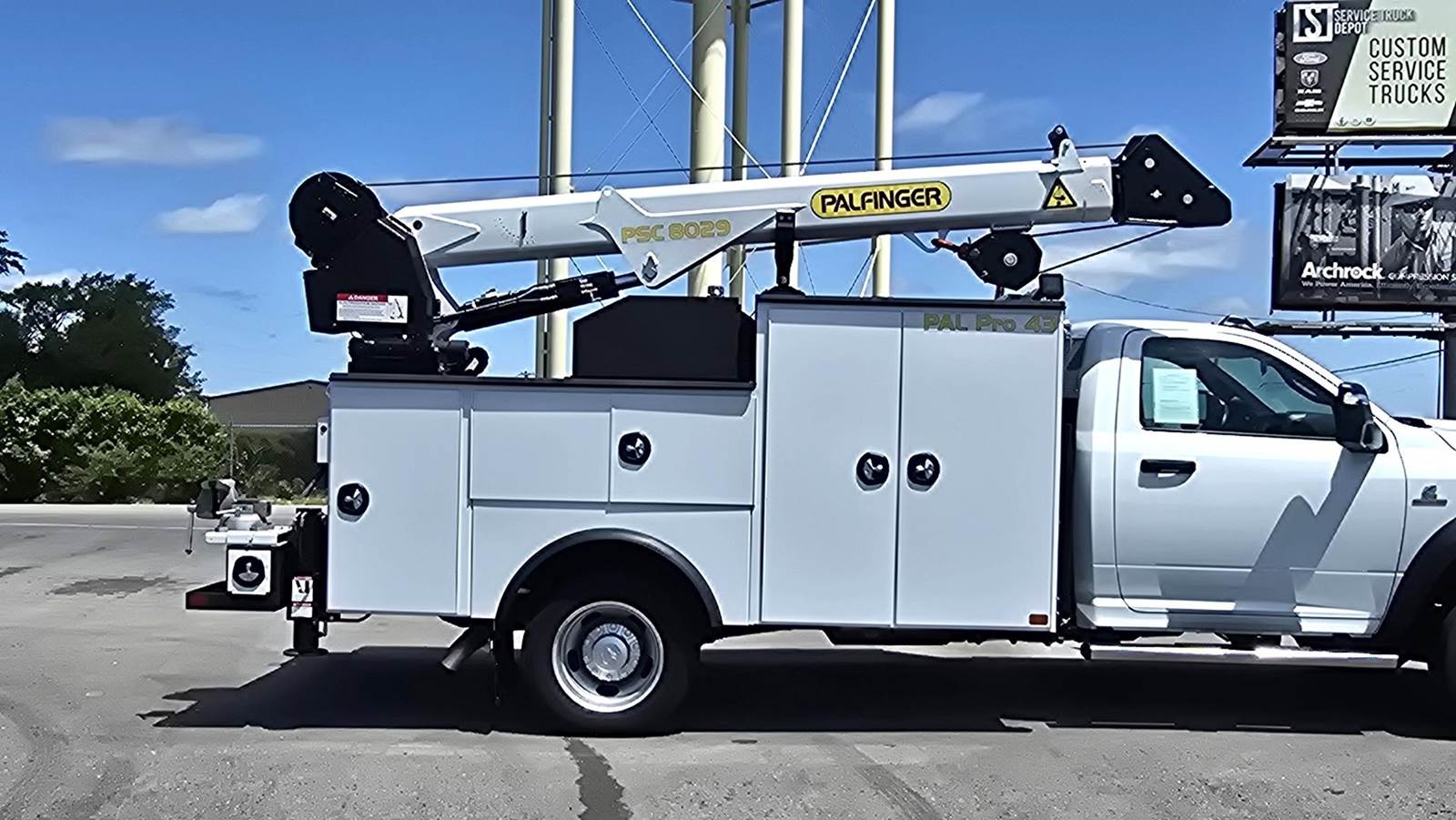

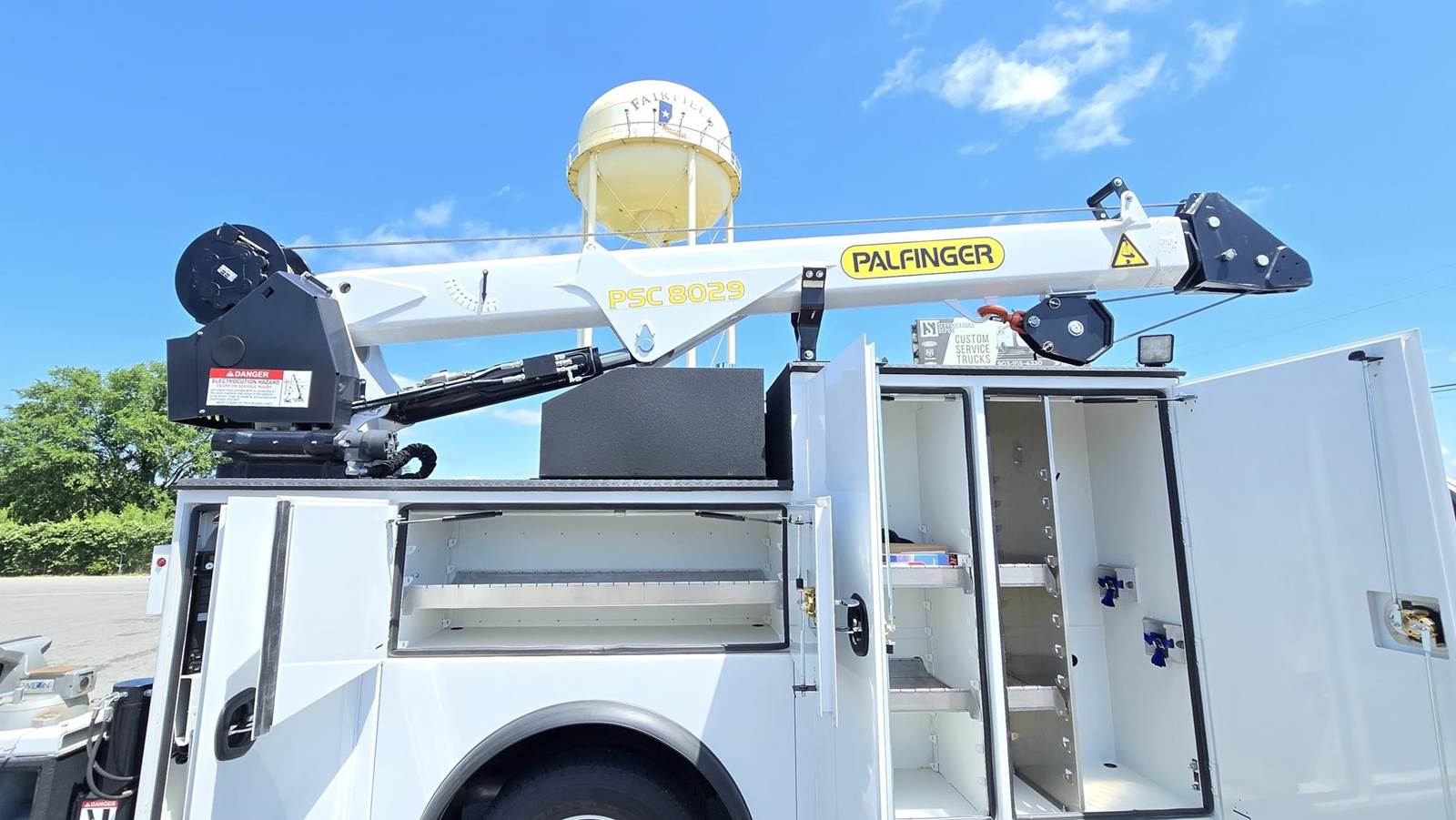

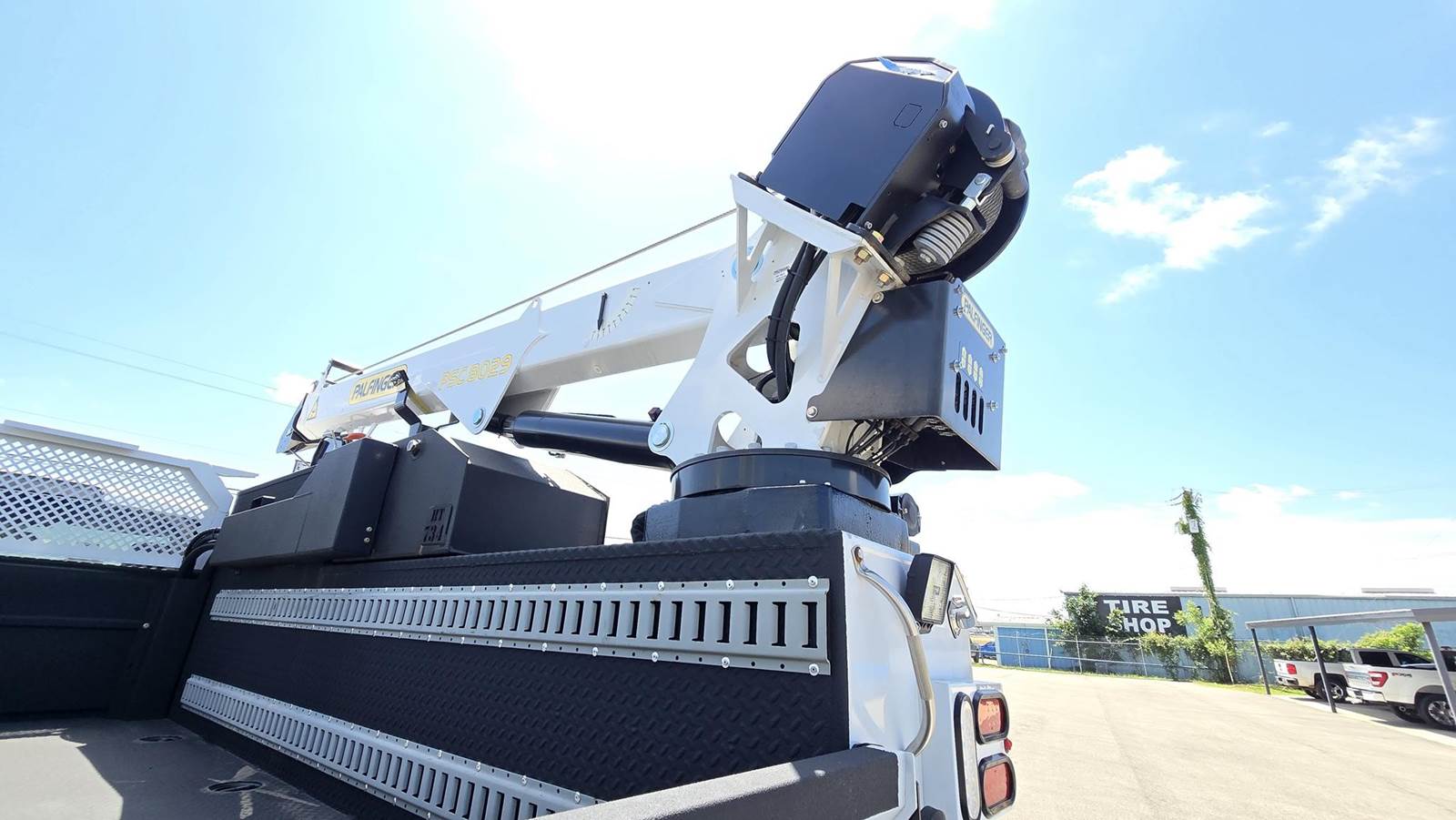

Palfinger PSC8029 Features

Palfinger Model PSC 8029 telescopic mechanic field service crane; 43,000 ft./lbs. rating, 400 degree rotation, 29’ hydraulic reach capability, 8,000 Lb. vertical lift capacity, -10 to +80 degree boom elevation, double acting cylinders with integrated load holding valves on all cylinders, four-spool remote control valve, overload shutdown system, hydraulic planetary drive winch with spring loaded roller, end layering limit switch and integral two-block damage prevention system, wireless radio remote controller pistol grip and toggle controller with 36' pendant, decals, crane hook, load line block, white and black finish paint and crane mounting bolt kit.
Available for use on vehicles above 19,000 GVW. Consult factory for other applications.
