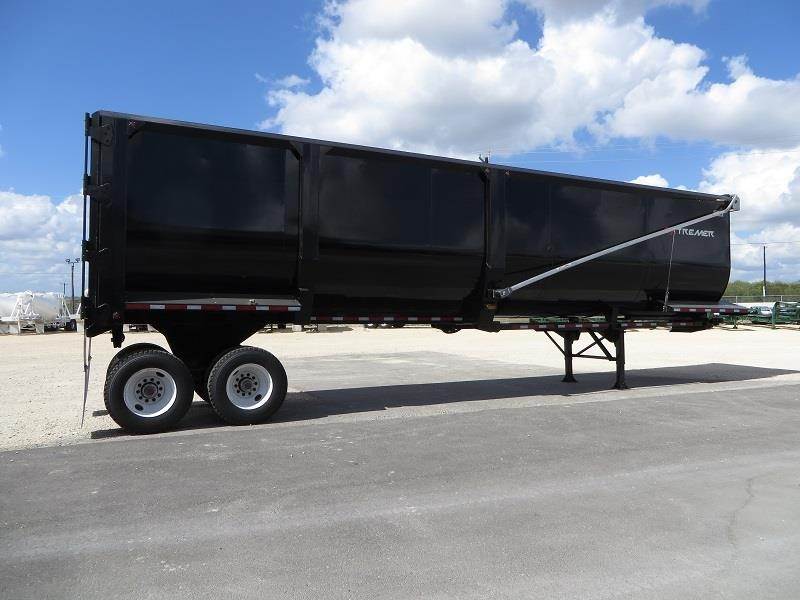

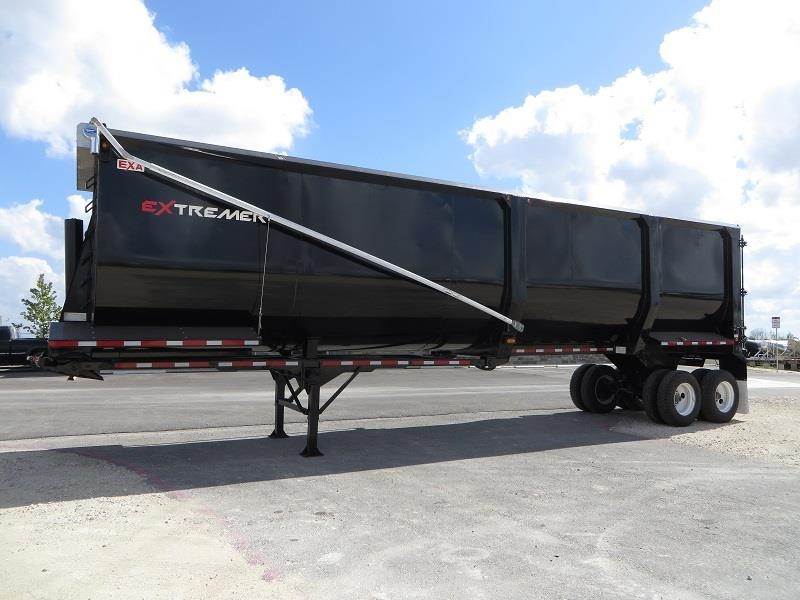

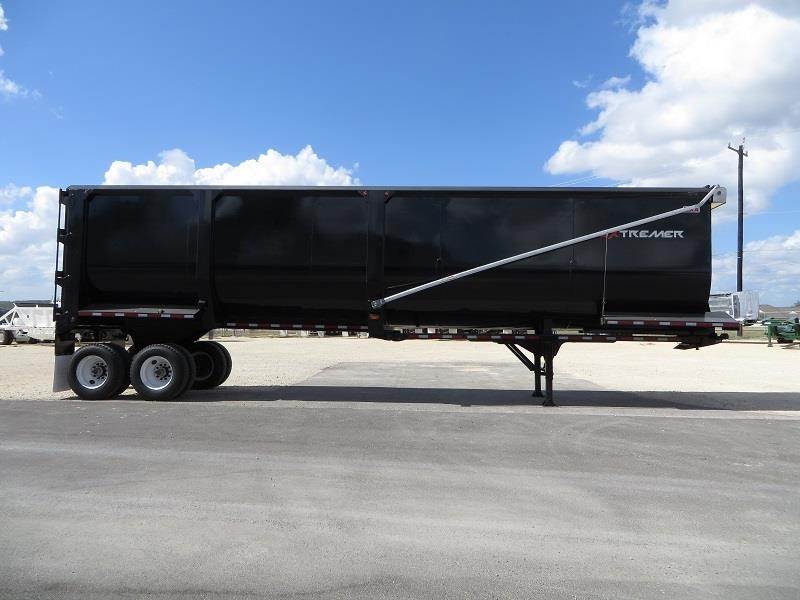

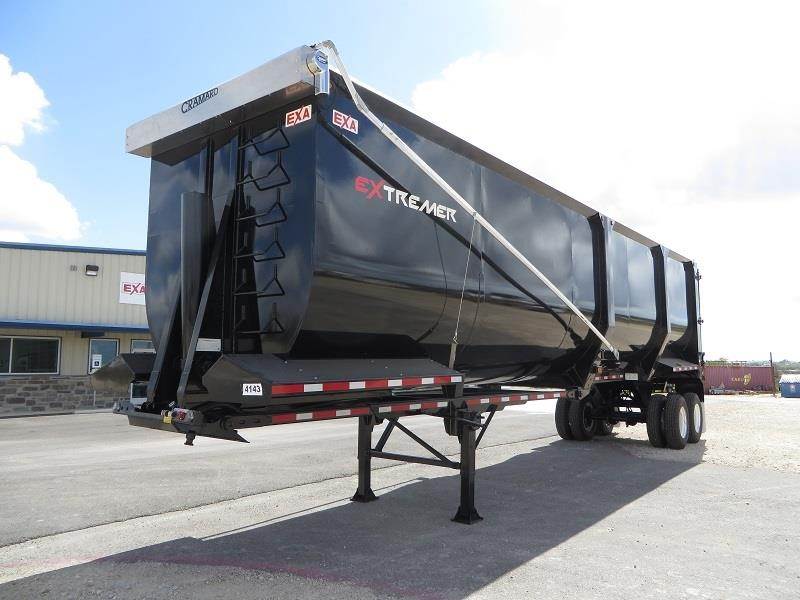

2025 EXA SCRAP/DEMOLITION FRAMELESS END DUMP End Dump Trailer

EXA Scrap/Demolition Frameless End Dump

**Tarp is optional, not included in price**

Capacity:   89 cu. yds.
Commodity:   Transportation of scrap, construction debris
Dump angle:   45 degrees, all 8 tires stay on the ground
Overall Length:   42 ft.
Height:   12 ft 4 in, 105" side walls
Width:   102 in.
Weight:   22,800 lbs
Hydraulic Dump Hoist:   8", 5-stage inverted trunnion mount by Custom Hoists. Front-mounted outside of bulkhead.
Suspension:   50,000 lbs Hutch- Single Point Tandem with Oscillating Trunnion Bushing
Body:   5mm Hardox 450 Steel (175 Ksi, 450 Brinell Hardness)
Top Rail:   4" x 4" x 1/4" tube with angle
Gate:   3/16" Hardox 450 Steel (175 Ksi, 450 Brinell Hardness). Barn Door style with hinges on the curb side, air operated bottom latch and integrated mud flaps
Front:   3/16" Hardox 450 Steel (175 Ksi, 450 Brinell Hardness)
Bracing:   1/4" High strength steel internally stiffened
Axles:   Two (2) 30,000 lbs. each axle with automatic slack adjusters and Stemco wheel ends.
Brakes:   16.5" x 7" brakes with 2S1M ABS
Landing Gear:   One (1) pair of Holland 2-speed landing gear
Upper Coupler:   Oscillating fifth wheel plate with Holland King Pin
Draft Arms:   5”x3”x1/4” Rectangular Tube
Tires:    Eight (8) 11R x 24.5 16 Ply
Wheels:    Eight (8) 8.25 x 24.5 Steel 10 Hole Hub Piloted
Access Ladder:   Steel front and rear ladders
Coating:   Two coats of polyurethane high-gloss on an epoxy primer (4-6 mils DFT)
Paint Prep:   All steel surfaces shotblasted and pre chem wash
Conspicuity tape:   3M Per DOT
Fenders:    Rear steel bolt-on
Full Dump Position:   Without lifting the front wheels
Lights:   Sealed harness and recessed Optronics GloLights LED per DOT and ICC
Mud Flaps   Two (2) Anti-sail attached to rear gate
Paint Color:   Available in a variety of different colors. Standard paint colors: White, Black, Gray
Option- Wheels:    Aluminum
Option- Length:   Custom capacity (ex. 40ft long; 100" sides, 87 cu yds)
Option-Side walls Height   84"-105" side walls (65-99 cu yds)
Option- Frame:    Quarter frame
Option Tarp:   Cramaro electric or manual options
Option- Fenders:    Aluminum or steel front fenders
