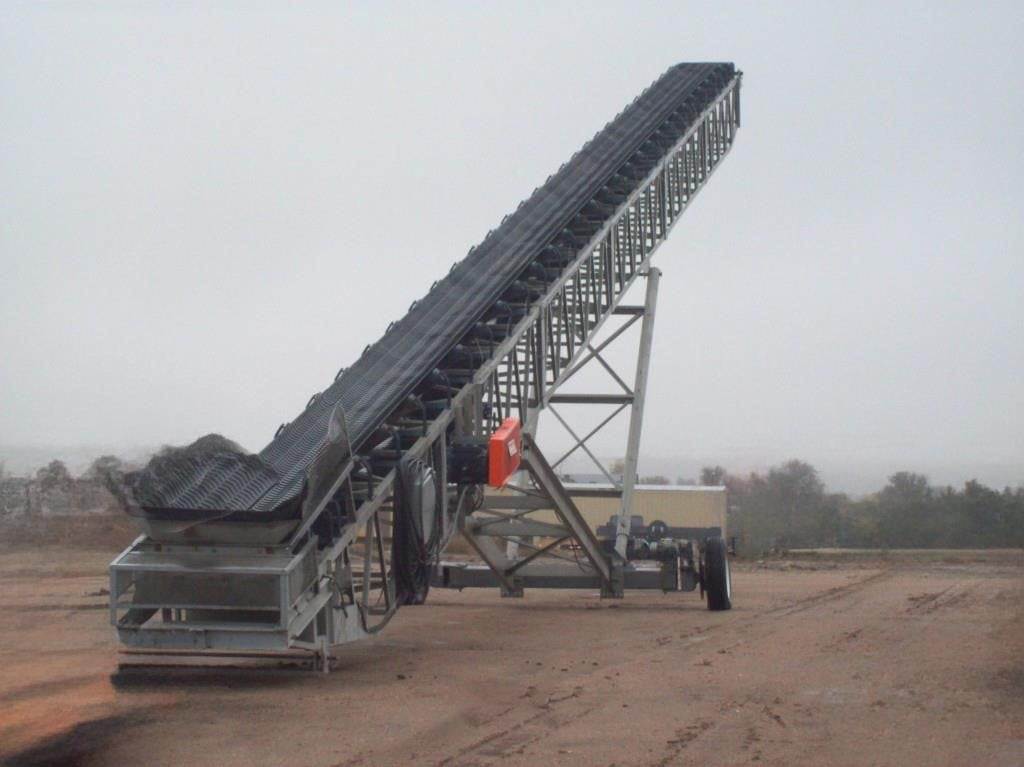

2024 Earthworm Conveyors 3x100 Conveyor

Grasshopper Stacker/Jump Conveyor
3 x 100

These Heavy-Duty Grasshopper/Jump Conveyors Are Proudly Manufactured Here In The USA and Come
With A 2-year Warranty. Hundreds Have Been Sold, Making This A No-Drama Product.

36'' Wide X 100' Long
 36” Deep Truss
o 3 x 4 x 5/16 Cord Angle
o 2 x 2 x 1/4 Lattice
 10 x 10 Tubing Axle, 20” Tires Recapped
o Reduced Angle Undercarriage
 Adjustable Pipe Legs
 Lagged Head
o 16” Dia.
o 2 15/16 Shaft
o Ball Bearings
 Plain Drum Tail
o 14” Dia.
o 2 15/16” Shaft
o Ball Bearings
o Screw Take-ups
 Reducer
o World Wide SMR#5-15
o Motor Mount
o Belt Guard
 Electric Motor
o 20 hp, TEFC
o 1800 RPM
o 230/460V – 60 Hz
 Idlers
o 5” x 35 deg., CEMA C Top Rollers on 48” Centers
o 5” Returns w/Brackets, 10’ Centers
 Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
o Stainless Splice
 48” Receiving Hopper w Skirt Rubber + 1’-0” Extensions
 Pintle – “Eye” Hook
 Tail Guard
 Primed & Painted, Tool Steel Gray
PRICE………………………………………………………………………………………………….…………...$ "Very Competitive"
Transport At Cost………………………………………………………………………………………………..$ INC

Options:
 Back Stop
 Belt Scraper
 3 Ply Belt
 GALVANIZED
700 tph – 70 pcf – up to 10 ft lift
