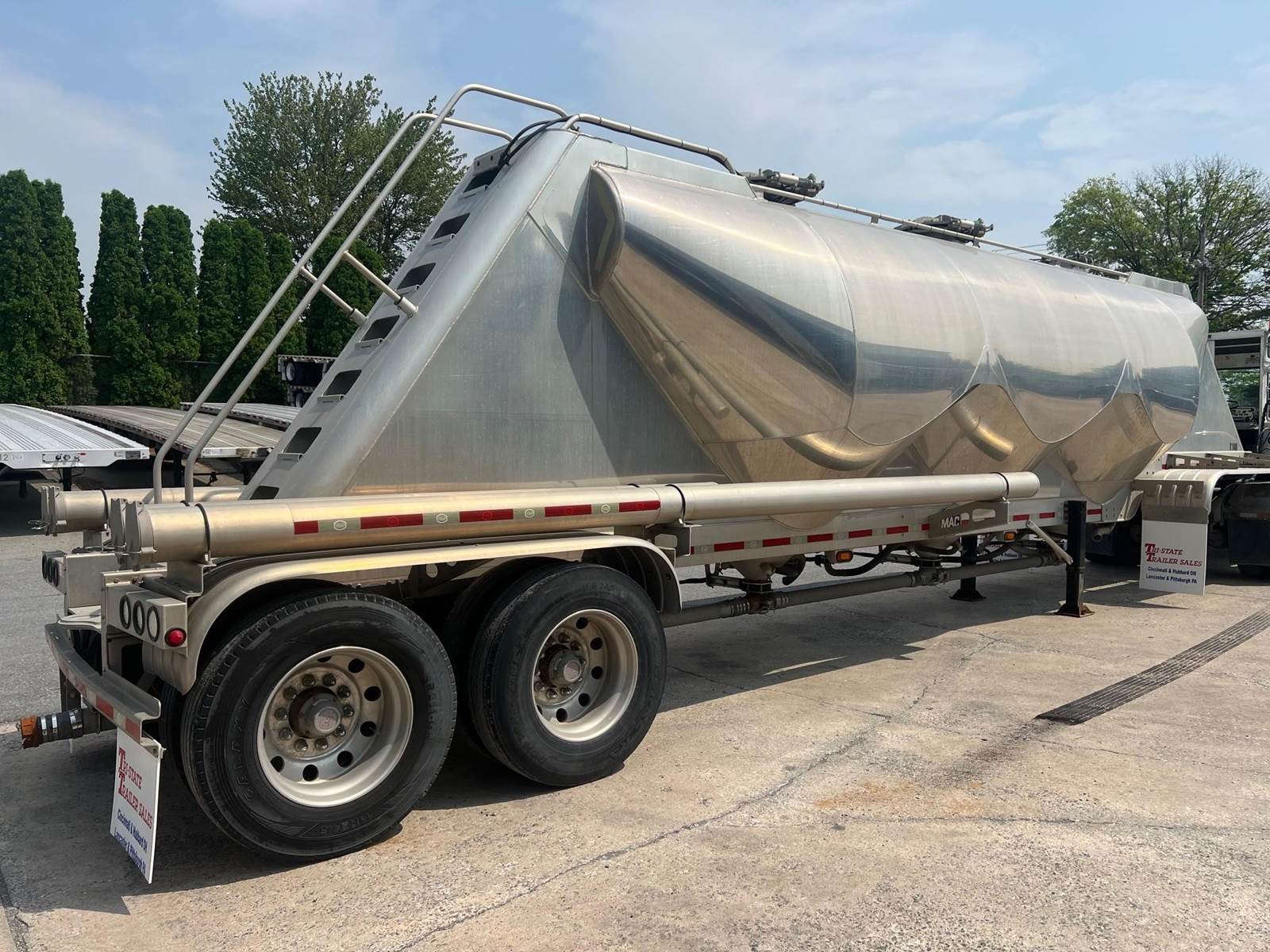

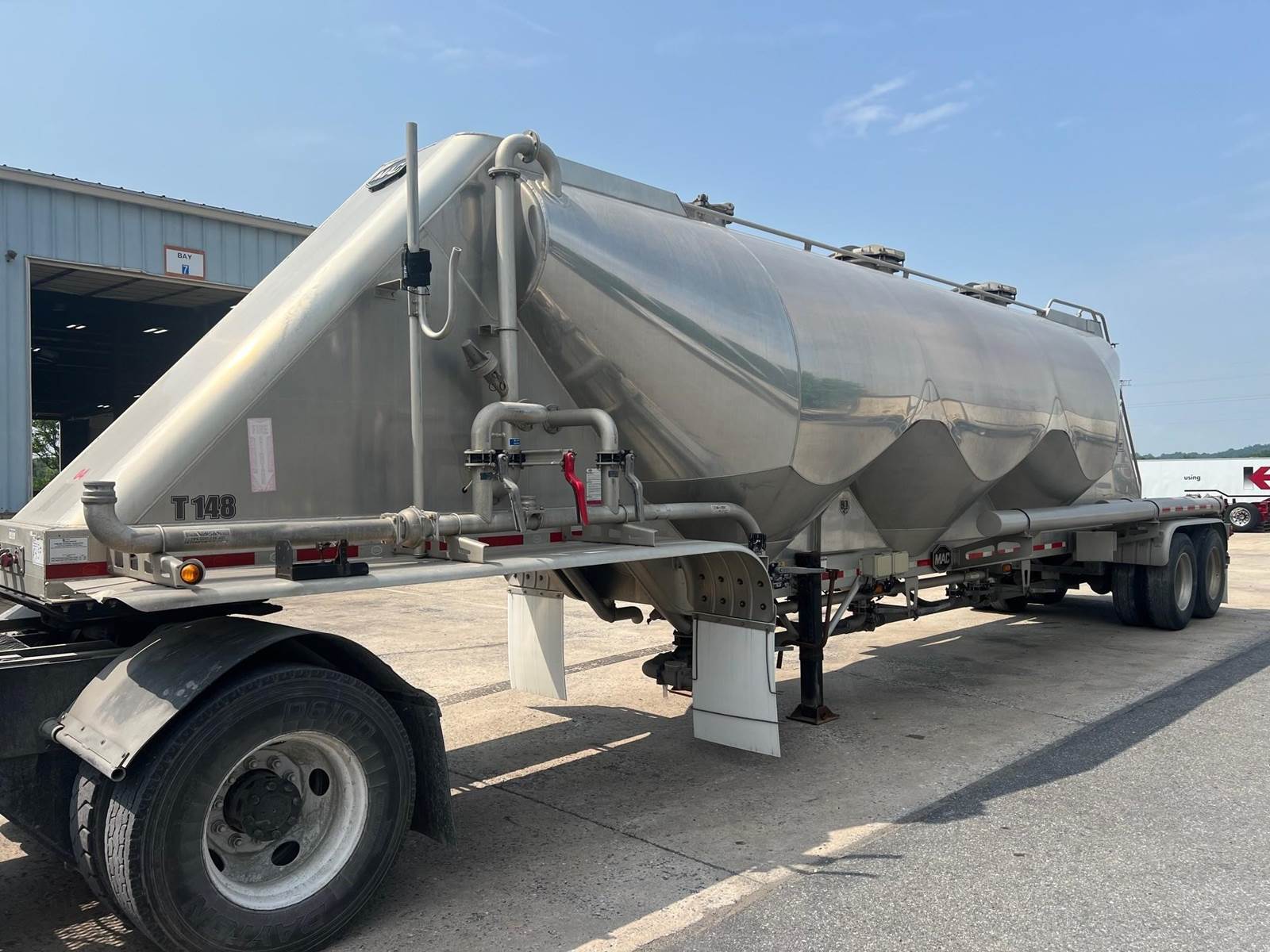

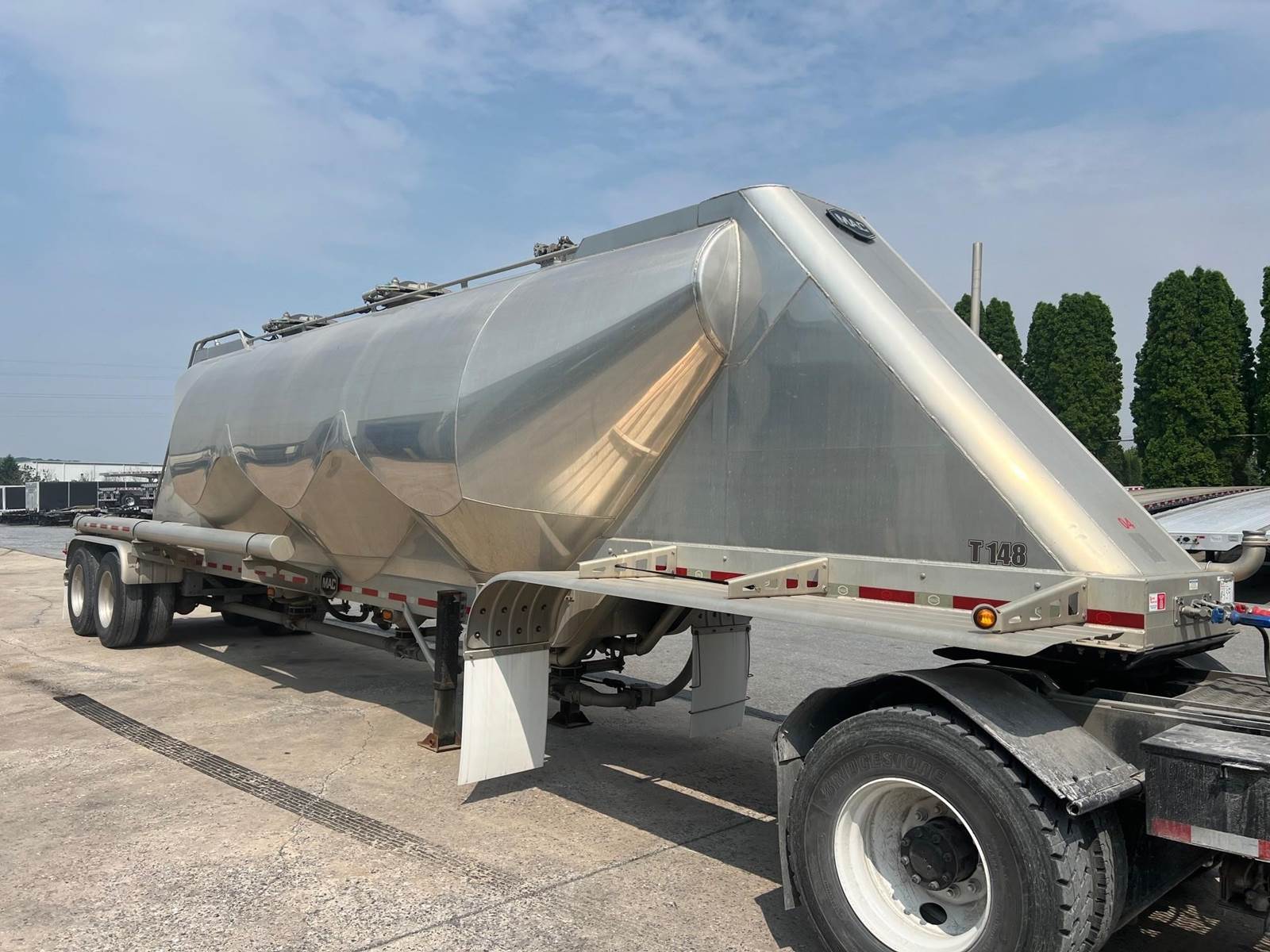

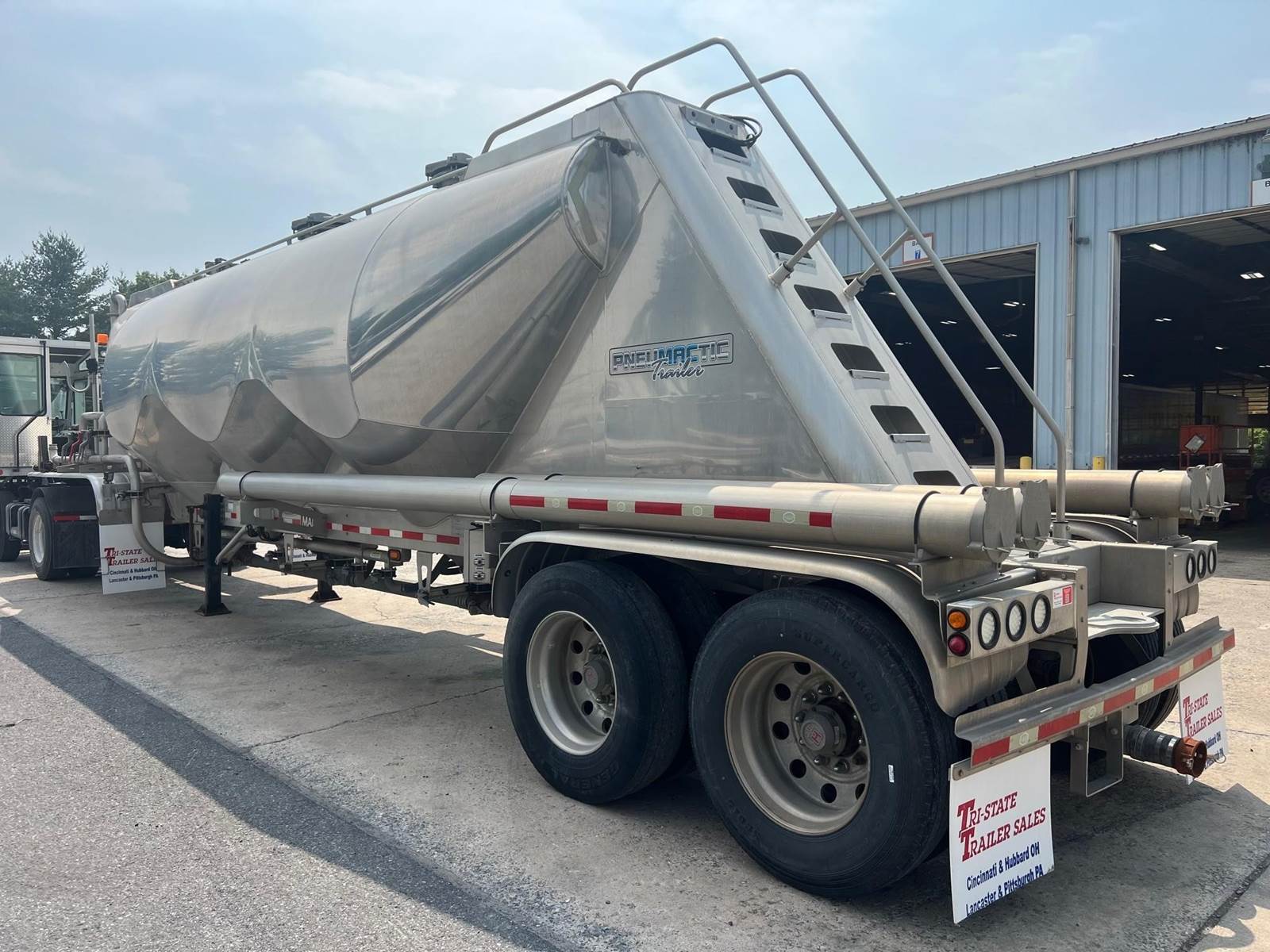

2019 MAC 1050 CUBIC FOOT - 2 AIR LIDS Dry Bulk / Pneumatic Tank Trailer

Length 42'
Width 96"
Inspection Out
Body Tank
Total Capacity 1050 Cubic Feet
# of Hoppers Three Hopper
End Frames Aluminum
Manholes 3 - Middle & Rear Air Lids
Barrel Material Aluminum
Barrel Condition Good
Product Hauled Cement and Frac Sand
Body Pipe
Aeration Flow Cone
Piping Steel
Tees Steel with Gravity Drop
Rear Discharge Steel - Straight Pipe - Under Axles
Top Air Yes
Body-Accs.

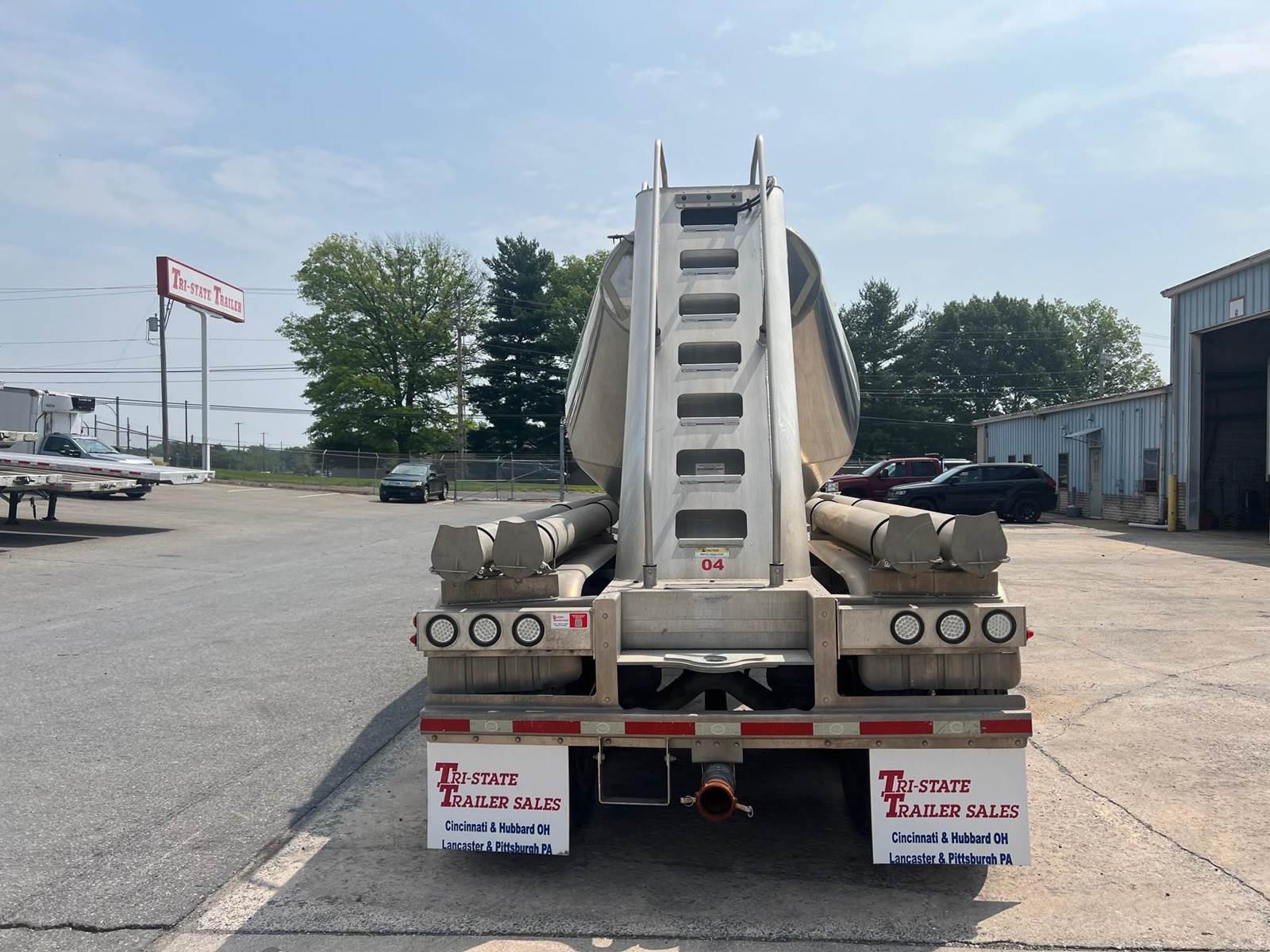

Ladder Rear
Hose Tubes 4 - 2 each side at rear
Fenders Contoured

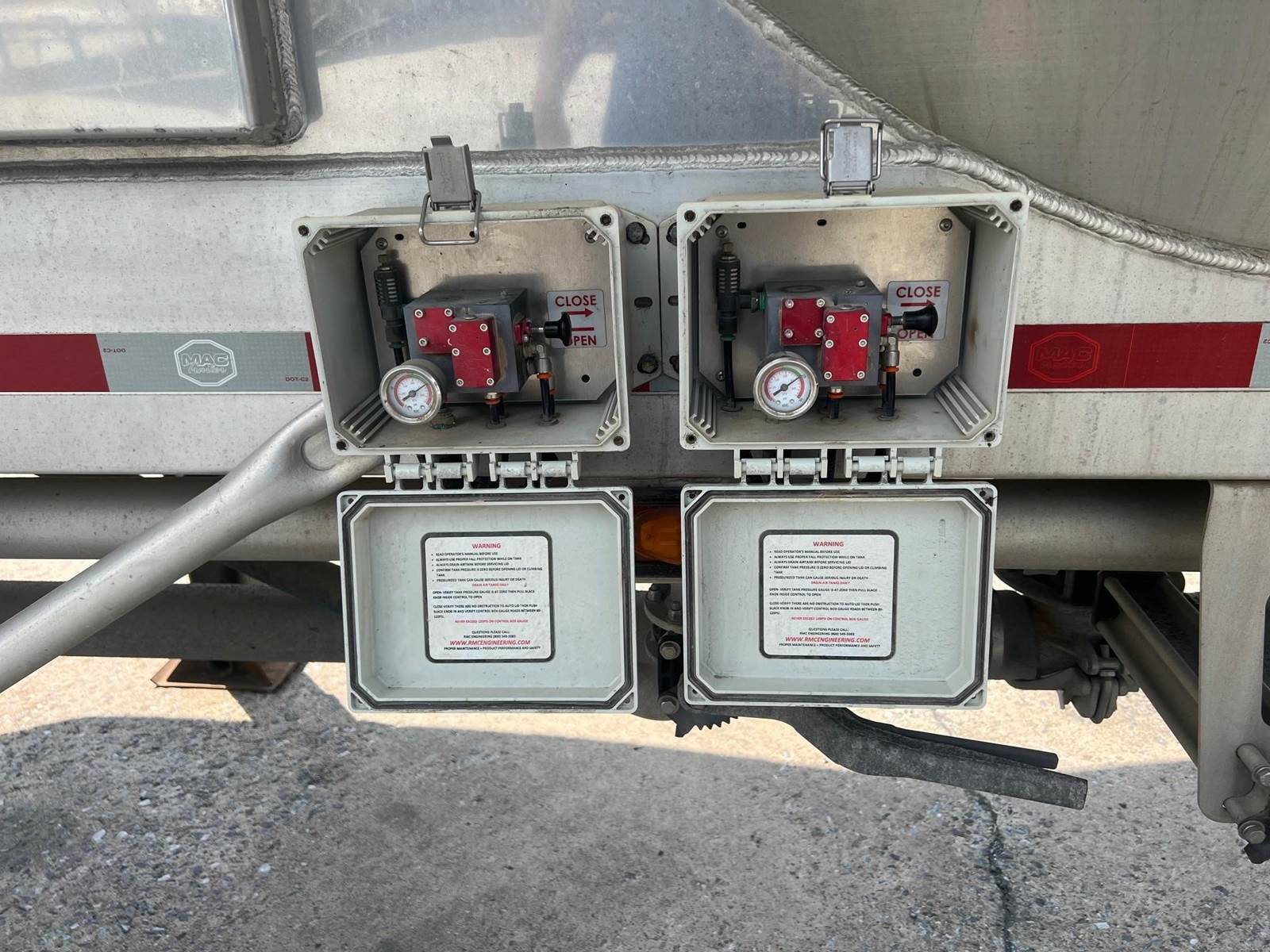

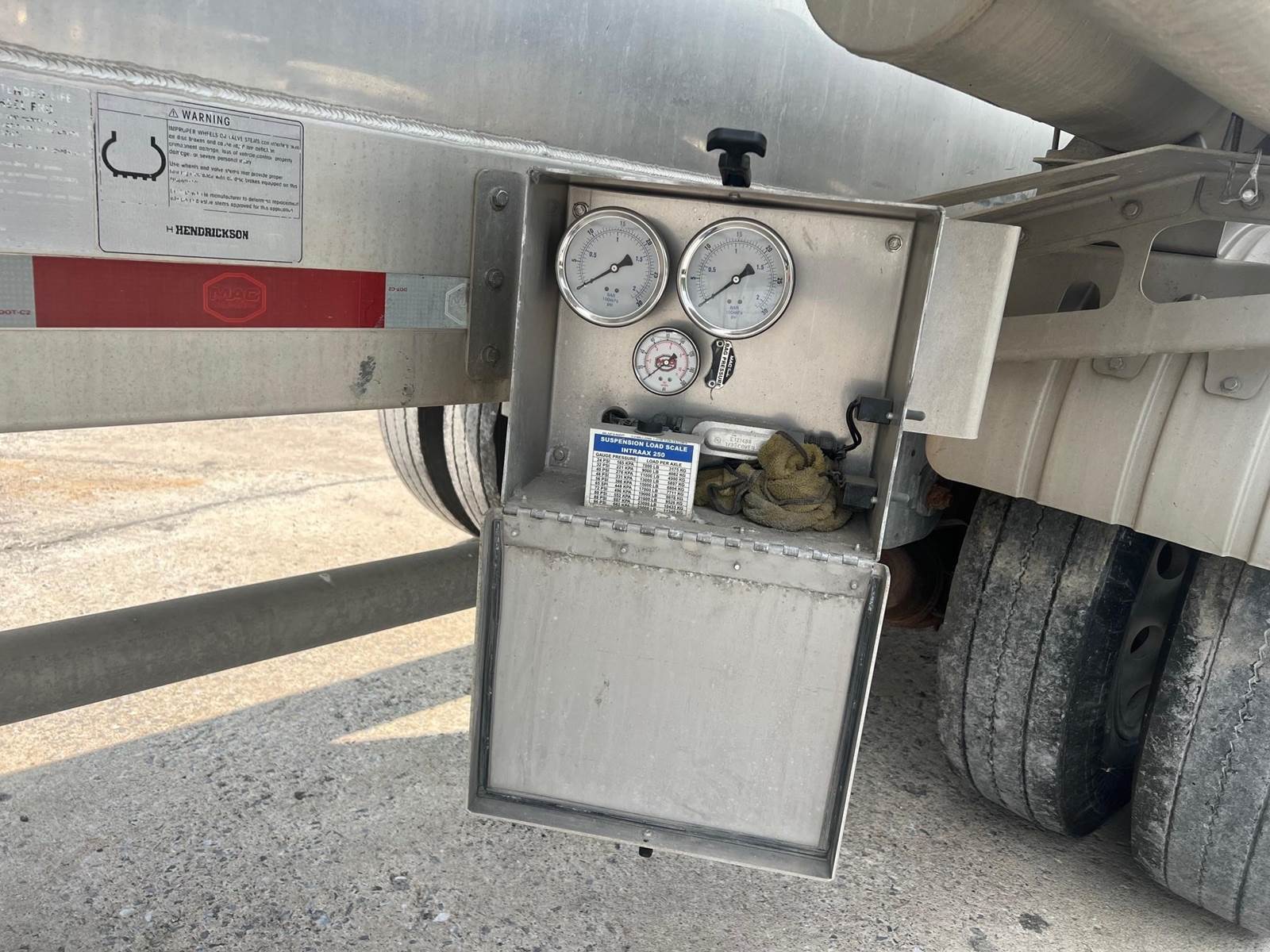

Gauges Inside Cabinet on Front of D/S Rear Fender
Spot Lights Roadside
Rear Light Pkg (3) Stop/Tail, (3) Clearance
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson AAT230-RC with Raised Center Axles
Suspension Setting 49" Fixed Tandem
Tire Size 11R24.5
Tire % 4-40% 4-80%
Wheels Aluminum - Hub Pilot
Brake % 35%
UnderFrame
5th Wheel Condition Good
Landing Gear Two Speed

*Tank Holds Air Pressure*
Air Leak in Discharge Line at Bend in Front of First Tee & Rear of 3rd Tee.
(May need new discharge line, new Tees or both at each location)
