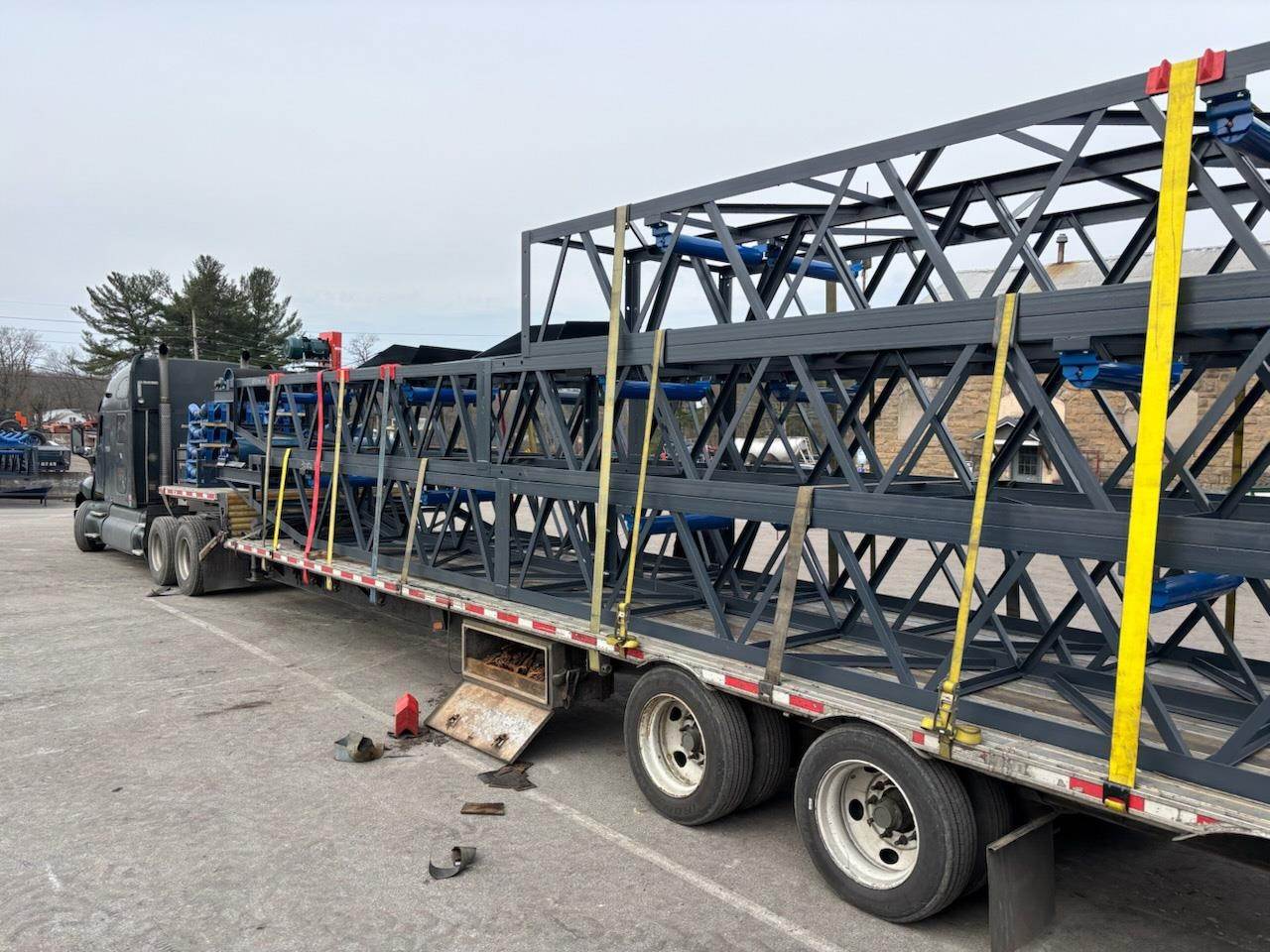

2024 EARTHWORM CONVEYORS 30x50 Conveyor

PIT PORTABLE RADIAL STACKER

30” x 50’

•   36” Deep Truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice
•   Heavy Duty Undercarriage, 8x8 Tubing Axle, 16” Regrooved Tires and Rims
•   Lagged head 16” Dia., 2 3/16” Shaft & Ball Bearing
•   Winged Tail, 2 3/16” Shaft & Ball Bearings w/Screw Take-ups
•   World Wide #3 Drive, Motor Mount, Belt Guard
•   7.5 hp, TEFC, 1800 RPM, 230/460 volt
•   Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
•   Pioneer, 5” Returns w/Brackets, 10’ Centers
•   Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
•   48” Load Zone w/Skirt Rubber
•   Pivot Plate, Tow Hook
•   Tail Guard
•   Primed & Painted, Tool Steel Gray, Unless Specified Differently.
Proudly built in the USA with American parts and materials.
FINANCE, TRANSPORT AND SHIPPING WORLDWIDE AVAILABLE
