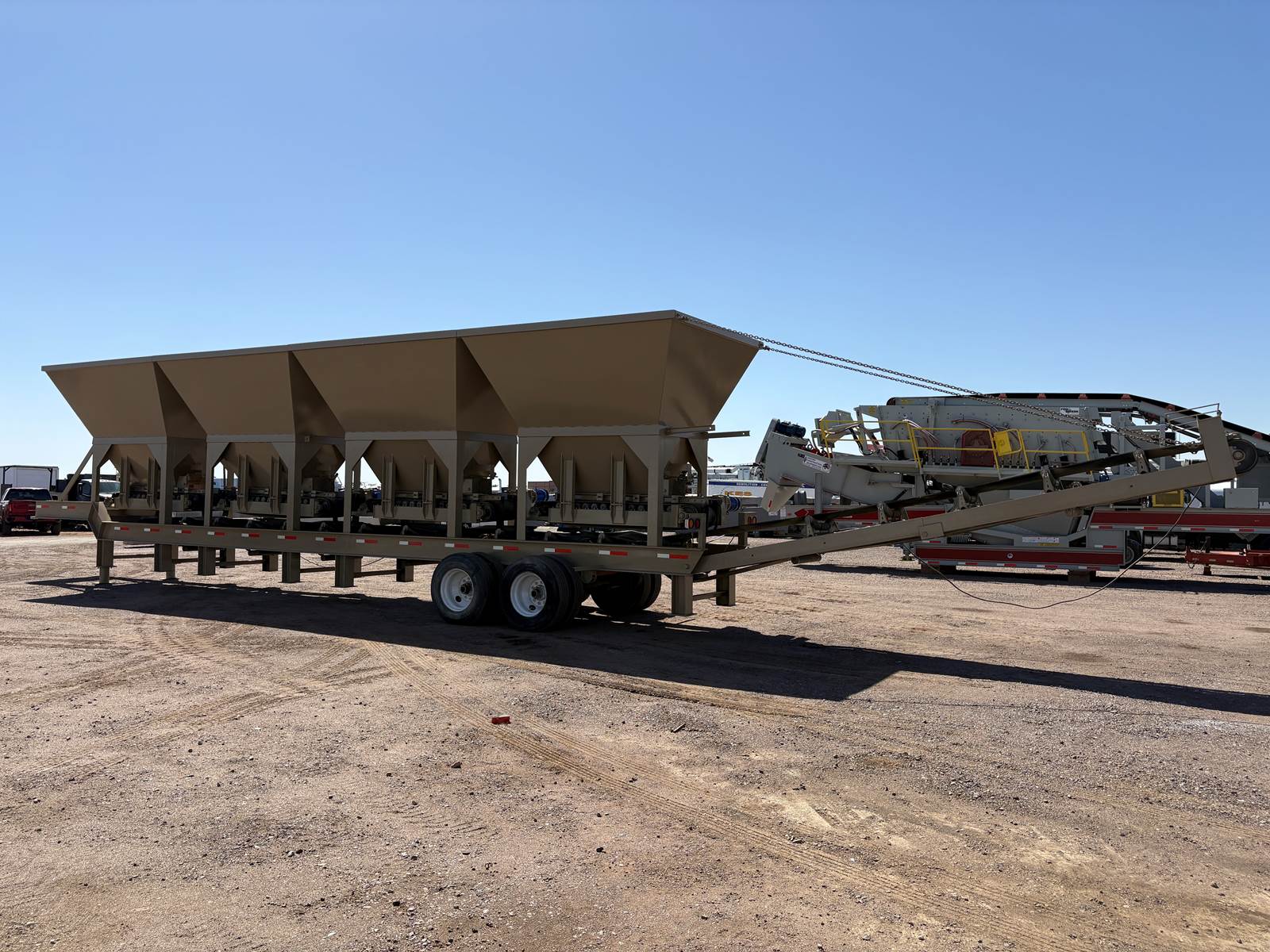

For Sale: Unused Portable 4 Bin Blending Hopper
Hopper Details: Estimated Capacity: 11.5 cubic yards (per bin). 1/4" thick steel. Dimensions: - Top: 11’ (LT) x 9’ (WT) - Bottom: 5’ (LB) x 18” (WB) - Height: 7’
Belt Feeder: - 24” x 8’ 3-ply belt with a ¼” topper. - Rubberized head pulley. - 11” self-cleaning wing tail pulley. - 13 PPI idlers below hopper.

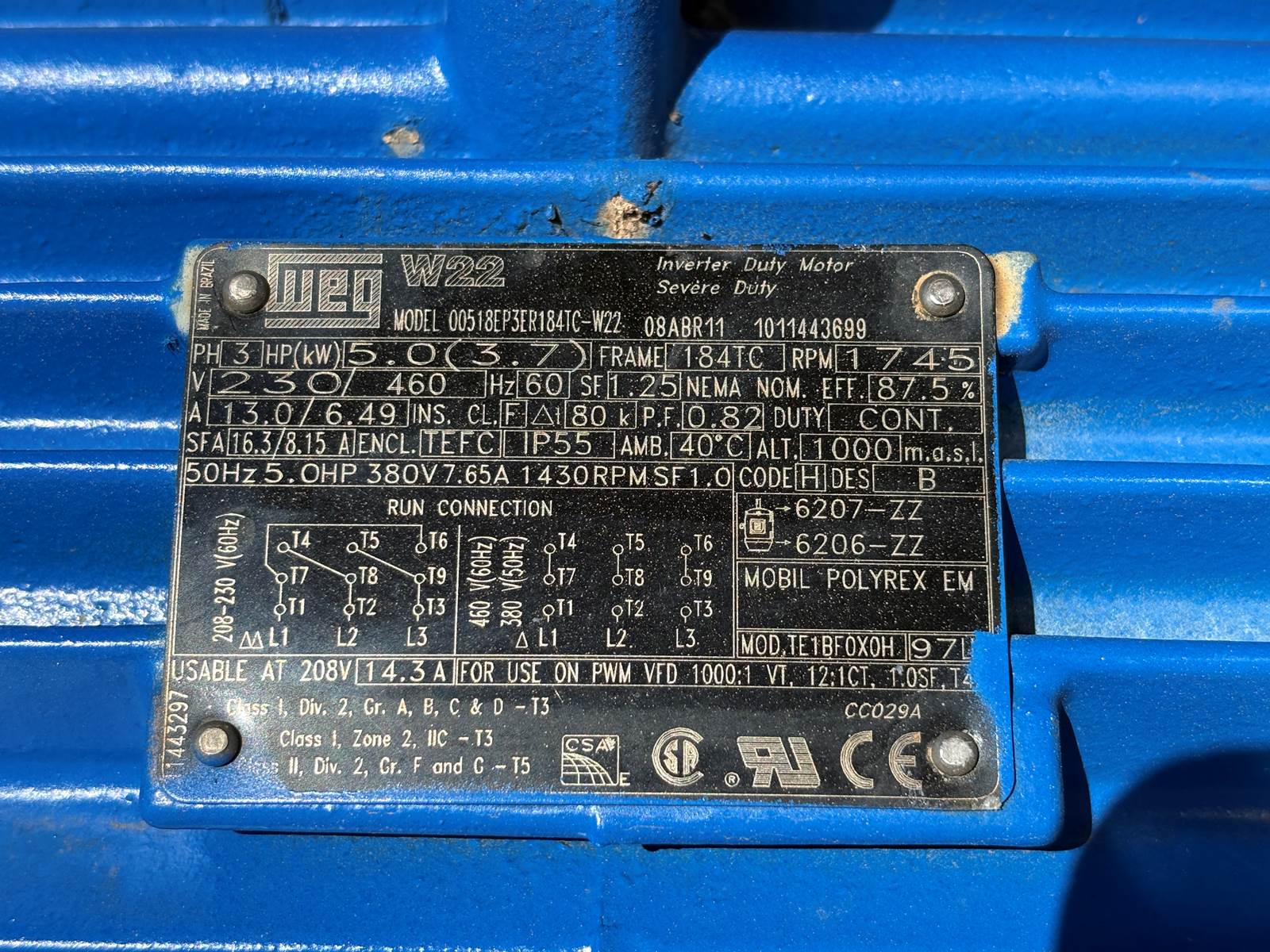

Drive System: - WEG 3-Phase 5HP 1745RPM electric motor. - Nord Drivesystems direct drive, 45.05:1 reduction ratio. - Manual adjustable discharge gate.
Main Belt: - 30” x 59’ 3-ply belt with a ¼” topper. - 20 degree angle idlers with 4” diameter. - 13” self-cleaning wing tail pulley.
Drive System: - WEG 3-Phase 10HP 1750RPM electric motor. - Nord Drivesystems direct drive, 15.20:1 reduction ratio.
Switchgear: - Four (4) WEG CFW 08 Vector Inverter Plus units with variable speed dials. - Dial panel includes seven dials in total, allowing for additional variable speed drive options if needed.
Transport Dimensions: - Length: 55’ - Width: 9’ - Height: 13’ 6” - Estimated Weight: 50,000 lbs - Eight (8) new tires will be installed prior to transportation.
Location: Phoenix, AZ
