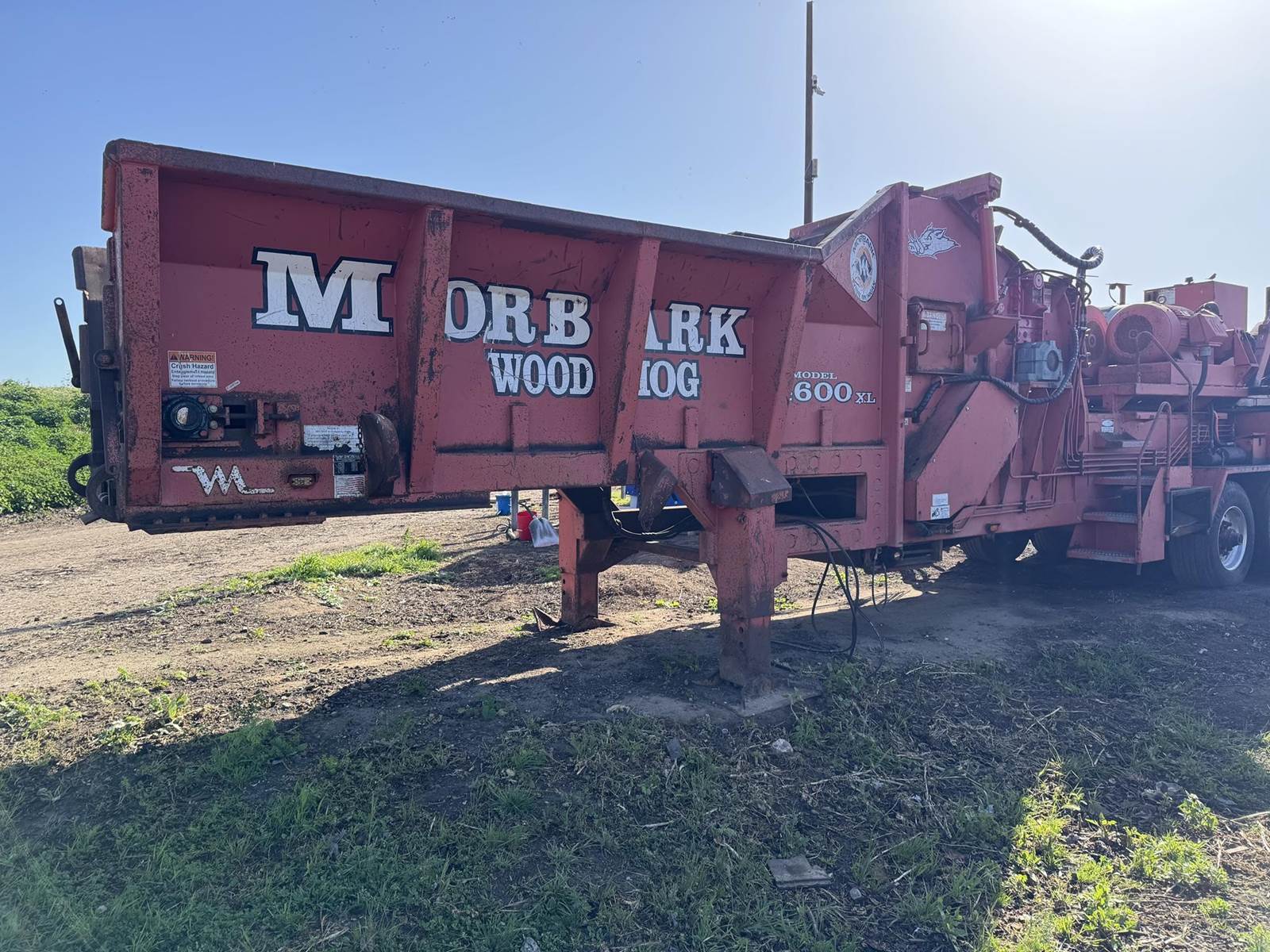

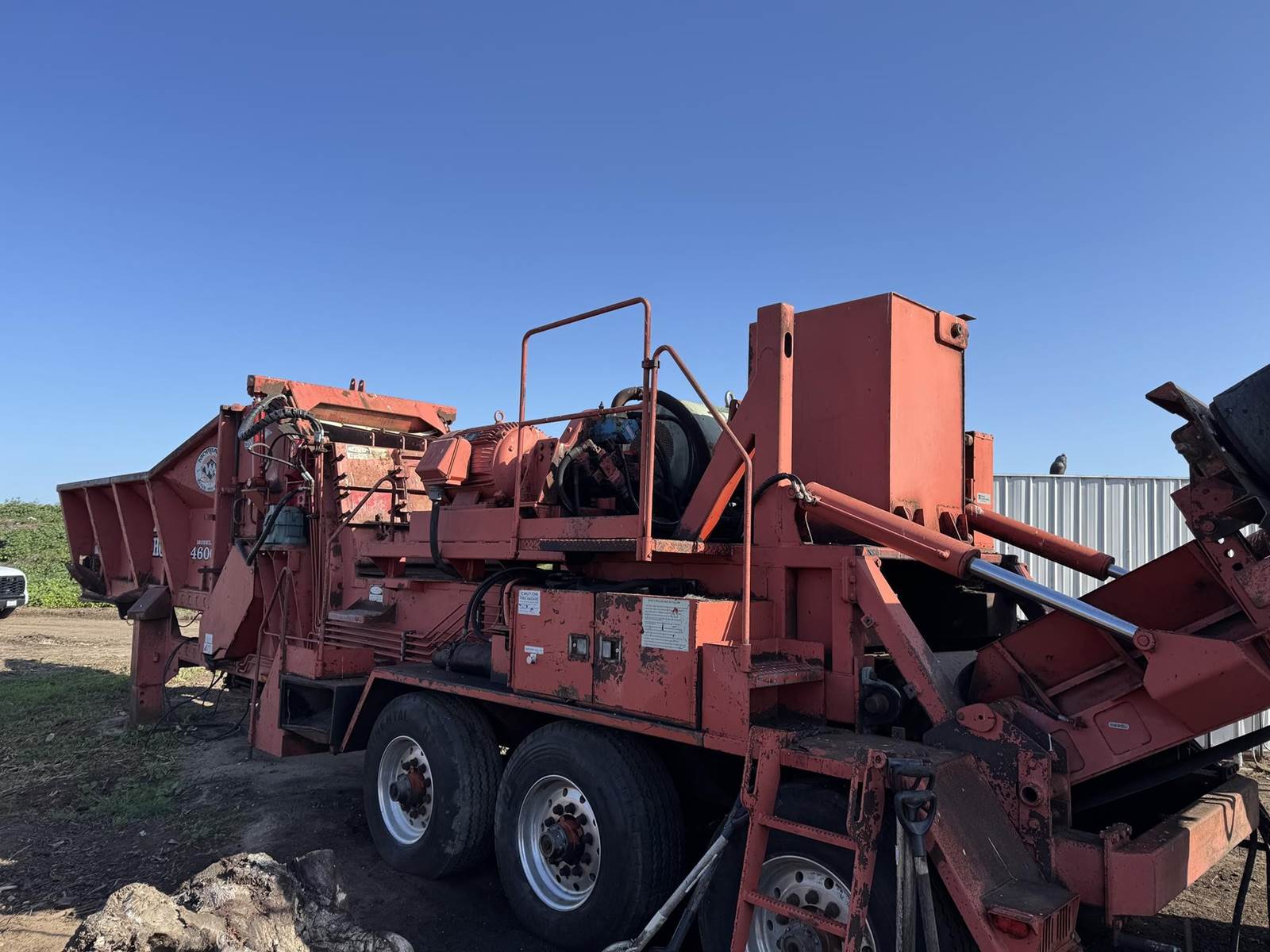

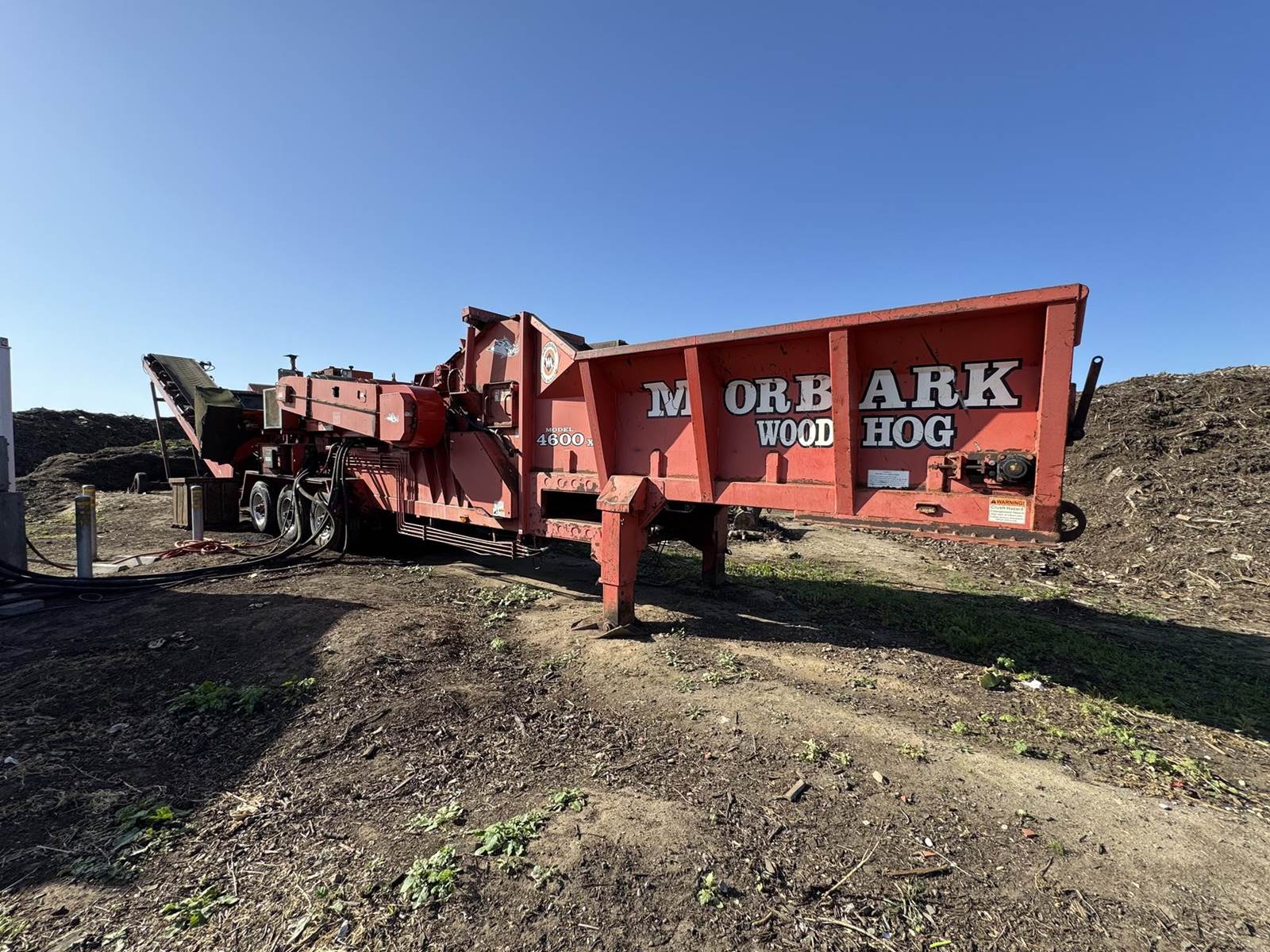

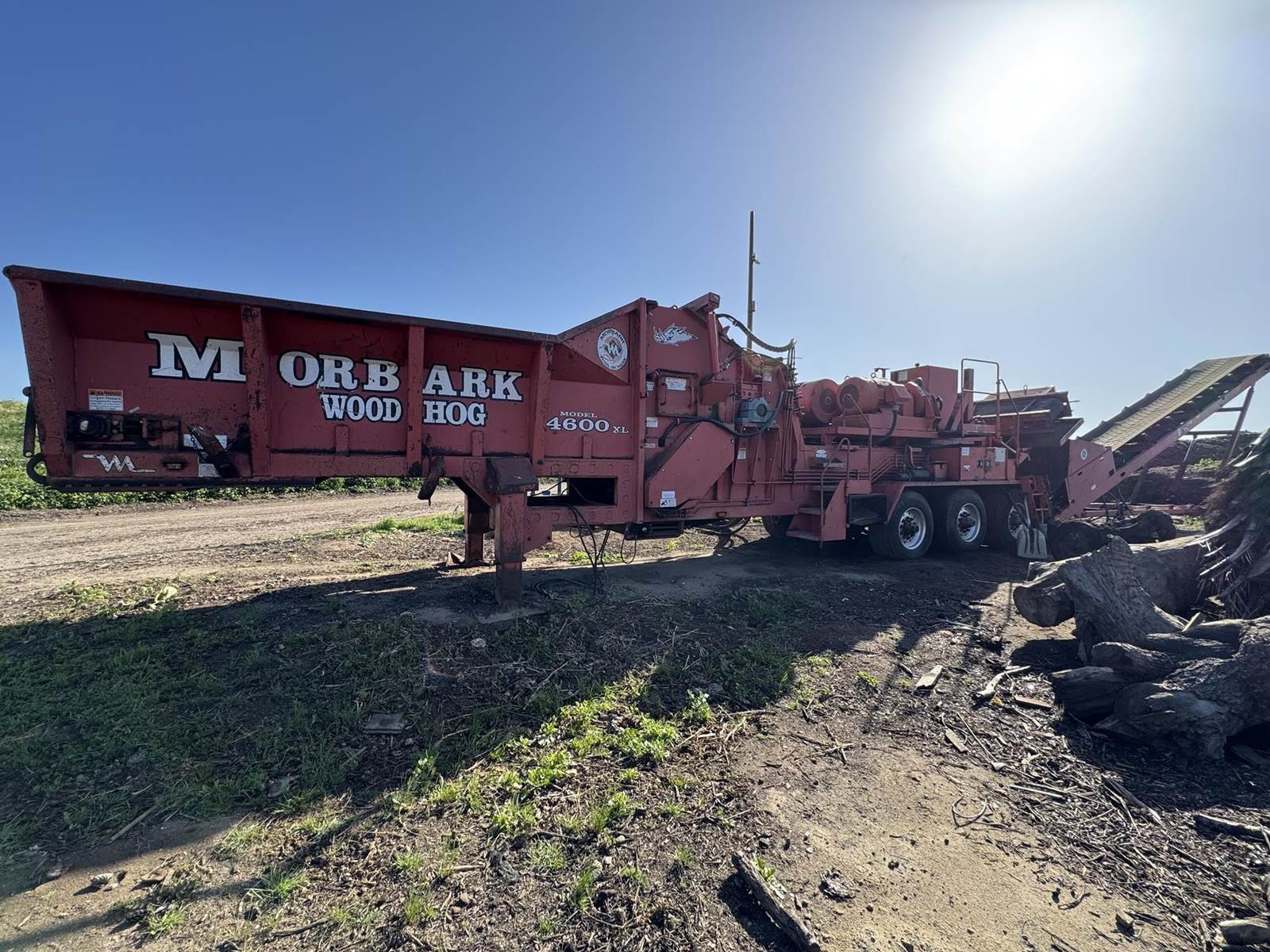

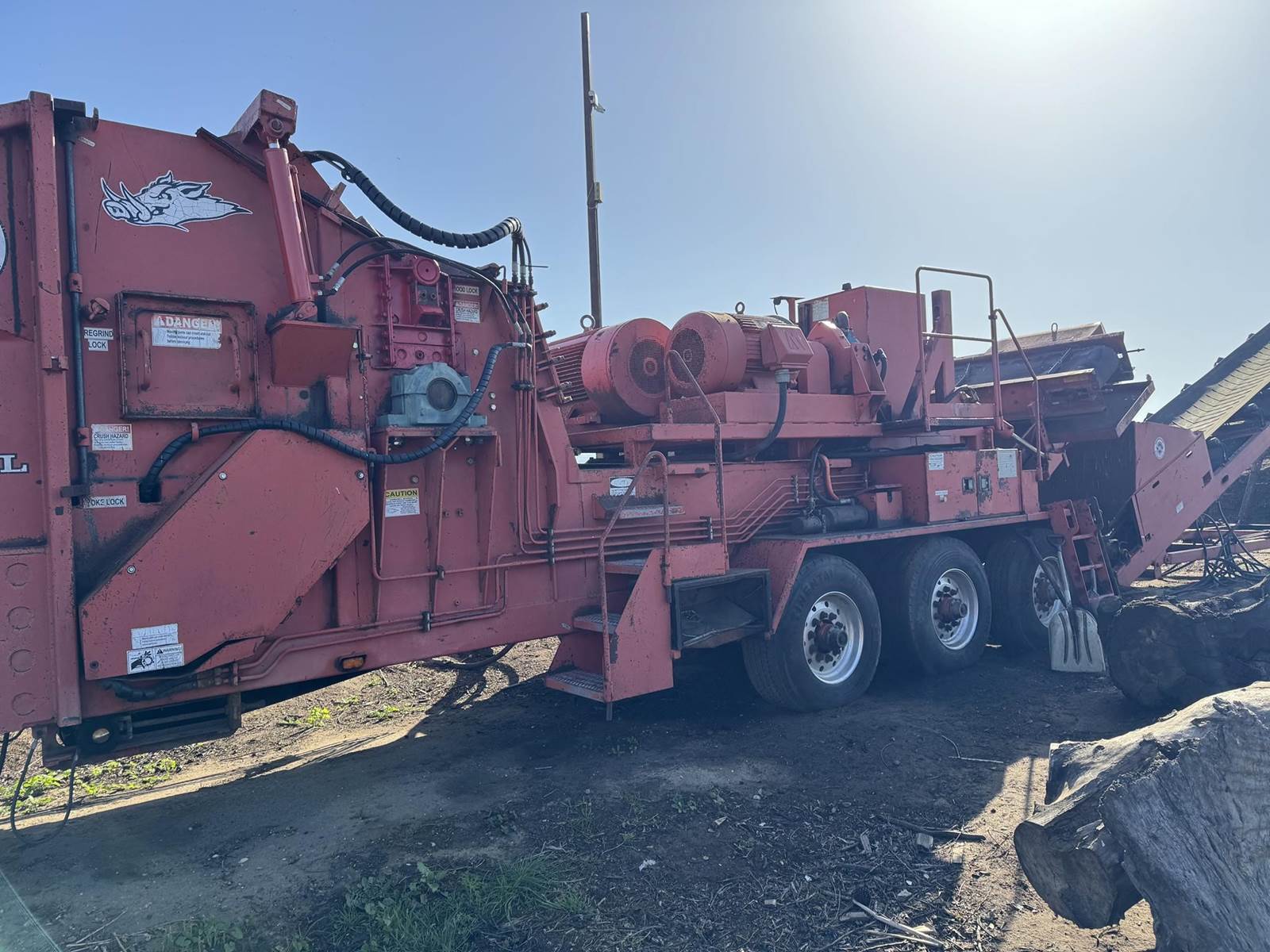

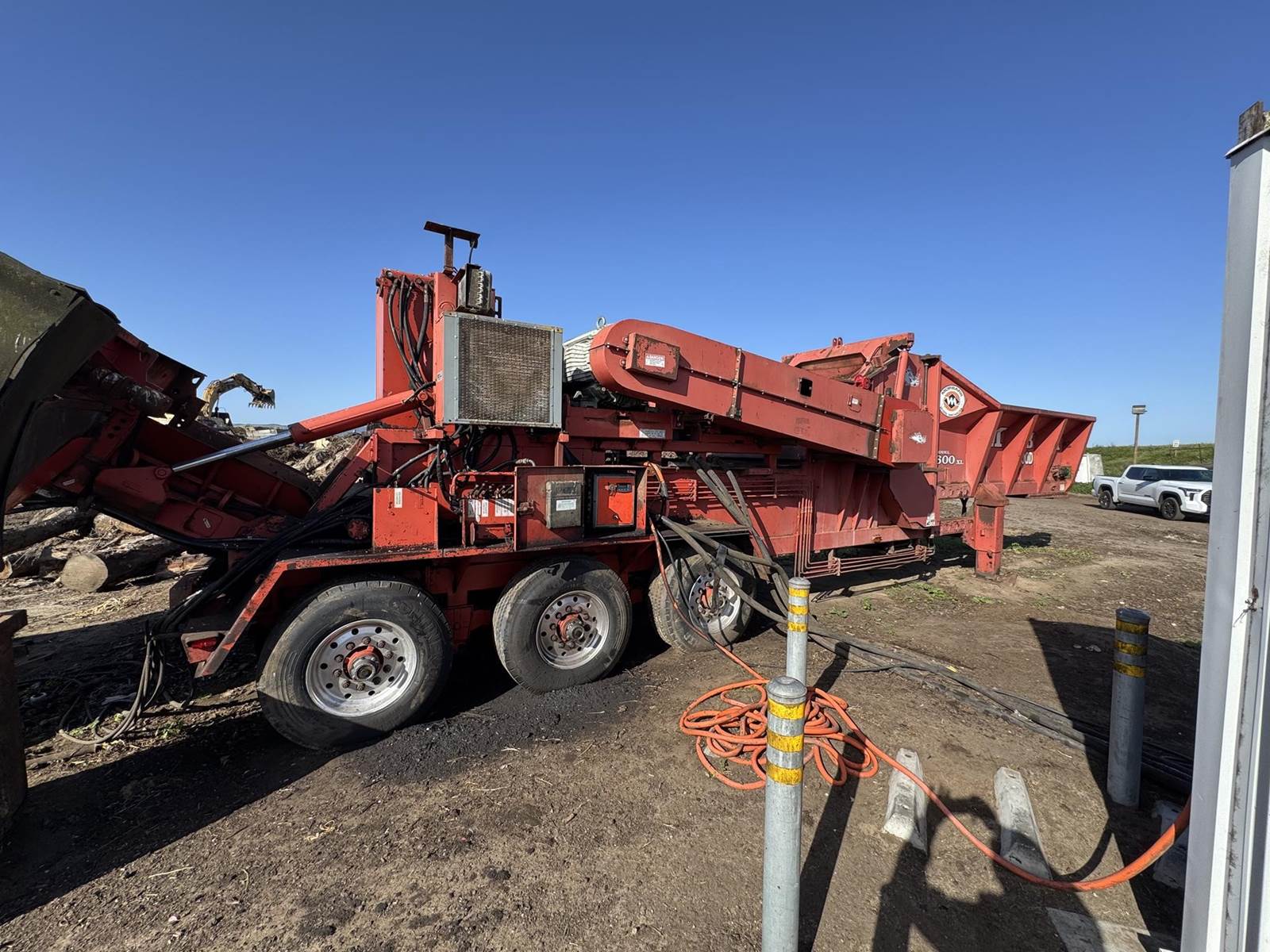

2004 Morbark 4600XL Horizontal Grinder

2004 Morbark Model 4600XL Electric Wood Hog with fresh rebuild
LOCATED ON THE CENTRAL COAST, CALIFORNIA *NOT LOCATED IN TULARE*
Current hours 7,470
Rare find, ELECTRIC Morbark grinder, includes all Western plains electronics, building, discharge
conveyor and 4600XL grinder. This unit is well taken care of and just had a major overhaul done on the
hammermill, including new shaft, bearings, all side plates, drive belts and just installed a new feed floor.
This unit is ready for its new home. Located on the Central Coast of CA, this unit is available to demo for
its new owner.

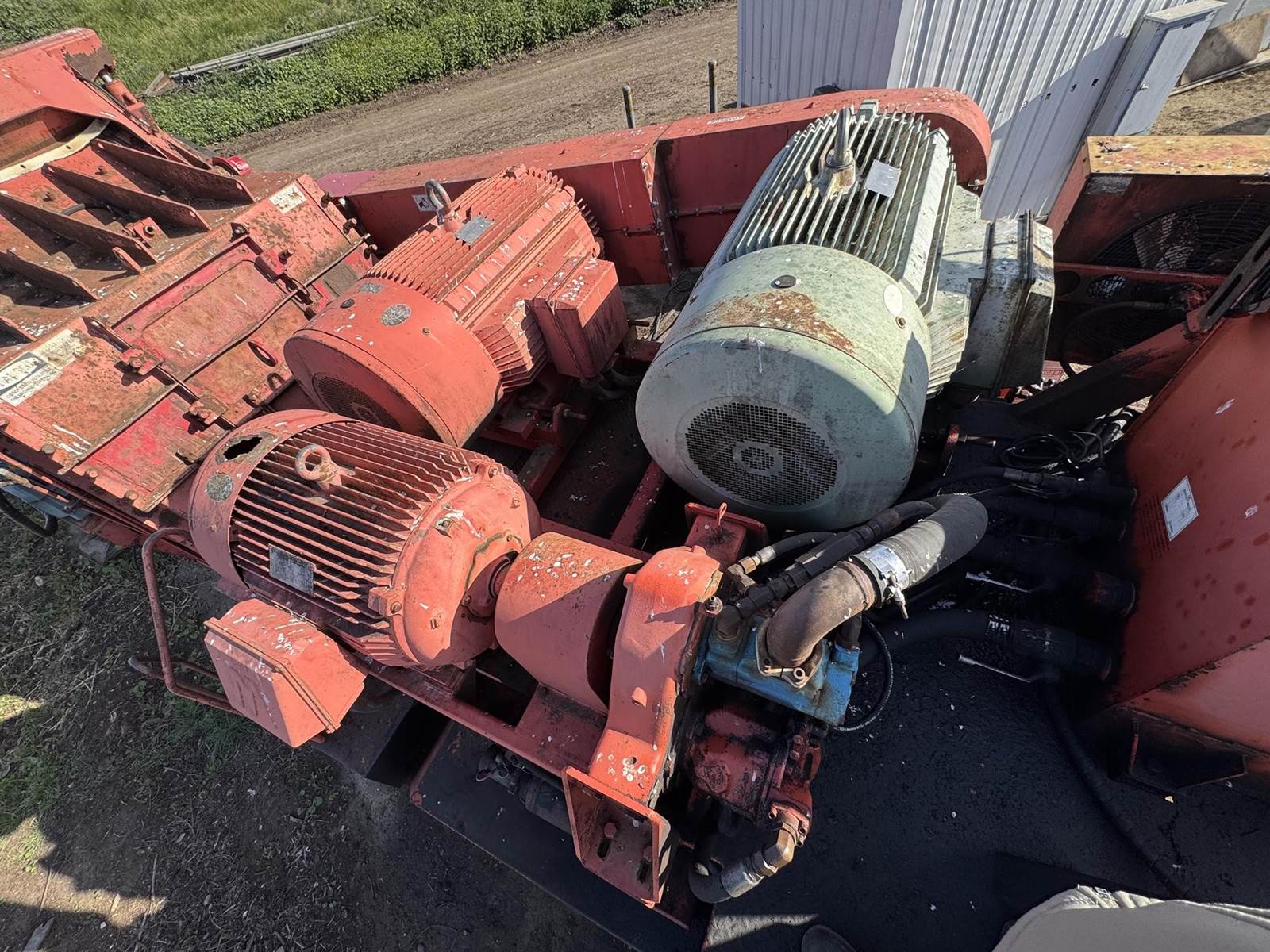

- Mill Drive with Dual 400 HP Electric Western Motors
- Auxiliary Drive 150 HP Western Motor
- Includes
o Cross Belt Magnet
o Brunnel Torque Limiter

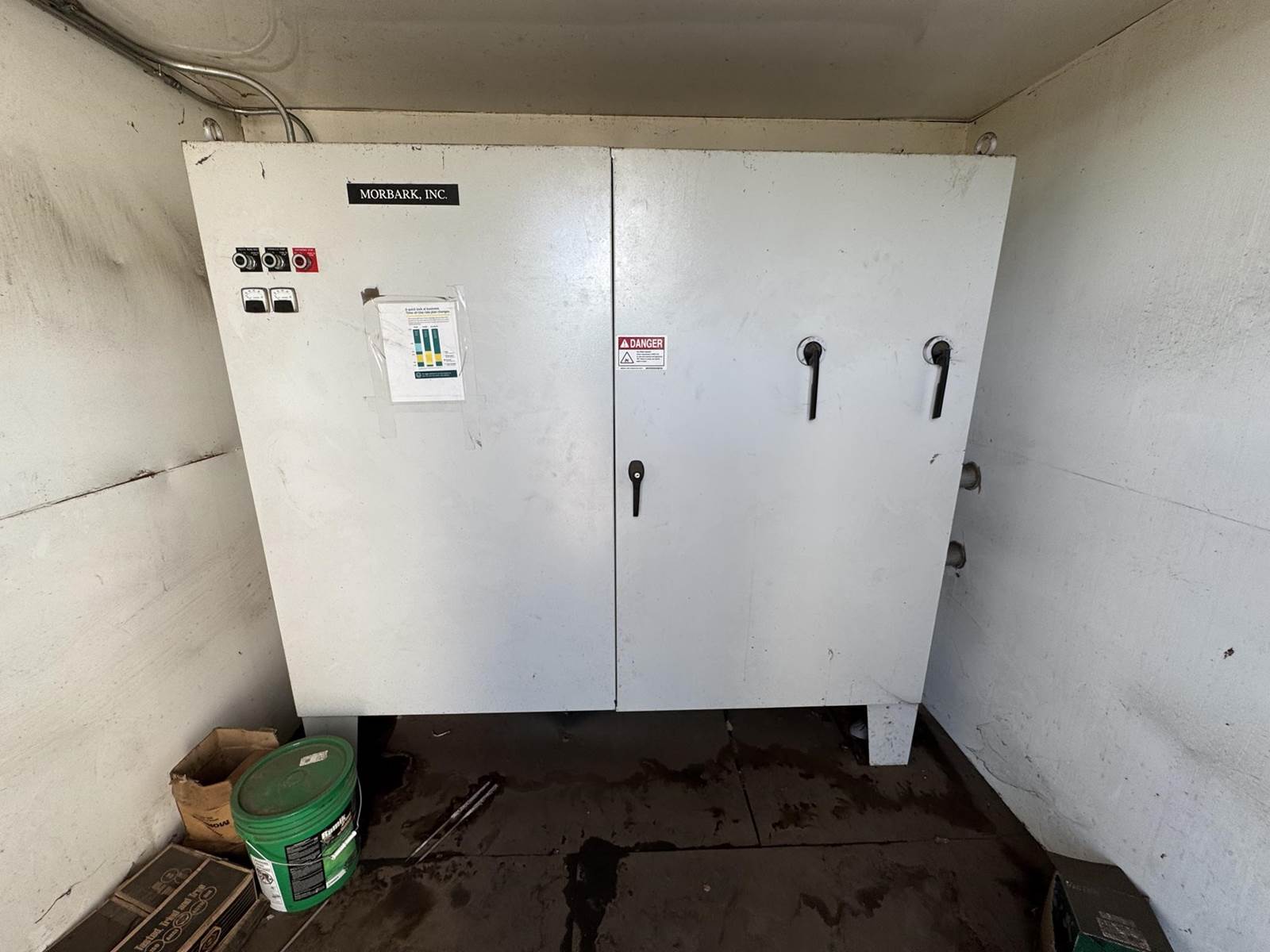

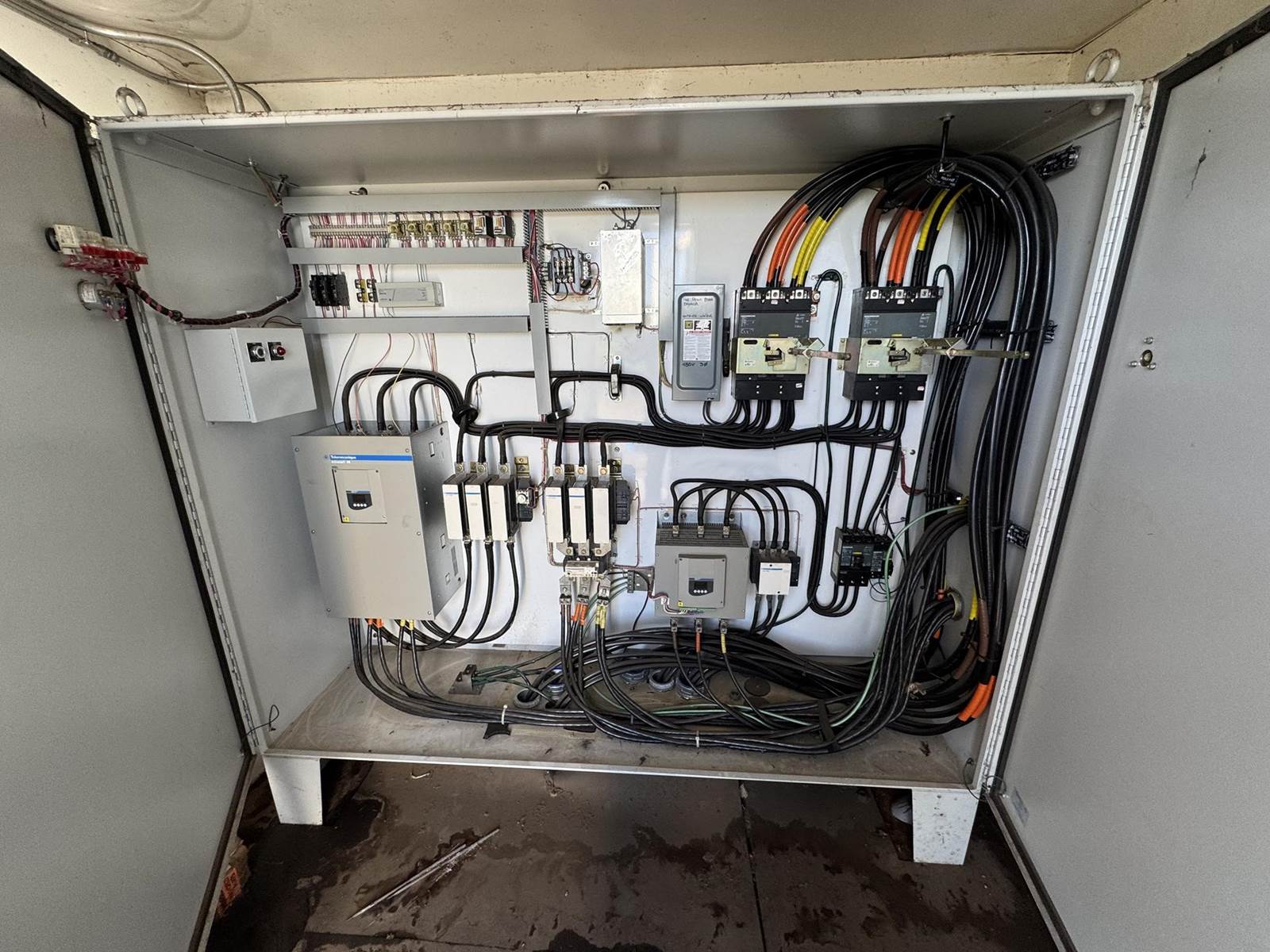

o Western Plains Electric Motor Control Center
 10 x 10 insulated Skid Mounted Enclosure
 (Total service is 1,400 amps)
 800 Amp Main Breaker
 600 Amp Main Breaker
 Soft Tronics 400 HP Soft Start
 Wye Delta 150 HP Soft Start
 Additional 15KVA 480 V Transformer and attached breakers

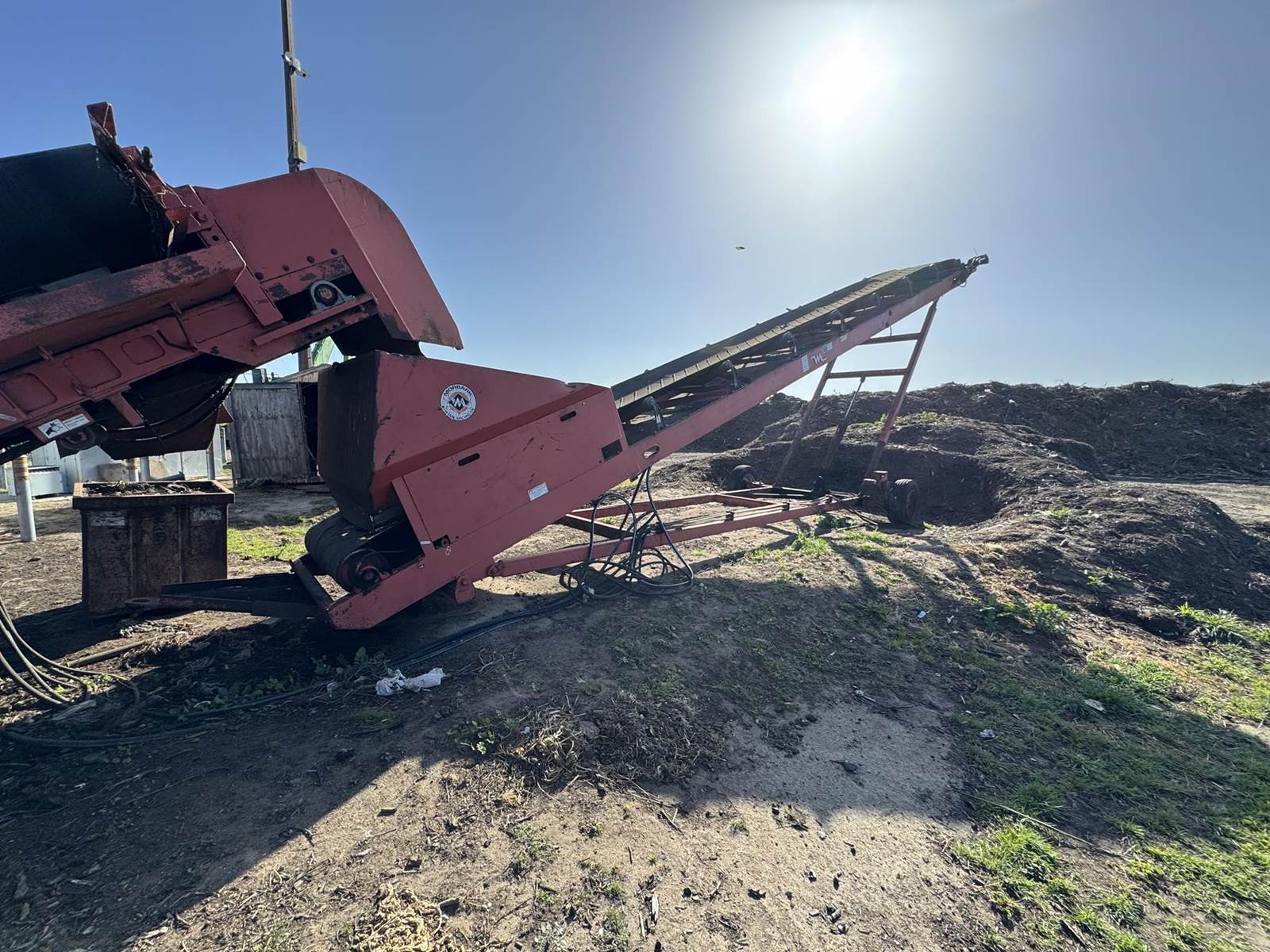

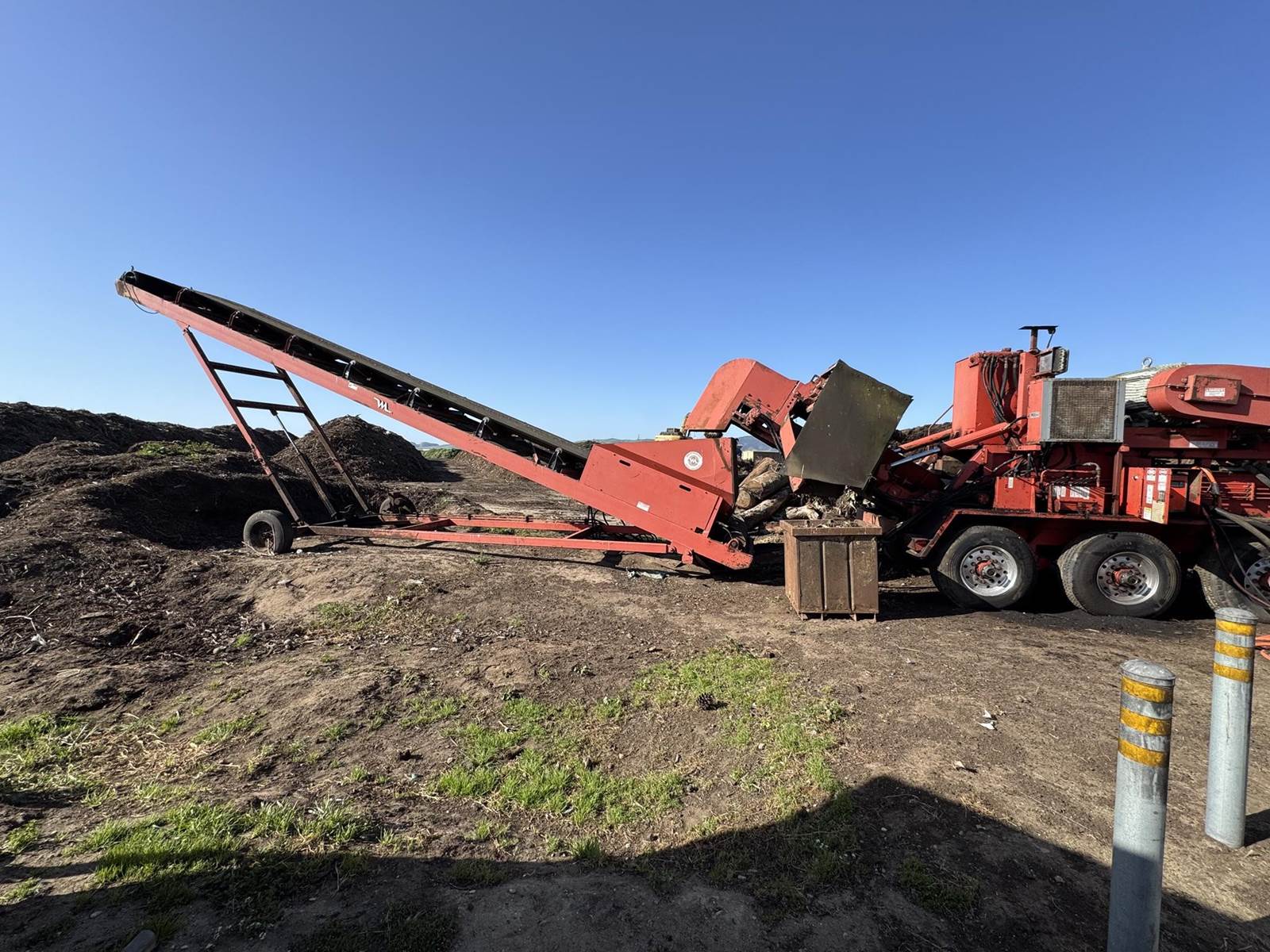

 1 – 2007 Morbark 4048 Radial Stacking Conveyor
Rebuilt less than 100 hours ago, major overhaul on Hammermill including

o New Shaft
o New Bearings both sides
o New Bearing housings
o New Drum end plates
o New Wedge clamps on both sides
o New Rod locking plates
o New Rods, hammers and inserts
o New Insert holders
o New 10 groove sheave
o New Hood Wear Plates
o New Side Wear Plates
o New Anvil
o New Left and Right-side base filler top
o New Hydraulic Control valves for floor and yolk control
o New Drive belts
o Many new hydraulic hoses
o All new parts were purchased through Pape using Morbark OEM parts

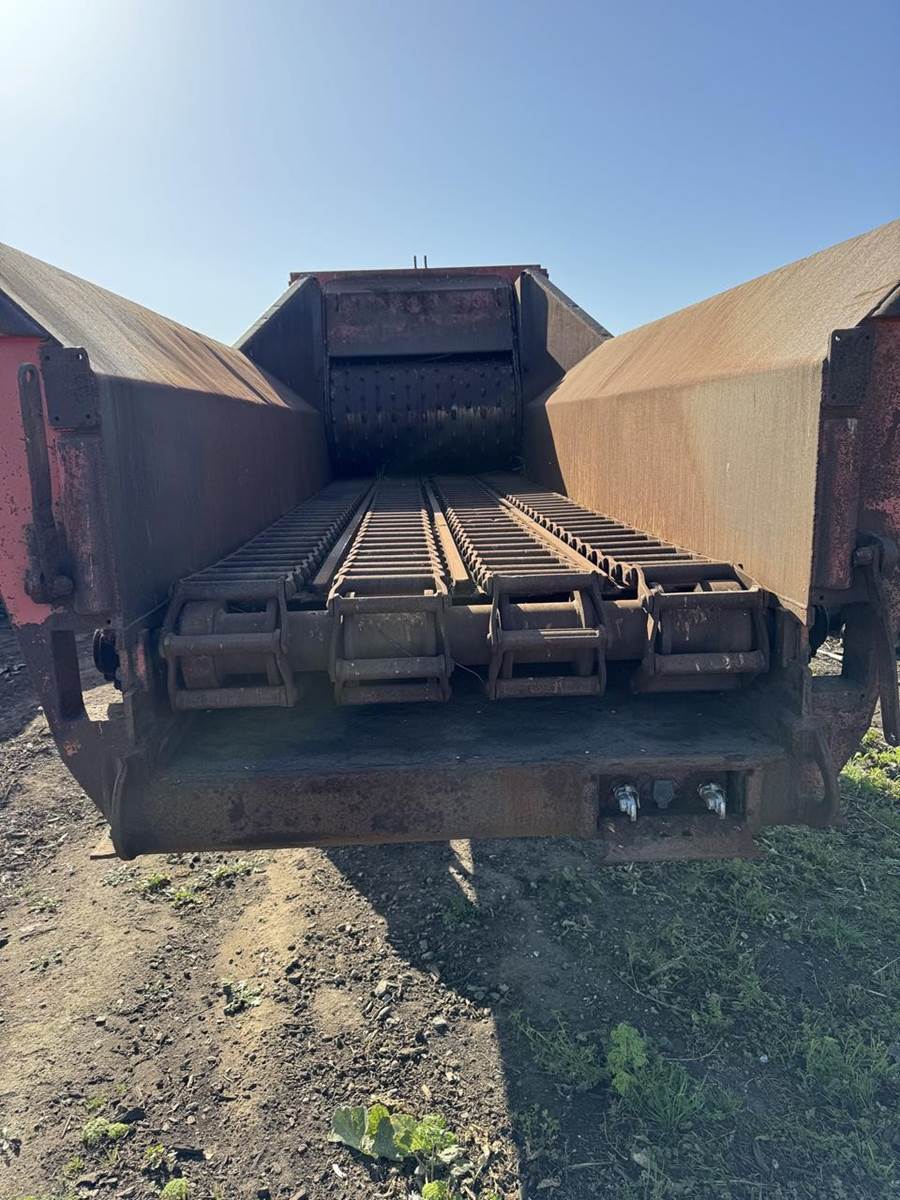

o The feed floor was rebuilt with AR 40
