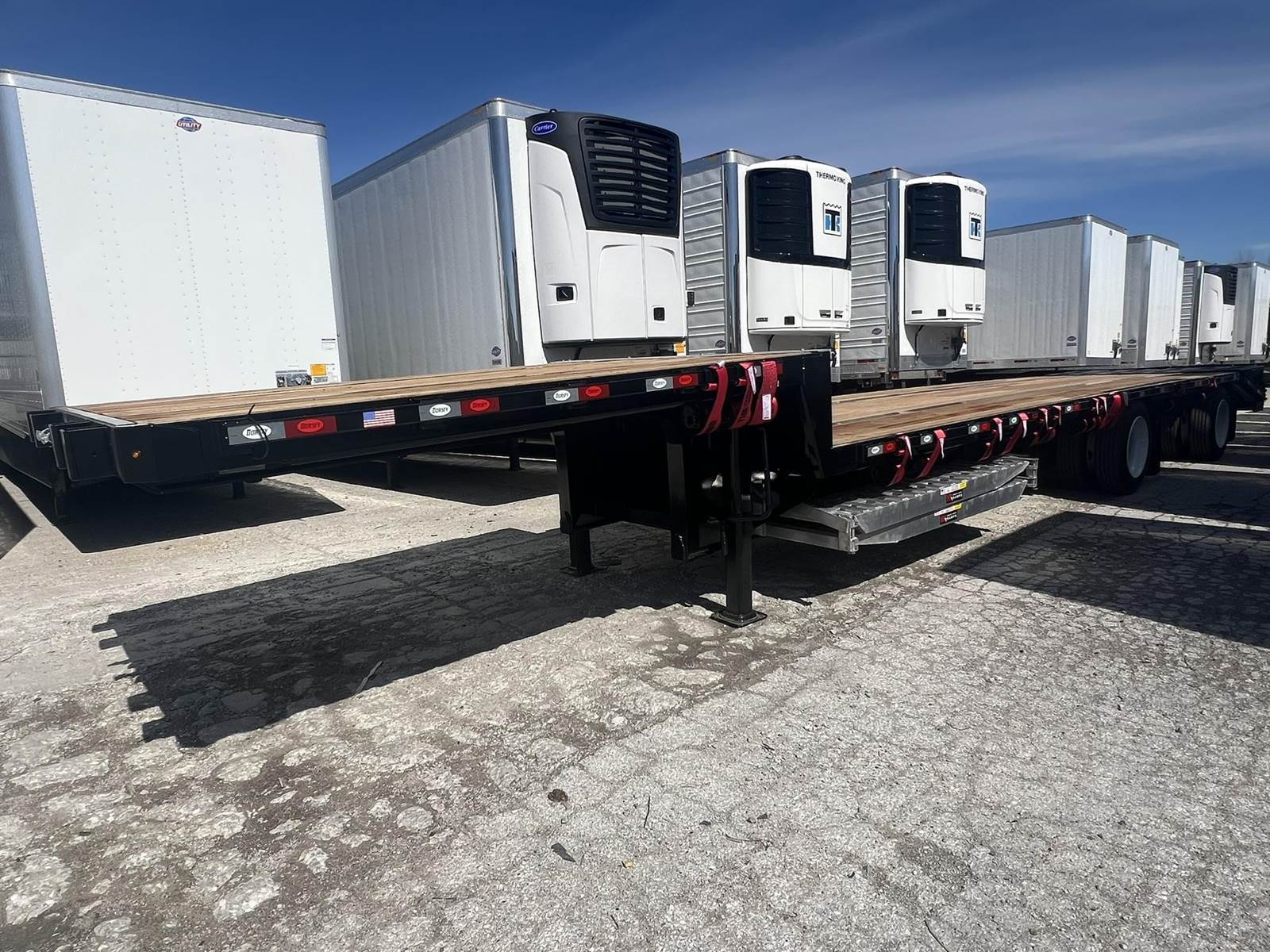

2026 Dorsey 45x102 Steel Drop Deck Trailer - Air Ride, Fixed Spread Axle

2026 45' Dorsey Steel Giant drop deck with ramp kit.

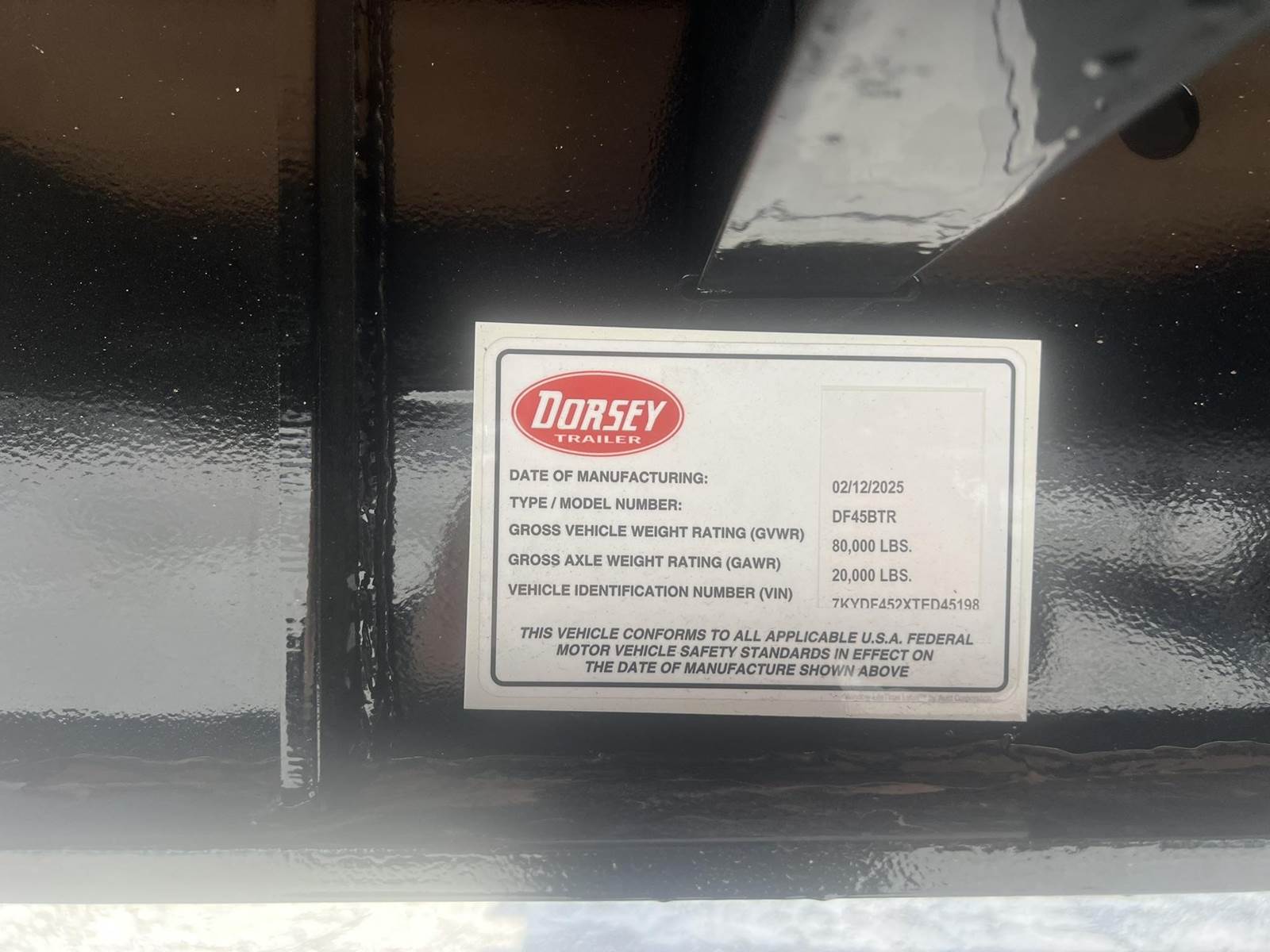

* Capacity: Standard Beam Package -80,000lbs GVWR (60,000lbs in 10’)
* Dimensions: 45’ x 102” Wide
* Base Weight: 11,125 pounds

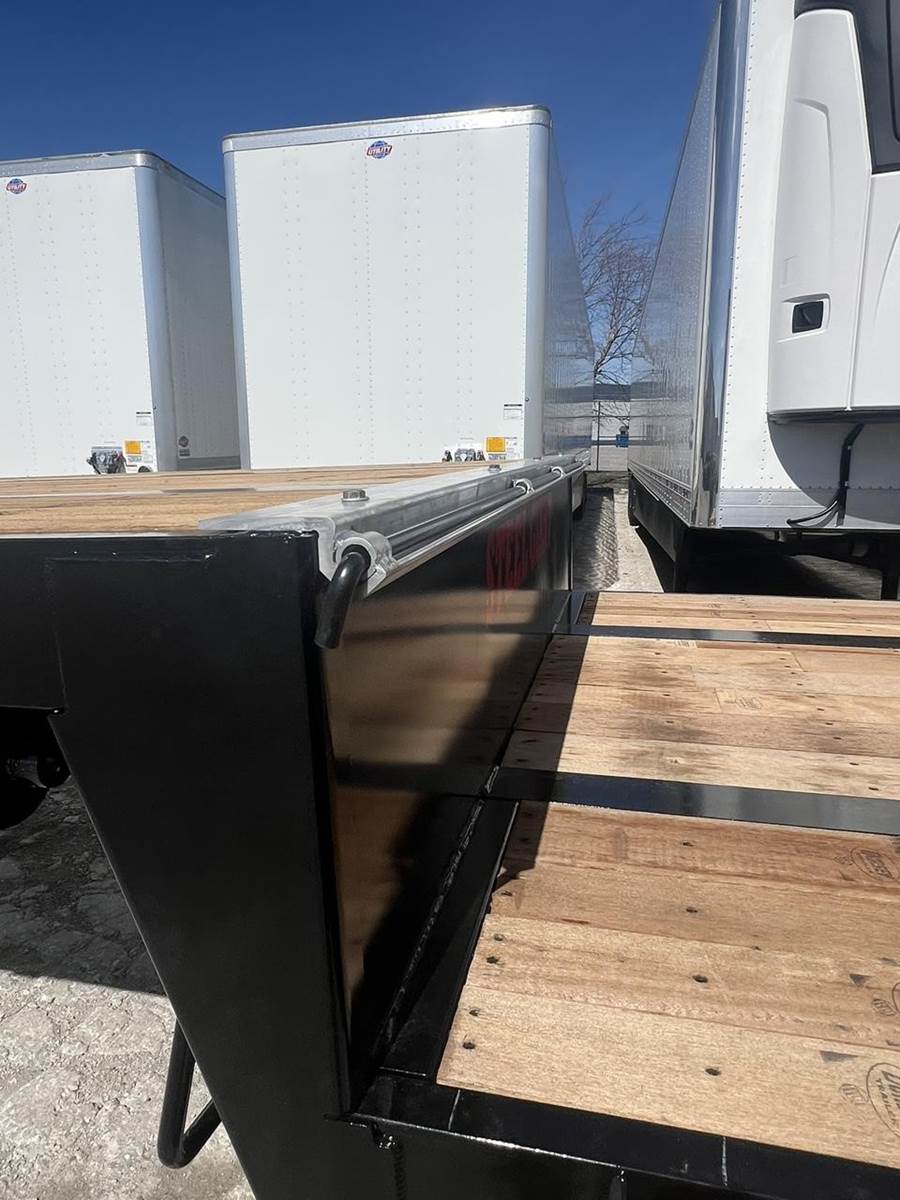

* Top Deck: 10’ 6” length, 59” height
* Lower Deck: 34’ 6” length including beaver tail
* Lower Deck Height: 41-3/4"
* King Pin Setting: 24" –Tapered pickup plate
* Upper Coupler Plate: ¼”
* Upper Coupler Height: 48"

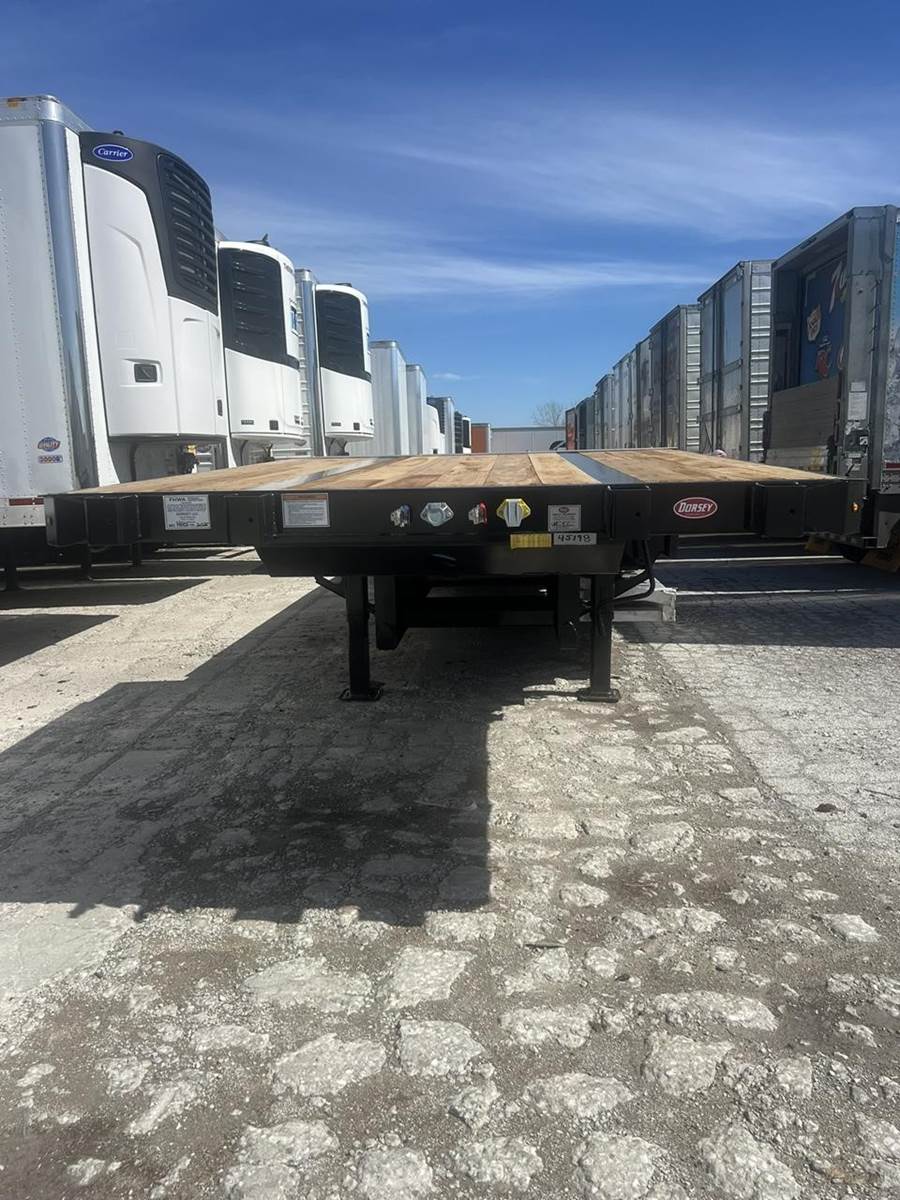

* Front Skirt: Steel front with four bulkhead pocket
* Rear Skirt: Steel
* Main Frame: 26” PreCamb Beam, 130K Tru-Strength Flanges- Limited Lifetime Warranty
* Side Rails: 6”-Channel Iron 6.5# per ft.
* Top Deck Floor Sills: $” Steel I-Beam – 18” O.C.
* Lower Deck Floor Sills: 3” Steel I-Beam 12” O.C. HD pkg
* Neck Transition Ramps: *None*
* Coil Package: Single Could Placement – 5 Extra Stud sills- Ctr on trailer

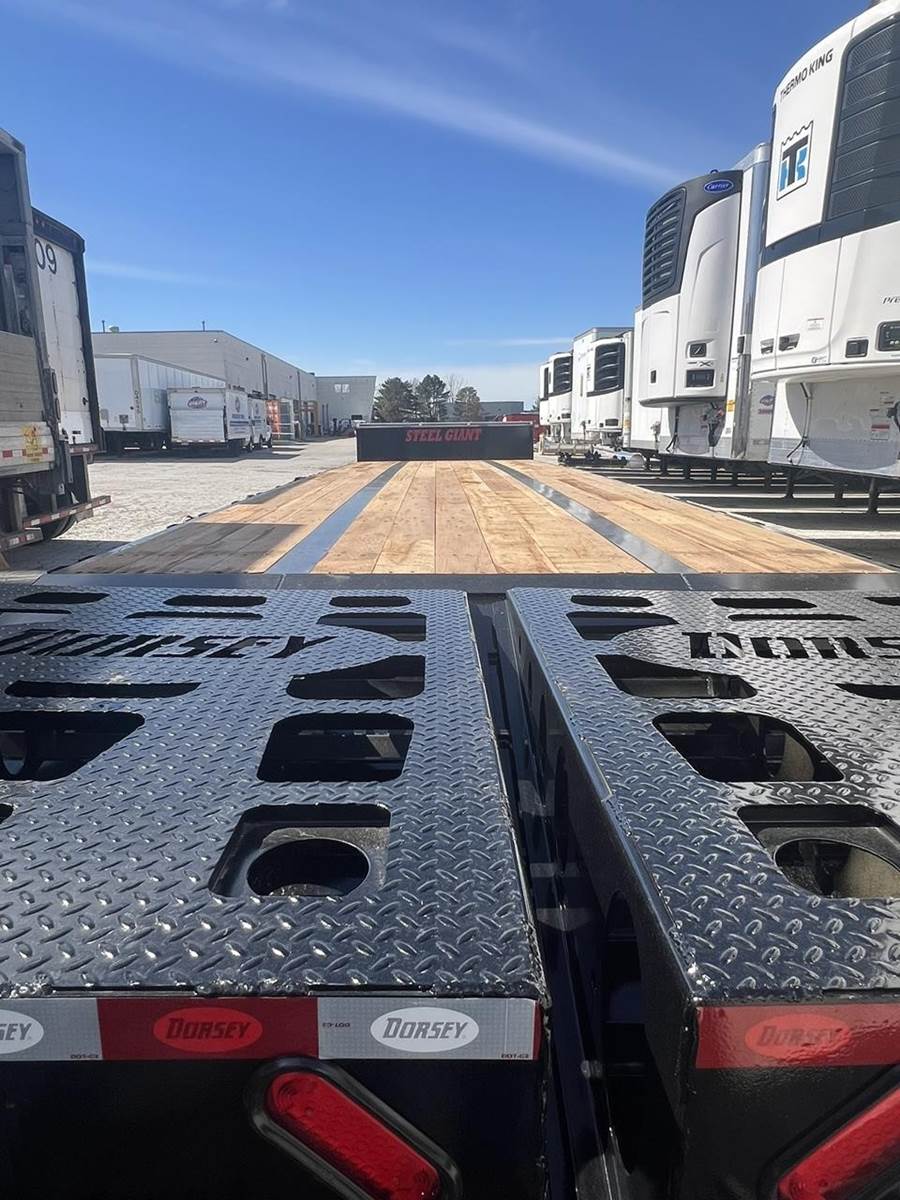

* Rear Beavertail 52” -32 degree transition - Steel w/traction bars

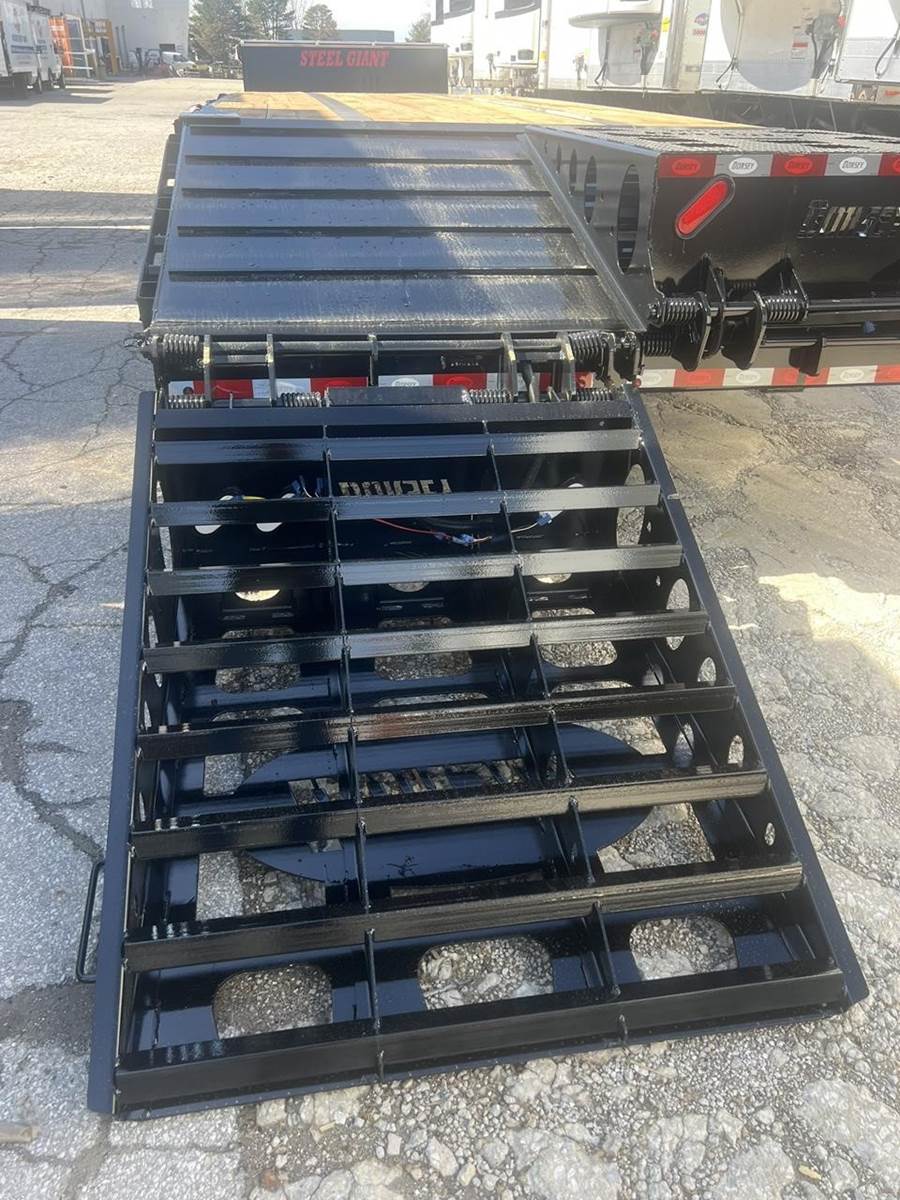

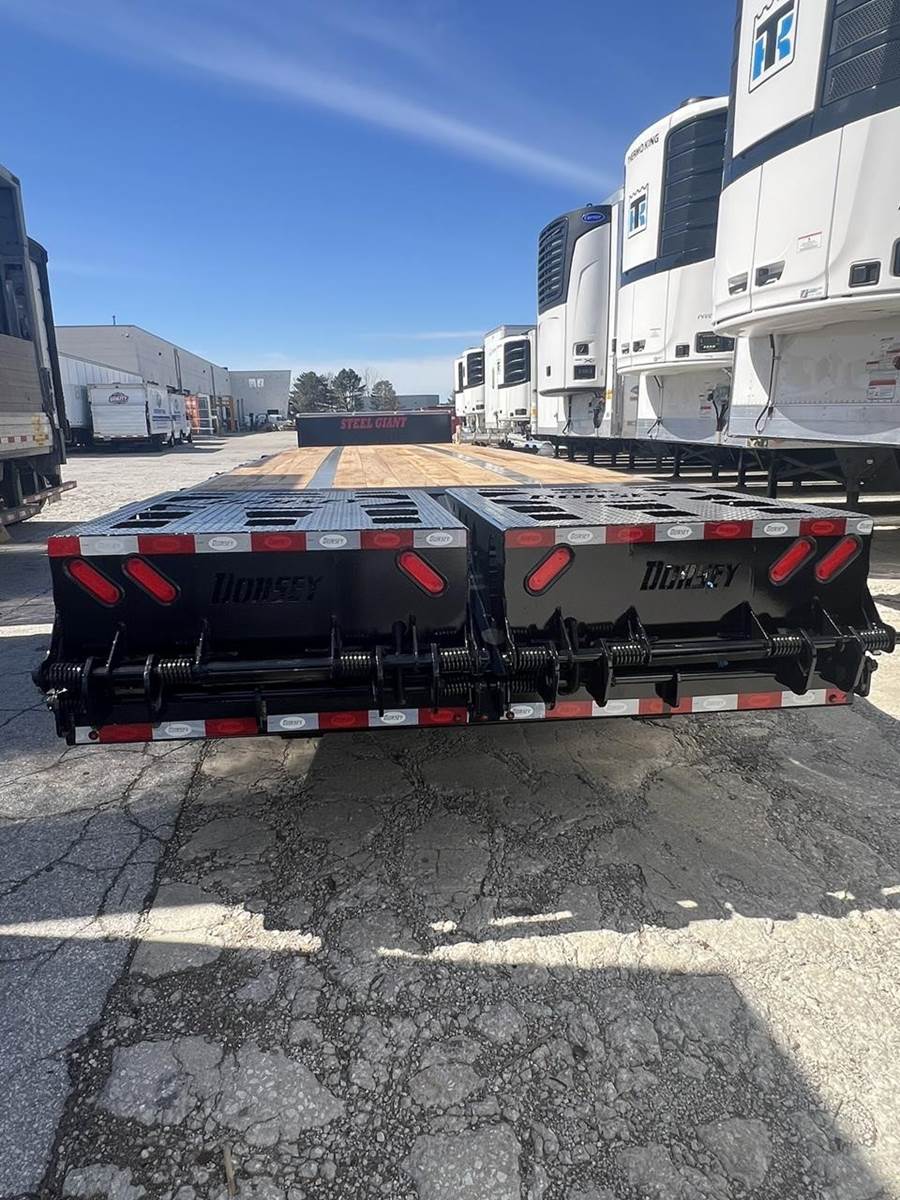

* Rear Loading Ramps: Steel self cleaning – full width spring assist, Goliath series ramps
* Winches: 15 C-channel
* Winch Track: C Channel steel-welded underneath R/S
* Tie Bar: Curb Side – full length 3/8” x 2”
* Straps: 15-4” x 30’ w/flat end hook
* Mudflaps: Anti-sail behind all axles
* Stake Pockets: 24” O.C. sides, 4 on front
* Pipe Spools: Double pipe spools
* Rub Band: Steel 3/8” x2.5” steel w/recessed DOT tape
* Dock Bumpers: Rubber inboard
* Tire Carrier: In front of main beams b/w landing gear
* Lights: Grote Ultra Blue sealed wiring harness. 2 micros per side and mid turn 3-3-3 rear lights
* Paint: Black PPG Epoxy primer and acrylic polyurethane
* Decal Package: Standard Dorsey logo kit

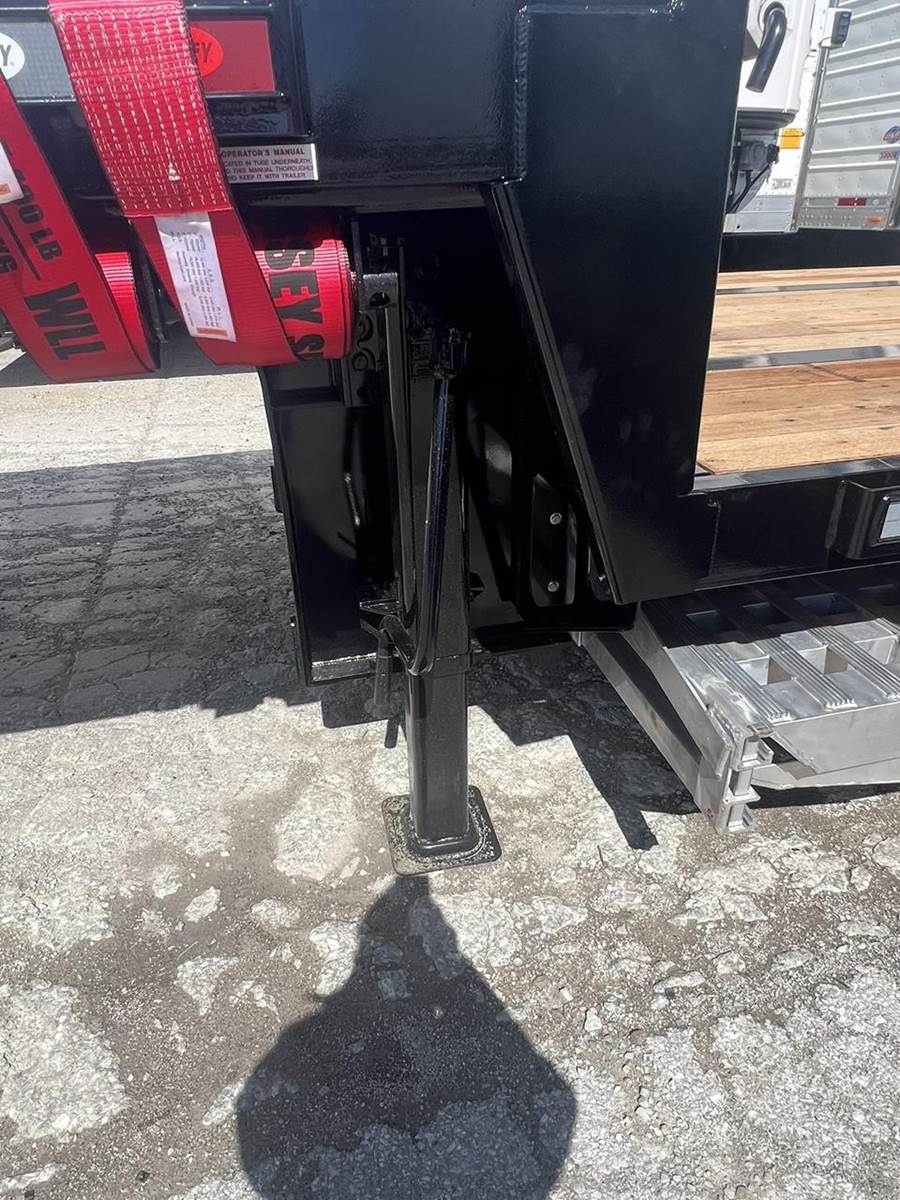

* Landing Gear: Jost A500 2-Speed

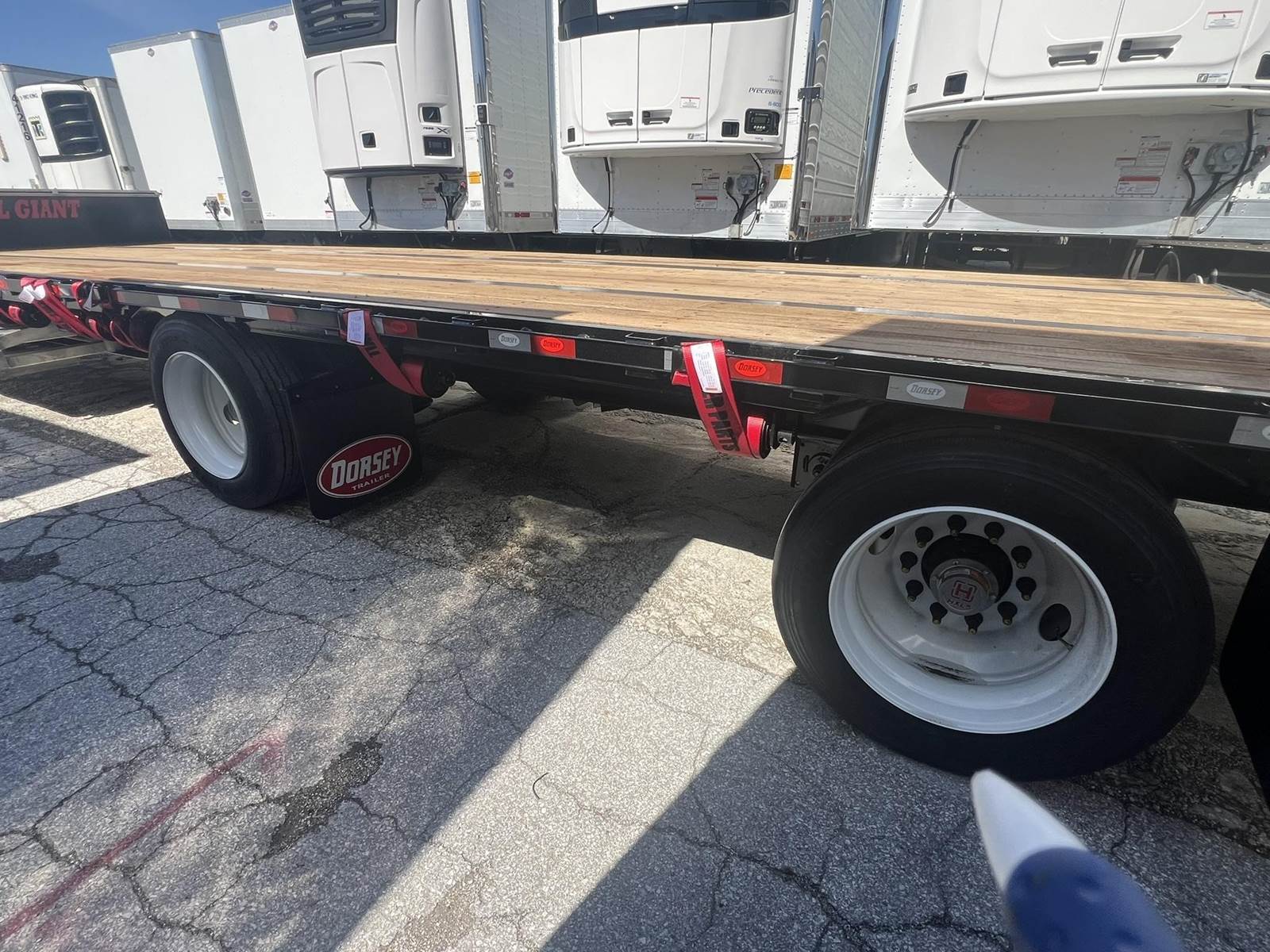

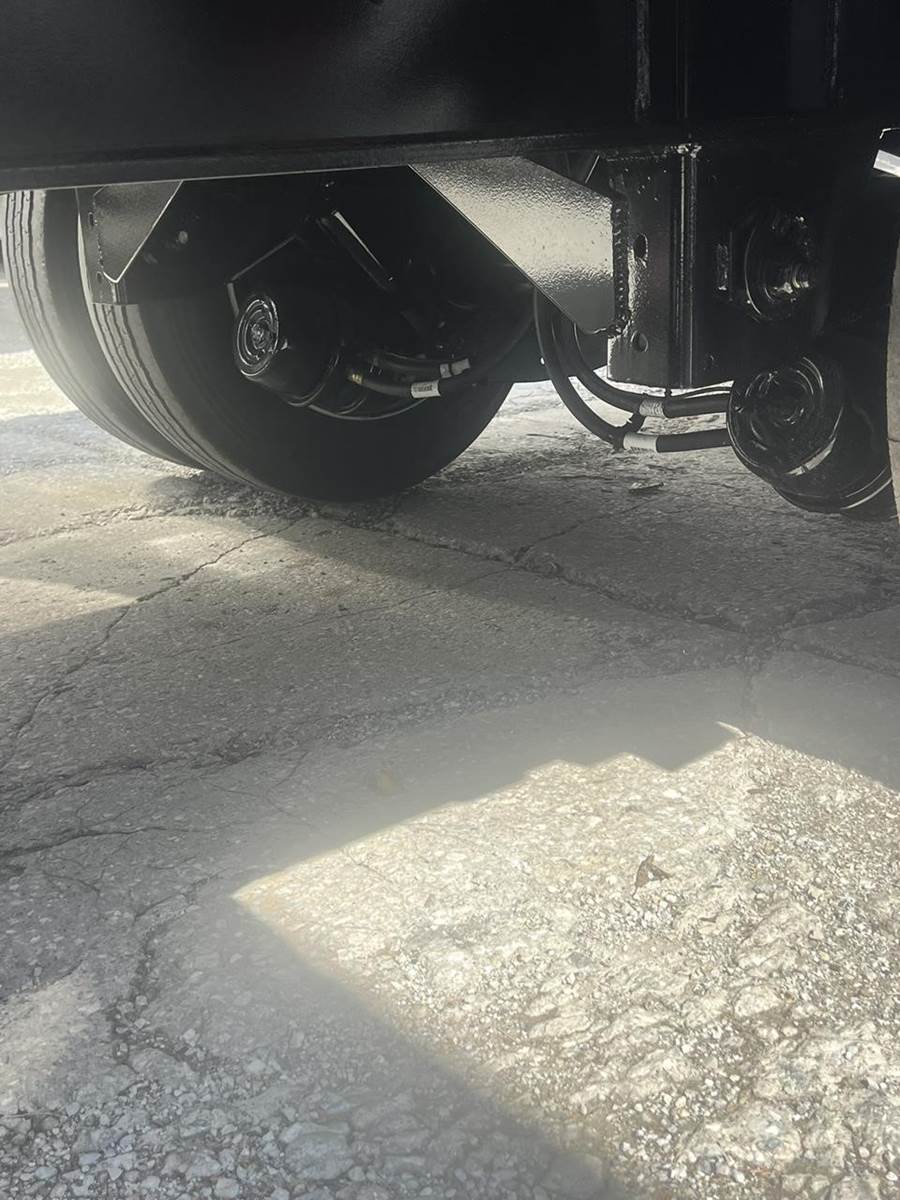

* Suspension: Hendrickson Intraax 23K, fixed – 10’ 2” Spread
* Suspension Location: Set at rearmost position
* Axles: 2 - 23K Capacity, Type 30 Chambers – Auto Slacks
* Wheels: Disc, hub piloted 22.5
* Tires: Firestone 255/70R 22.5
* Dump Valve: Manual & electric – wired through 7 way, Dumps Rear Axle
* ABS Brakes: Wabco 2S/1M
* Parking Brakes: All axles

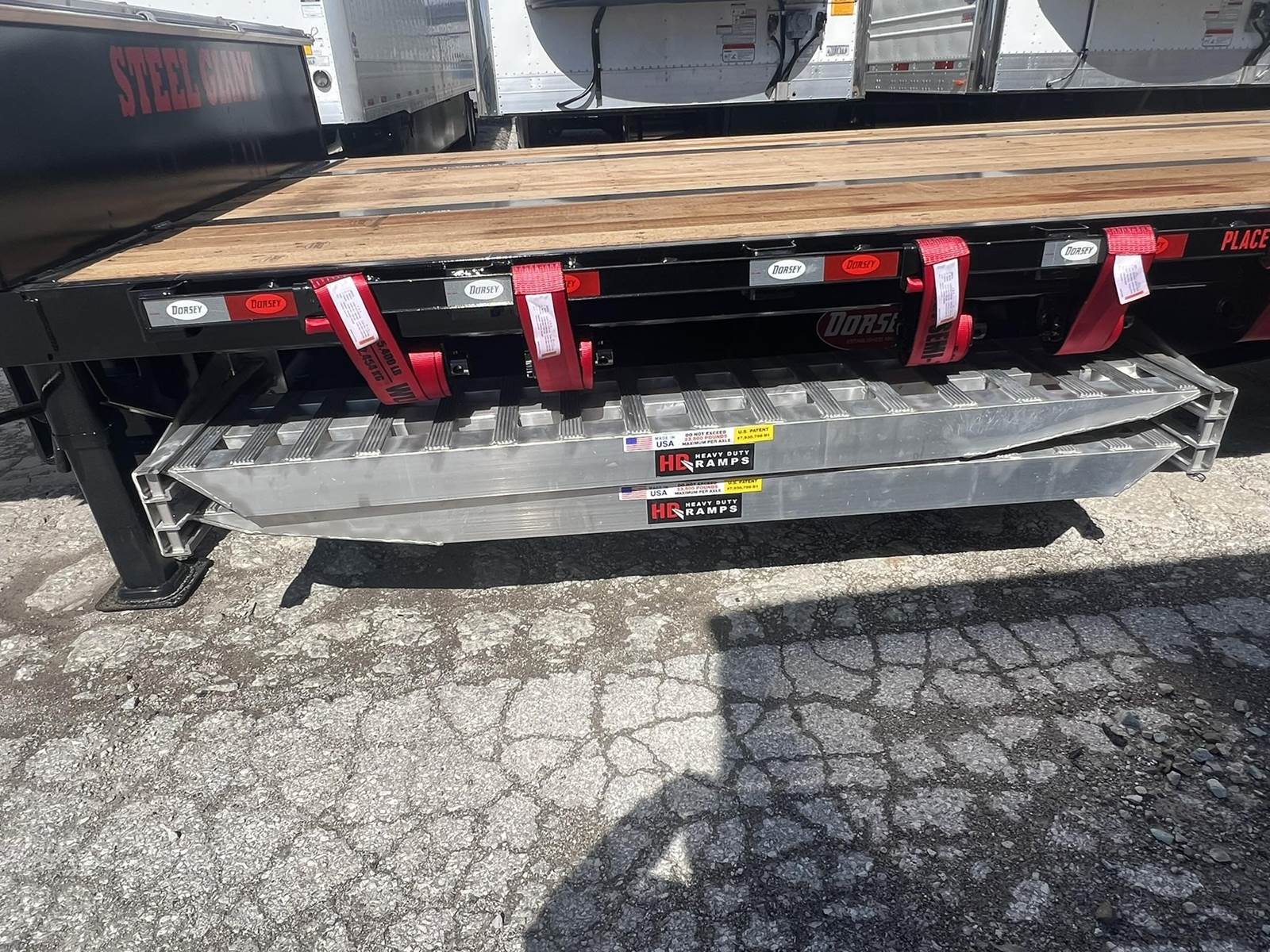

* Ramp Kit: with skid seats and storage on side of trailer

Financing Available.

Call Jim or Monte for more information.
