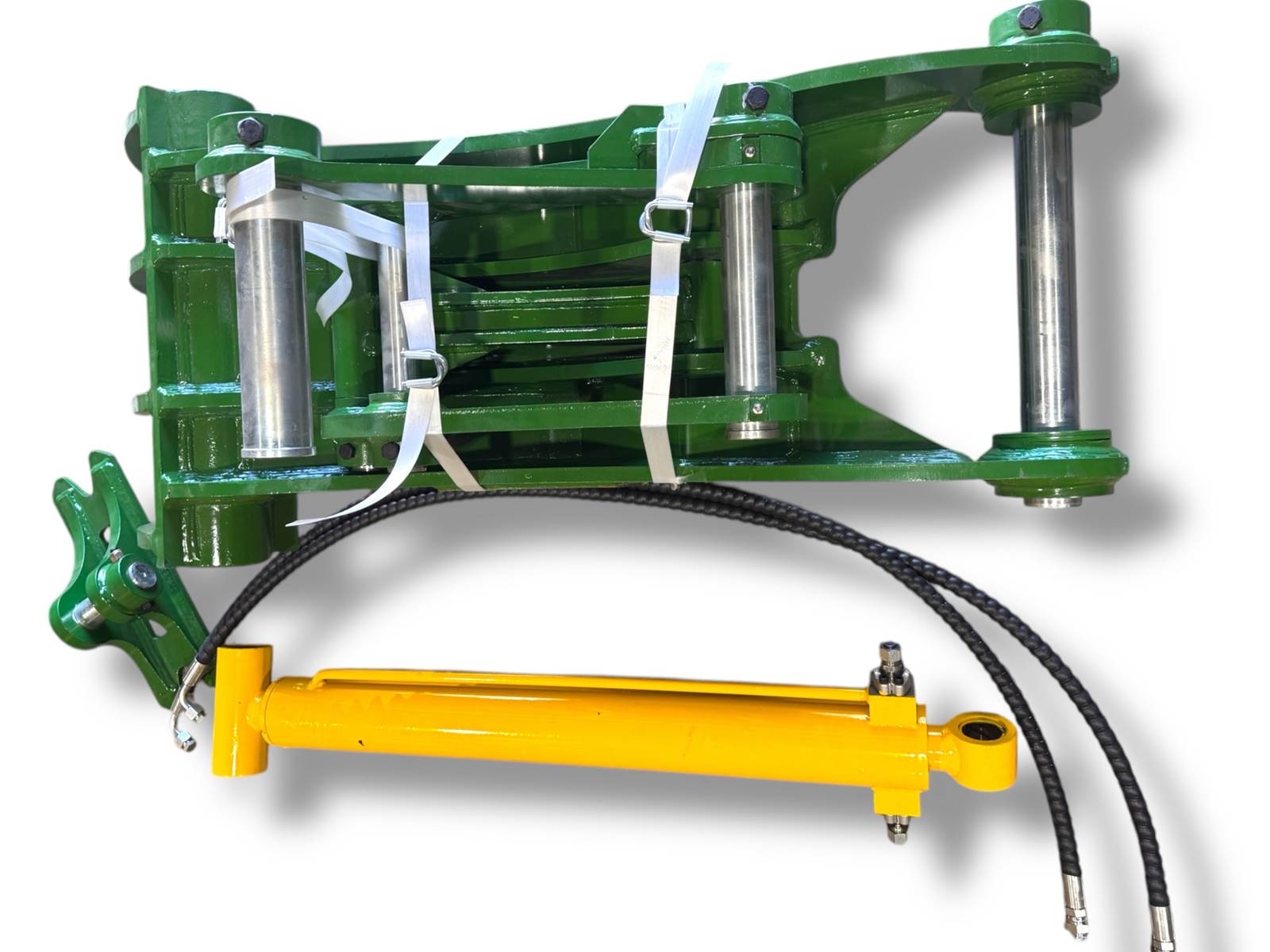

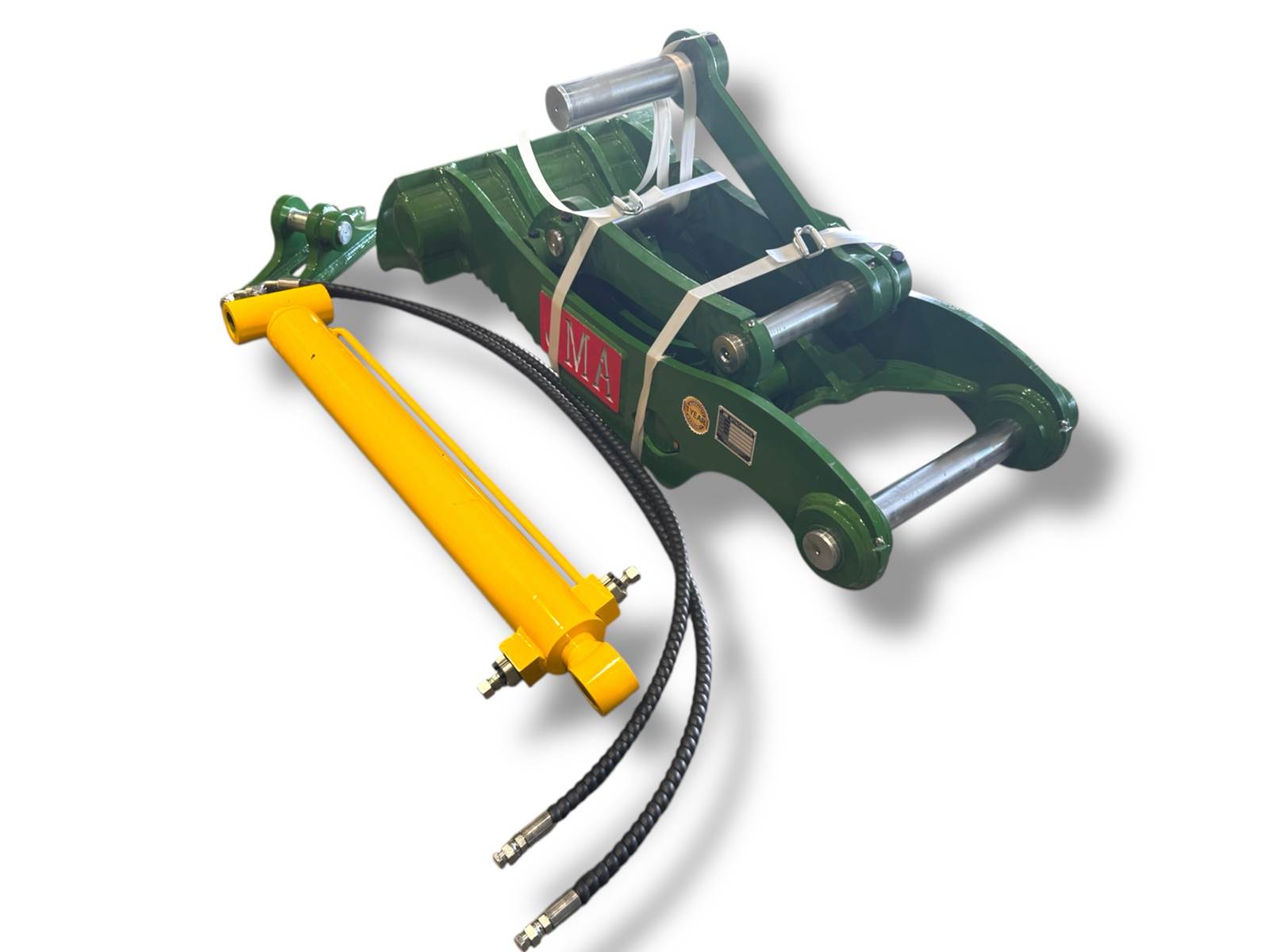

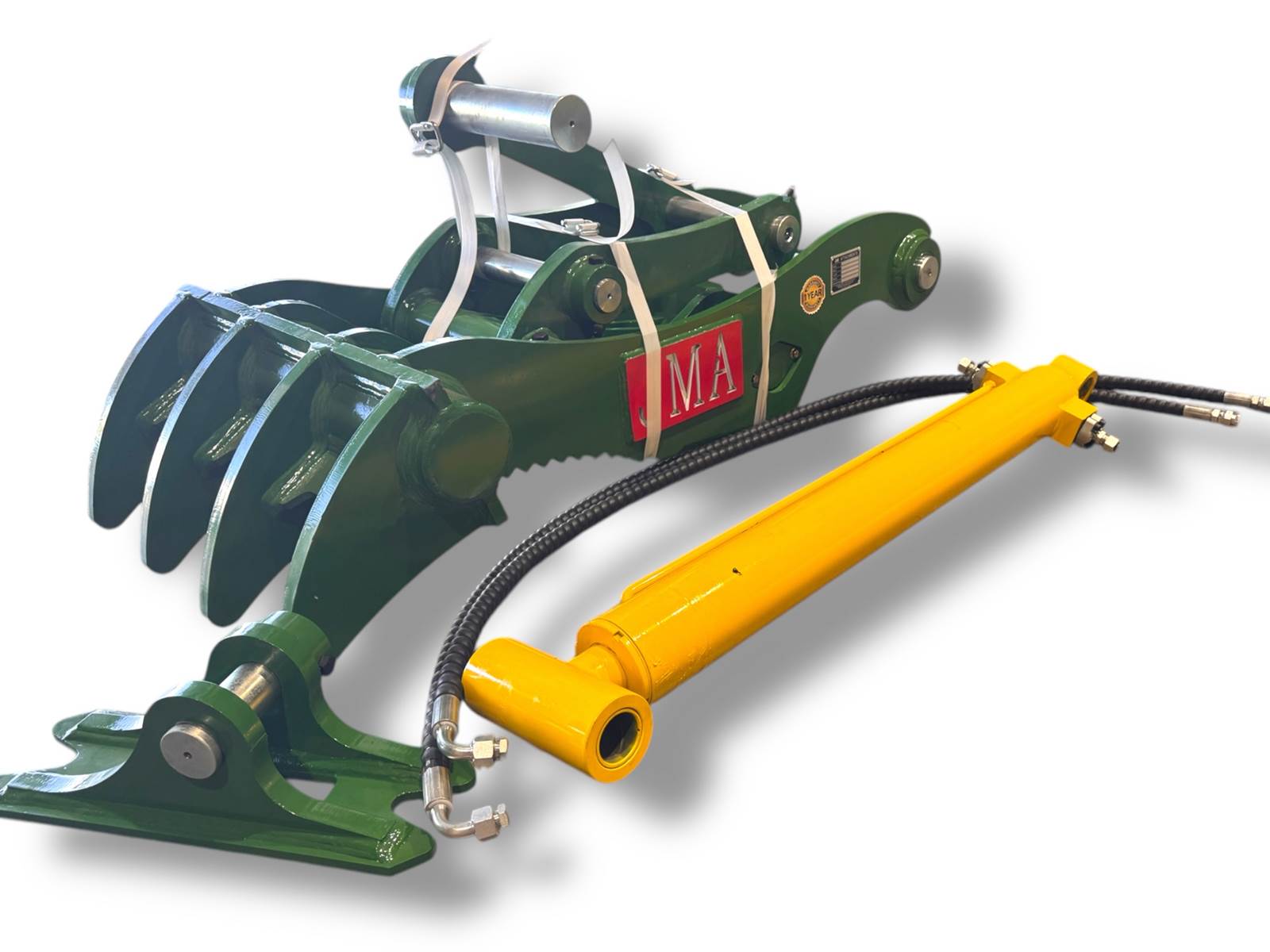

Introducing our JMA Main Pin Hydraulic Progressive Link Thumb Specifically for Caterpillar 315, 315D, 316E, 316F, 318D2, 318E, 318F Excavators.
Technical Specifications:
Main-pin diameter: 65MM (Pin Included)
Overall Length: 1,396 mm / 55” inches
Width: 680 mm / 26.77” inches
Height: 374 mm / 14.72” inches
Weight: 550 KGS - 1,213 lbs
Hydraulic Cylinder length: 1,181 MM
Retract Hydraulic Cylinder Length: 2,019 MM Extended
